Homemade for a Grinder From a Piece of Pipe and Two Bolts
Simple, but at the same time functional homemade product for a grinder. With this device, you can strip a huge number of metal pipes in a short period of time.

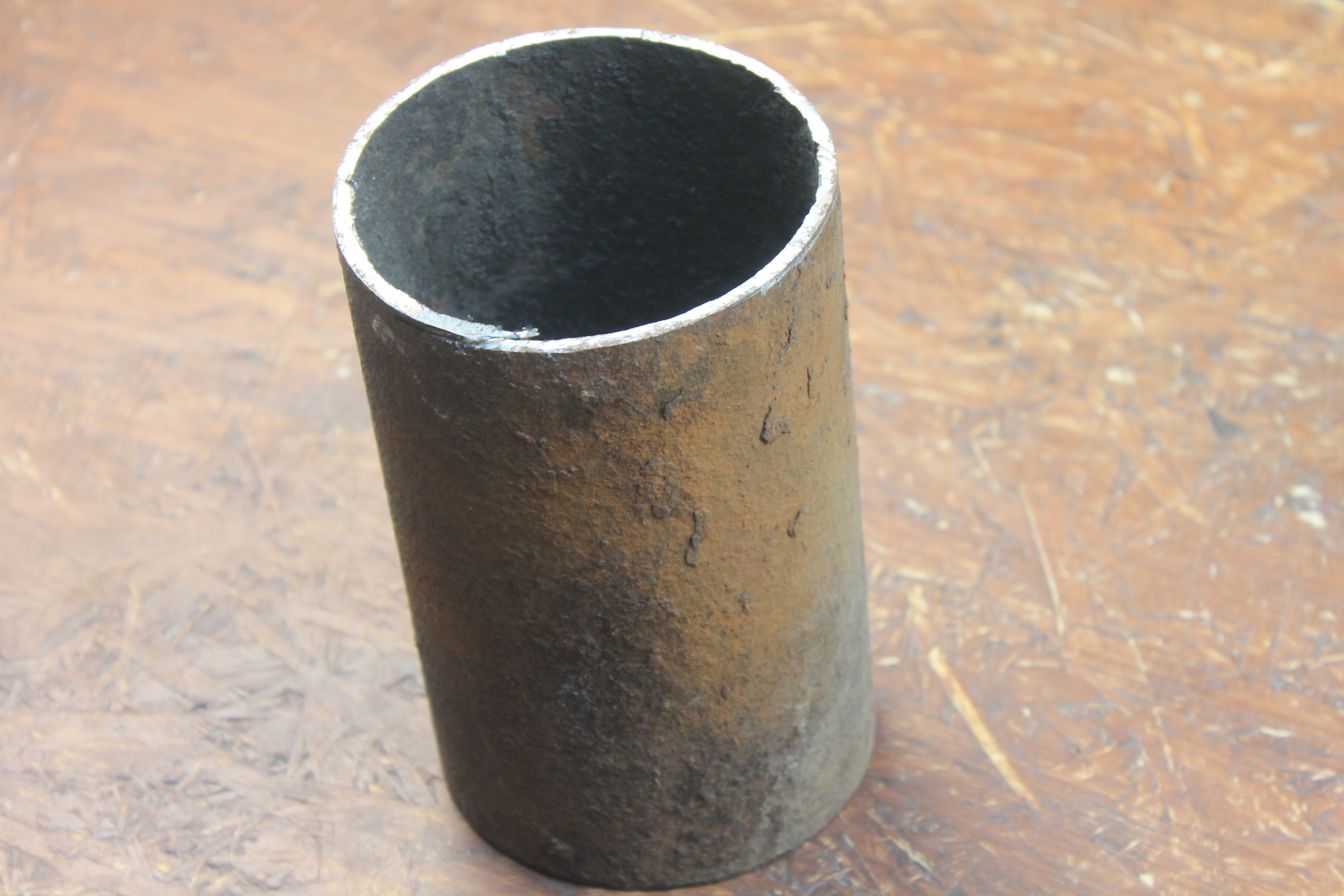

As a Basis, I Took a Piece of Pipe at 108 Mm.

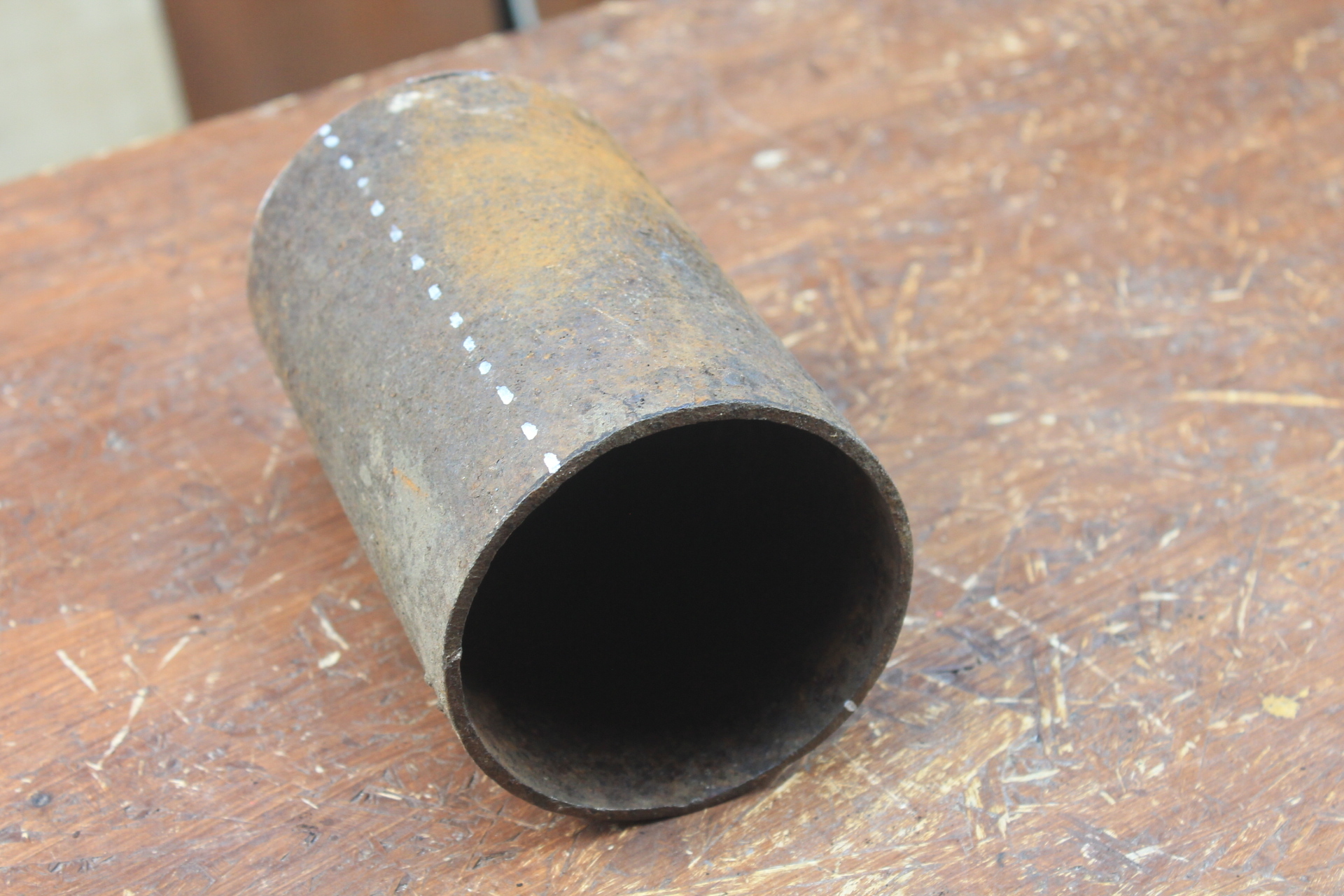

Do the Markup.
Cut Off on a Marked Line. This Kind of Blank Is Obtained at This Stage.

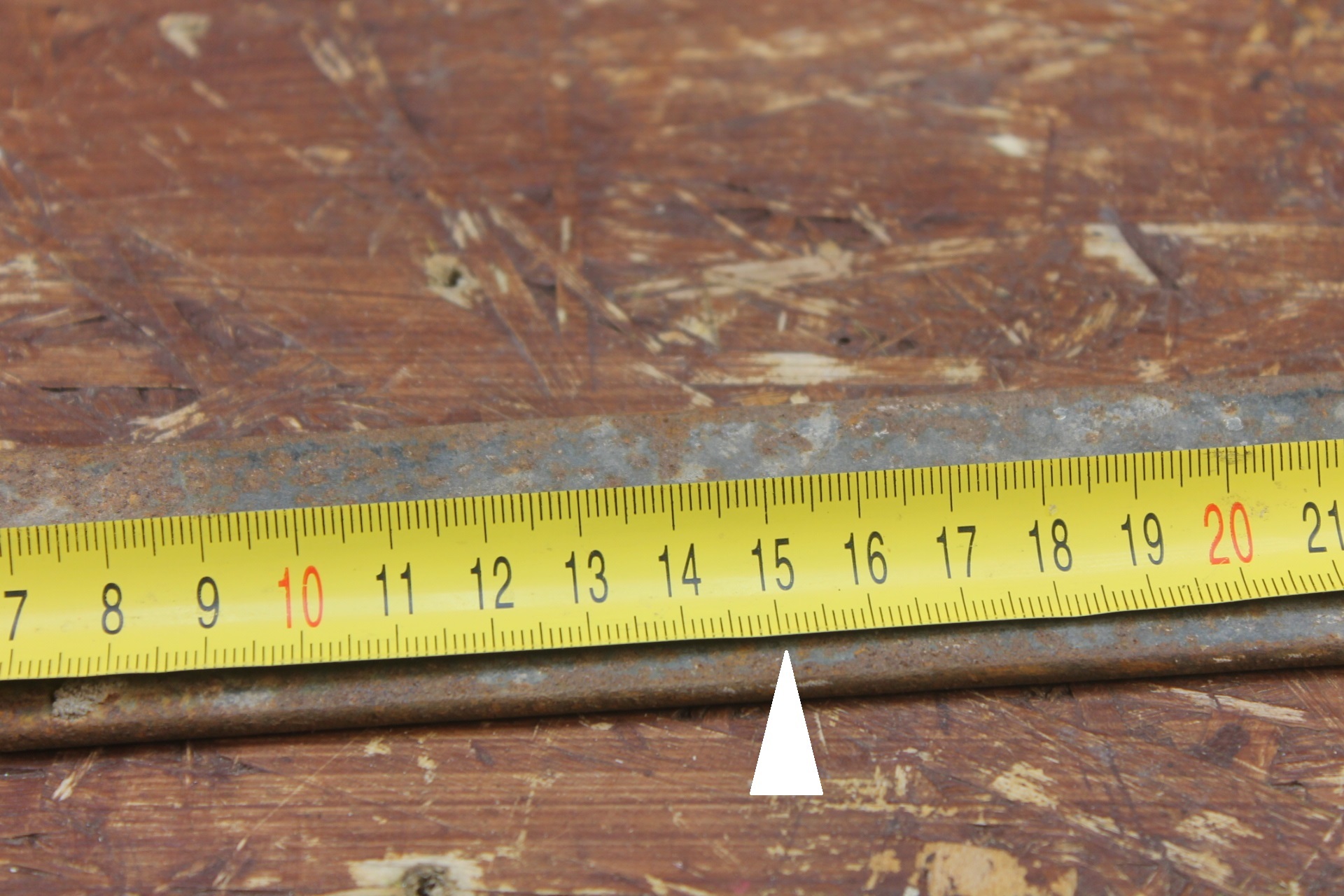

Now We Take a Profile Pipe 20 * 20 and Cut Off 150 Mm.
From a Piece of Metal Strip We Measure Twice 150 Mm Each.
Cut and Get the Workpiece.
We Make Holes in the Plates, Then the Marking for the Slot.
That's How It Turned Out.
We Turn on the Welding Machine and Weld a Section of the Profile Pipe to the Main Part.
On Each Side of the Pipe We Weld the Plates, It Can Be Painted for Aesthetics.
Clamp Our Homemade Product in a Vice, Fix the Grinder With Bolts. As You Understand, the Height Is Adjustable for Different Pipe Diameters.
We Connect
We connect the grinder through the speed control. Watch a short video. Anyone who has cleaned the pipe at least once will definitely appreciate the usefulness and effectiveness of this homemade product.
Done
Of course, if you need to clean a meter of the pipe, then you can do it in a vice, but if the volume is large, then this homemade product is very useful.
