Homemade Wakeboard, Wakeskate Winch From BeachWinches.com
Here is a simple wakeboard, wakeskate winch that you can bring anywhere. Ride your wakeboard or wakeskate places a boat can not go. This is a very exciting project and for more info about beach winches go to http://www.beachwinches.com.
You can use this winch for wakeboarding, wakeskating, skimboarding, snowboarding, etc. so this one winch is a very verstile machine.
*Update
Here is a short video describing what a beach winch is.
You can use this winch for wakeboarding, wakeskating, skimboarding, snowboarding, etc. so this one winch is a very verstile machine.
*Update
Here is a short video describing what a beach winch is.
First the Spool
First I built the spool

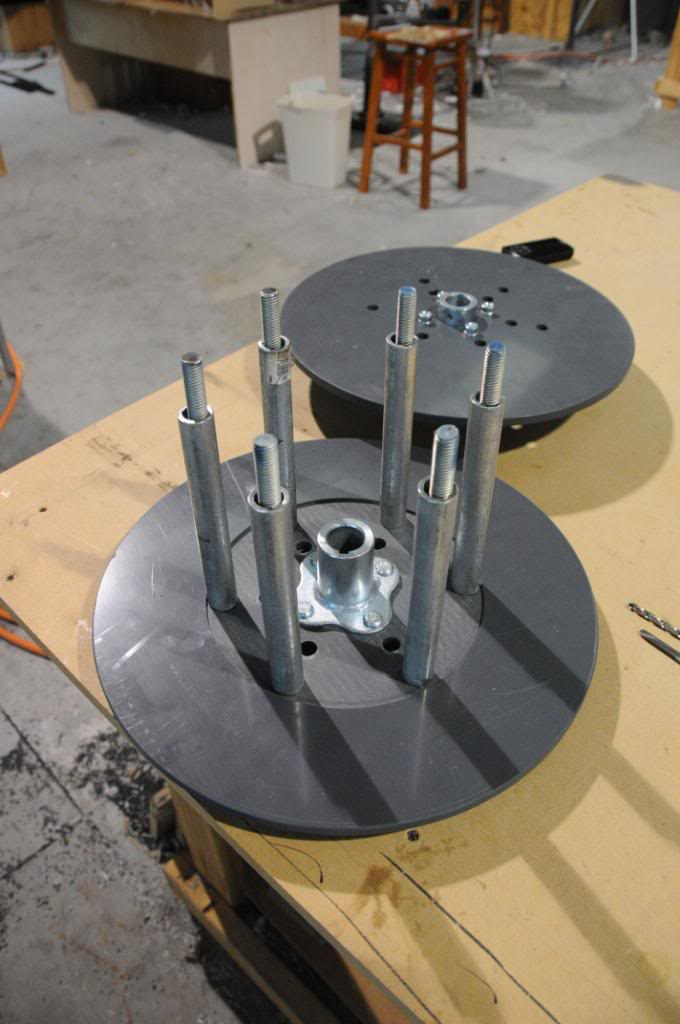

Here is my spool. I do cnc machining so I cut my spool walls out of heavy duty plastic. I am confident it will work just fine because i've seen it used before. If it doesnt work I will replace it with steel walls.
Materials:
1/2 all thread.
1/2" galvenized pipe.
threadlocker.
ny-lock nuts.
Go Kart hubs.
washers.
etc.
Here is my spool. I do cnc machining so I cut my spool walls out of heavy duty plastic. I am confident it will work just fine because i've seen it used before. If it doesnt work I will replace it with steel walls.
Materials:
1/2 all thread.
1/2" galvenized pipe.
threadlocker.
ny-lock nuts.
Go Kart hubs.
washers.
etc.

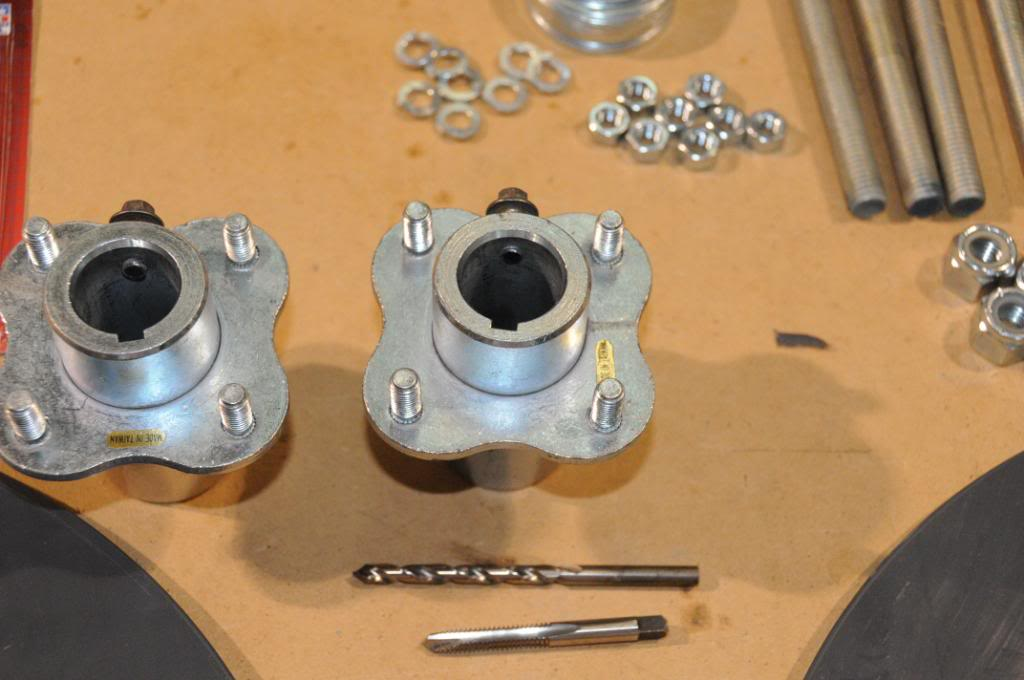

Drill/tap Your Hubs

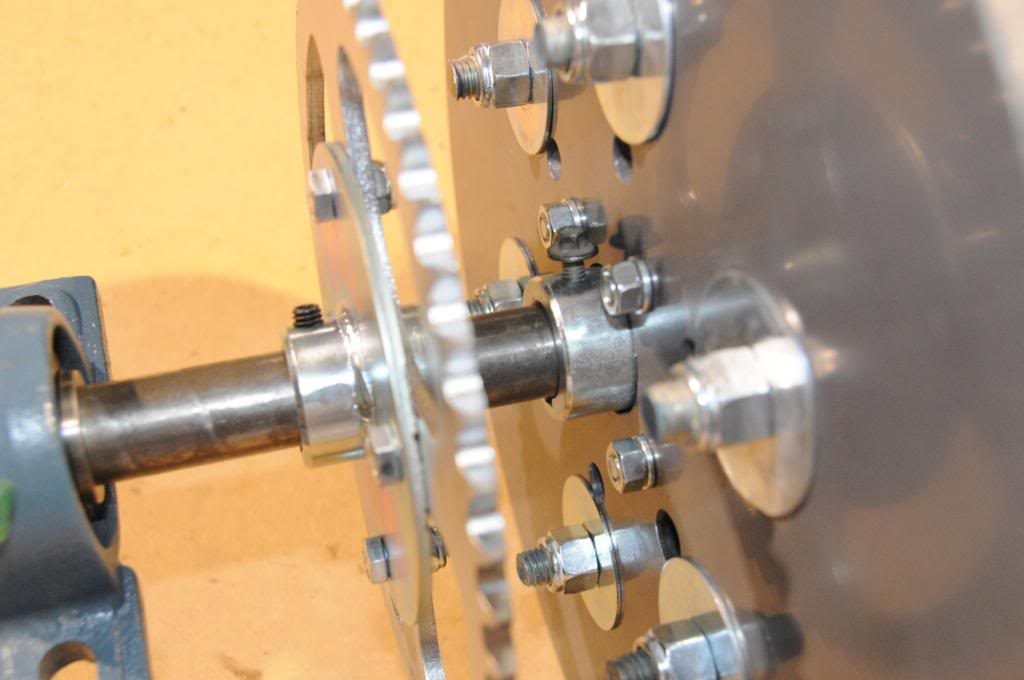

I had to drill/tap a set screw into each hub. I also have the studs/cotter pins to make it a releasable spool if I dont like it this way.

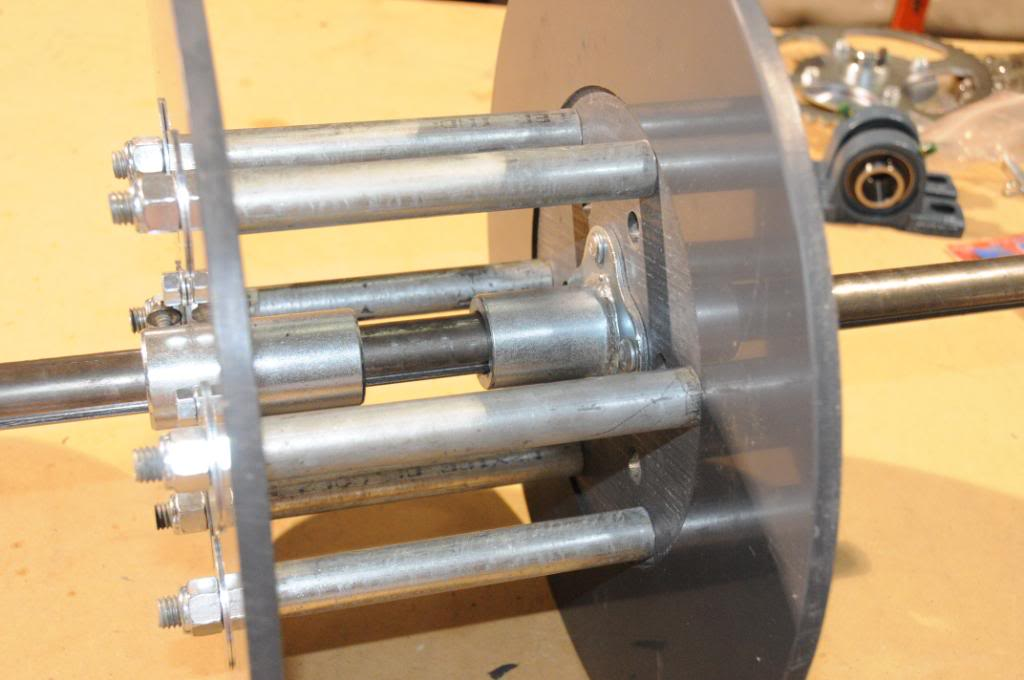

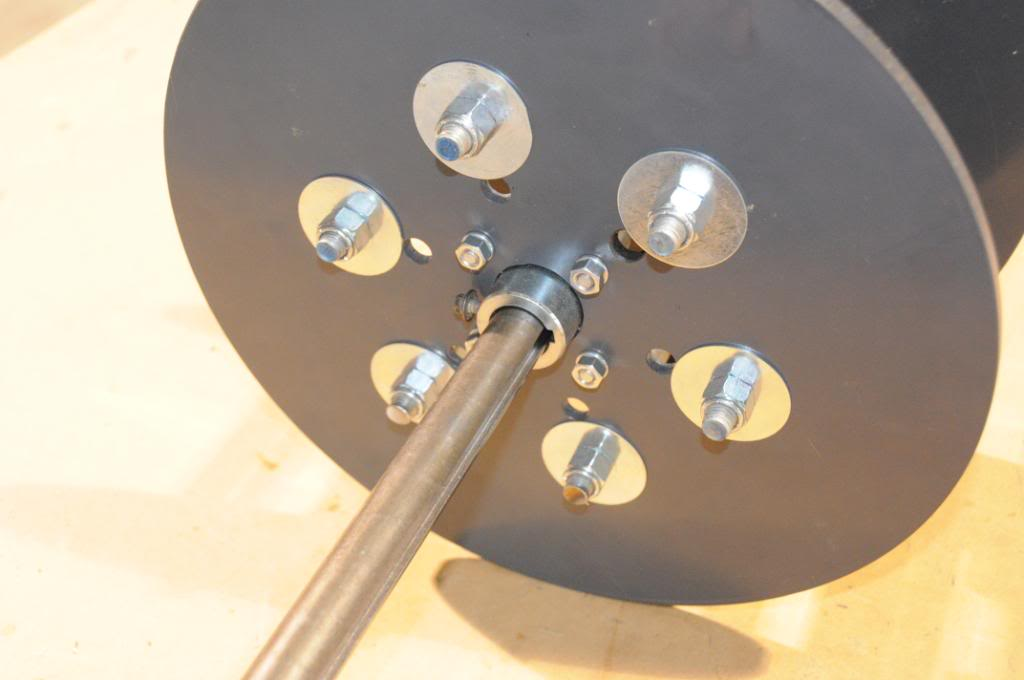

Assemble Your Spool
Asemble Your Spool like the pictures and make sure you threadlock your bolts. The 1000 bullet line was purchased here http://www.bulletlines.com/?Click=1676

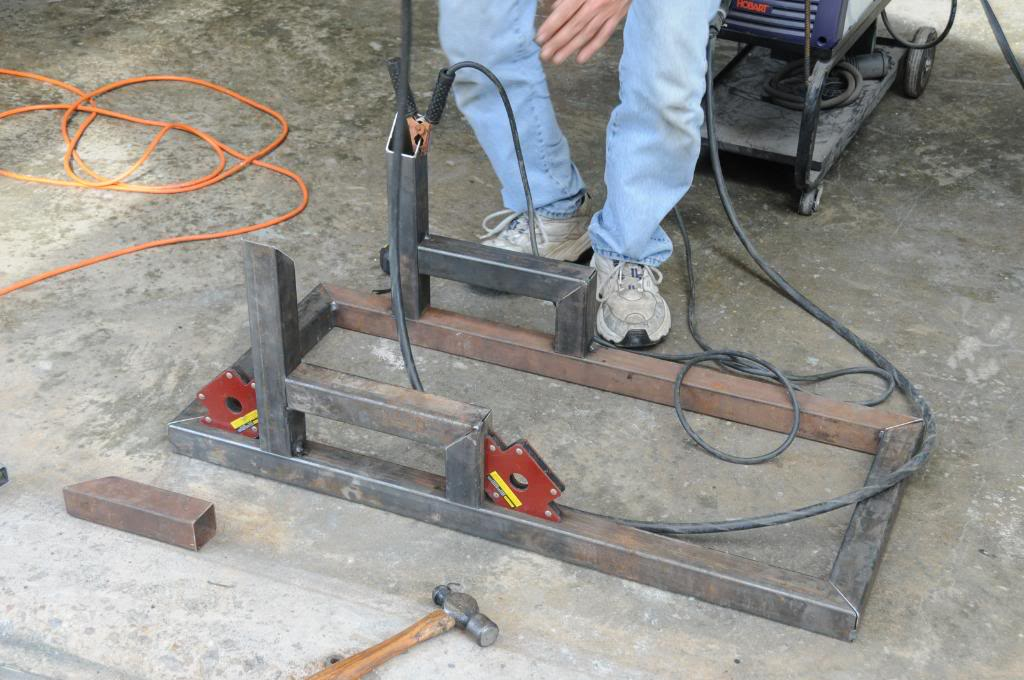

Now for the Frame

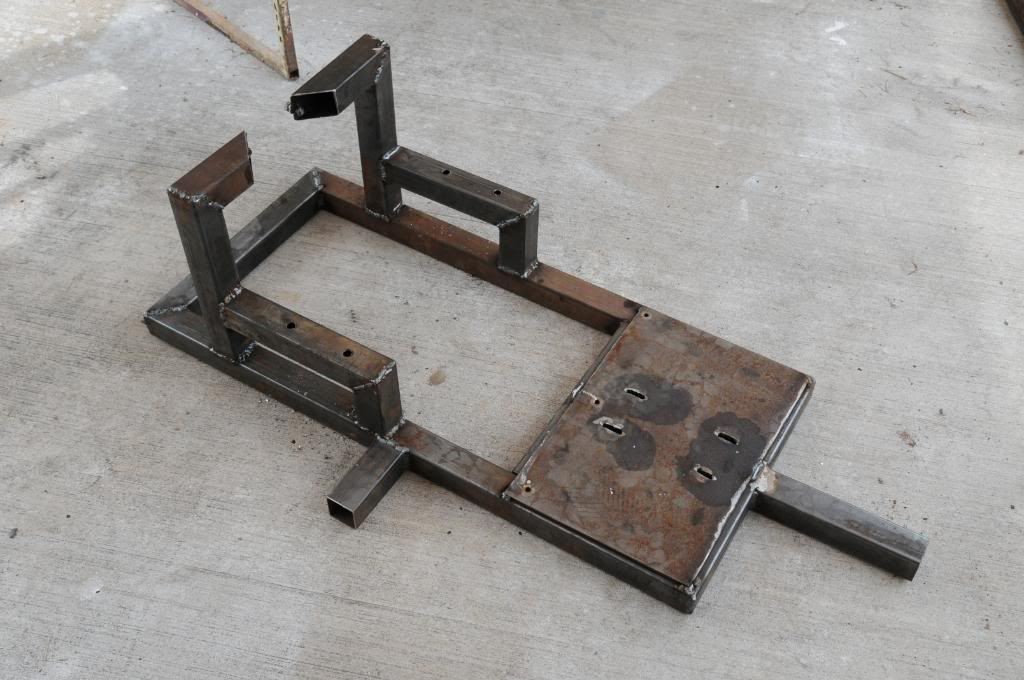

Now for the frame. I used 2" square 14ga tubing. It took a little less then 20ft to build. the base is 40x18" (not including the trailer hitch part). All the detailed measurments are in the picture below.
Measure Twice

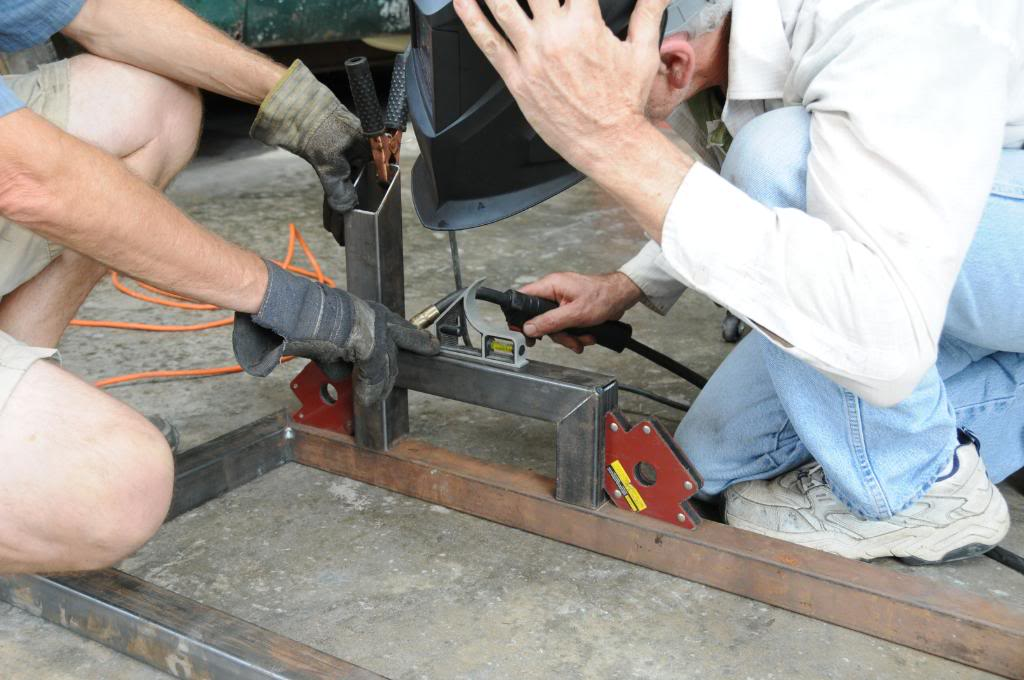

Make sure everything is square! Measure twice!

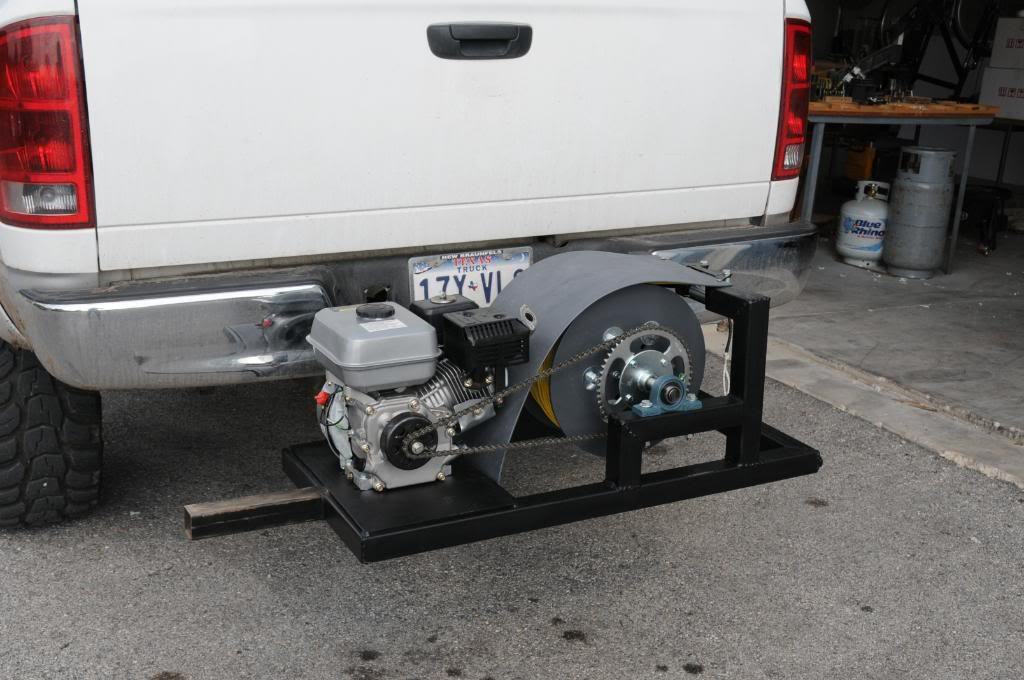

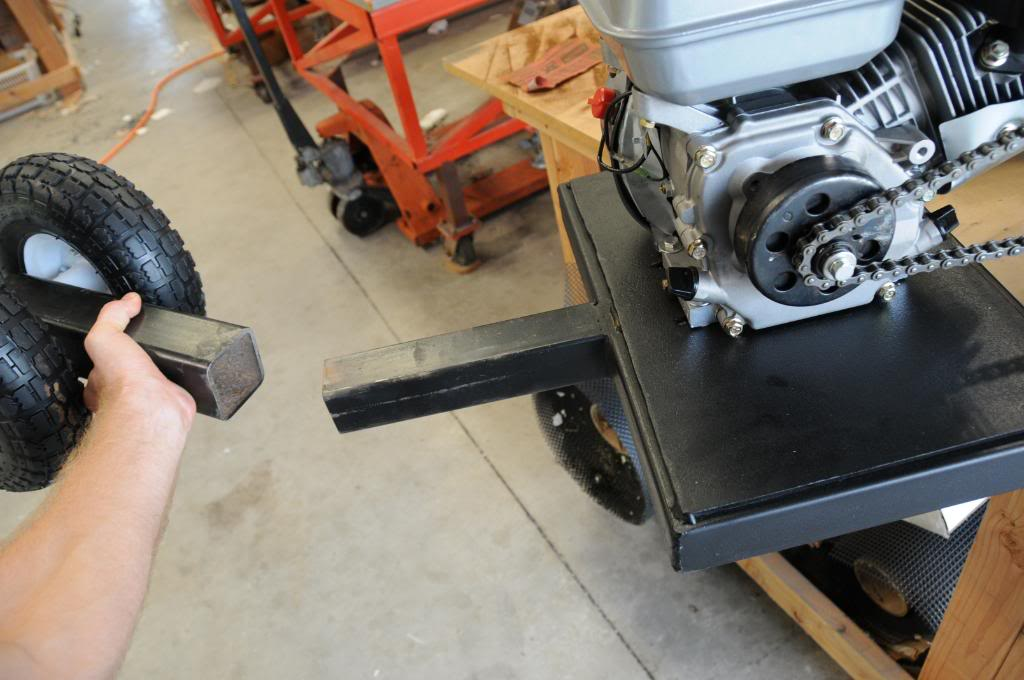

Add Your Trailer Hitch

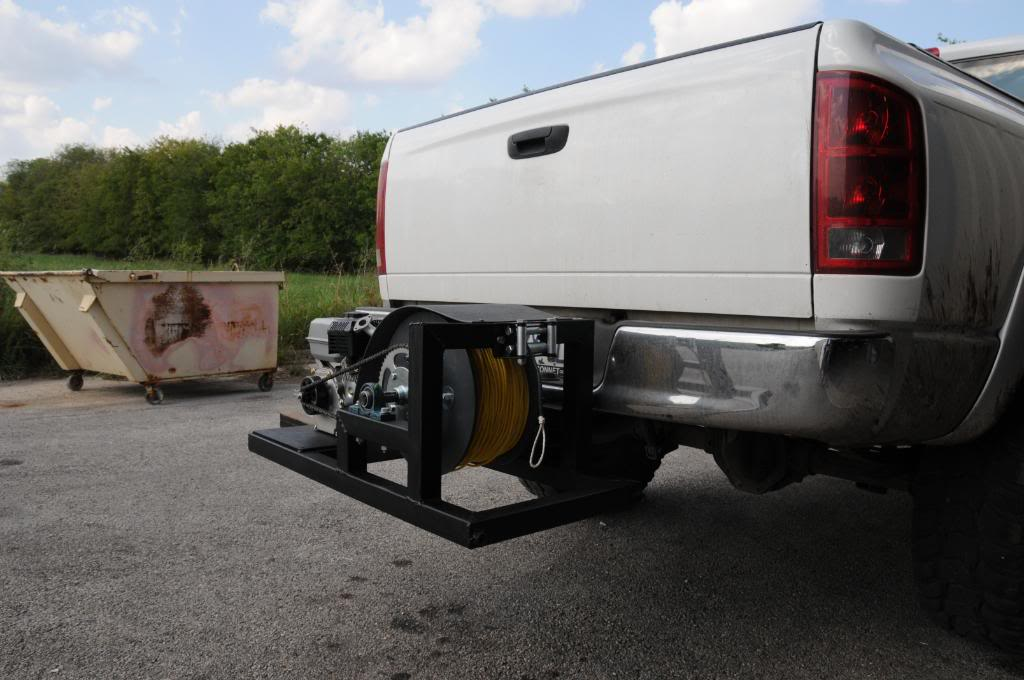

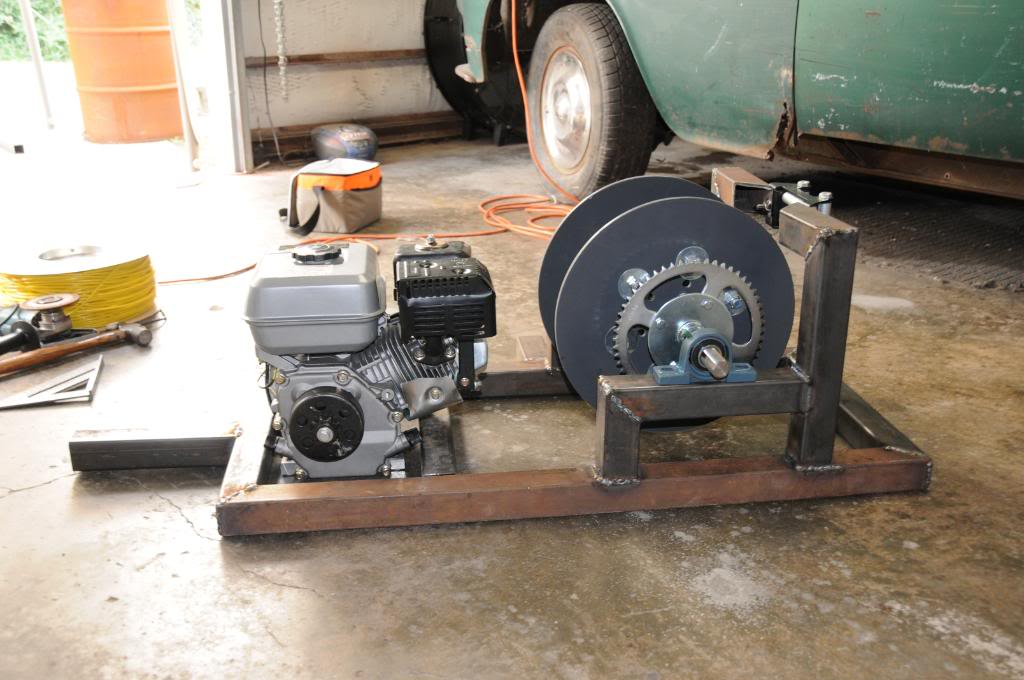

All done with welding, the motor mount is sloted for chain tension adjustments. I put 2 trailer hitch mounts, one tucks it up close for traveling and one sticks it strait out for riding.

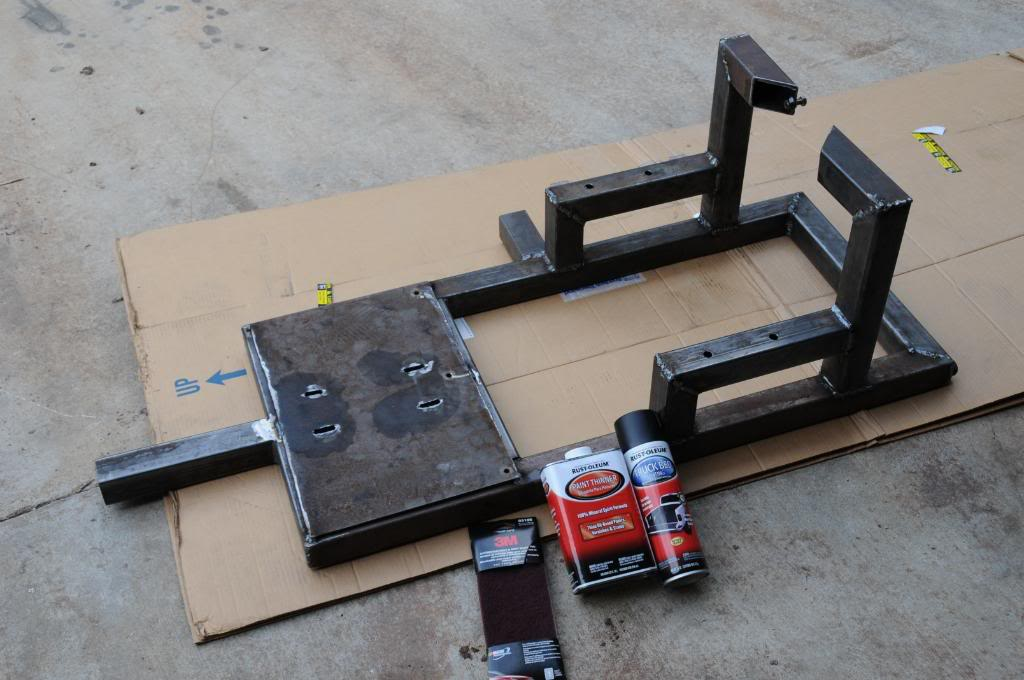

Prep for Painting
Paint prep/paint. Use paint thinner and a scuff pad to clean the metal, then paint. We used spray truck bed lining to make our winch rust proof and tough.

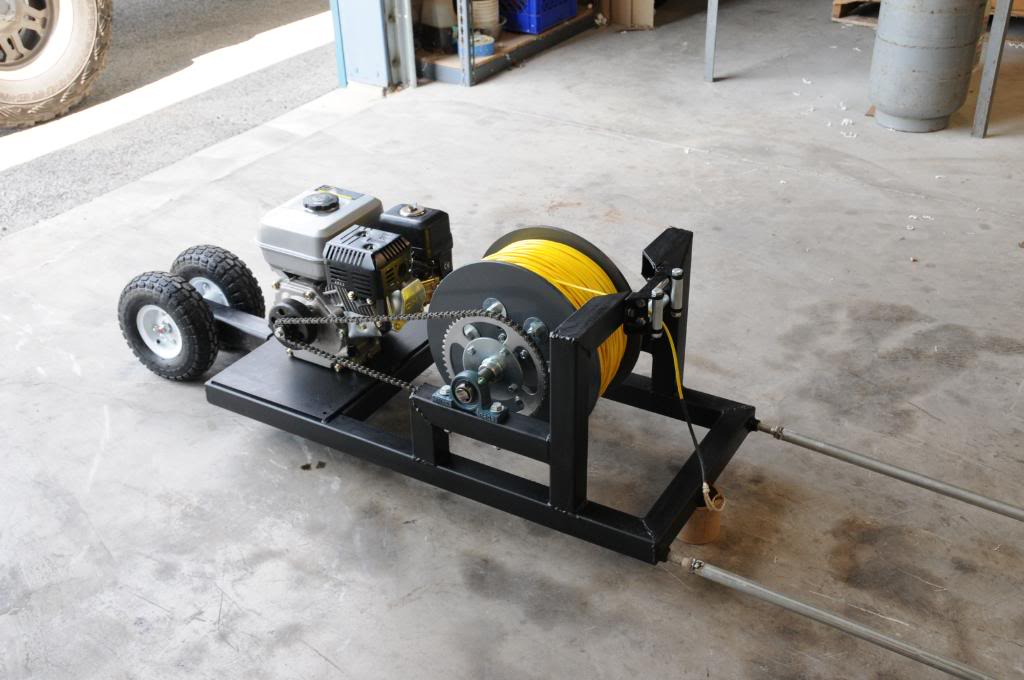

Final Assembly

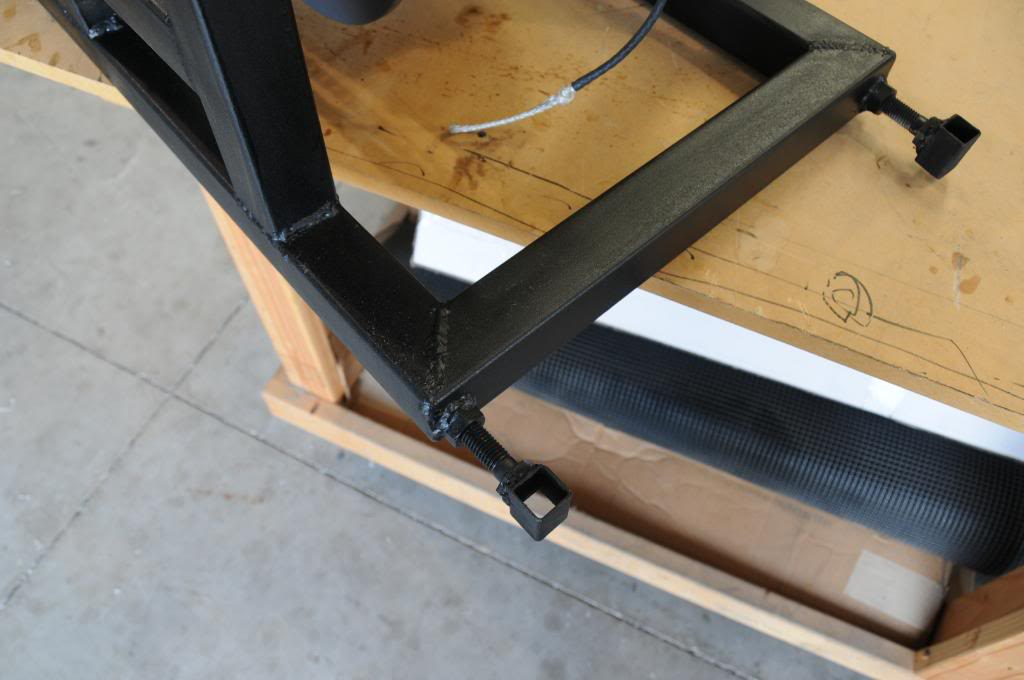

After the paint dries then you are ready for your final assembly. The wheels come on and off. (i still need to drill the hole for the trailer hitch pin so you can pull it without the wheels slipping off)

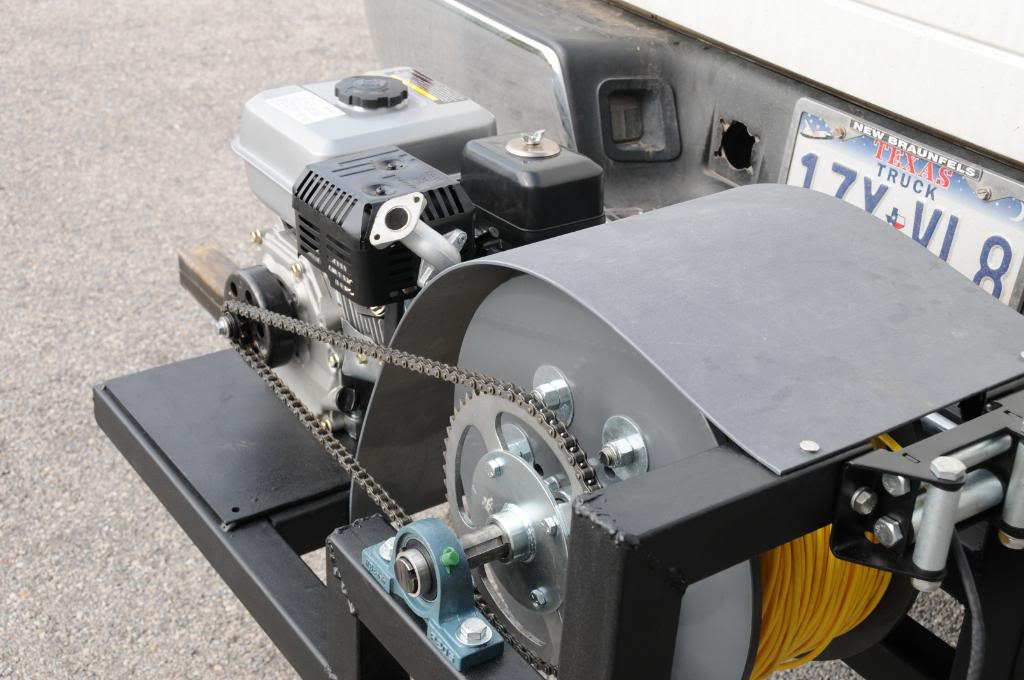

Add Your Splash Guard
Put a splash guard on, and added an exhaust peice so it would not melt the splash guard. The splash guard protects your engine from rusting.

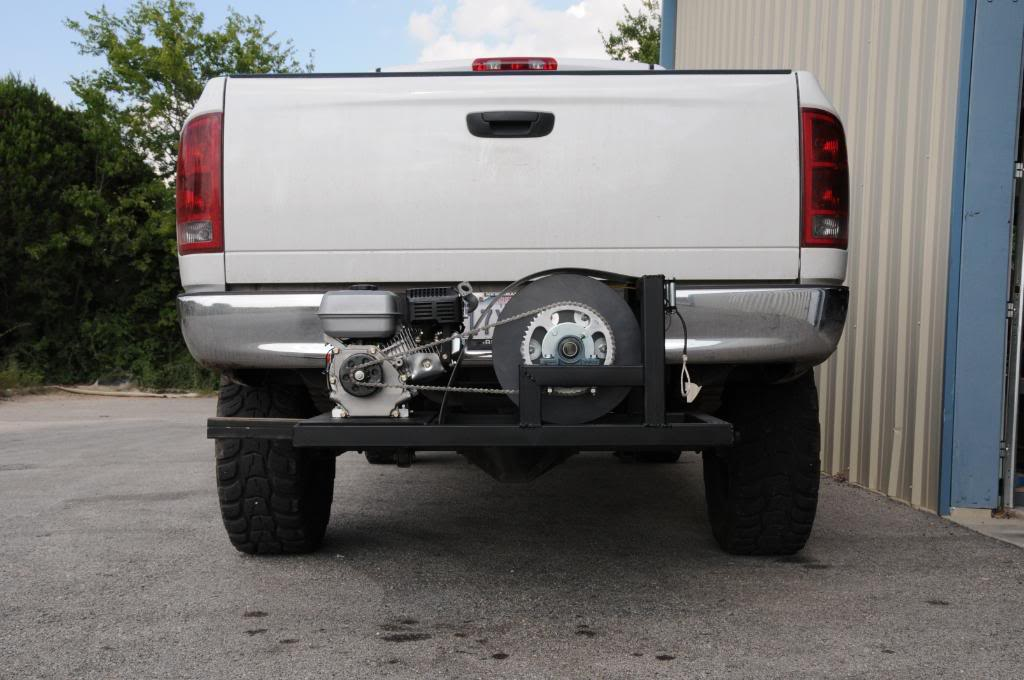

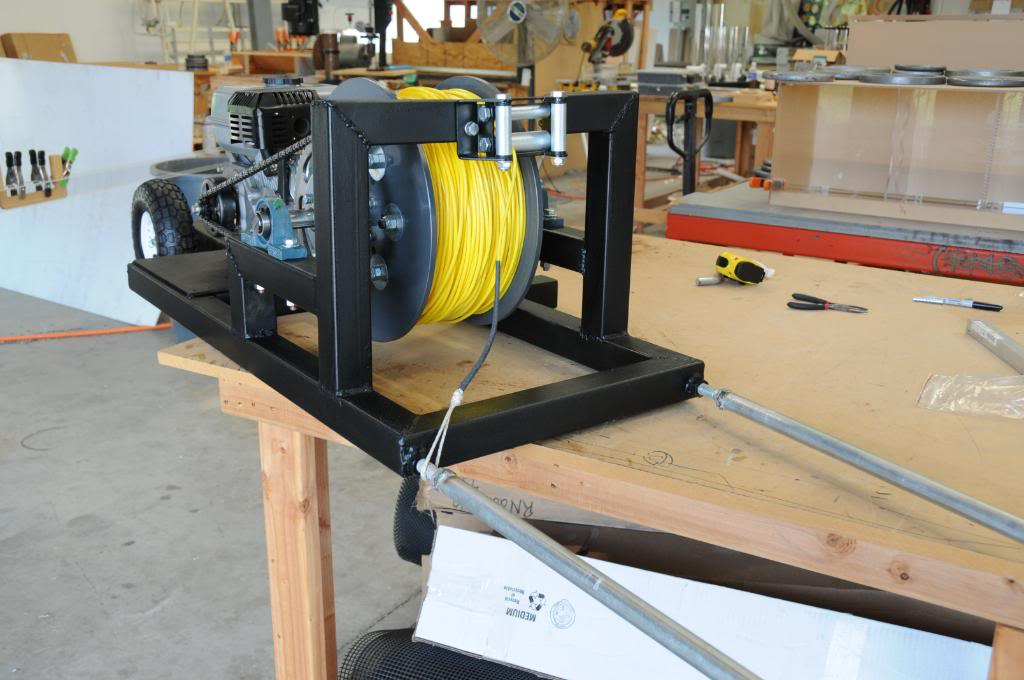

Final Product Specs
All it needs now is a wakeboard handle for the line and the winch is complete!
Final Product Specs:
motor- 6.5 honda clone. 3/4" shaft with 10 tooth Centrifugal Clutch
chain- #41 chain
spool sprocket- 54 tooth
1" pillow blocks
1" axle
ATV roller fairlead
spool- 15" OD- adjustable ID 6" & 8"- 6" wide (easily holds 1000ft of bullet line at the 8" ID setting)
when I burn up the CC I will be changing to a TAV2 torque converter and modifying my spool to be a releasing spool.
Did you build this?
Post a photo (or better yet a video!) photo of your Beach Winch in the comments below!
Thank you for reading my instructable! You may find this winch plan and more at http://www.beachwinches.com.
