Homemade Soldering Stand

The idea came to me when i saw it in my local store
The price was expensive for such an easy tool like this
so i decided to make it myself

Materials :
-Nails
-Piece of wood (25 X 15 )

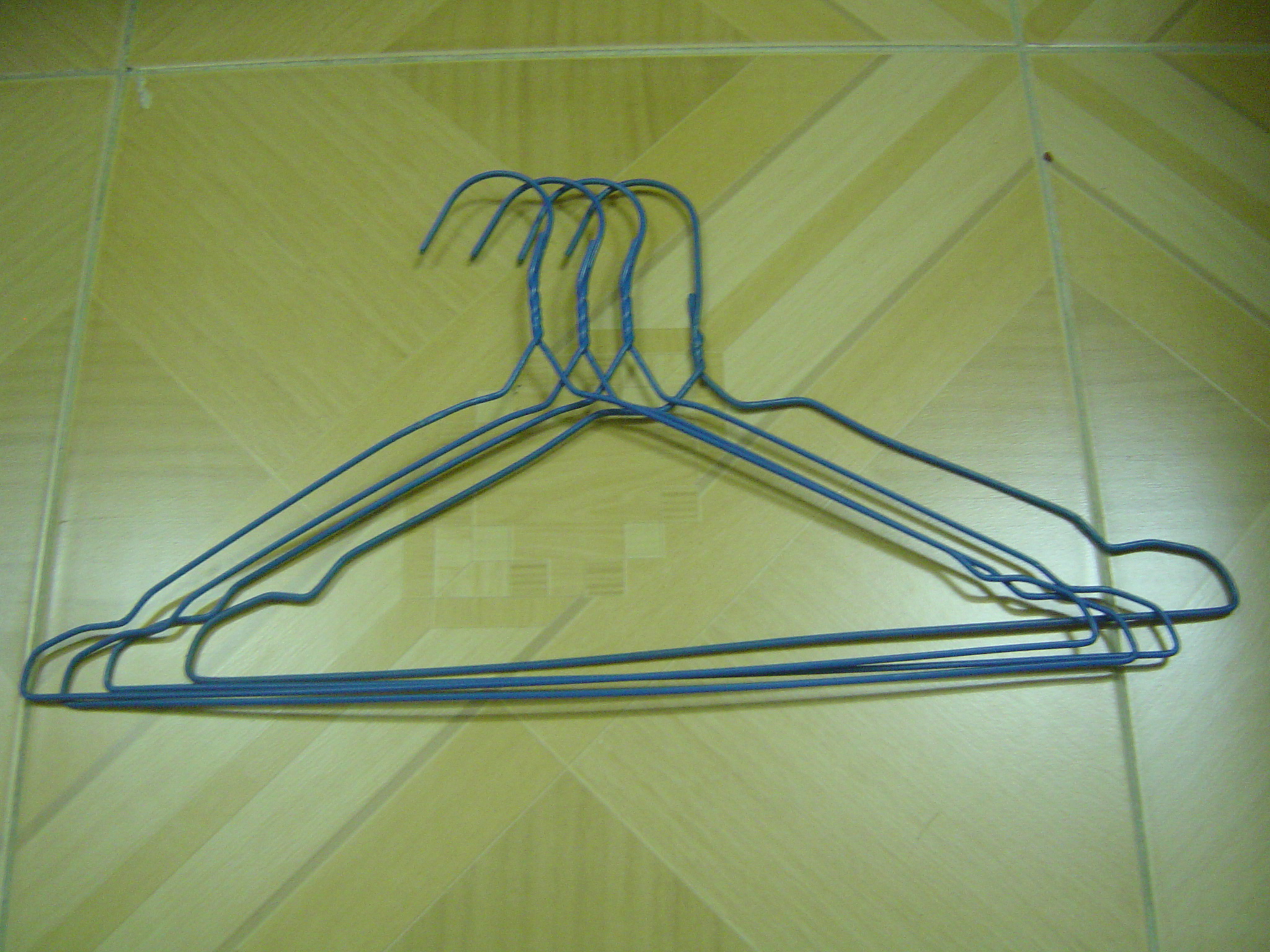

-Some Metal Clothes hanger
-3 Big crocodile clips

Tools:
-Hammer
-Pliers
-Bottle

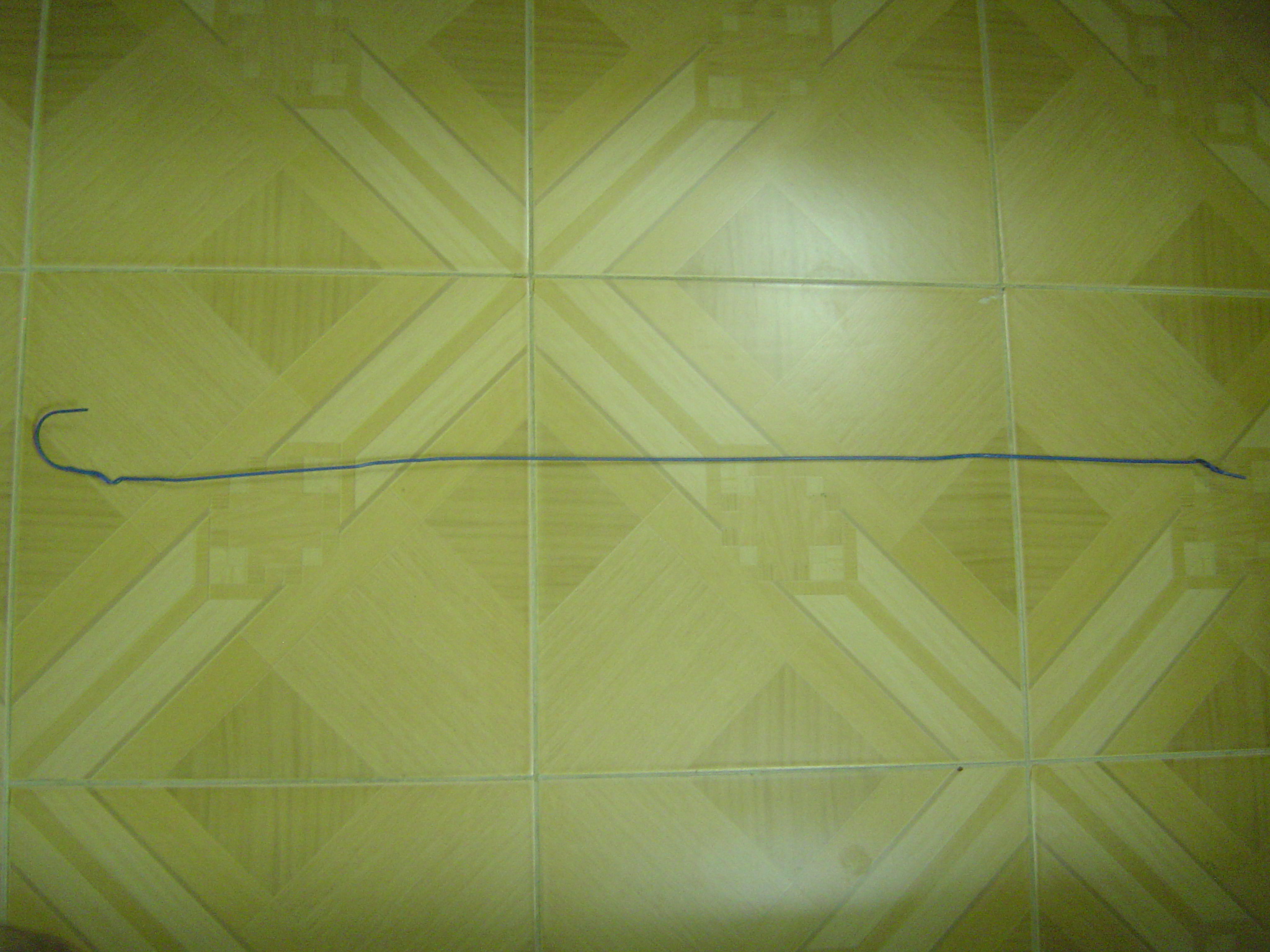

Preparing the Hangers for the Solder Stand

make it straight using pliers
and remove any plastic from one of the hangers
and leave the other one with plastic

Solder Iron Holder

twist it around the bottle to take the shape
but leave a little part of it to attach it to the stand
then put two nails in wood and attach the holder as in pictures

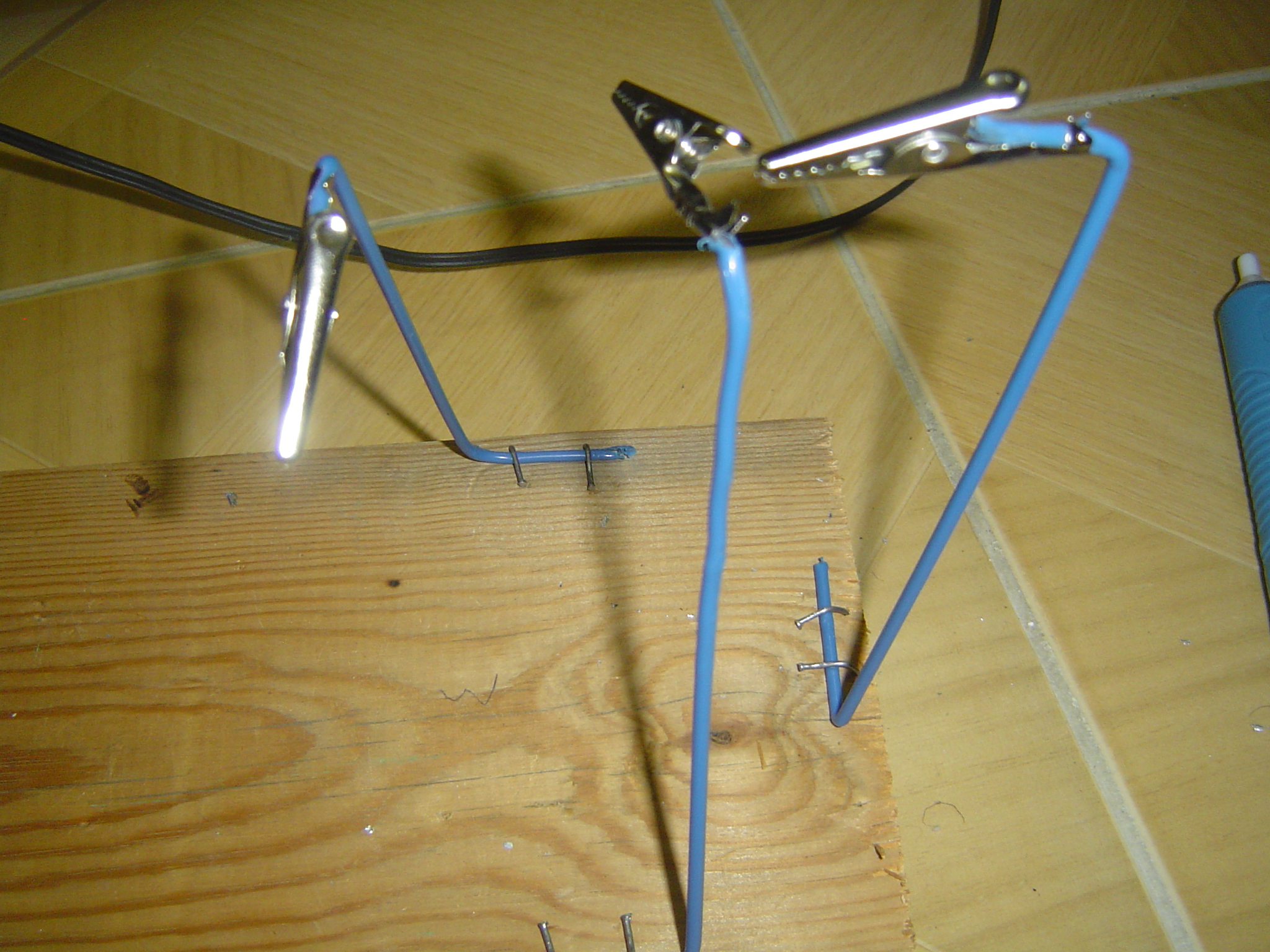

Third Hand

cut three pieces of the hangers (about 20 cm each)

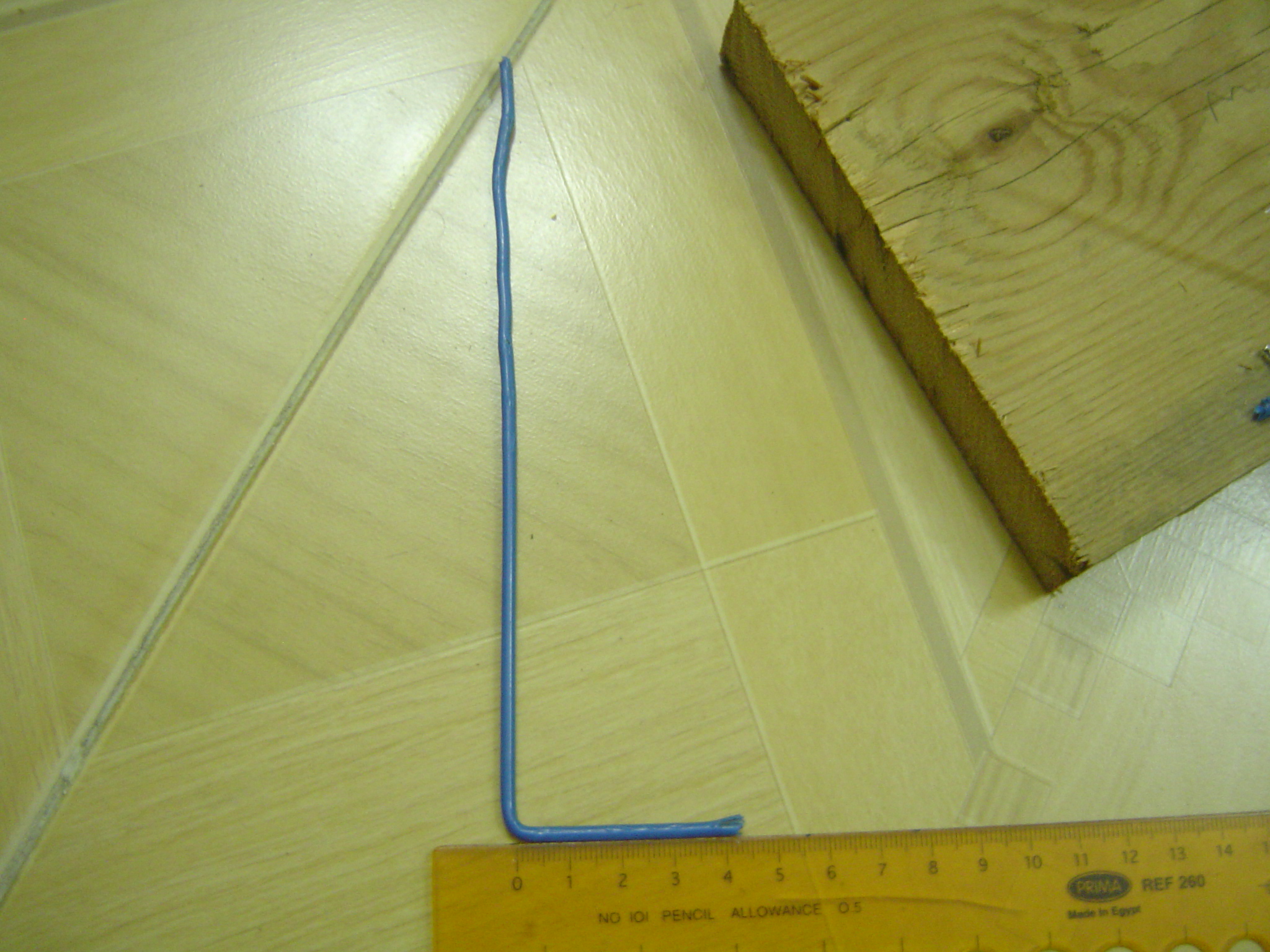

make them as L shape
then bend them as in the picture
remove the rubber cover of the clips
and attach them to the three pieces using pliers

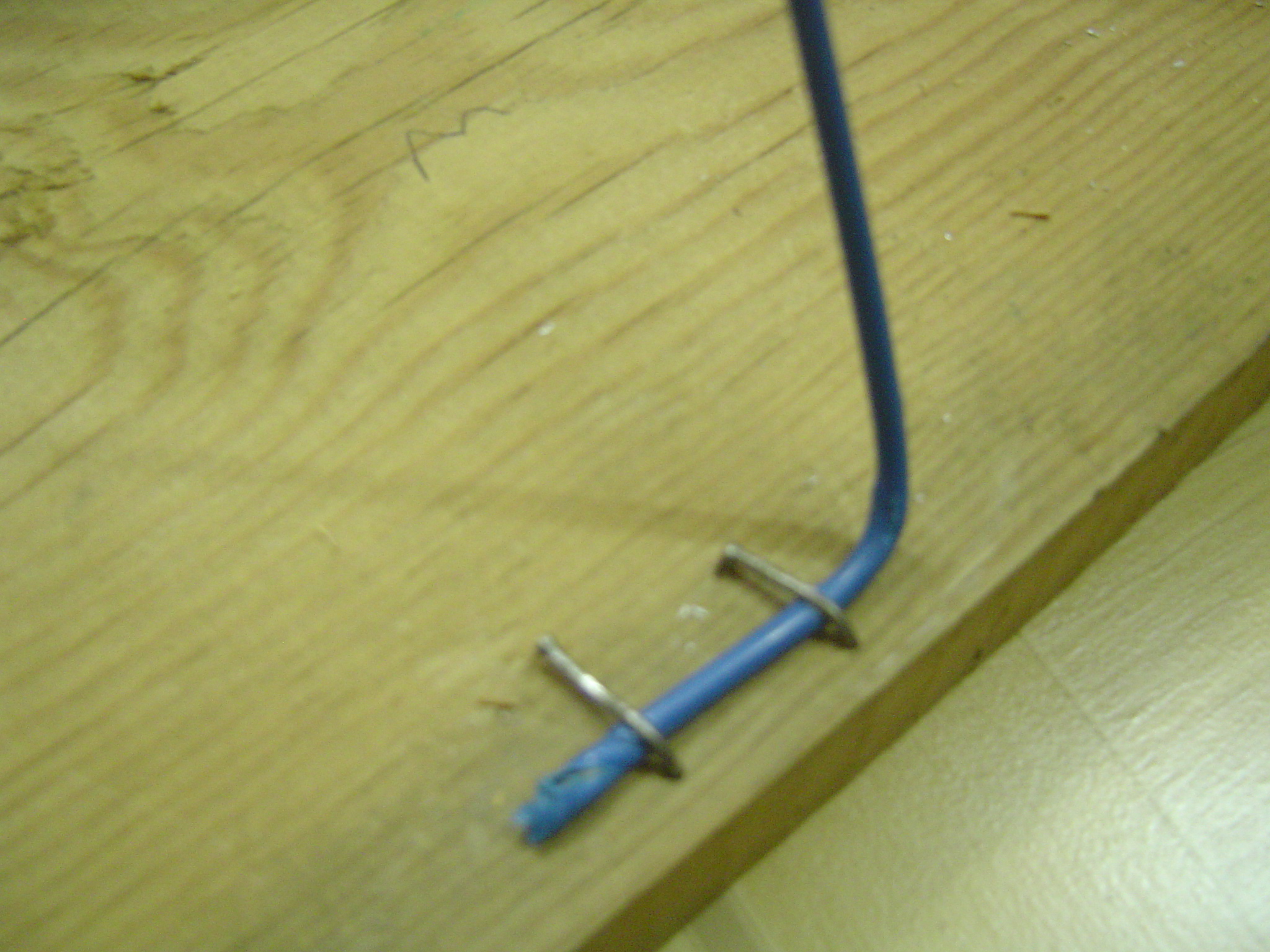

put two nails in wood and attach each hand as in pictures

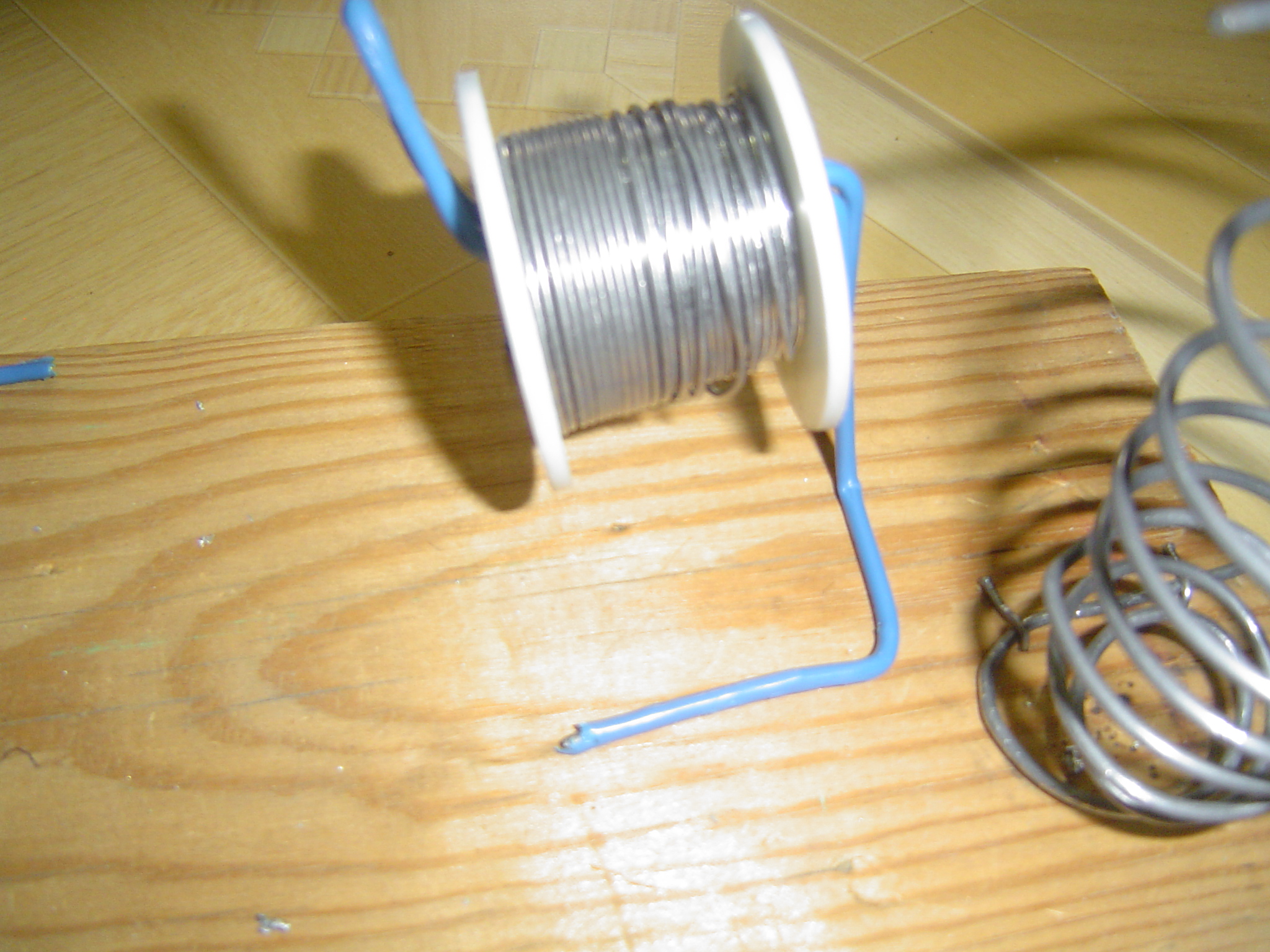

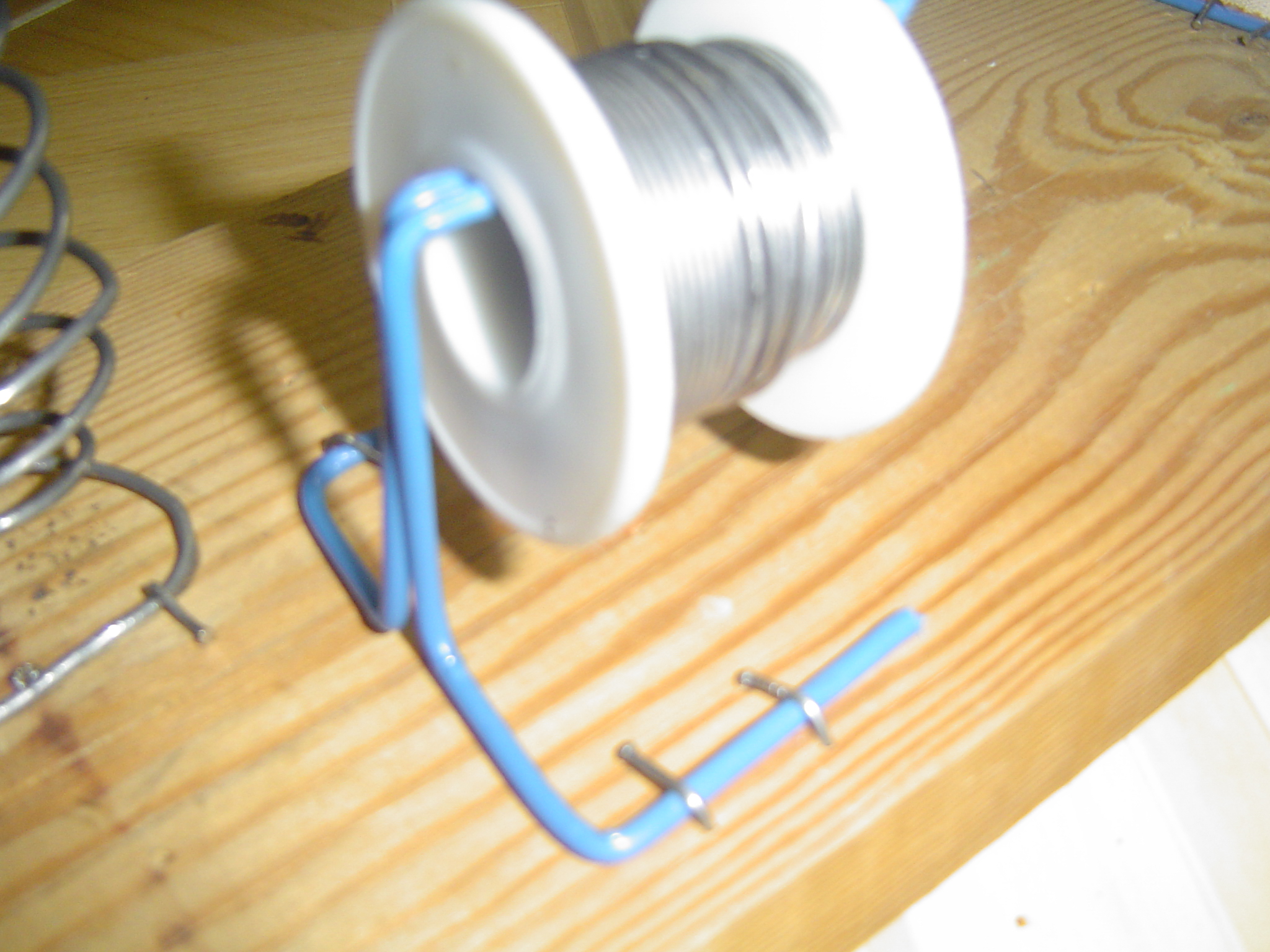

Solder Roll Hoder

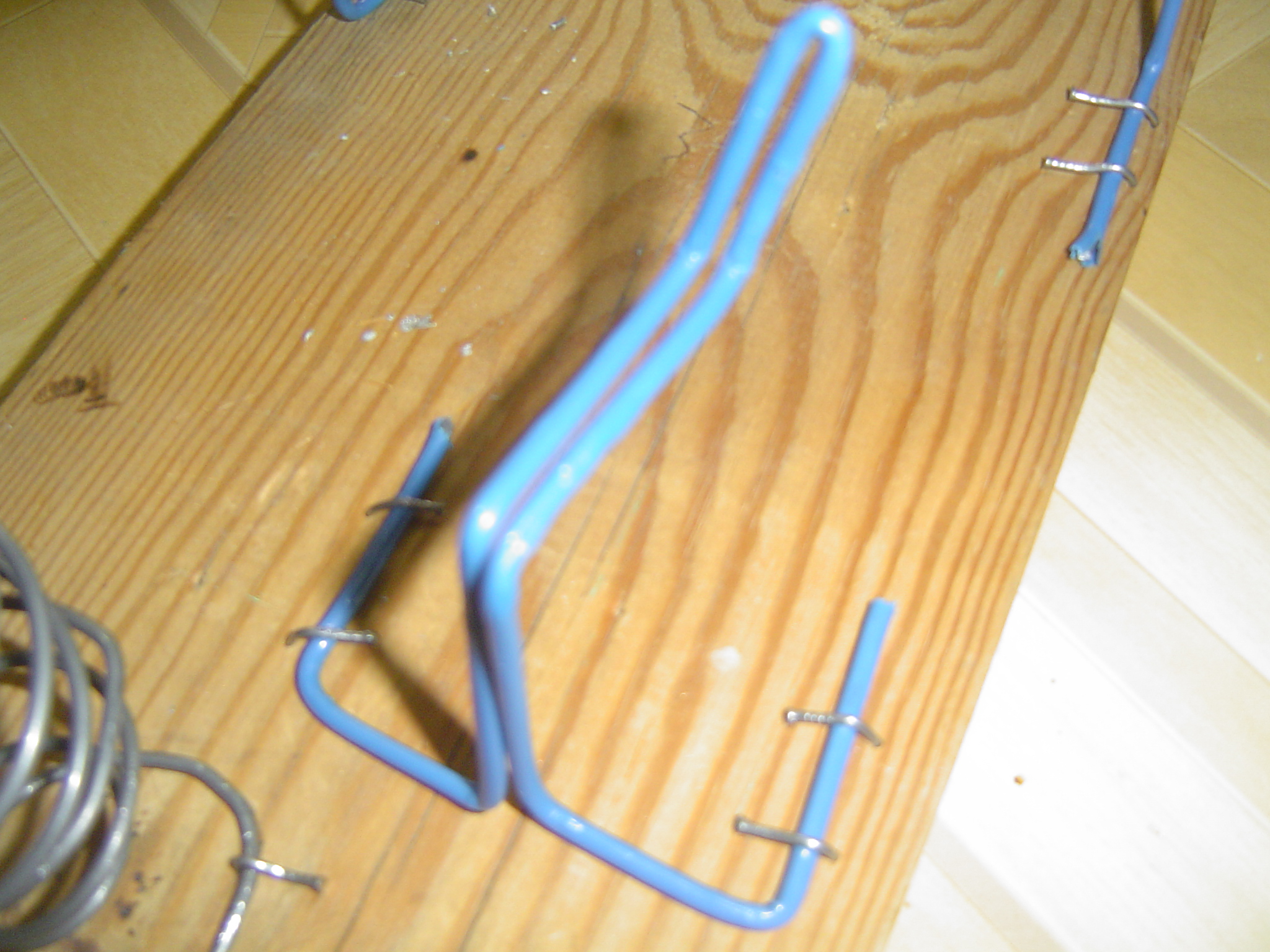

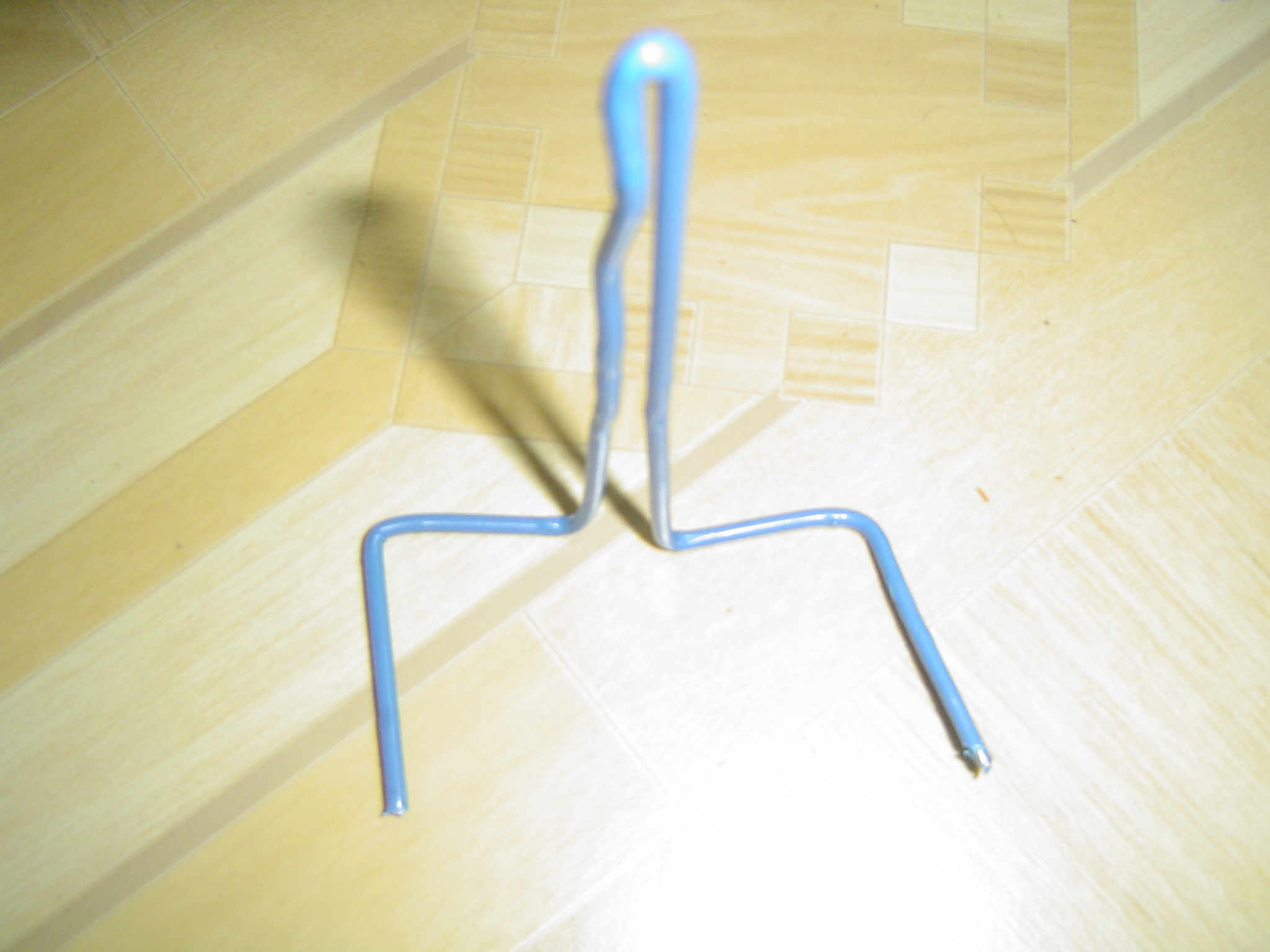

Get a piece of the hangers and make it as the shape in pictures
then attach it to wood using nails
