Homemade Small Cabinet With a Glass Door

by evilbotto in Workshop > Woodworking

1526 Views, 36 Favorites, 0 Comments

Homemade Small Cabinet With a Glass Door

glass door cabinet1.jpg

I have a piece of transparent glass, which was removed from the broken scanner.

The size is a little larger than A4 and the thickness is 3mm.

It just happened to be used to practice the production of glass cabinet doors.

How to Make the Door

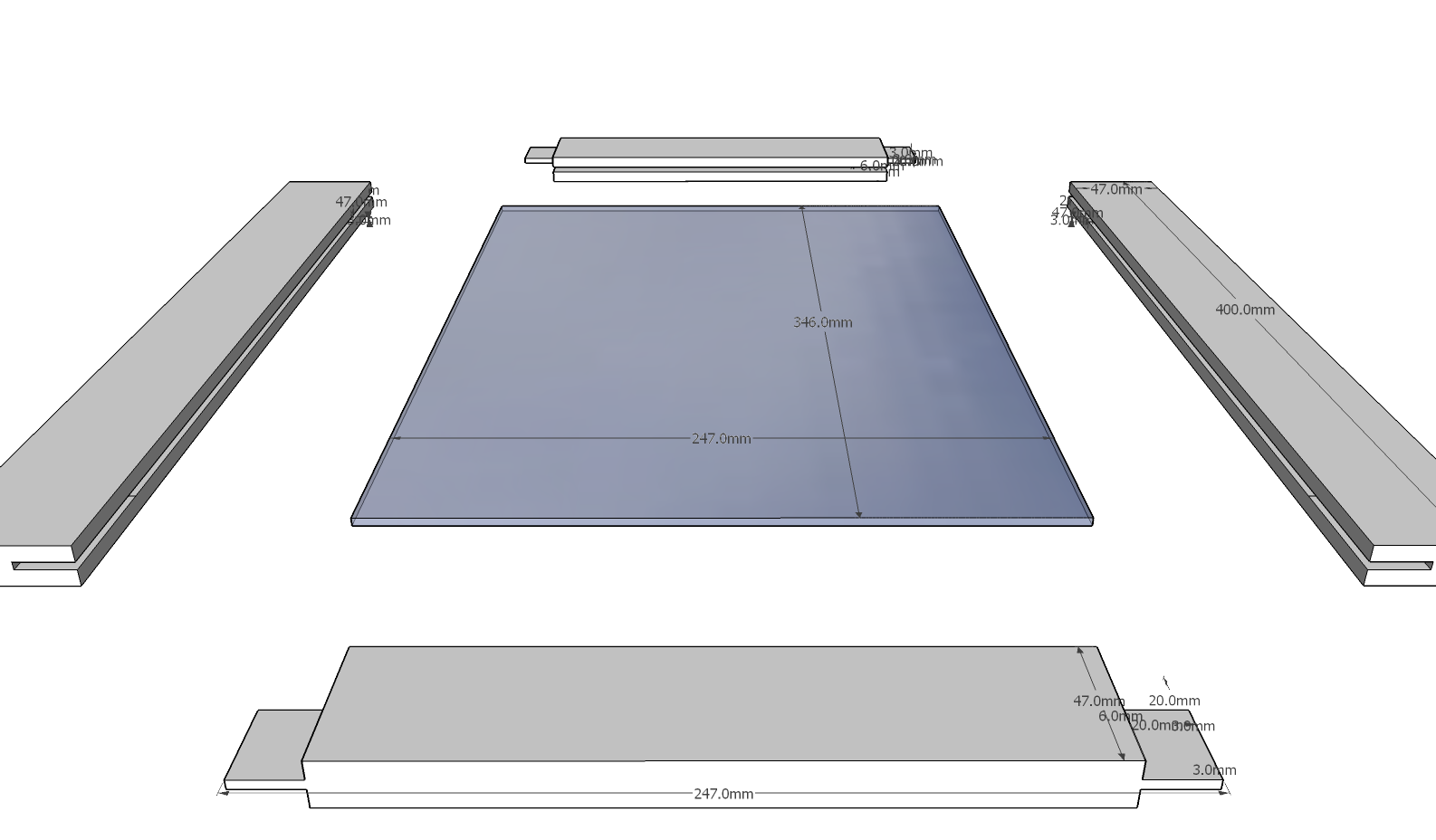

glass door cabinet instructables1.png
DIY小型玻璃櫃門

I am planning to make the glass embed into the wood 20mm.

using table saw to cut this is an easy way

  1. Setup the blade height to 20mm

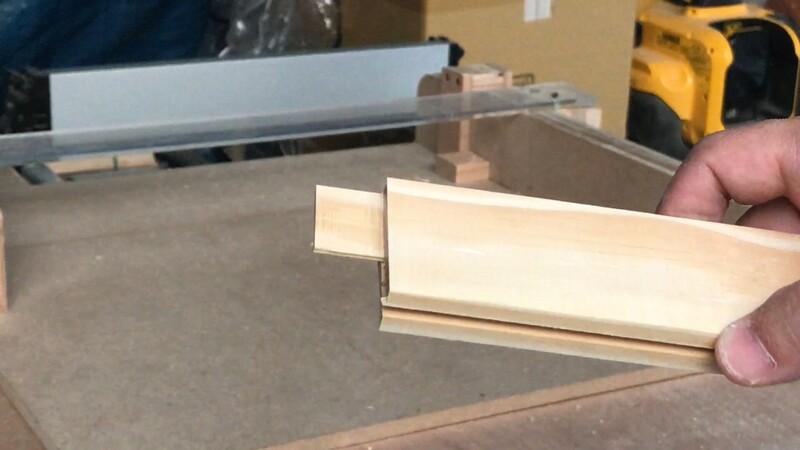

  2. Cutting the slot, using a jig to hold wood is more safe then hold by hand
  3. Cutting another wood with talbe saw crosscut sled
  4. Assembly and debug

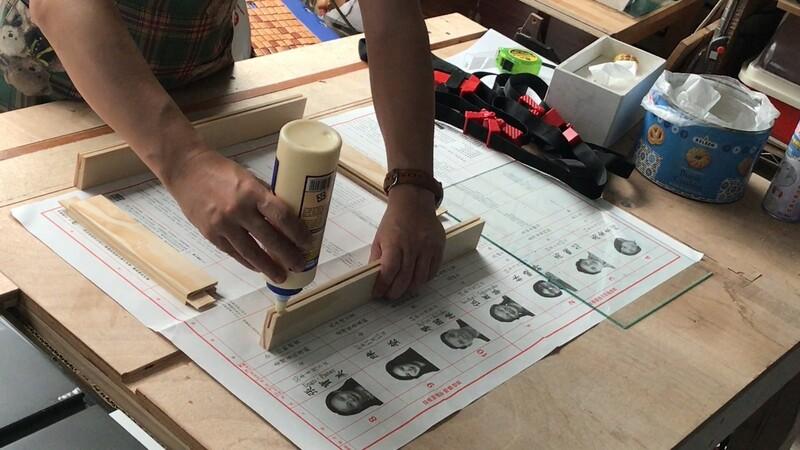

  5. Glue it

How to Make the Cabinet

DIY小型玻璃門儲櫃

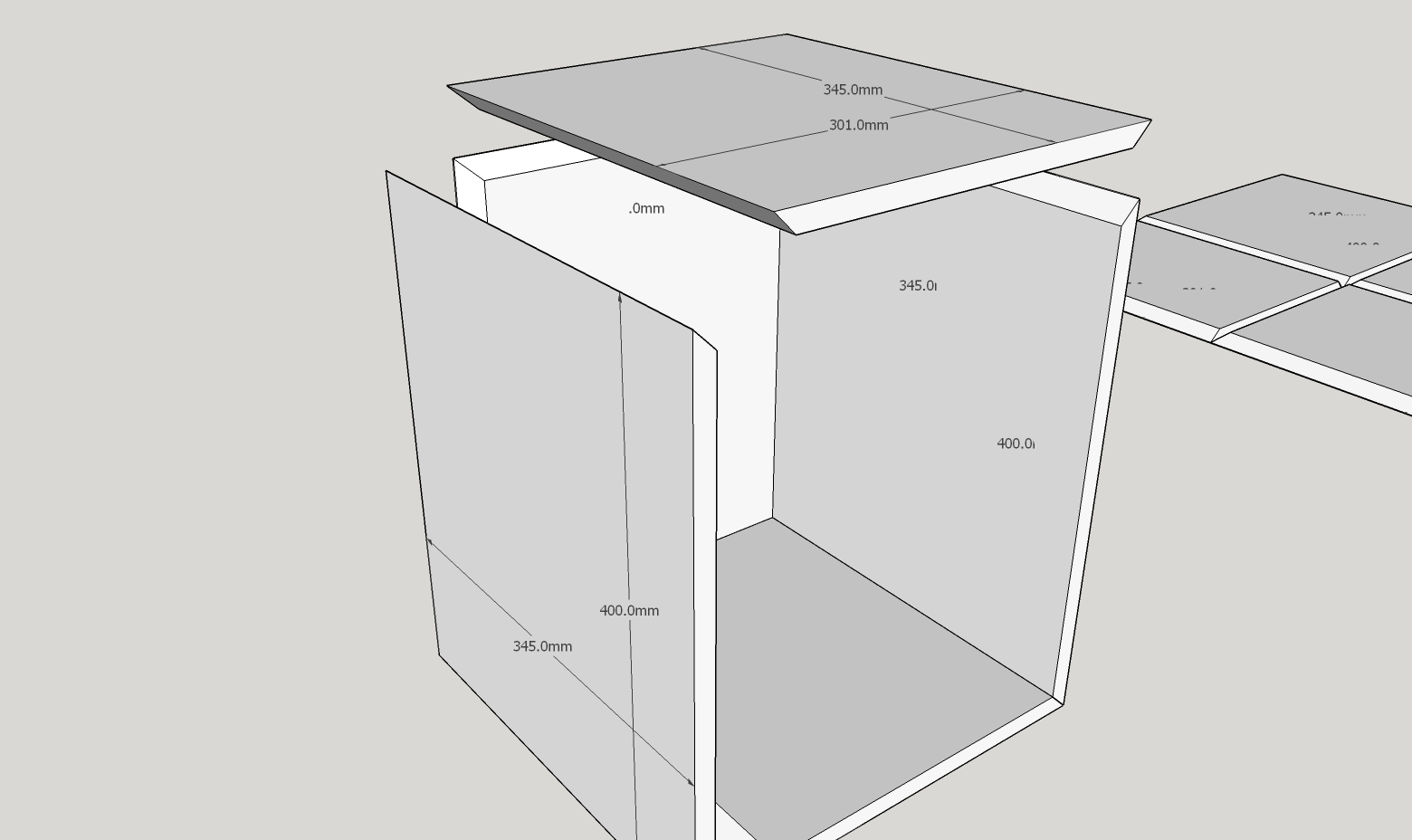

glass door cabinet instructable2.png
  1. Use 15mm Yellow Pine to make boards
  2. Cut every edge to 45 degree
  3. Glue it
  4. Install the cabinet handle (holes distance 96mm)
  5. Install the hinges (should embed into the wood 1.5mm, attention the red circle)
  6. Stick rubber feet
  7. Finish

Thanks for watching.
