Homemade Mini PCB Drill
Building a home made drill machine for the PCB.
Making Video
You can watch the video for making of the drill or continue reading to make one for yourself.
You Can Subscribe To My YouTube Channel Here : https://goo.gl/ctc8l9
Things Required
1. 12 Volt DC Motor
2. PVC pipe (Which should fit the motor)
3. Perfume cap
4. PCB Drill Chuck
5. PCB Drill Bit
6 Chuck Key
7. Switch
8. Adhesive Paste
9. Insulation Tape
10 Scissor
11 Wires
12 12 volt Adapter or 9 volt Battery
13. Solder Gun, Solder Paste & Solder Wire
14. PCB board to test
Construction

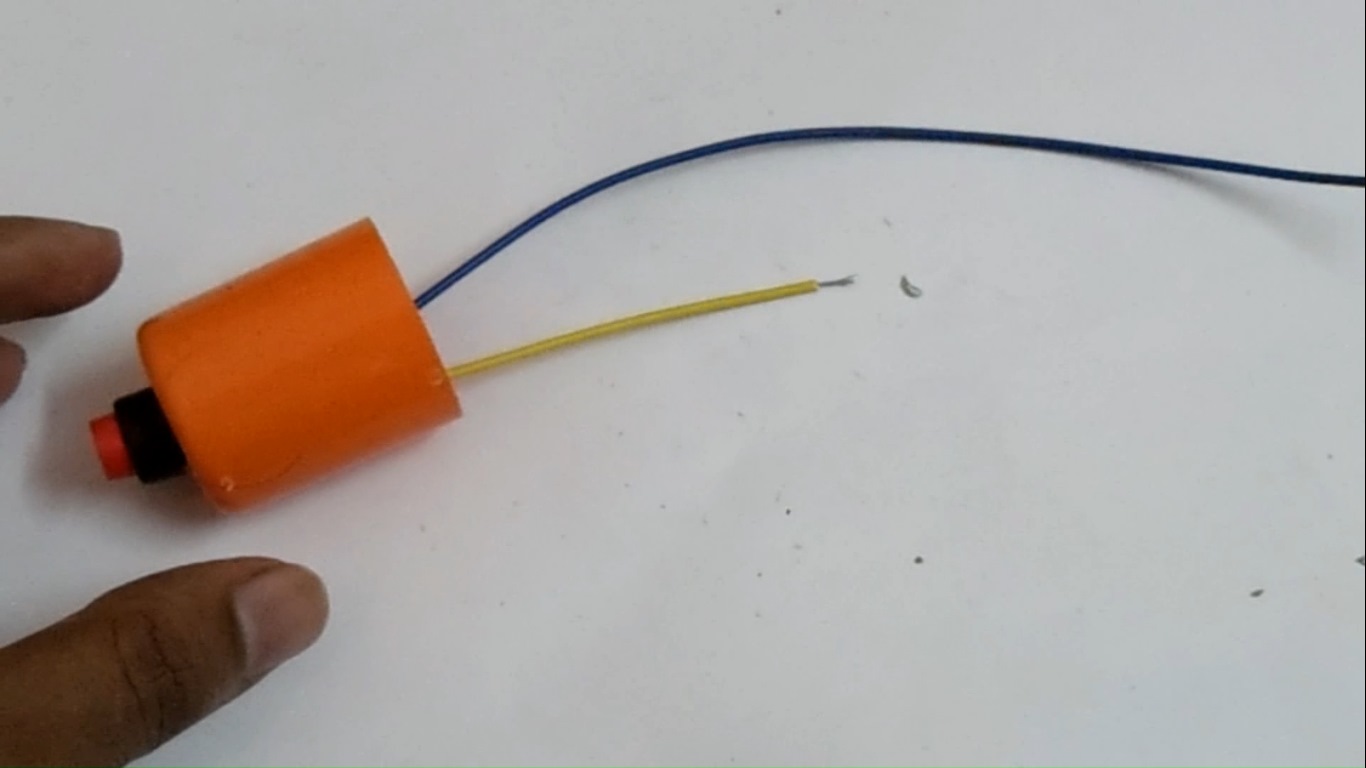

Connect the wires to the Motor & Switch
Make a hole in the perfume cap to insert the switch
Make few holes to let the air flow to cool the motor
Cut the adhesive paste and apply on the inside of the PVC pipe & insert the DC Motor
Wiring
Connect the wires as shown in the wiring diagram
