Homemade Infrared Goggles! for Under $10

$C:\Downloads\irgoggles_001.bmp$

See the world in a whole new light with these home-made Infrared Goggles! Amazing images! See the Test Results in the video at the end of this Instructable. Thanks to Bill Beaty for the idea.

What You Need:

$C:\Downloads\irgoggles_002.bmp$

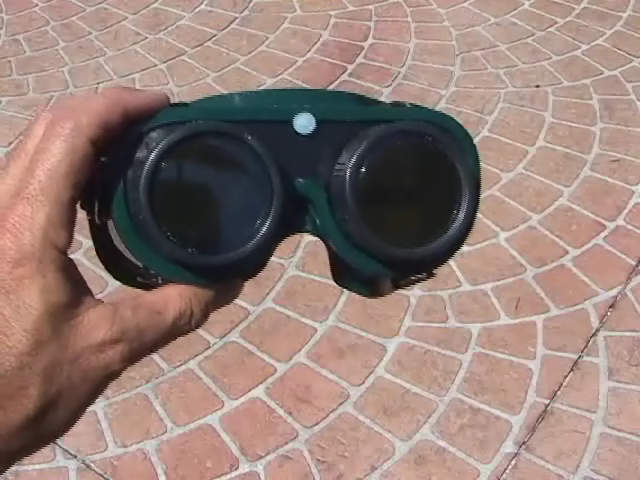

First pick up a pair of welding Goggles. I got these online for $7.

The Gels:

$C:\Downloads\irgoggles_003.bmp$

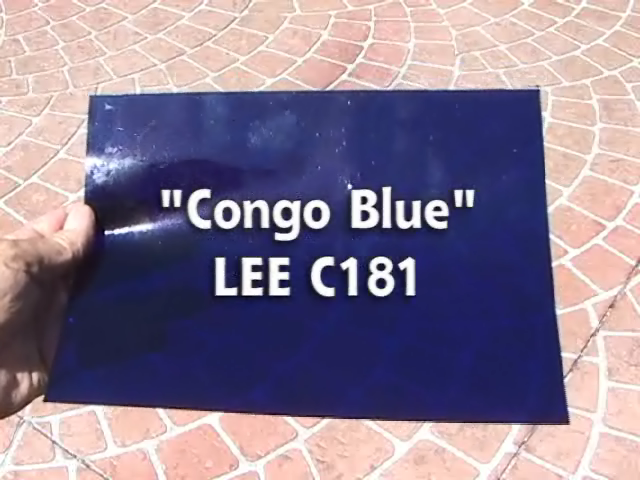

You will need a specific type of blue gel to make this work. The theatrical lighting gel is called "Congo Blue" and it is manufactured by the two most popular gel companies, LEE (C181) and Rosco (#382)

You can find them HERE

Gel #2

$C:\Downloads\irgoggles_004.bmp$

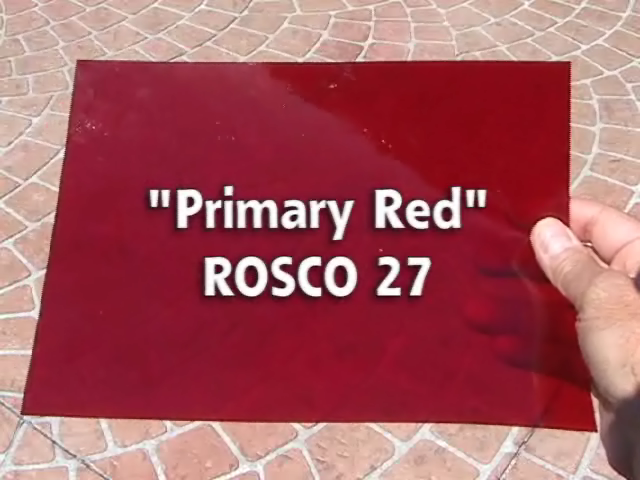

The second lighting gel is "Primary Red". The LEE number is 106 and the Rosco number is 27.

You can find them HERE

Prepare the Goggles...

$C:\Downloads\irgoggles_010.bmp$

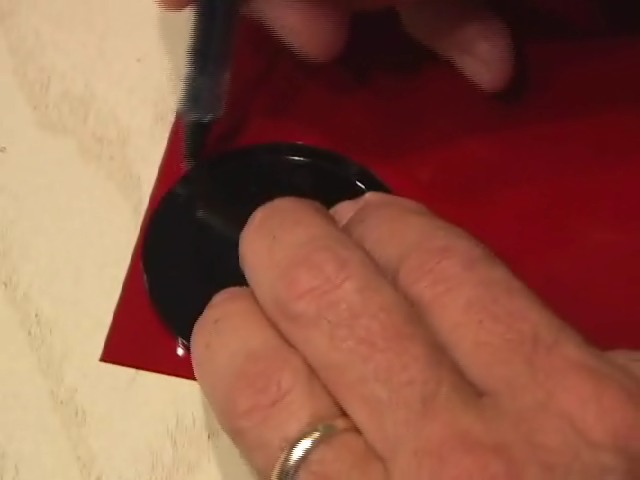

Unscrew the lens assembly for each eyepiece and remove the green welding gel, leaving only the clear gel. This will reinforce the blue and red gels you will be installing. Using the welding gel as a template, cut out 8 blue gels and 2 red gels.

Put It All Together...

$C:\Downloads\irgoggles_015.bmp$

Take 4 blue gels and insert them in the eyepiece assemblies and then screw them back on to your new IR-Goggles. Now, wait for a very bright sunny day and go outside! You won't believe what you see. DO NOT LOOK AT THE SUN!! Serious, permanent eye damage can occur in seconds. Then for another effect, add the red gel to each eyepiece and see the difference. Now here is the video!
