Homemade Heavy Duty F Clamp With Hex Nut Handle

Materials:

Solid steel bar 3cm x 8 mm

1 piece 35cm x8mm

2 pieces 17cm x 8 mm

1 piece 12 cm x 8mm

2 pieces 14.5 cm x 8mm

1 piece 9,5 cm x 8mm

2 pieces 2cm x 8mm

----------------------------

1 piece 25cm M16 rod and 9 nuts m16

-----------------------------

round rube 25m and 2 pieces 45 mm x 5mm

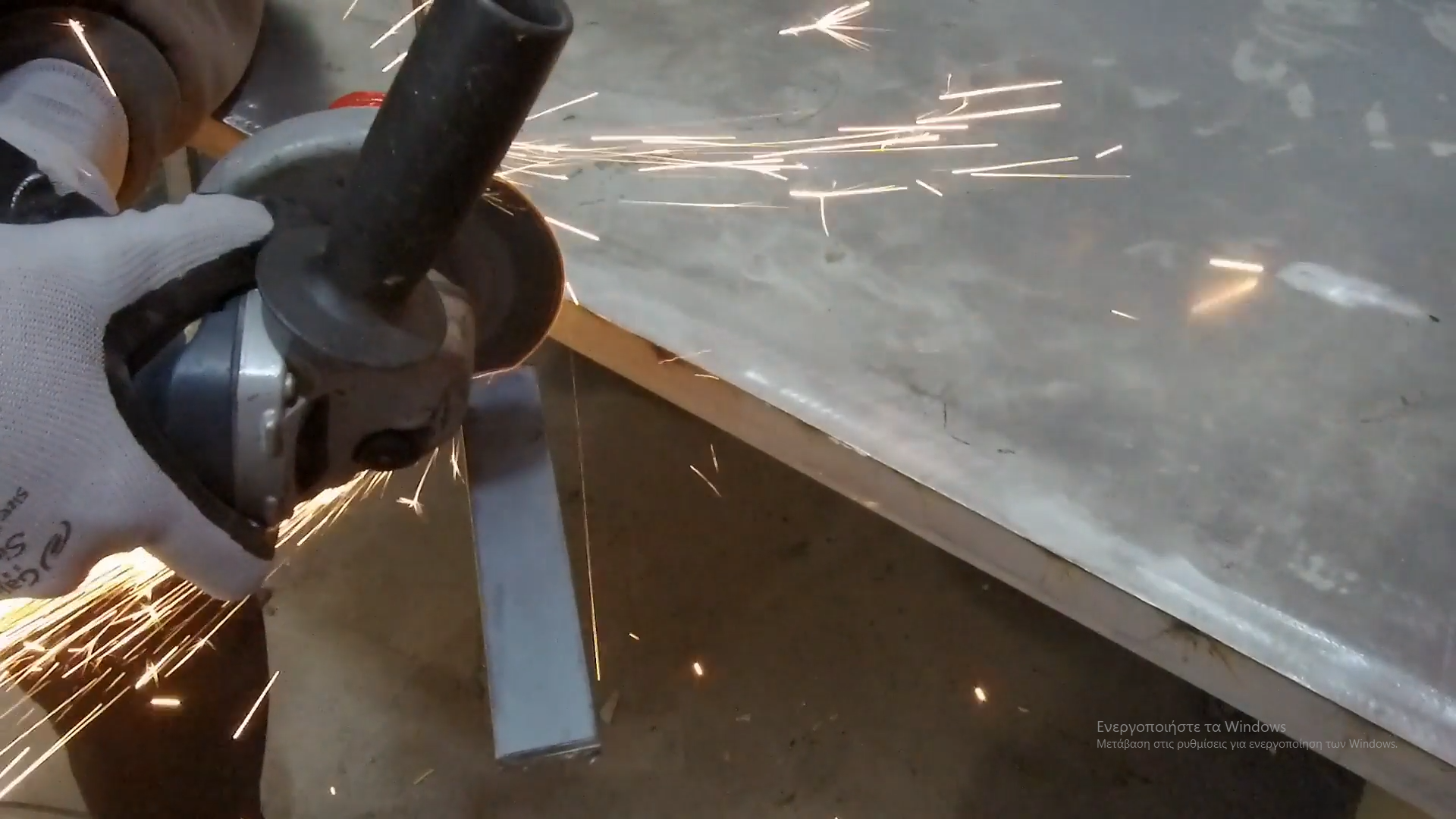

Cut all pieces of solid steel bar

Weld all the pieces step by step as in the video.

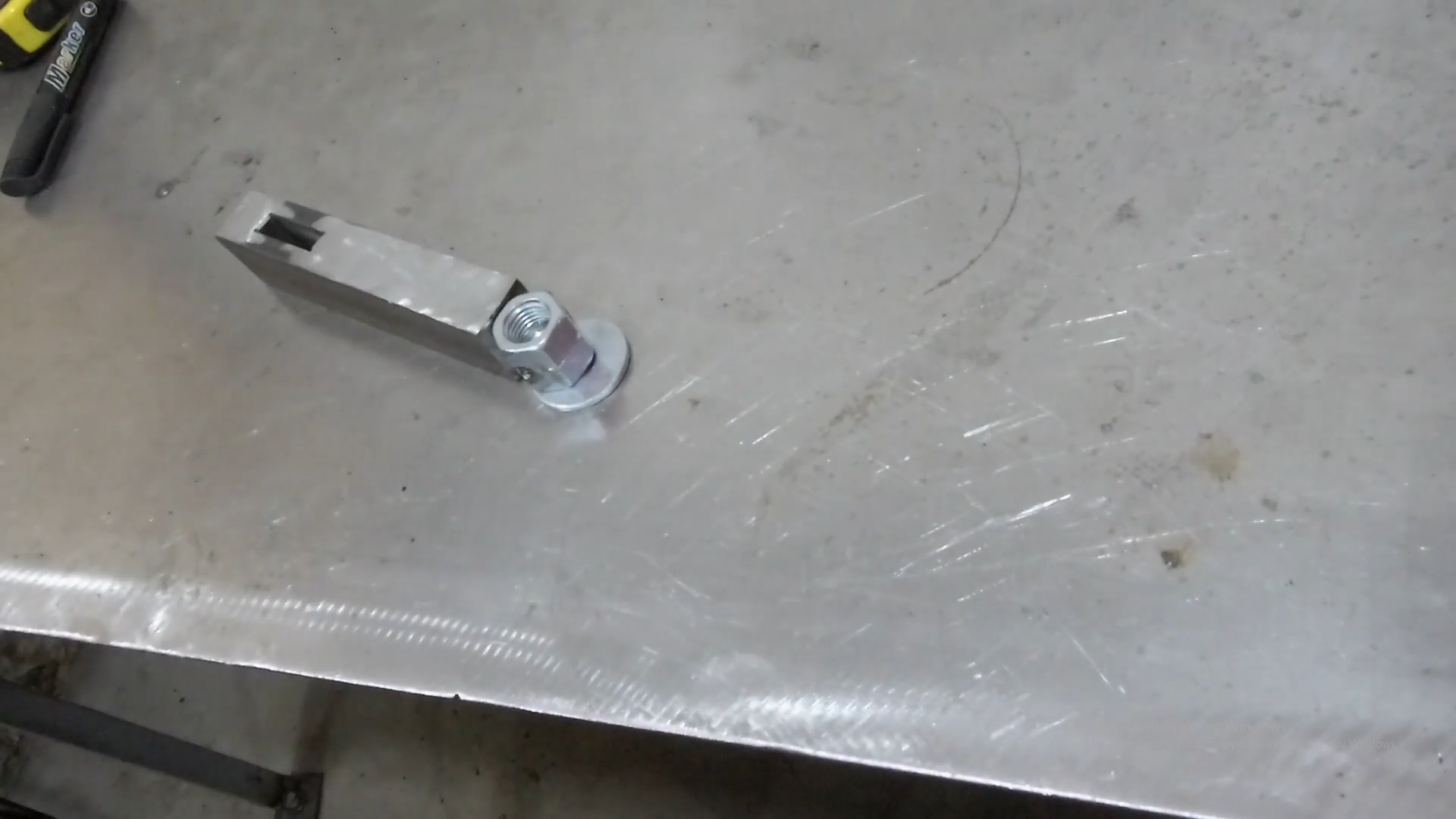

Weld 2 nut in middle solid steel bar.

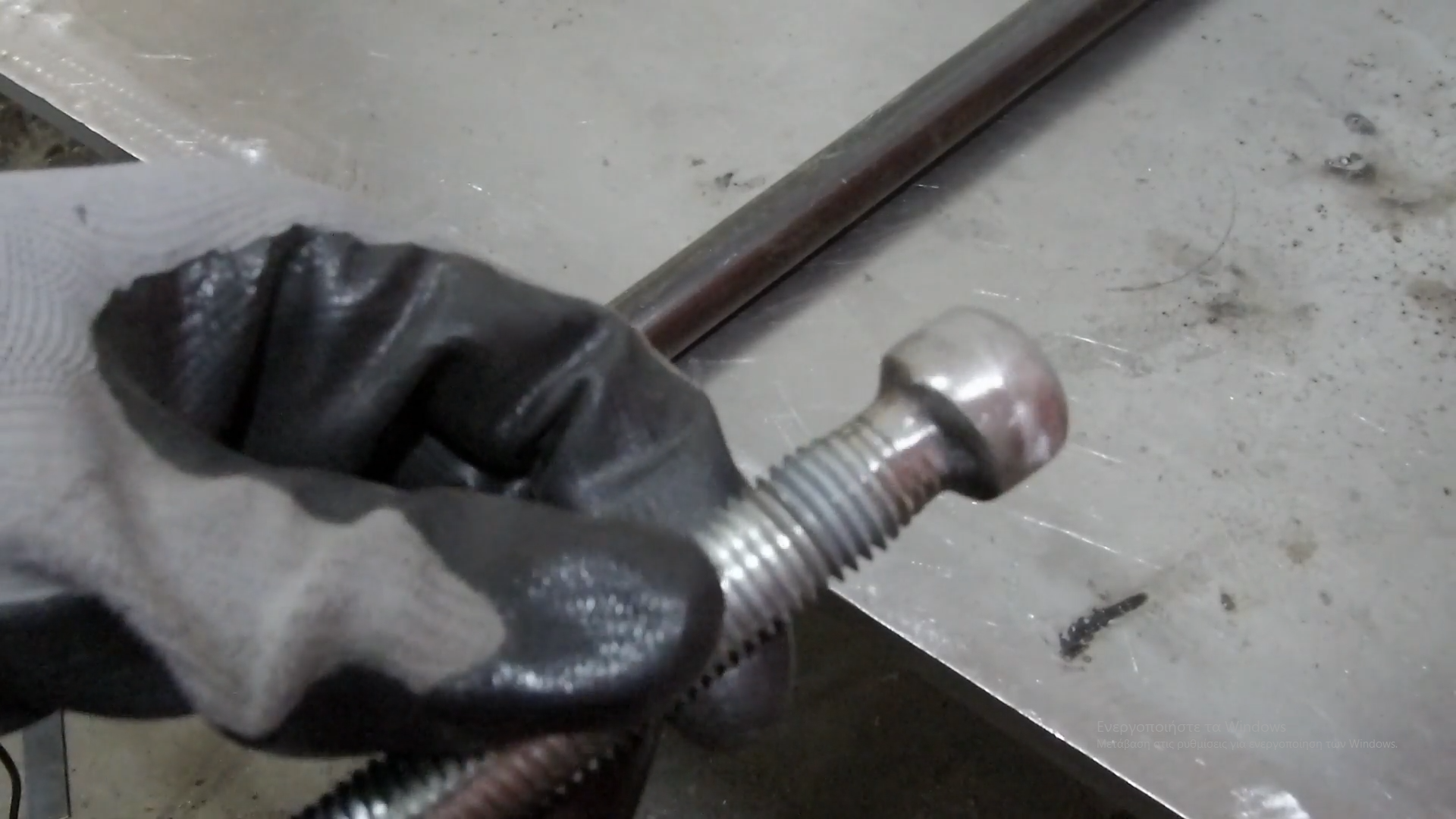

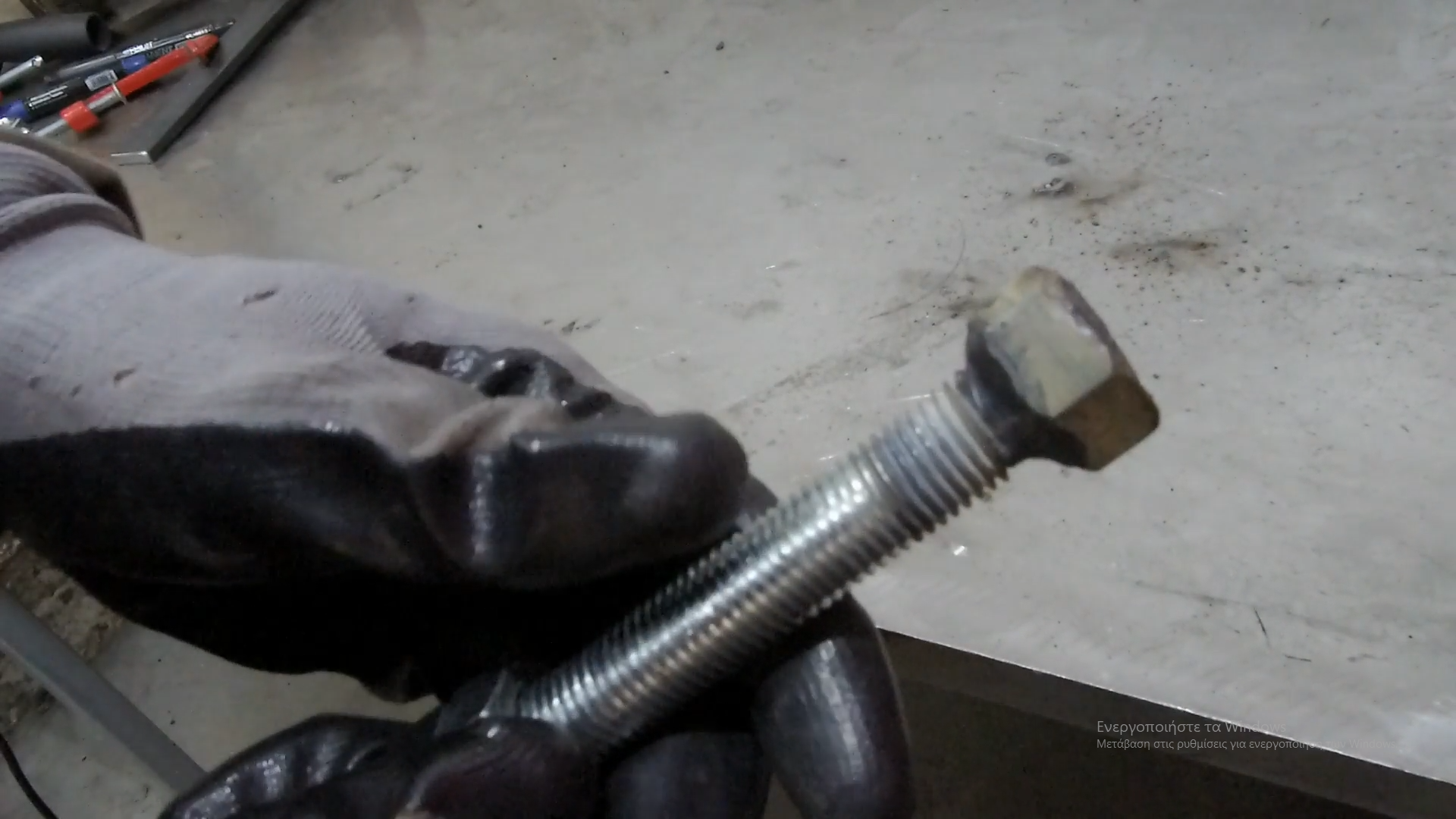

weld one nut on top of m16 rod and give it round shape. Next cut the pipe and 38 mm x 4 mm round piece and weld it on rod .

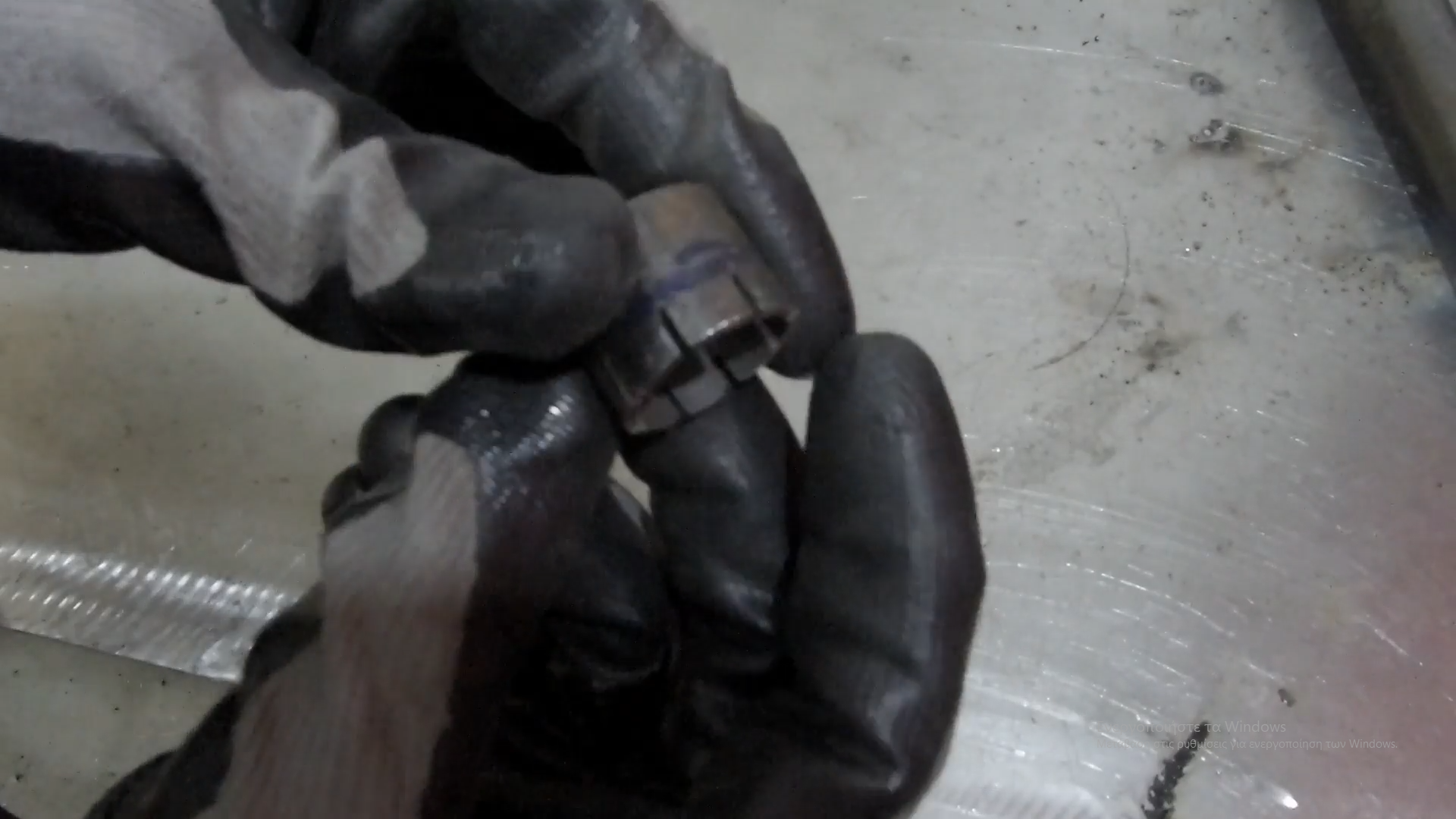

Weld 7 nuts or more if you like with spots .

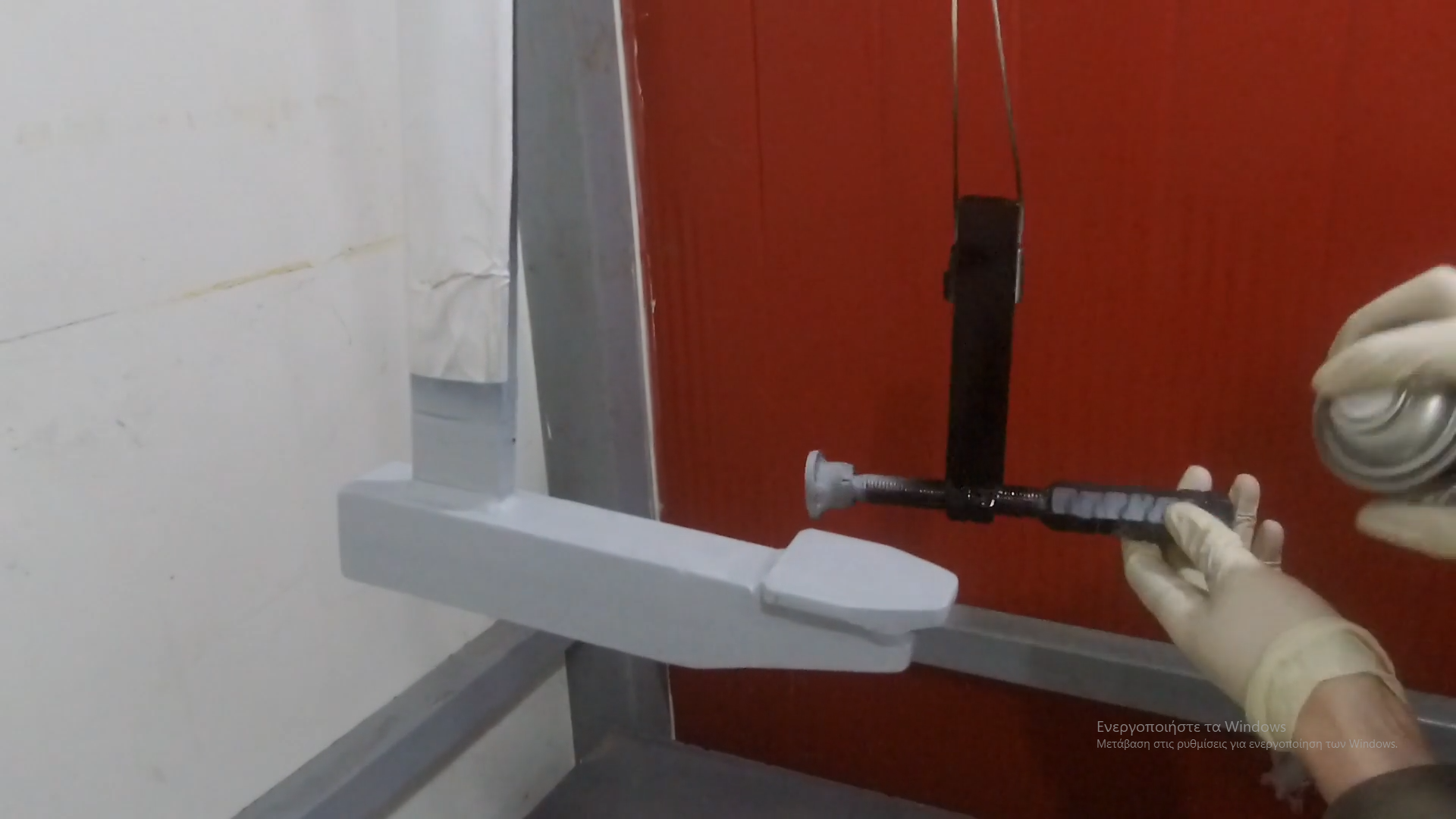

Paint first with primer and the with your favorite color.

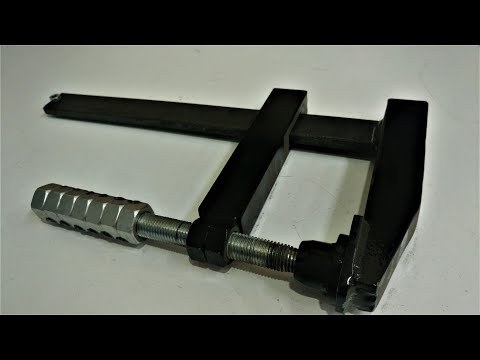

Now you have a heavy duty F clamp.
