Home Make a Cheap Hot Air Soldering Station

Hi friends. Today i will show you Home Make a Cheap Hot Air Soldering Station

In this video. I show you Home Make a Cheap Hot Air Soldering Station with low cost.

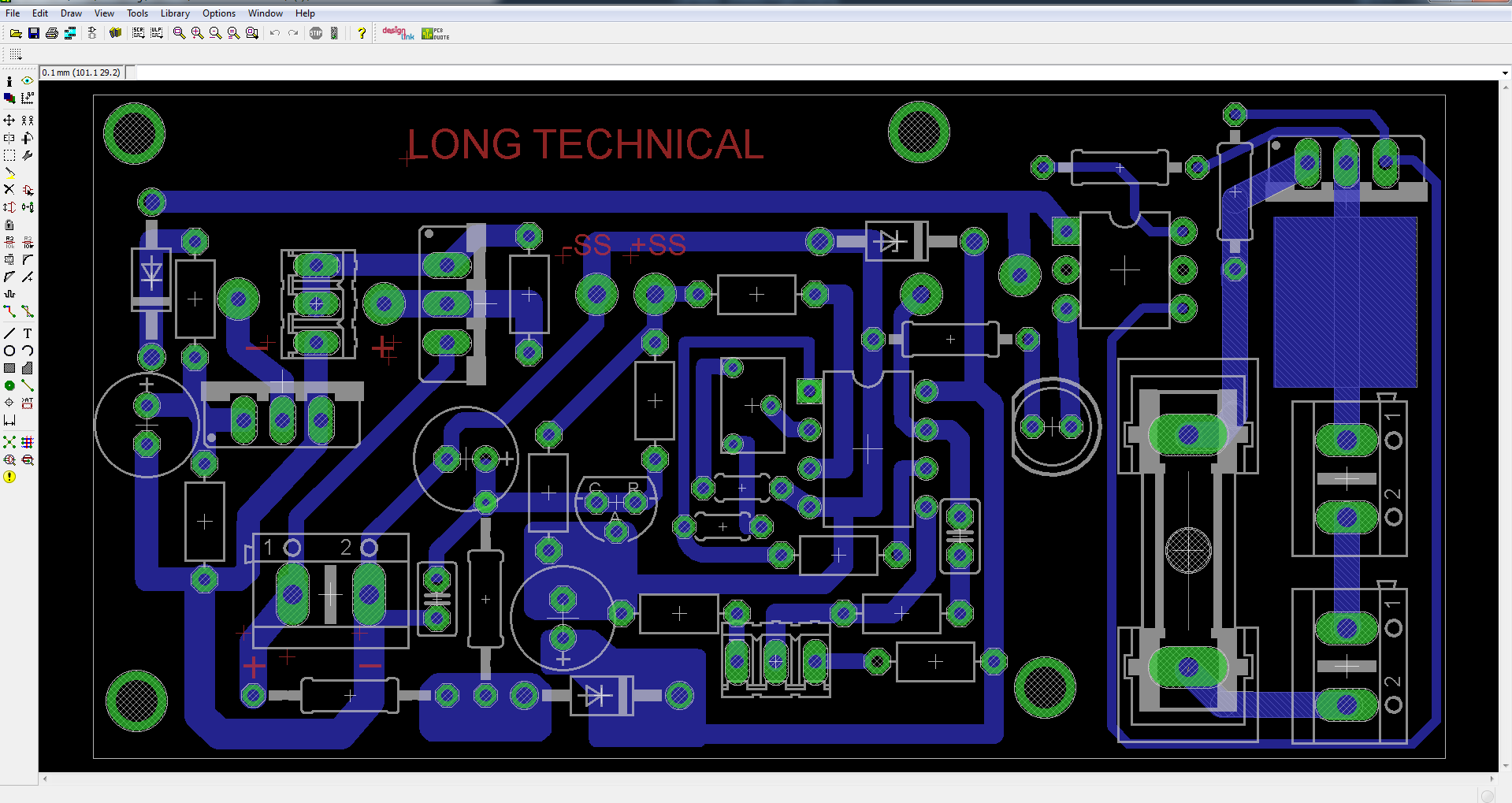

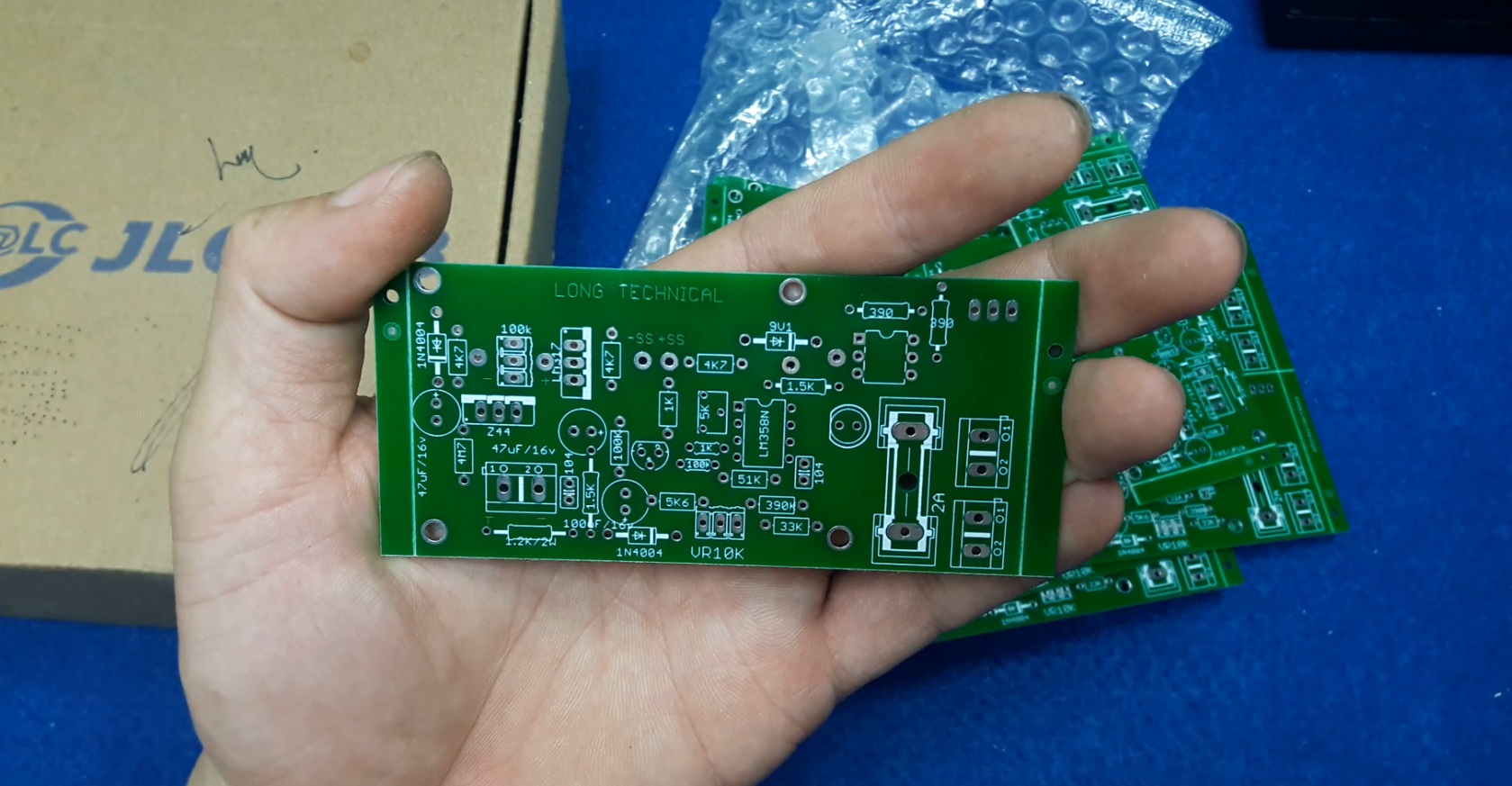

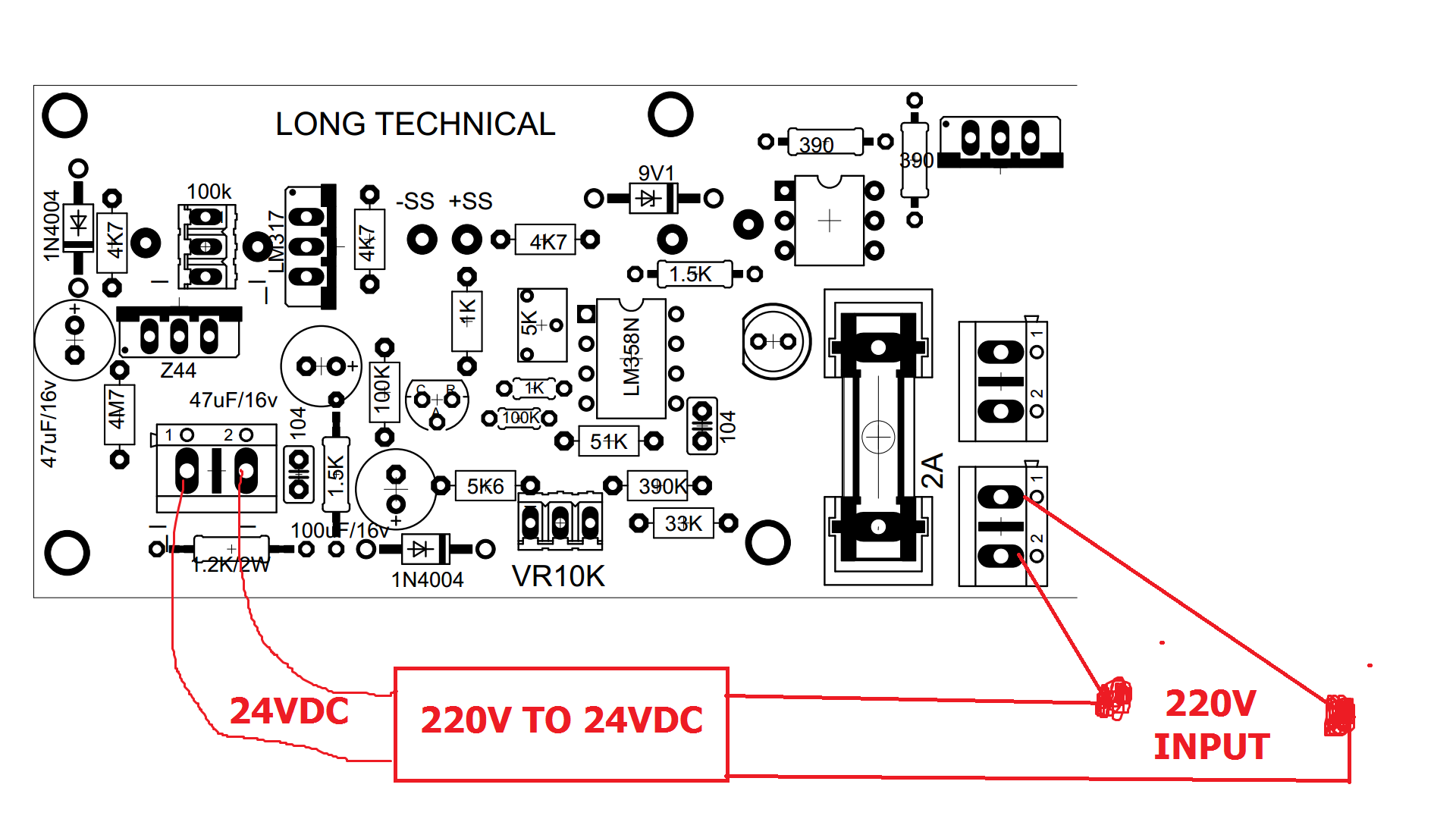

I use Eagle software for make layout. You can download all of thing need to make PCB here. You can make at home by yourself but you can use my gerber file and upload to JLCPCB.COM for make PCB online. I order PCB from JLCPCB.COM alot of time and i alway get PCB with high quality only 2$ for 10PCB and Big Discount on First order Shipping.

LIST PART

CAPACITOR: 14UF/16V X2

100UF/16V 100n X2

DIODE 1N4004 X2

DIODE ZENER 9V1/1W

FUSE 2A 250V

PORTENTIOMETTER 10 KILO OHM

PORTENTIOMETTER 100 KILO OHM

IC TL431

IC LM358

RESISTOR 4K7 X3

RESISTOR 4M7

RESISTOR 1K X2

RESISTOR 100K

RESISTOR 1K5 X2

PORTENTIOMETTER 3362P 5K

RESISTOR 51K

RESISTOR 5K6

RESISTOR 33K

RESISTOR 390 X2

RESISTOR 1K2/2W

LED 5MM

Triac BTA12

MOC3020

LM317

IRFZ44

Screw Terminal Block Connector KF128 pitch:5.08MM/0.2inch Green 5.08mm KF128 X2 Plug 8 pin AC 220V

Hot Air Gun Handle With Blower fan for Soldering station
