Home Made Solar Power System
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/FSC/EU0V/HCB8QC0R/FSCEU0VHCB8QC0R.jpg&filename=13, 7:08 PM.jpg)
I really wanted to try out solar power. I decided to make this. Ive put the whole thing in my lockers in my room.
Parts
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/FUF/0TN2/HCB8QC0W/FUF0TN2HCB8QC0W.jpg&filename=13, 7:08 PM.jpg)
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/FNV/66ZJ/HCB8QC0U/FNV66ZJHCB8QC0U.jpg&filename=13, 7:08 PM.jpg)
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/F48/H9DY/HCB8QC0V/F48H9DYHCB8QC0V.jpg&filename=13, 7:08 PM.jpg)
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/F6L/AU9U/HCB8QC0T/F6LAU9UHCB8QC0T.jpg&filename=13, 7:08 PM.jpg)
![13, 7:08 PM.jpg](/proxy/?url=https://content.instructables.com/FAN/V98N/HCB8QC0X/FANV98NHCB8QC0X.jpg&filename=13, 7:08 PM.jpg)
Parts:
2x 5watt mono-crystalline solar panels
1x 12/24 volt, 10amp solar charge controller
Any gauge wire, length depends on what you need.
Batteries: i have 2x 4.5amp at 12 volts and one 8amp at 12 volts.
Inverter(for powering other things)( i think mine is 140watt continuous and 250 watt peak)

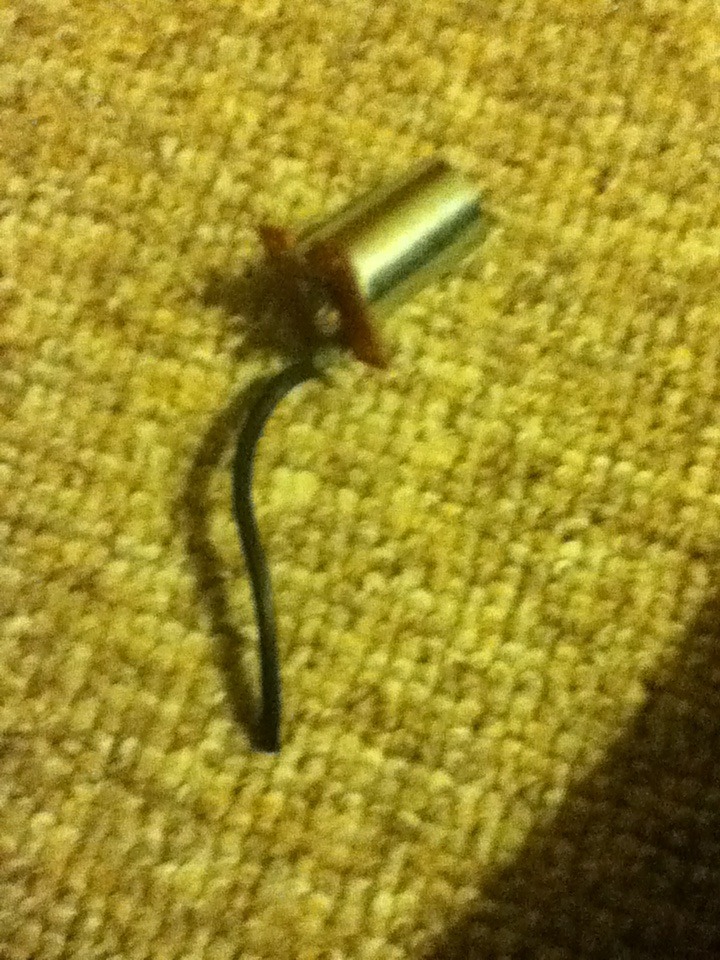

12 volt cigarette lighter sockets
Lights or what you are going to power
2x 5watt mono-crystalline solar panels
1x 12/24 volt, 10amp solar charge controller
Any gauge wire, length depends on what you need.
Batteries: i have 2x 4.5amp at 12 volts and one 8amp at 12 volts.
Inverter(for powering other things)( i think mine is 140watt continuous and 250 watt peak)
12 volt cigarette lighter sockets
Lights or what you are going to power
Construction

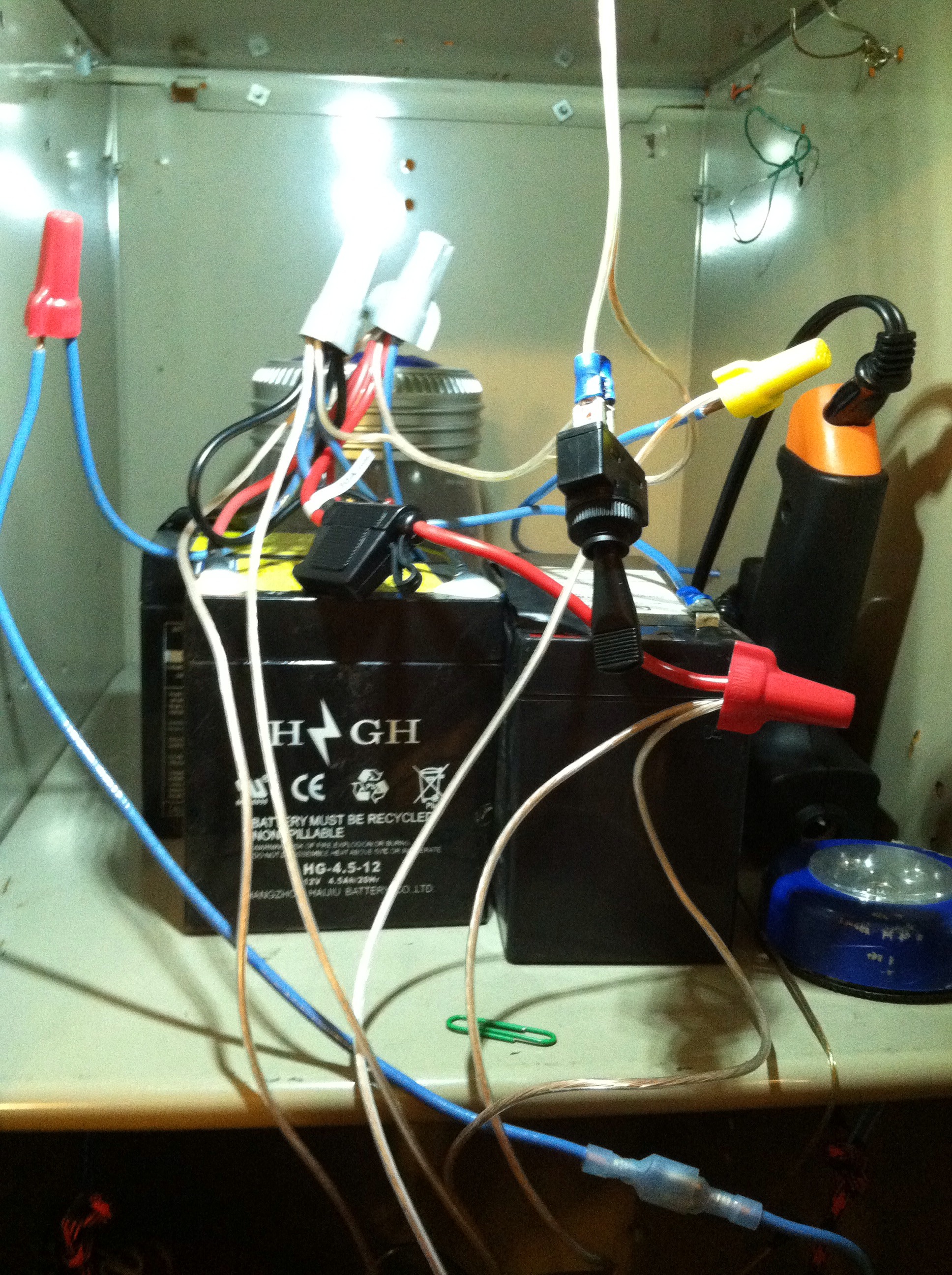

I first bought 1 of the panels, the charge controller and the wire. I made brackets for the solar panels from whatever i had laying around. I made a steak for them and put them on the side of our house that gets the most sun(which is really important) i started out with a little 1800mah battery(shown in picture 1), as you would expect it didnt last long. I soon bough another one. It was the 8amp one( i got the 2 4.5amp batteries out of my old scooter. I then ran the wire from the solar panels throunf my window, under the edge of my carpet and to my solar controller. I hooked my batteries up and then hooked up the cigarette lighter sockets and plug the inverter in through one of the two. I let the batteries charge up and have been running lights and fans and charging whatever. If you have any questions leave a comment.
Updates!
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/F9Y/XD4I/HOSOP9FH/F9YXD4IHOSOP9FH.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FYE/M6BP/HOSOP9FG/FYEM6BPHOSOP9FG.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FME/EKN4/HOSOP9FA/FMEEKN4HOSOP9FA.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FJZ/LKSJ/HOSOP9FB/FJZLKSJHOSOP9FB.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FR3/E45K/HOSOP9G3/FR3E45KHOSOP9G3.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/F1N/H06V/HOSOP9G4/F1NH06VHOSOP9G4.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FW8/4TCH/HOSOP9GF/FW84TCHHOSOP9GF.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FCN/PE2D/HOSOP9GI/FCNPE2DHOSOP9GI.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FVZ/D8U1/HOSOP9G5/FVZD8U1HOSOP9G5.jpg&filename=13, 6:38 PM.jpg)
![13, 6:38 PM.jpg](/proxy/?url=https://content.instructables.com/FUH/64E5/HOSOP9GE/FUH64E5HOSOP9GE.jpg&filename=13, 6:38 PM.jpg)
12/3/13

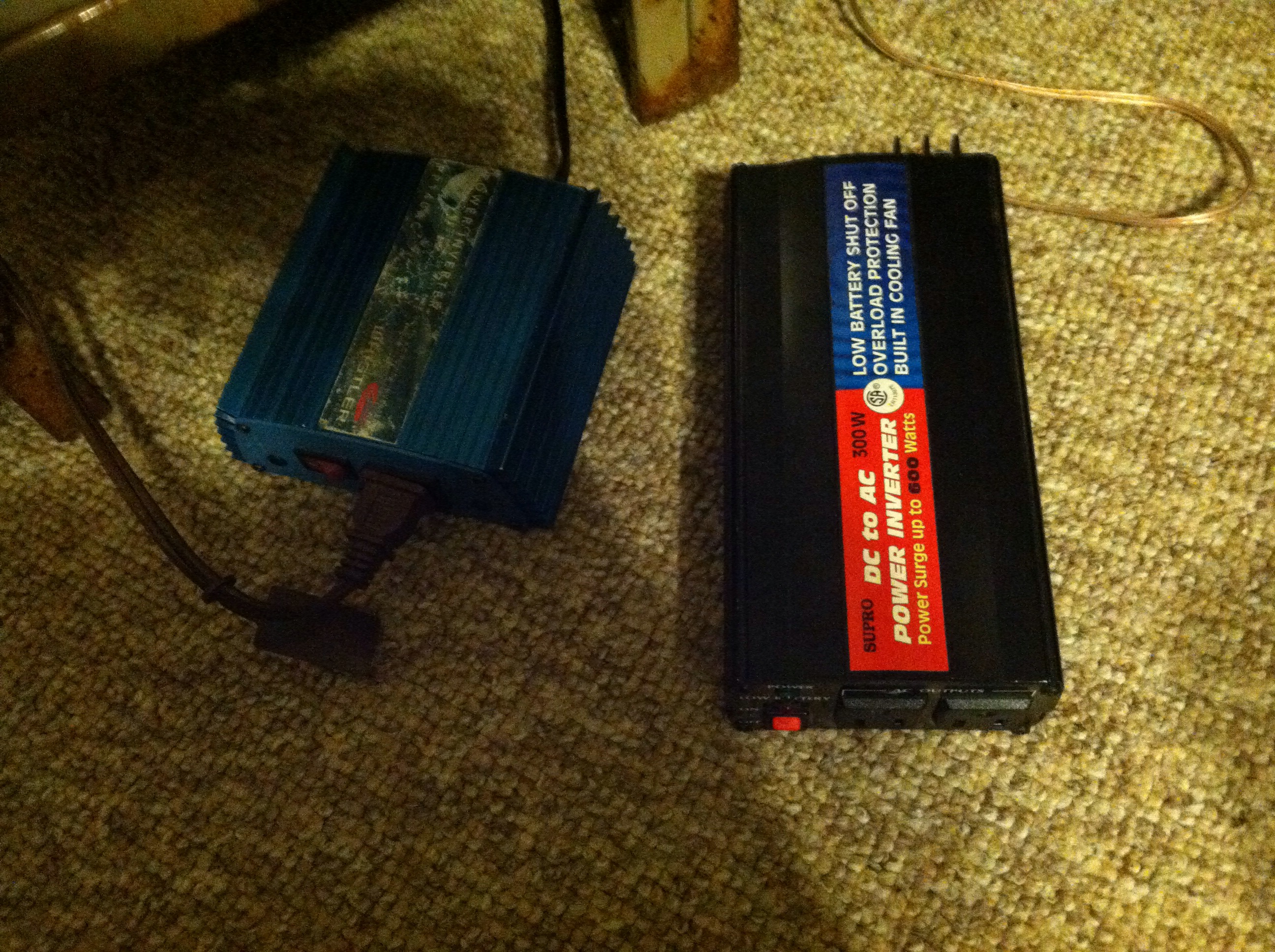

I have since added many updates to my solar! I added a light in the battery compartment, have a second,bigger inverter, lots of lights and other cool things! I use this now to power my small led tv in my room, charge my electronics, run fans, an even run some ac lights! Oh yah, and I used it to run my alarm clock too. I also added a panel that I have switches on so I can easily disconnect any thing I have hooked up. If I add anything to the system, I simply add more switches to the plastic board! I added a wireless receiver and remote also so I can turn on a few of the lights with a remote!
I have since added many updates to my solar! I added a light in the battery compartment, have a second,bigger inverter, lots of lights and other cool things! I use this now to power my small led tv in my room, charge my electronics, run fans, an even run some ac lights! Oh yah, and I used it to run my alarm clock too. I also added a panel that I have switches on so I can easily disconnect any thing I have hooked up. If I add anything to the system, I simply add more switches to the plastic board! I added a wireless receiver and remote also so I can turn on a few of the lights with a remote!
