Home Automation V1 (Arduino, Raspberry Pi, ESP8266)
by TAD2000 in Circuits > Arduino
4245 Views, 34 Favorites, 0 Comments
Home Automation V1 (Arduino, Raspberry Pi, ESP8266)

This is my first prototype Home Automation.
ESP8266

ESP8266
There are two buttons - ON/OFF.
Arduino UNO




Arduino UNO

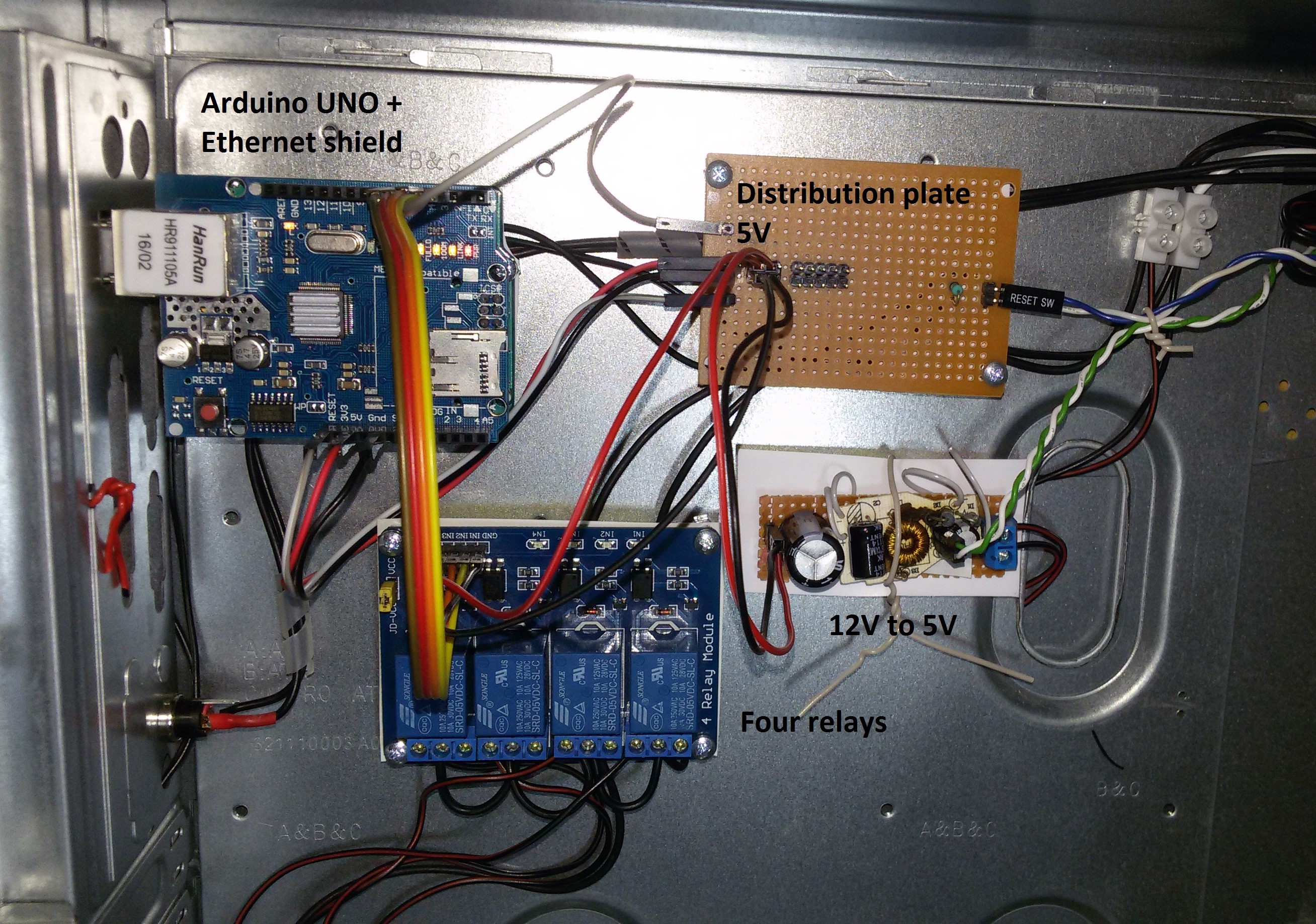

Four relays, one door sensor, reset button are connected to the Arduino UNO. All this is in the old PC case.
Raspberry Pi


Raspberry Pi 2B
Two modules are connected to Raspberry Pi
There is BMP180 (temperature, pressure), it's ready for DS18B20.
MCP23008 Modul


There is MCP23008 modul.

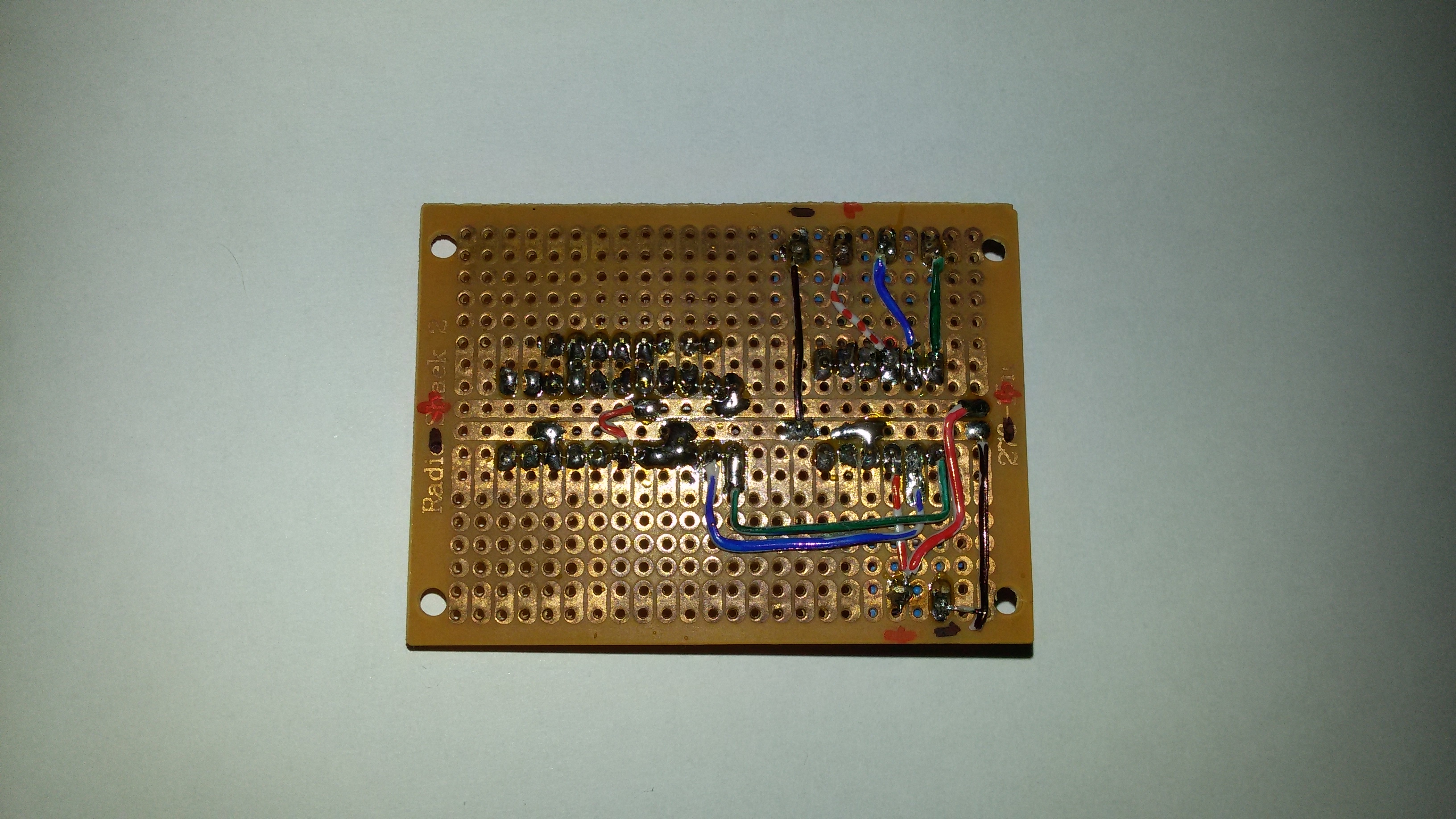

Thera are MCP23008 and level converter and eight input/output.

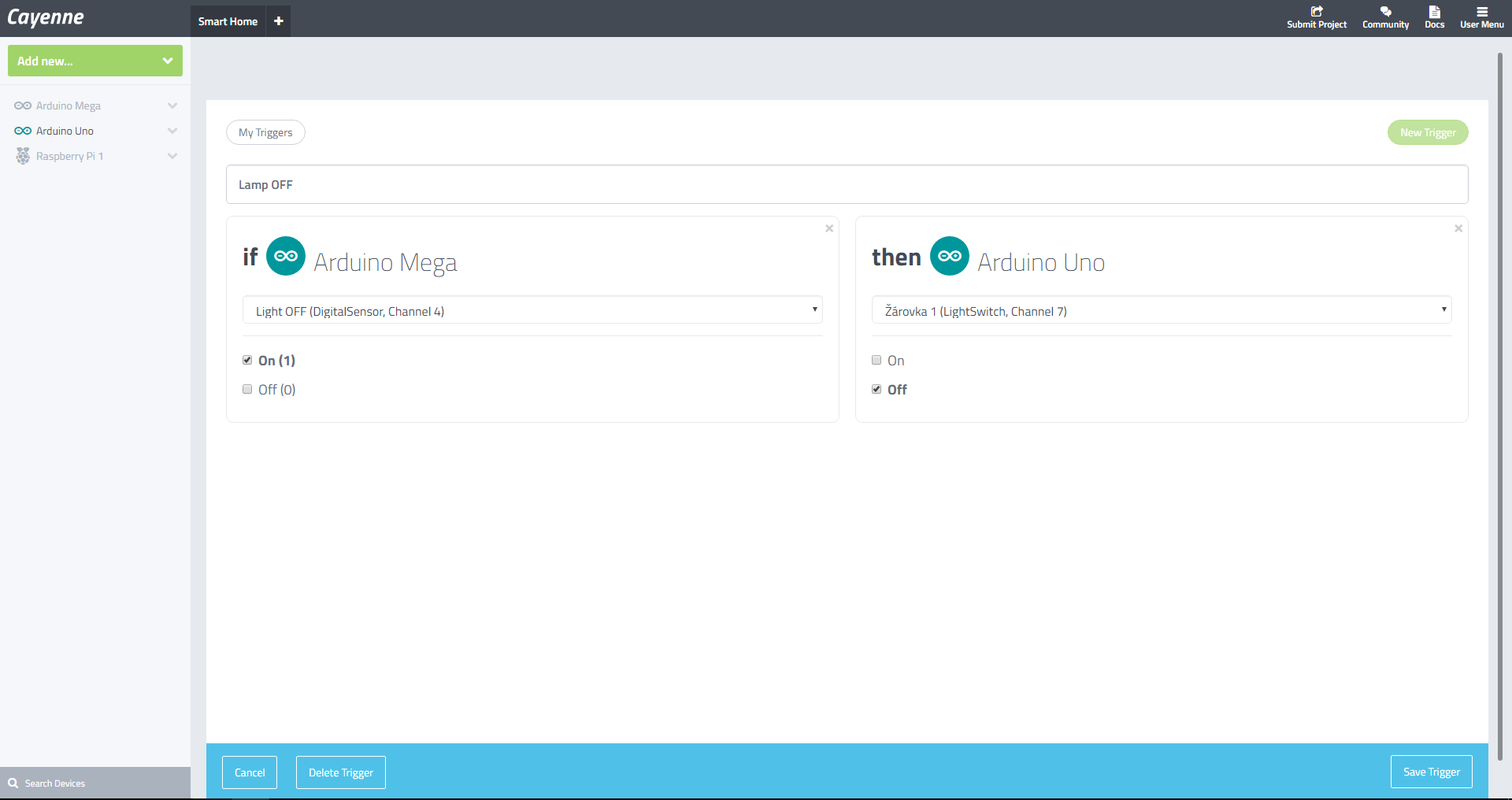

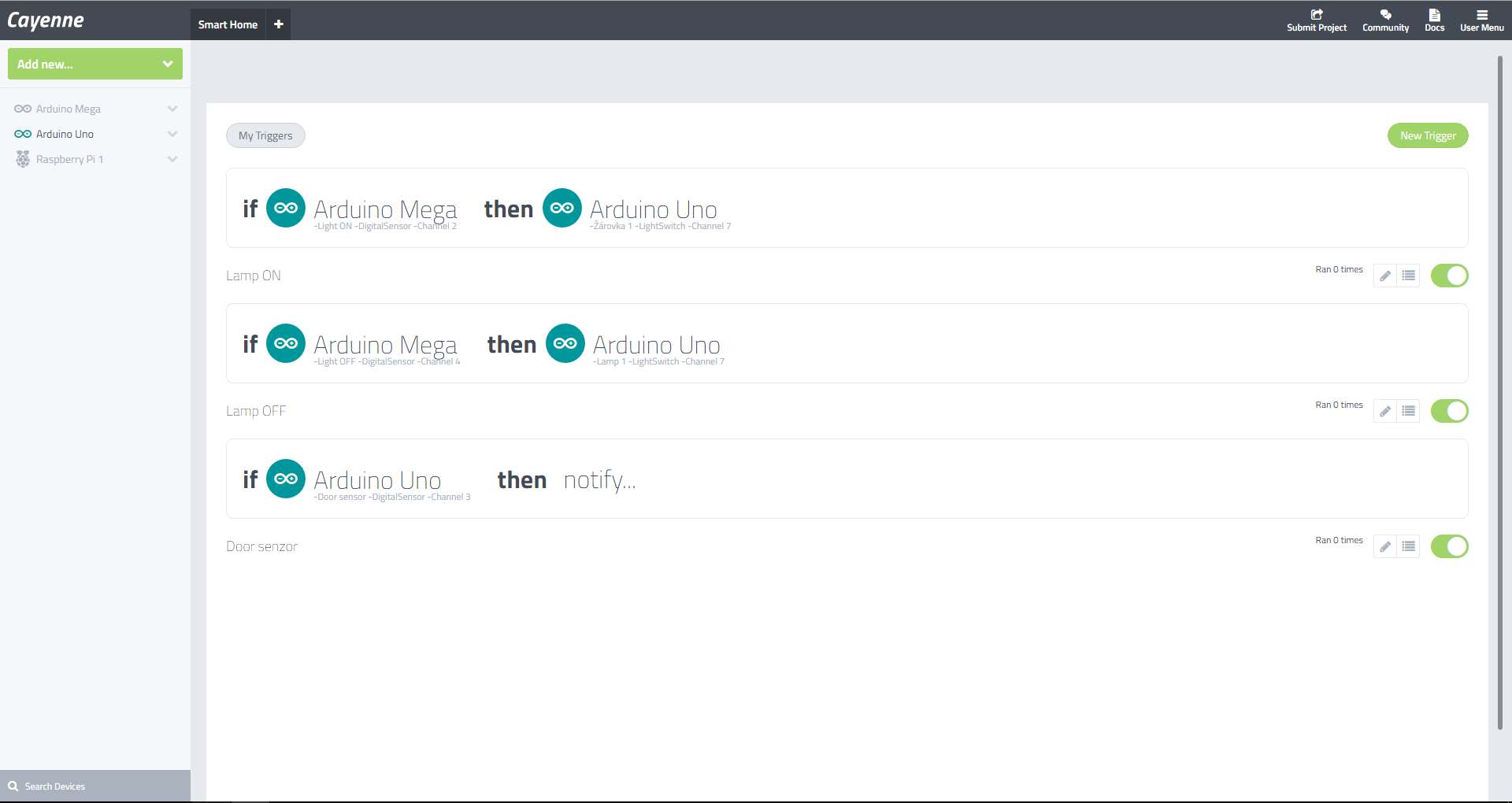

Triggers
.png)
.png)
.png)
.png)
(Arduino Mega JE ESP8266)
