How to Make Arduino Based Digital Tachometer Simple DIY Tutorial

by Mr innovative in Circuits > Arduino

83790 Views, 319 Favorites, 0 Comments

How to Make Arduino Based Digital Tachometer Simple DIY Tutorial


Let see how to make Arduino based digital Tachometer.

Working principle :-

IR Sensor get penetrate by motion of motor shaft, signal are transfer from IR Senor module to Arduino.

This signal are processed in Arduino according to code loaded on it.

Then Arduino transfer signals to LCD Screen to display RPM

https://easyeda.com/sharmaz747/Arduino_techometer-...

Video

Material Reuired


1) IR Sensor module :- http://amzn.to/2mOUVyw

2) LCD Screen :- http://amzn.to/2lxF1bp

3) Arduino Nano :- http://amzn.to/2lxF1bp

4) Zero PCB :- http://amzn.to/2lxF1bp

5) Header pins :- http://amzn.to/2lxF1bp

6) 9V Batter

Electrical Circuit

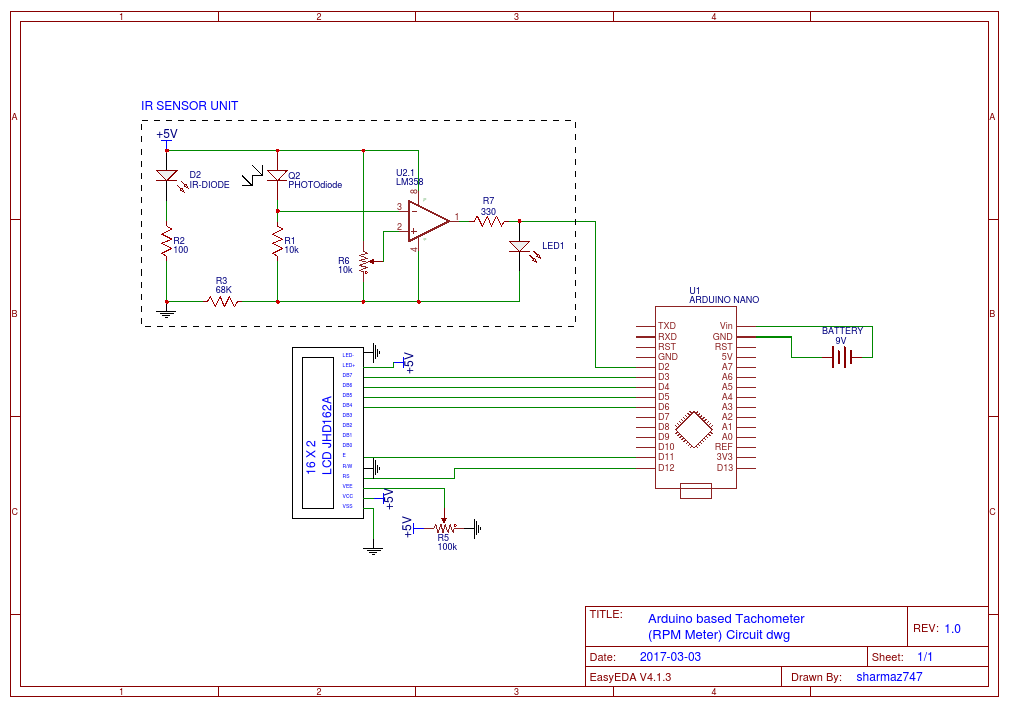

Kindly go through the attached circuit diagram.

https://easyeda.com/sharmaz747/Arduino_techometer-...

IR Sensor Arduino

VCC----------------5V

GND----------------GND

OUT-----------------2(digital pin no. 2)


16X2 LCD Arduino

VSS------------------ GND

VCC----------------- +5V

VEE------------------ POT

RS-------------------- 12

R/W----------------- GND

E--------------------- 11

DB0----------------

DB1----------------

DB2----------------

DB3----------------

DB4------------------ 6

DB5------------------ 5

DB6------------------ 4

DB7---------------- 3

LED+--------------- +5V

LED----------------- GND

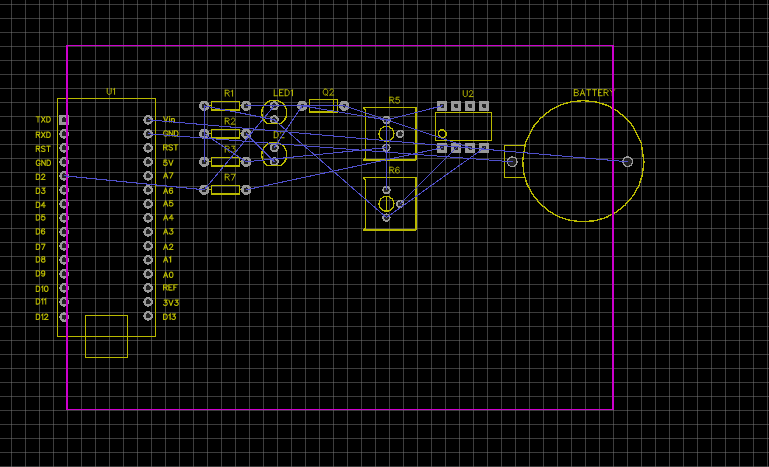

Visit https://easyeda.com/

to design & buy your custom make PCB





Procedure


Bring a Zero PCB, Mount female header pin on PCB

Place arduino and LCD Screen on PCB

Make solder connection where it is required,

refer electrical drawing for better understanding.

place IR Senor module on PCB in way that its sensor face toward the

wheel of motor to whom RPM have to measure.

Connect the Arduino with PC to upload code.

Then connect the 9V battery to power up arduino & LCD 16 X 2 screen

you can adjust the brightness of screen by rotating that Knob connected at VEE of LCD Screen

Now you are ready to take RPM reading.

Manually rotate the Wheel of motor you can see RPM Reading are appear on screen

feel free to comment below

Thank for your attention hope you like this project

Arduino Code


Click here to download Arduino code

upload the code to Arduino

Be sure you have selected right Board & port to successfully upload the code
