Headphone Stand With Built in Wireless Phone Charger
by Shadowmowgli in Living > Organizing
122 Views, 1 Favorites, 0 Comments

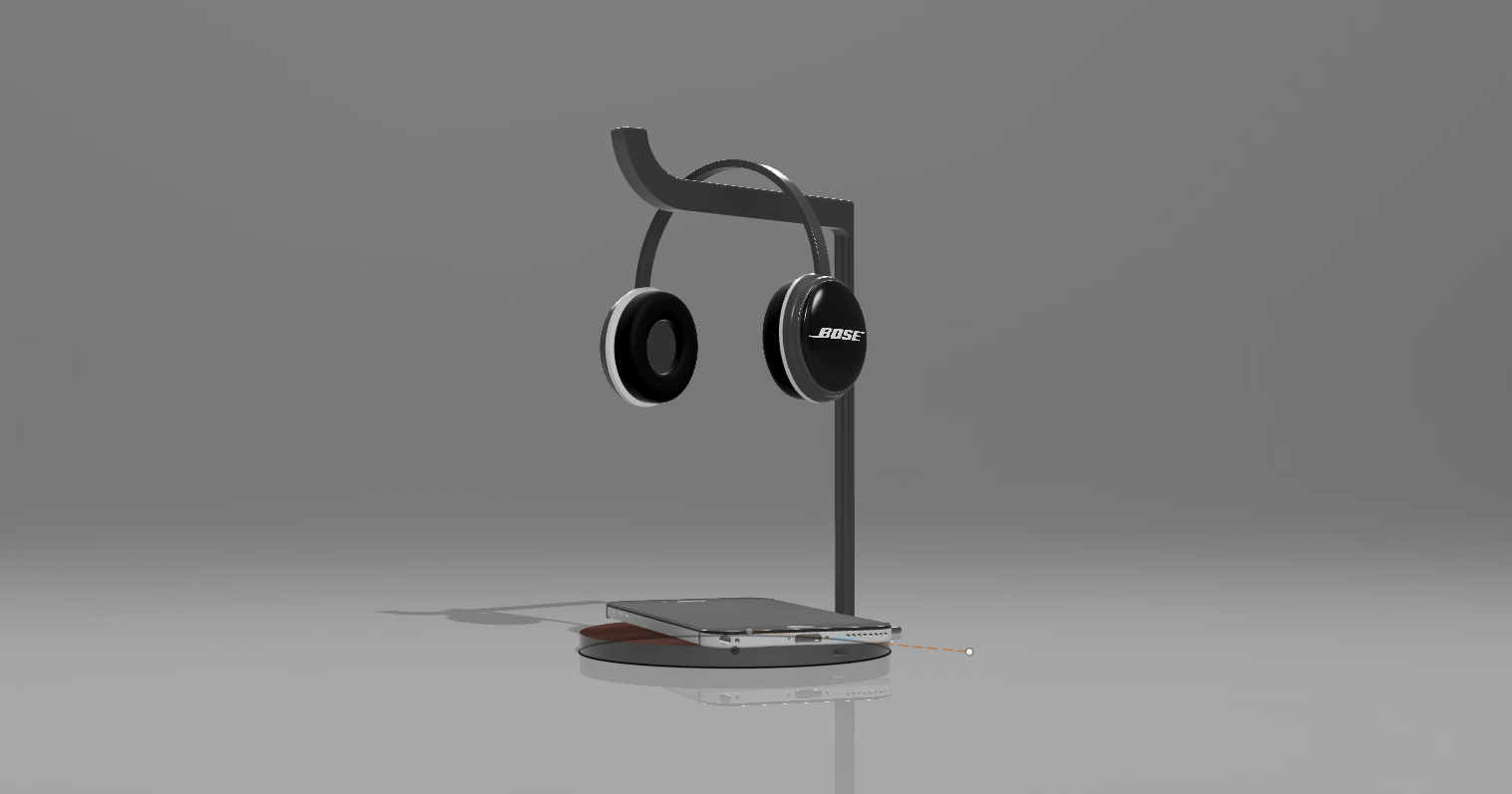

Headphone Stand With Built in Wireless Phone Charger
![Wireless Phone Charger_Headphone Stand v4.png](/proxy/?url=https://content.instructables.com/F1C/JLIO/KUWO5TQS/F1CJLIOKUWO5TQS.png&filename=Wireless Phone Charger_Headphone Stand v4.png)
I have to admit, I'm a bit disorganized. I've misplaced my electronics a couple times and it's always a pain to find the USB chargers at night. I wanted a headphone stand that can charge both my phone and headphones, while being eye-catching.
Supplies
- AutoDesk Fusion 360
Inspiration
![Headphone Stand.jpg](/proxy/?url=https://content.instructables.com/FDT/59HU/KUWO5P1X/FDT59HUKUWO5P1X.jpg&filename=Headphone Stand.jpg)
![auray_hpds_b_headphone_desktop_stand_black_1334341.jpg](/proxy/?url=https://content.instructables.com/FKN/4U2Z/KUWO5P1Y/FKN4U2ZKUWO5P1Y.jpg&filename=auray_hpds_b_headphone_desktop_stand_black_1334341.jpg)
![download.jpg](/proxy/?url=https://content.instructables.com/FWN/4SLF/KUWO5P20/FWN4SLFKUWO5P20.jpg&filename=download.jpg)
I was searching up some models of headphone stands looking for a colour palate that is similar to my desk, and came up with a half wooden/metal design. The wooden part would contain a wireless qi charging system for my phone, and a USB-A port to attach a cable from. I can then hang my wireless headphones on the metal part and charge them using the USB-A port.
Rough Sketch
![Headphone.png](/proxy/?url=https://content.instructables.com/FX0/Q7UI/KUWO7EOH/FX0Q7UIKUWO7EOH.png&filename=Headphone.png)

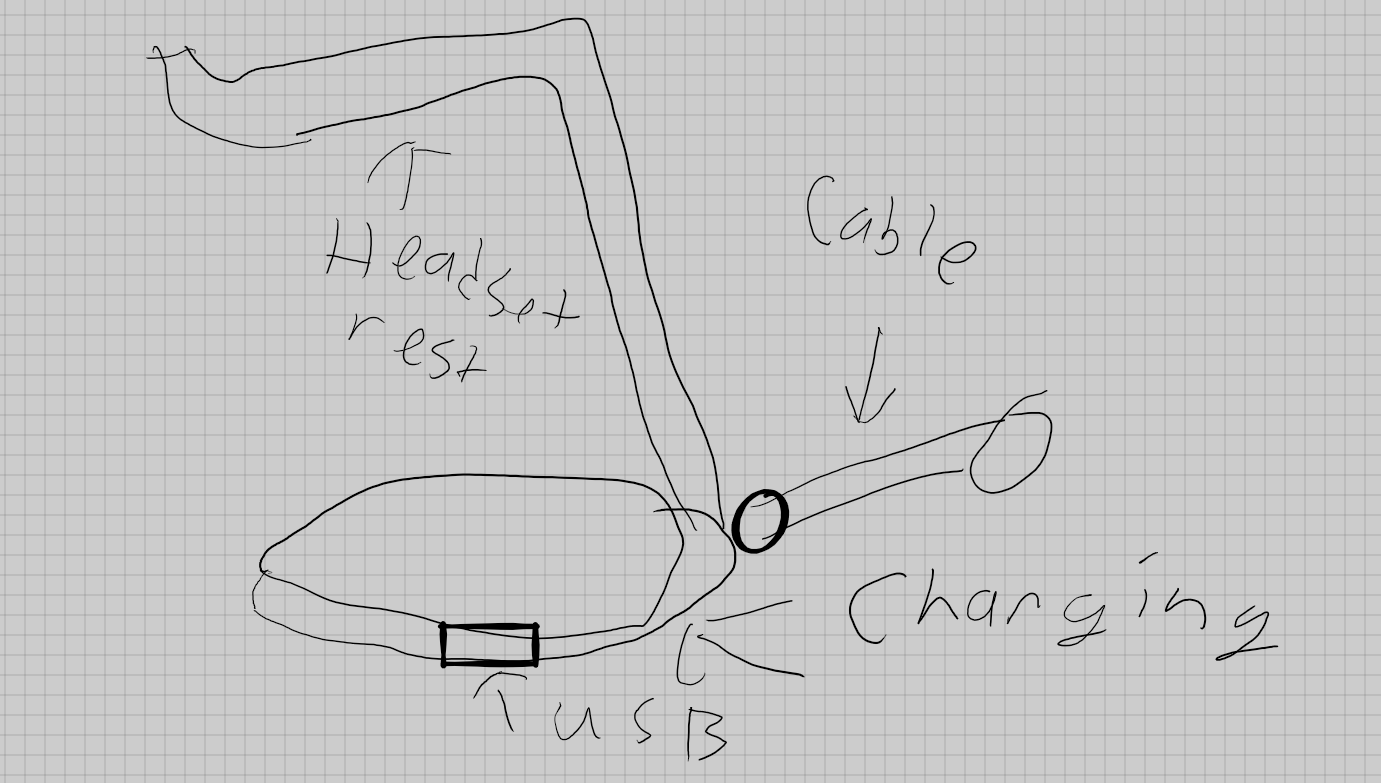

I drew what I wanted in this headphone stand with the main features identified.
- USB Port
- Cable connection
- Wireless Charger Pad
- Headset Rest
CAD Models
![Phone.png](/proxy/?url=https://content.instructables.com/FZD/Y2TY/KUWO5S5D/FZDY2TYKUWO5S5D.png&filename=Phone.png)
![Headphone Stand Only.png](/proxy/?url=https://content.instructables.com/FQF/R37D/KUWO5S5E/FQFR37DKUWO5S5E.png&filename=Headphone Stand Only.png)
![_bose headphone.90791211-5149-44ff-8083-4322de704076 v1.png](/proxy/?url=https://content.instructables.com/FSS/NZWJ/KUWO5S5F/FSSNZWJKUWO5S5F.png&filename=_bose headphone.90791211-5149-44ff-8083-4322de704076 v1.png)

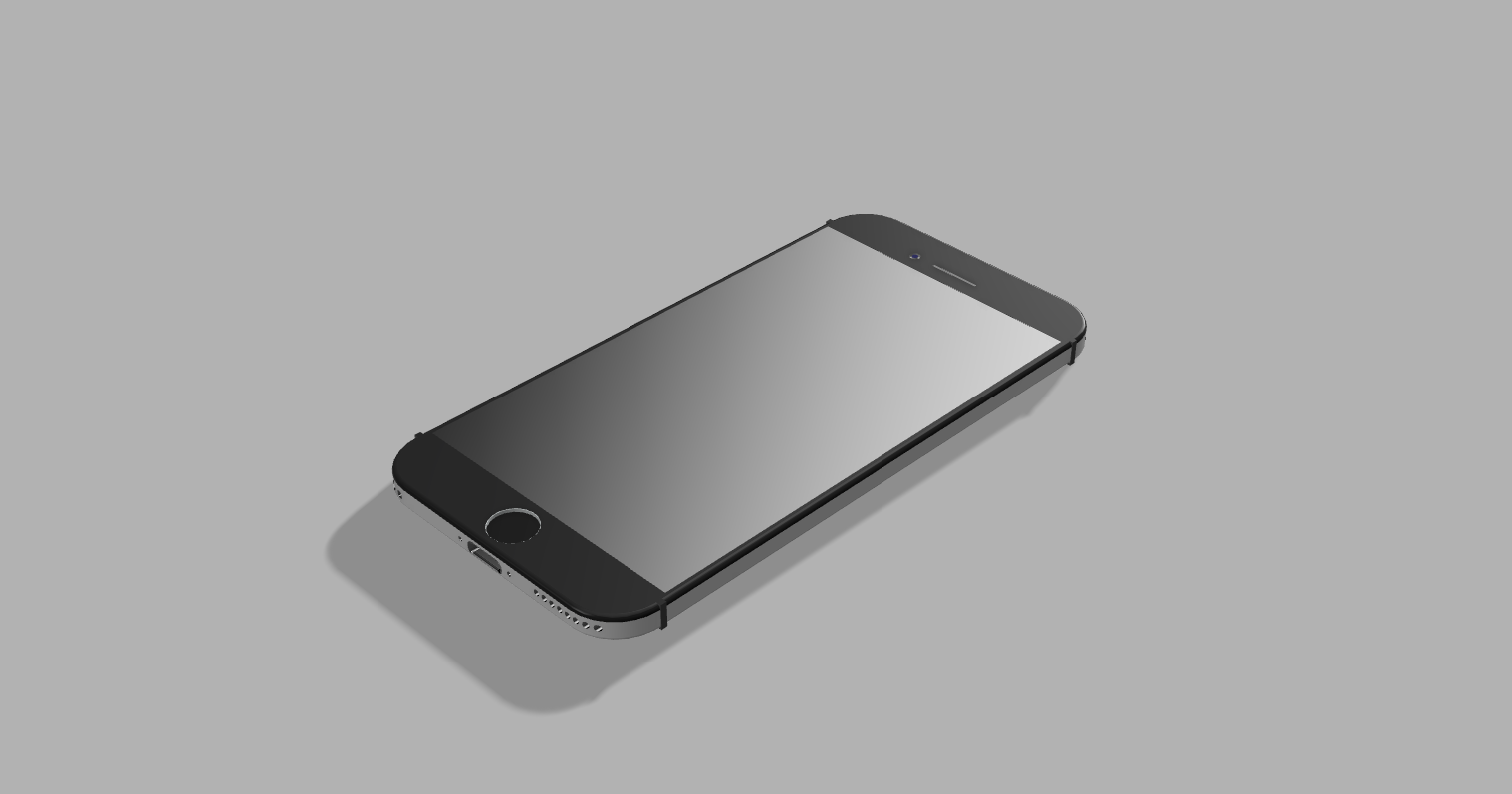

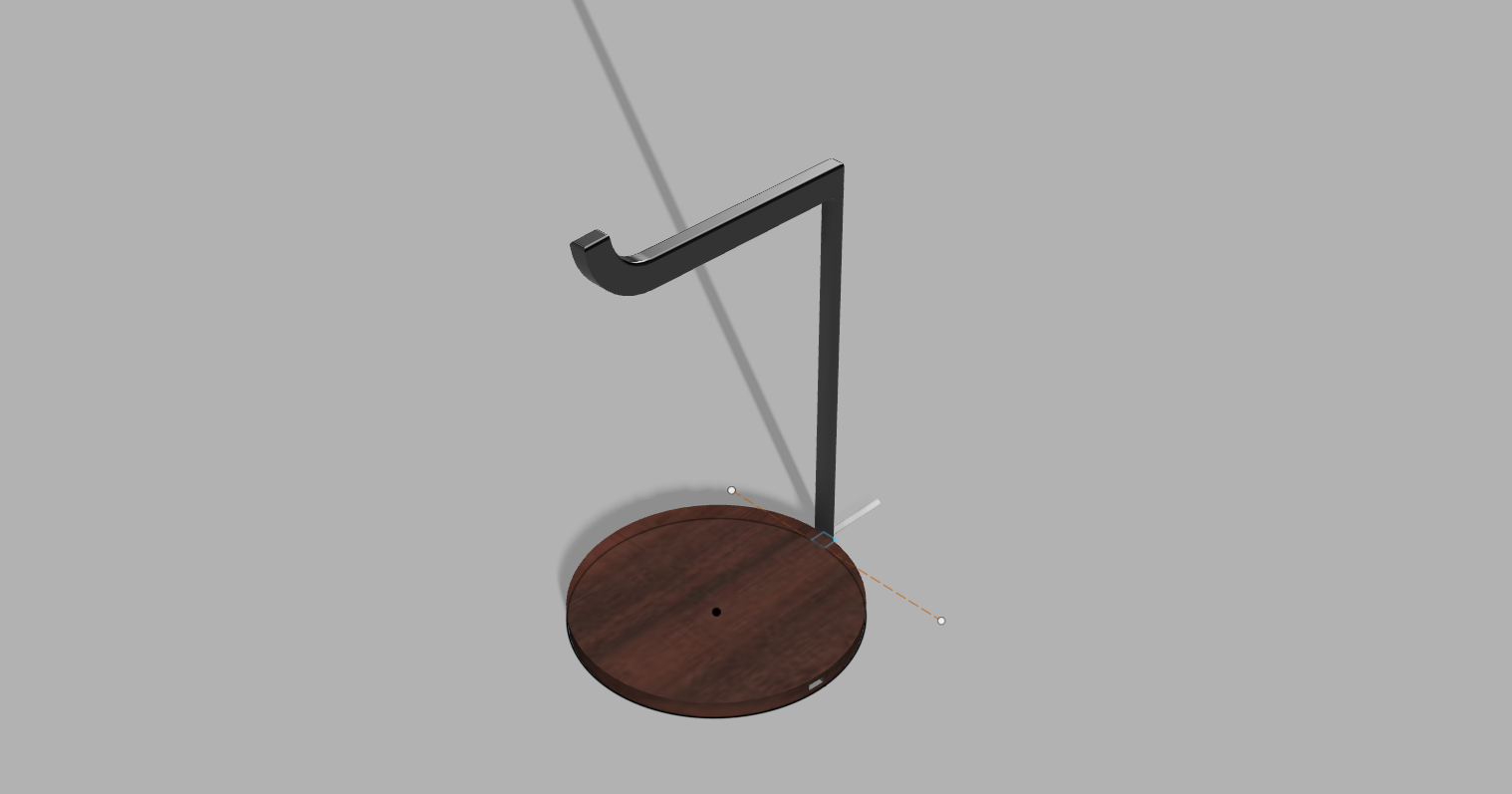

I created the headphone charger stand solely in Fusion 360, and imported the phone and Bose Headphone Models from the AutoCad Free Library.
Appearance
![Wireless Phone Charger_Headphone Stand v4.png](/proxy/?url=https://content.instructables.com/FF0/223K/KUWO5U51/FF0223KKUWO5U51.png&filename=Wireless Phone Charger_Headphone Stand v4.png)
![WPCD1.png](/proxy/?url=https://content.instructables.com/FJZ/M7QF/KUWO5U52/FJZM7QFKUWO5U52.png&filename=WPCD1.png)
![WPCD2.png](/proxy/?url=https://content.instructables.com/FOF/H77G/KUWO5U53/FOFH77GKUWO5U53.png&filename=WPCD2.png)
There are multiple ways to customize this, mainly swapping out materials. My original design with being a wood and metal can be changed several ways to suit personal tastes and décor.
Renders
![Headphone Stand Only.png](/proxy/?url=https://content.instructables.com/FF4/02RW/KUO3IEDQ/FF402RWKUO3IEDQ.png&filename=Headphone Stand Only.png)
![Wireless Phone Charger_Headphone Stand v3.png](/proxy/?url=https://content.instructables.com/F16/S82Y/KUO3IEIC/F16S82YKUO3IEIC.png&filename=Wireless Phone Charger_Headphone Stand v3.png)
![FFBLTKHKUO3IED2.png](/proxy/?url=https://content.instructables.com/F5W/H7VG/KUO3IED6/F5WH7VGKUO3IED6.png&filename=FFBLTKHKUO3IED2.png)
- Shows the base model without any accessories.
- Shows the base model with headphones attached.
- Shows the base model with both headphones and phone attached.
Final Thoughts
![WPCD3.png](/proxy/?url=https://content.instructables.com/FTC/OGK6/KUWO5U7D/FTCOGK6KUWO5U7D.png&filename=WPCD3.png)
The process of designing something for myself was refreshing and gave me the confidence to make this a beautiful model. This turned out to be a fun idea, and I would love to create more DIY 3D Models in the future. I would like to try doing something more detailed and mechanical once I have the technical jargon down.
