Hay Bale Dolly Assistive Technology
![Hay Bale Dolly](/proxy/?url=https://content.instructables.com/FMT/O9LF/KADXJU4G/FMTO9LFKADXJU4G.jpg&filename=Hay Bale Dolly)
![20200519_114412.jpg](/proxy/?url=https://content.instructables.com/F09/V2QQ/KADXJGCY/F09V2QQKADXJGCY.jpg&filename=20200519_114412.jpg)
![20200519_114536.jpg](/proxy/?url=https://content.instructables.com/F2J/RU75/KADXJHRJ/F2JRU75KADXJHRJ.jpg&filename=20200519_114536.jpg)
![vlcsnap-2020-05-19-12h41m22s032.png](/proxy/?url=https://content.instructables.com/FCX/PEFA/KADXLIFM/FCXPEFAKADXLIFM.png&filename=vlcsnap-2020-05-19-12h41m22s032.png)
Farm workers with back, leg, and arm impairments struggle to carry hay bales across uneven ground. A hay bale dolly moves the bale on wheels to enable the farmers to do necessary tasks in spite of their medical conditions.
Supplies
Items needed are 24-inches of 1 1/2 x 1 1/2 x 1/4" angle iron, 4 pieces of 1/2" rebar cut to 15" lengths, 2 bolts, and a 2-wheel dolly.
Tines
![20200519_115359.jpg](/proxy/?url=https://content.instructables.com/FSW/V8OV/KADXJJY8/FSWV8OVKADXJJY8.jpg&filename=20200519_115359.jpg)

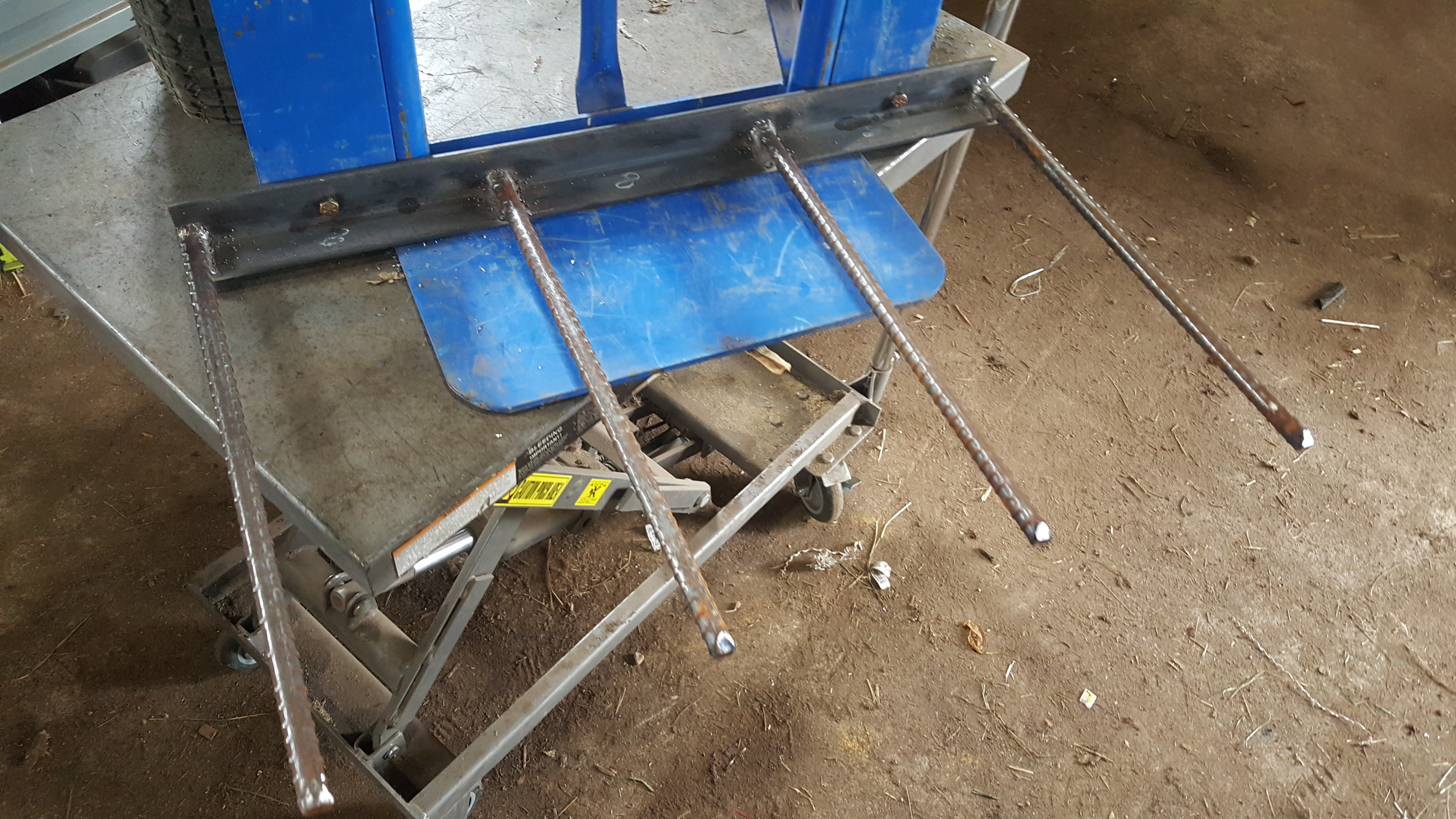

First drill 2 holes in the angle iron and the dolly so the tines can be bolted in place once welding is done. Second, weld the 4 rebar tines onto the angle iron at 8-inch spacing.
Assembly
![20200519_120757.jpg](/proxy/?url=https://content.instructables.com/FCC/QYSO/KADXJL81/FCCQYSOKADXJL81.jpg&filename=20200519_120757.jpg)
![20200519_120802.jpg](/proxy/?url=https://content.instructables.com/F1L/N1JG/KADXJMIZ/F1LN1JGKADXJMIZ.jpg&filename=20200519_120802.jpg)
![20200519_120809.jpg](/proxy/?url=https://content.instructables.com/F6Q/6DQZ/KADXJNCG/F6Q6DQZKADXJNCG.jpg&filename=20200519_120809.jpg)
![vlcsnap-2020-05-19-12h41m12s982.png](/proxy/?url=https://content.instructables.com/FMH/V7TP/KADXLIDH/FMHV7TPKADXLIDH.png&filename=vlcsnap-2020-05-19-12h41m12s982.png)
![vlcsnap-2020-05-19-12h41m14s996.png](/proxy/?url=https://content.instructables.com/FIM/UHCQ/KADXLIF5/FIMUHCQKADXLIF5.png&filename=vlcsnap-2020-05-19-12h41m14s996.png)

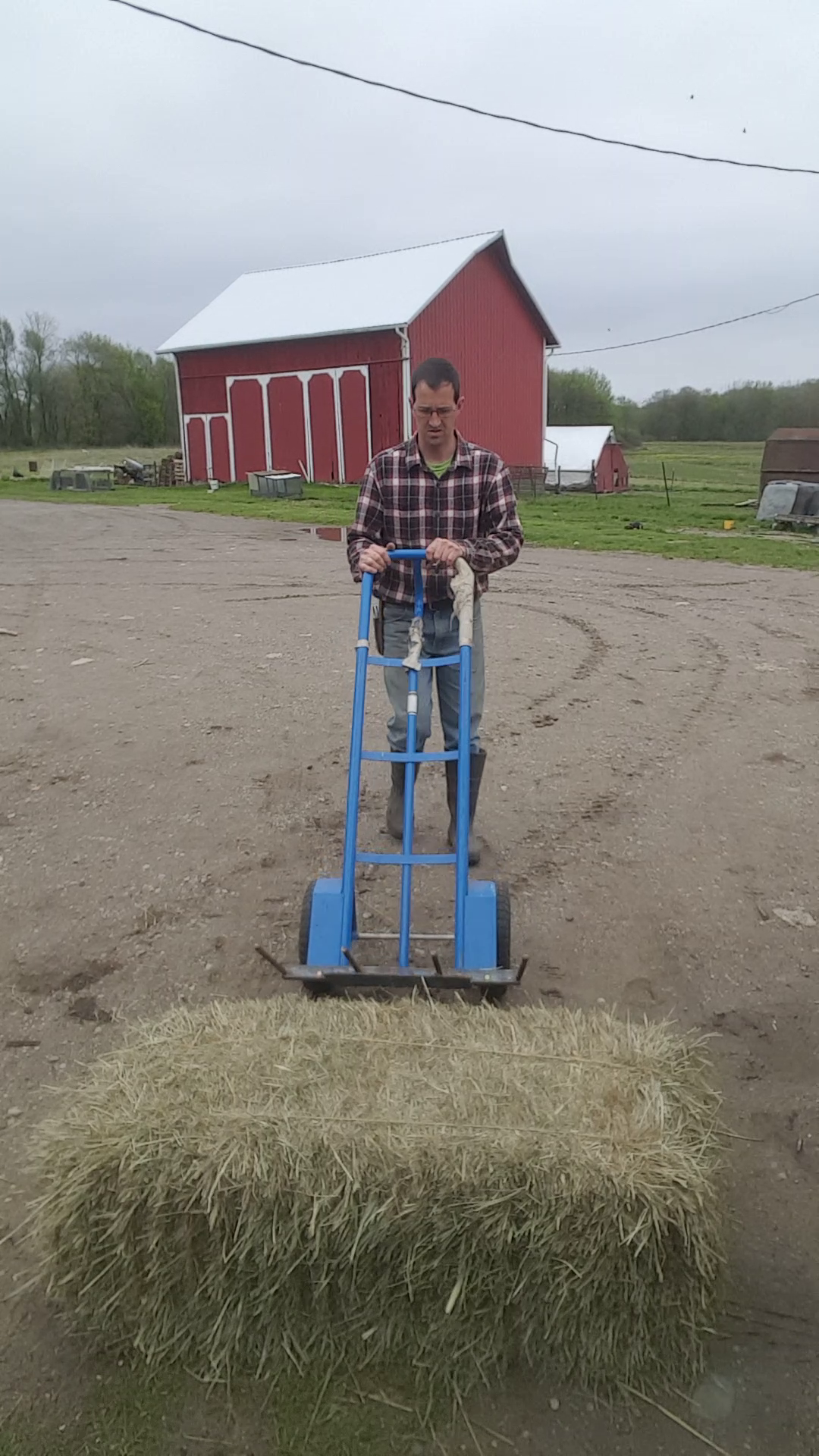

Bolt the tines onto the dolly and use the dolly to easily move hay bales without lifting and carrying.
