Hanging Storage Bins

I recently made and installed some heavy-duty shelves at my house, which are covered in this instructable: Simple Heavy-Duty Shelves.

The room where I installed these shelves serves as my home office as well as my family's indoor making space.

So we have loads of craft supplies that were cluttering up a small closet, that desperately needed to be organized and kept closer at hand.

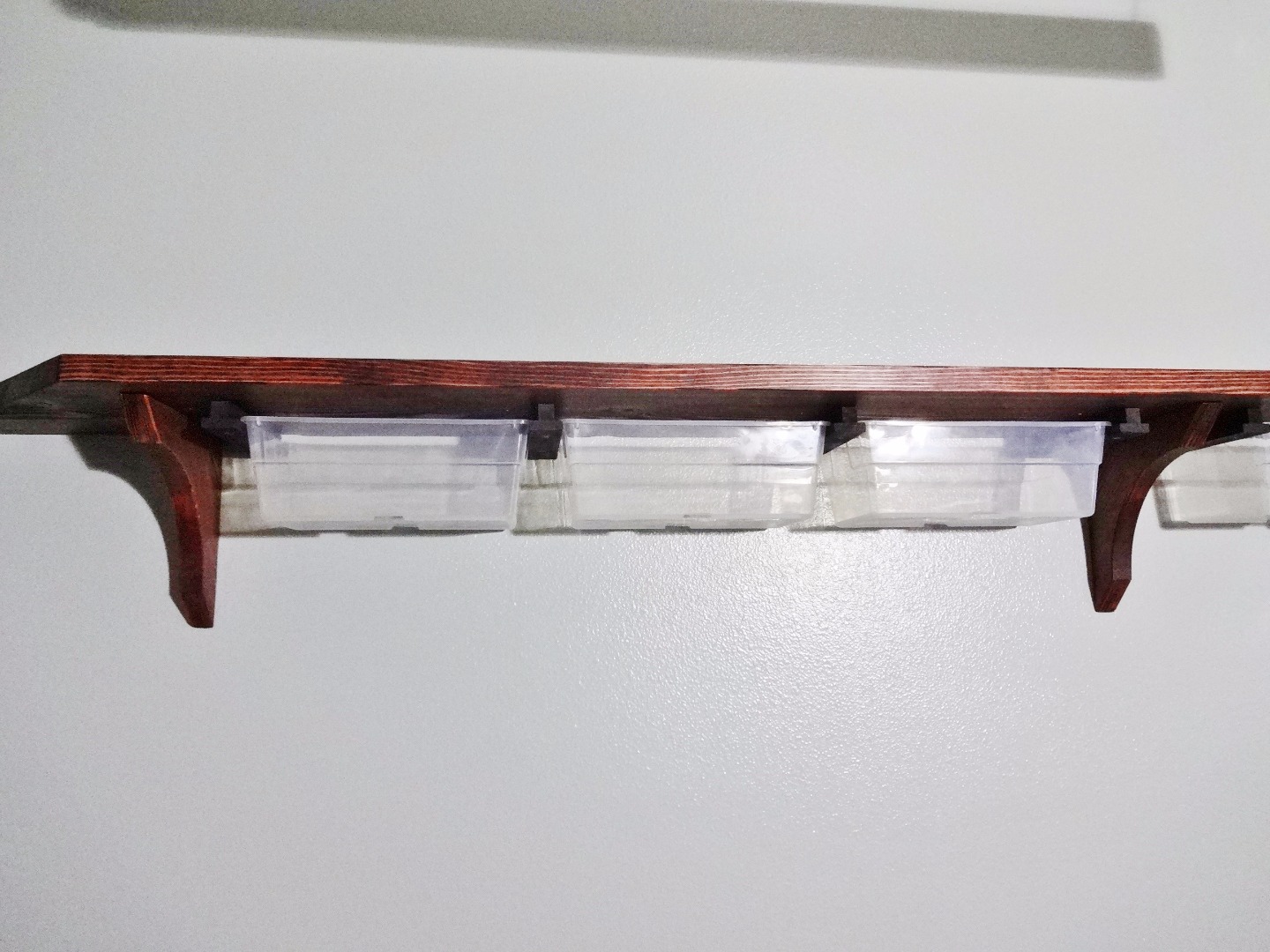

To organize all this stuff, I made some simple cleats to fasten a bunch of cheap plastic bins to the undersides of my new shelves.

The bins easily slide in and out, keeping everything within reach but nicely tucked away.

This is a very simple project to complete and incredibly useful if you have a similar shelving situation.

Here's a quick look at the details.

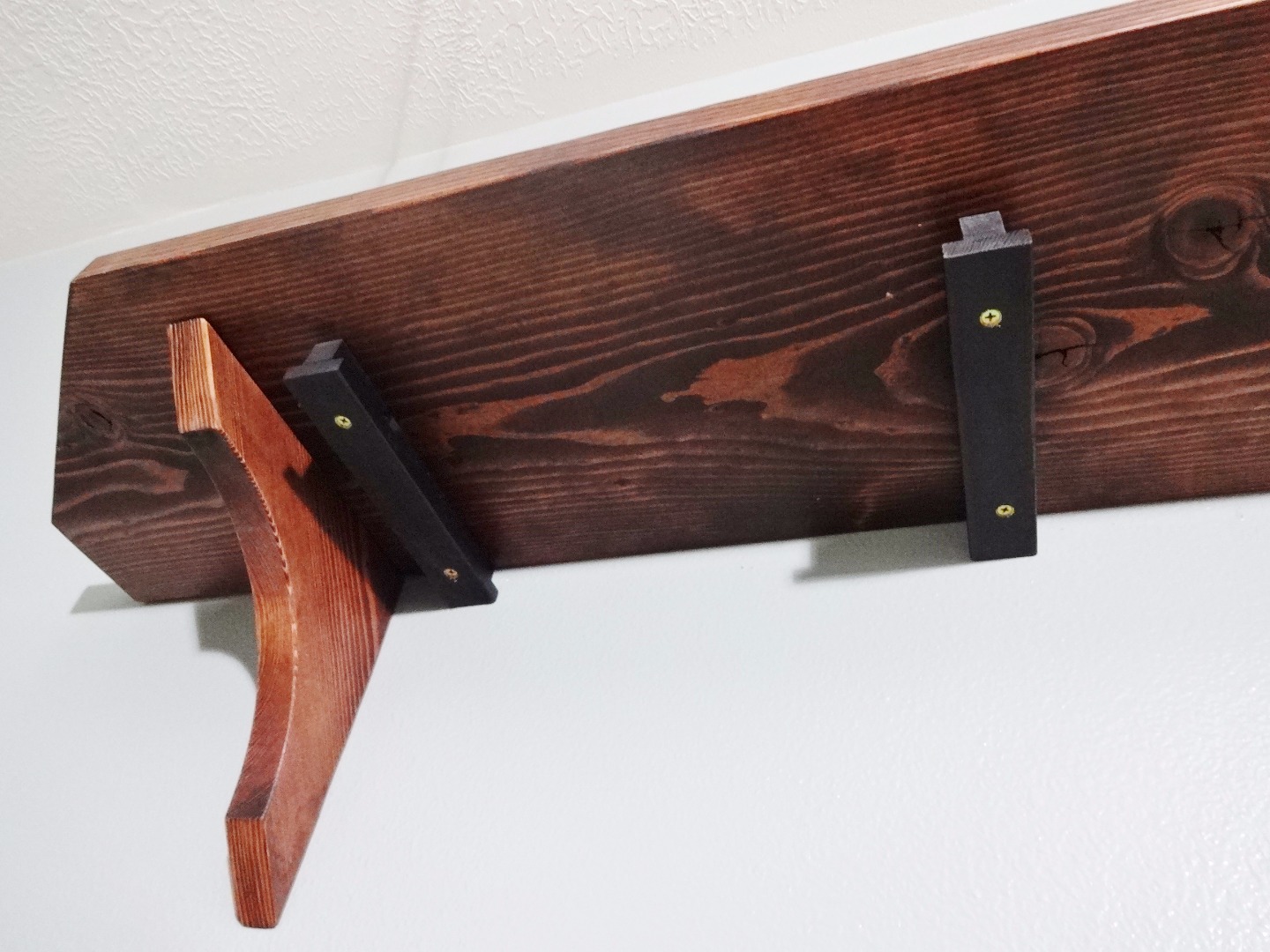

The cleats are made from two pieces of scrap wood which were glued together and screwed to the underside of the existing shelves.

The top lip of the bins hang on rails incorporated into the cleats. Pretty simple!

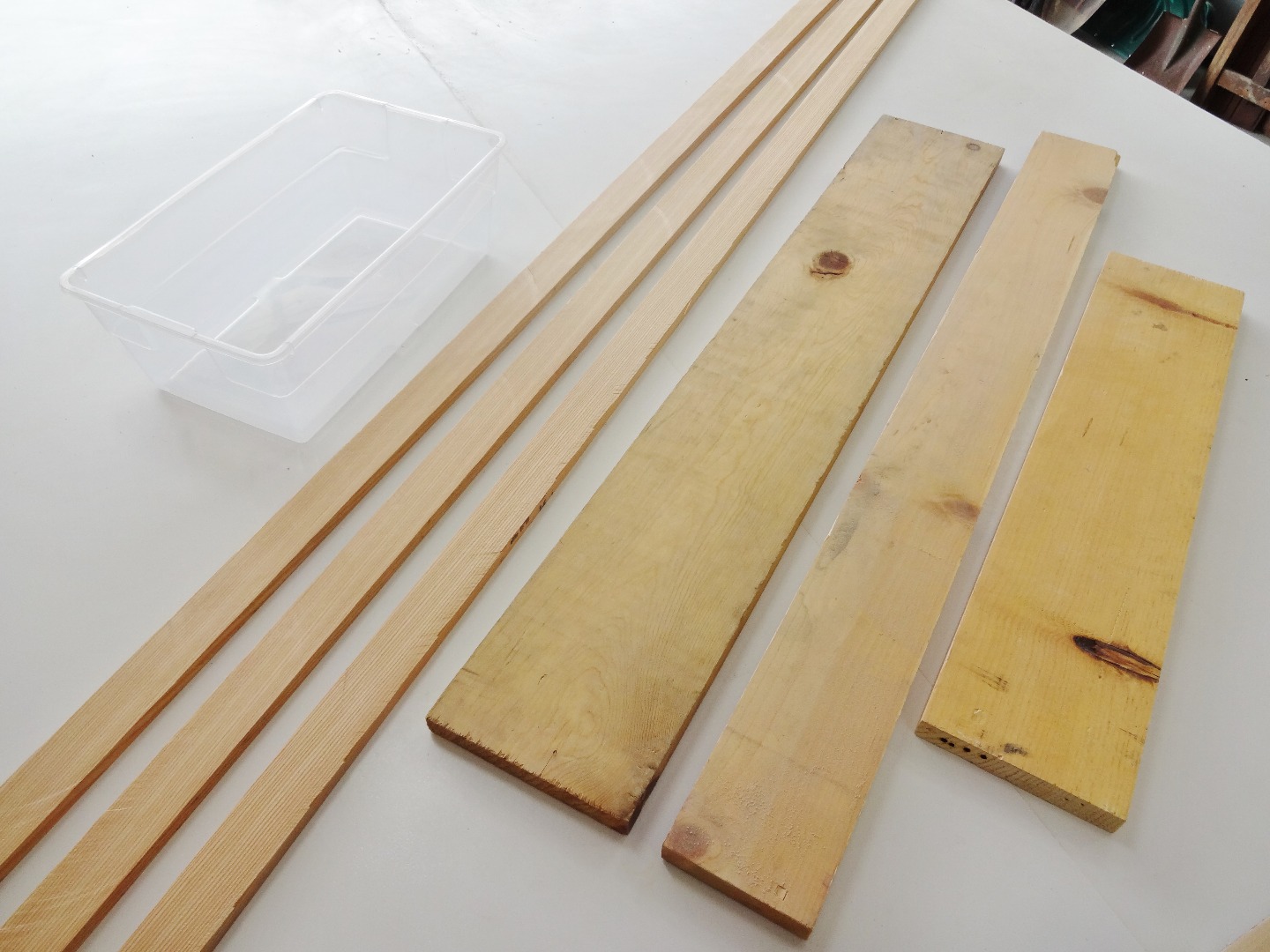

The plastic bins I used are 6-quart Sterilite brand, which were purchased at Home Depot for $1 apiece.

The cleats upon which the bins hang were made from two pieces of wood, both of which were 8 1/2" long.

The flat pieces are 3/8" thick by 1 1/2" wide, and were cut from a 2 by 4. The other pieces are 3/4" square, cut from scrap pine boards.

I hung nine bins in groups of three, so for my purposes I needed to make 12 cleats.

The wood pieces were glued together with wood glue and held with clamps until dry.

It's important to make sure the pieces are centered nicely.

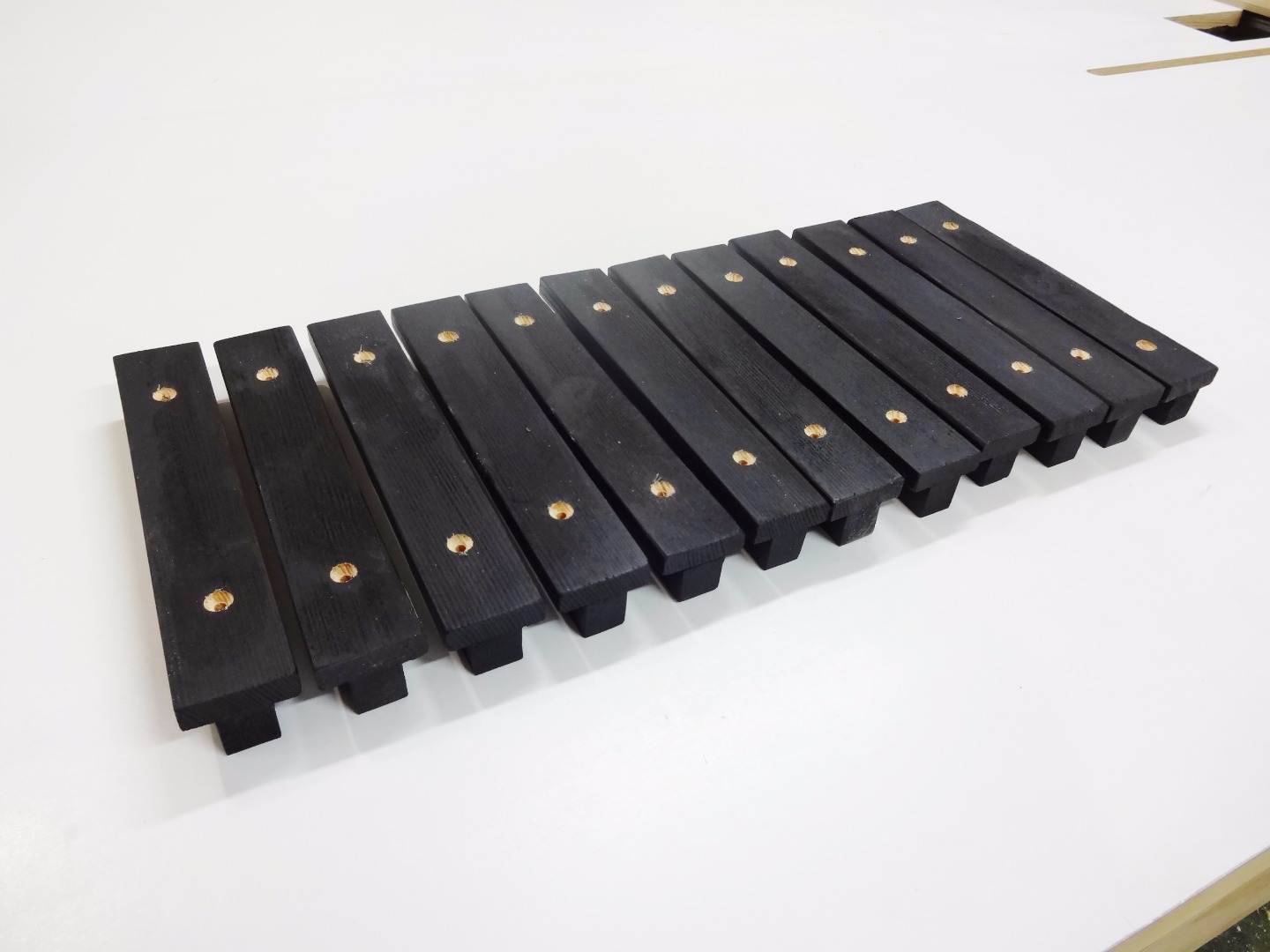

After a light sanding to remove a couple of splintery bits, I spray painted the cleats with black spray paint.

Each cleat was then drilled and countersunk to prepare for installation on the shelves.

Since the shelves to which the cleats will be fastened are just soft pine, I did not drill any pilot holes into the shelves themselves.

The cleats were screwed to the shelves with 2" screws. I was mindful to place the cleats as needed so the bins were supported as fully as possible, but not pinched at all.

The bins are great for holding craft supplies and small tools.

I will probably try to keep the overall weight of each bin well under 5 pounds, just to be safe.

That's it!
