Hands Free Sanitizer

This is the jig that allows you to operate your sanitizer with your feet.

The existing Chair/Desk/Wagon will be a foot-operated sanitizer stand!

You can disinfect your hands safely.

• 3D printed parts
• Chair / Desk / Wagon
• Rope (Non-stretchable, Diameter = 4mm)

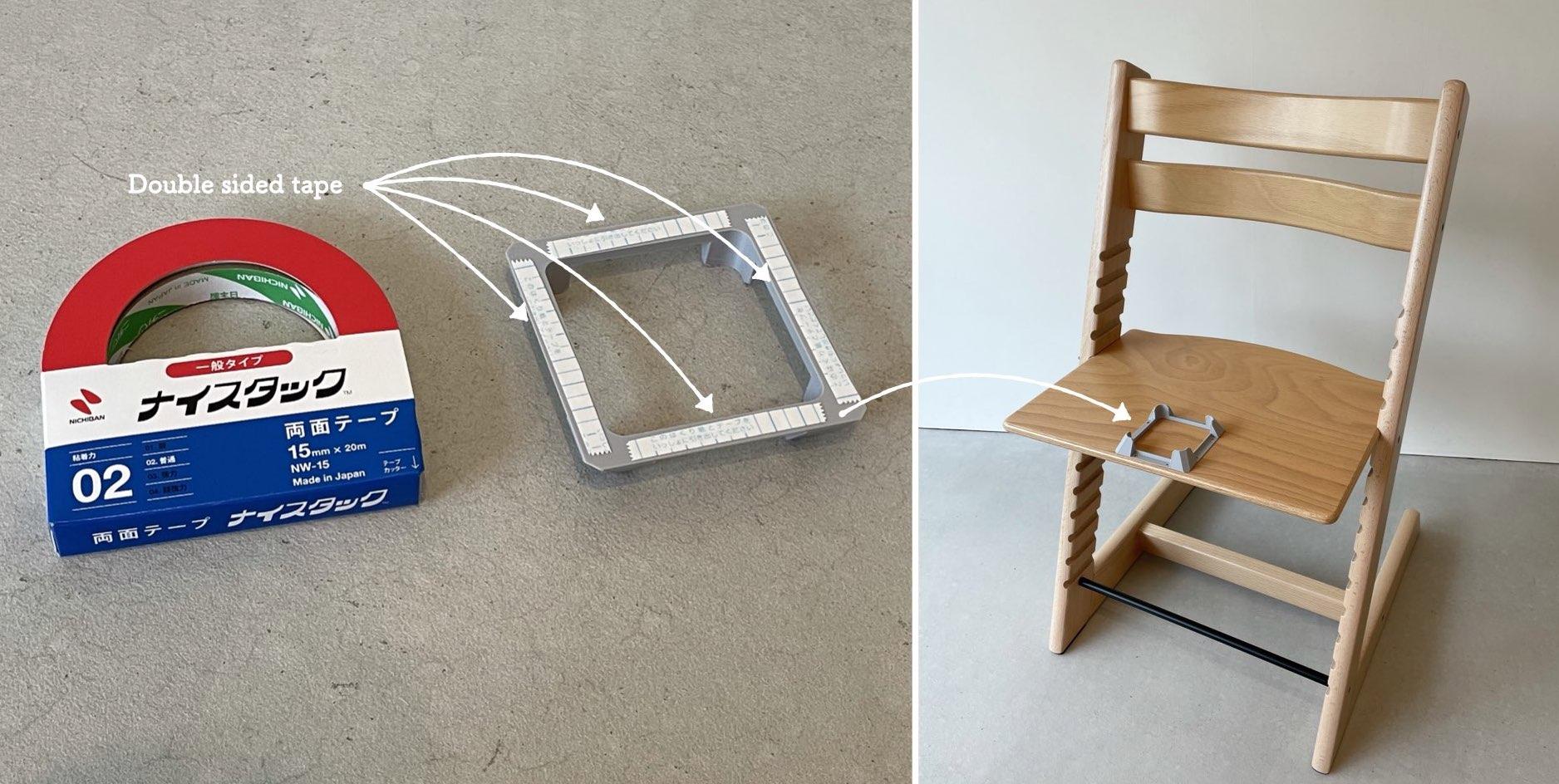

Put double side tape to the bottle base and stick it to the chair/desk/wagon.

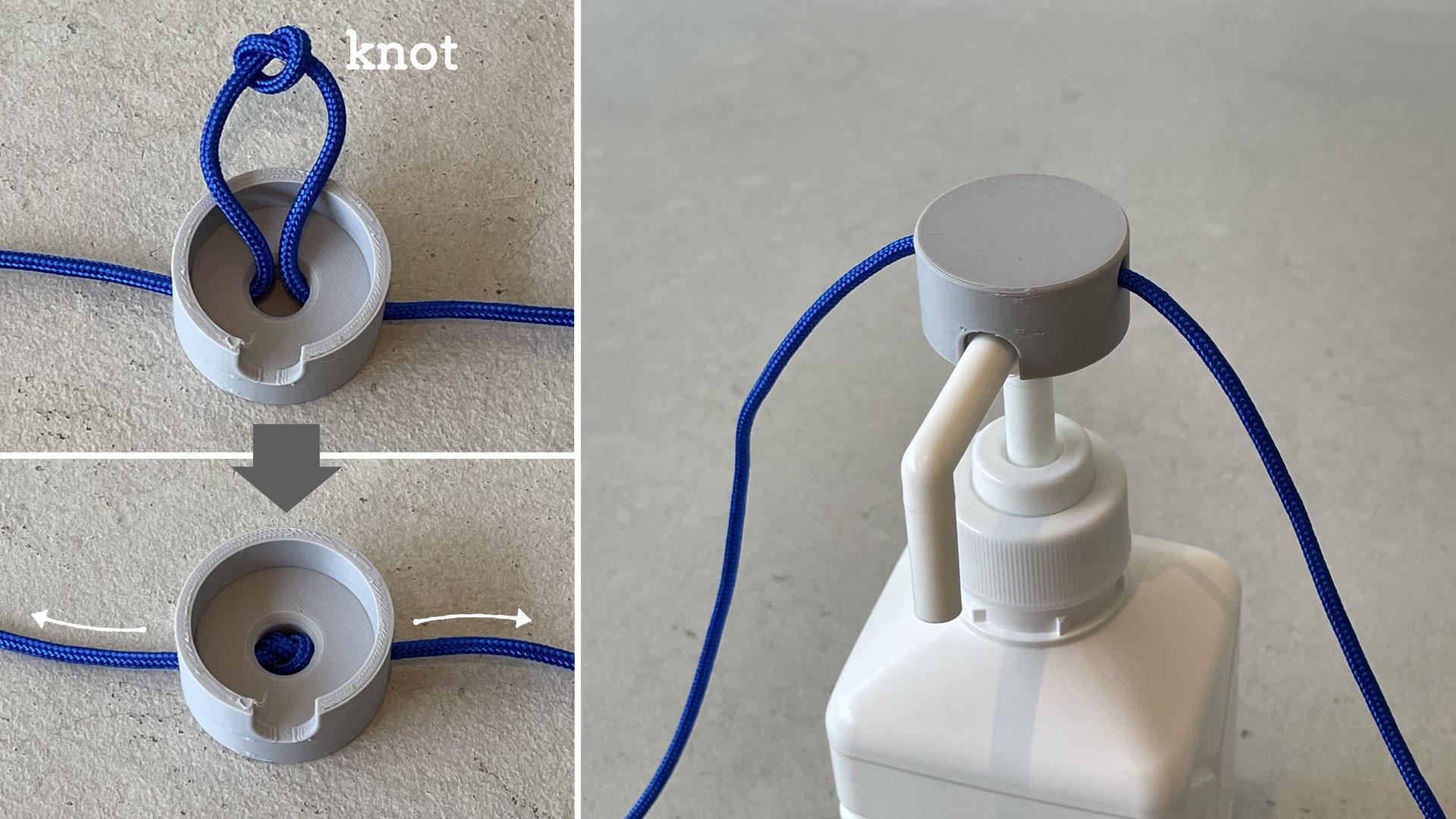

Make a knot in the middle of rope.

Install the rope through the pump head.

This will keep the rope position.

Then place the bottle to the base.

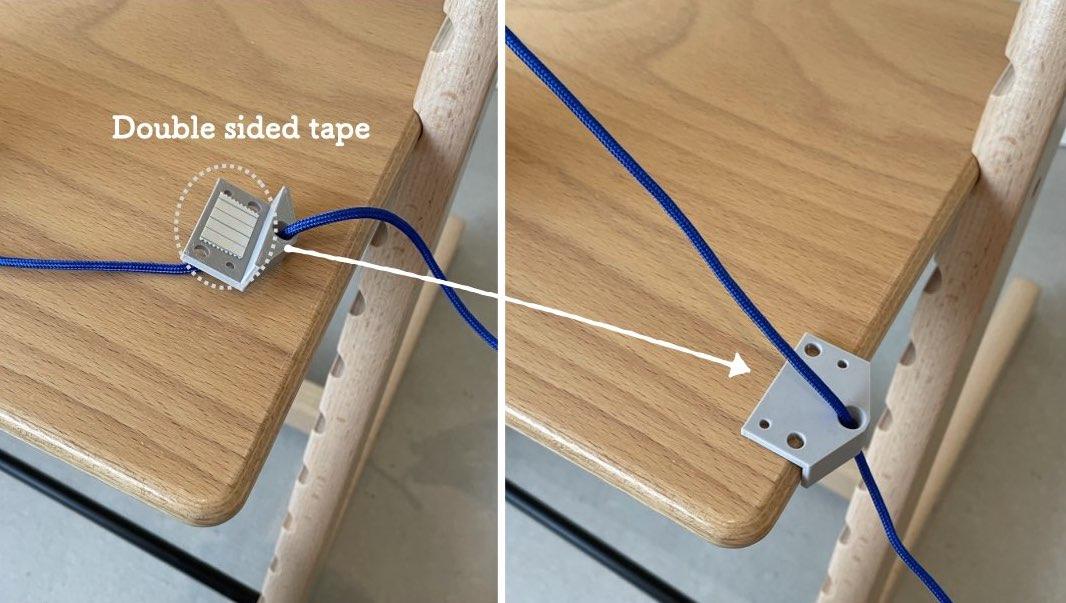

Place cable guide on the side of desk.

Double sided tape should be enough.

Use screw if tape doesn’t work due to rough surface (There is 3 and 5mm hole).

Prepare 2 or 4 each depends your desk shape.

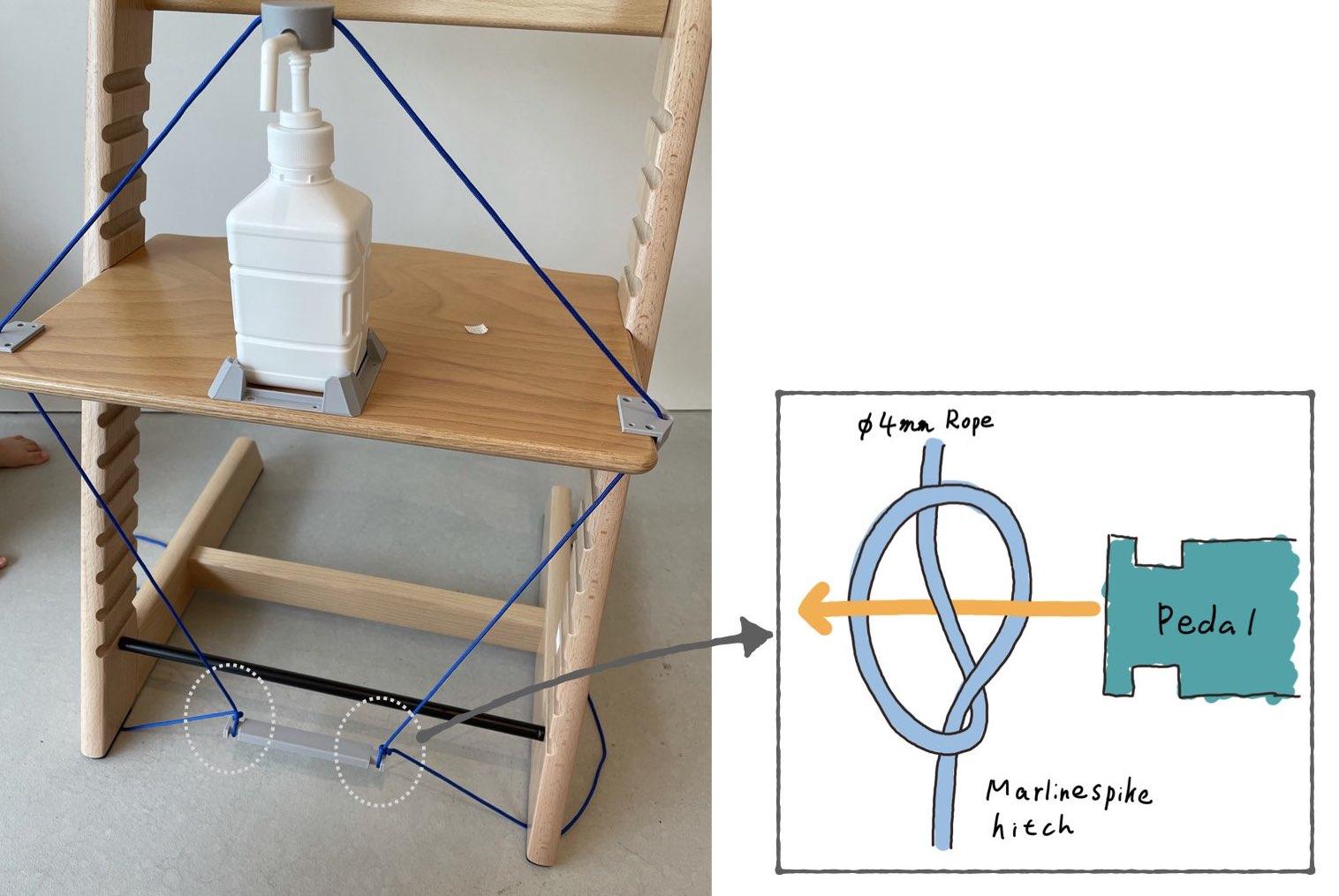

Hold it with a rope (Marlinespike hitch) 5cm from the floor.

Tie the rope end to the chair/desk/wagon leg. It holds the pedal in position and prevents it from shaking.

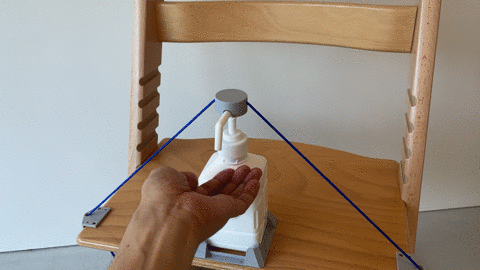

Step on the pedal and disinfect your hands.

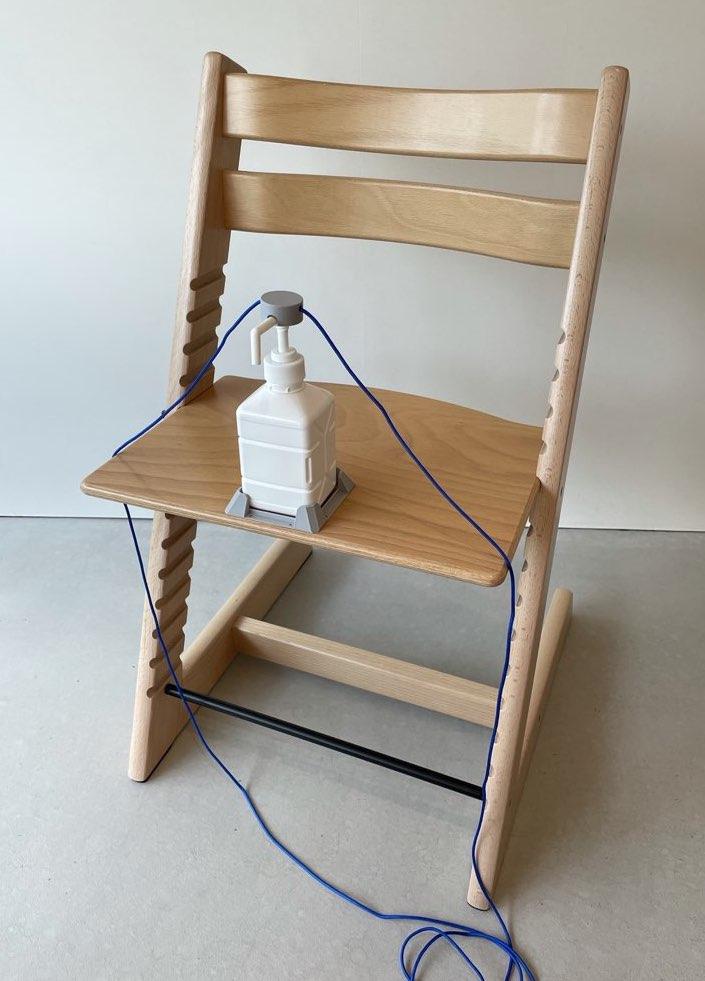

This instruction use chair for the stand but you can use desk or wagon or any!!
