Hand Tool Cabinet

by DIY Andrea in Workshop > Organizing

5501 Views, 63 Favorites, 0 Comments

Hand Tool Cabinet

Making a Cabinet for Hand Tools - Ep 056
Screen Shot 2017-02-27 at 20.18.15.png

Check out the video for the build and the details that I didn't include in this Instructable!
To follow me on YouTube subscribe to my channel here:
https://www.youtube.com/channel/UCIgcC0FXCaKROxx6L...

Building the Cabinet

Screen Shot 2017-02-27 at 20.30.13.png
Screen Shot 2017-02-27 at 20.31.20.png
Screen Shot 2017-02-27 at 20.31.39.png
Screen Shot 2017-02-27 at 20.31.47.png
Screen Shot 2017-02-27 at 20.33.15.png
Screen Shot 2017-02-27 at 20.32.43.png
Screen Shot 2017-02-27 at 20.33.35.png
Screen Shot 2017-02-27 at 20.33.51.png
Screen Shot 2017-02-27 at 20.34.14.png

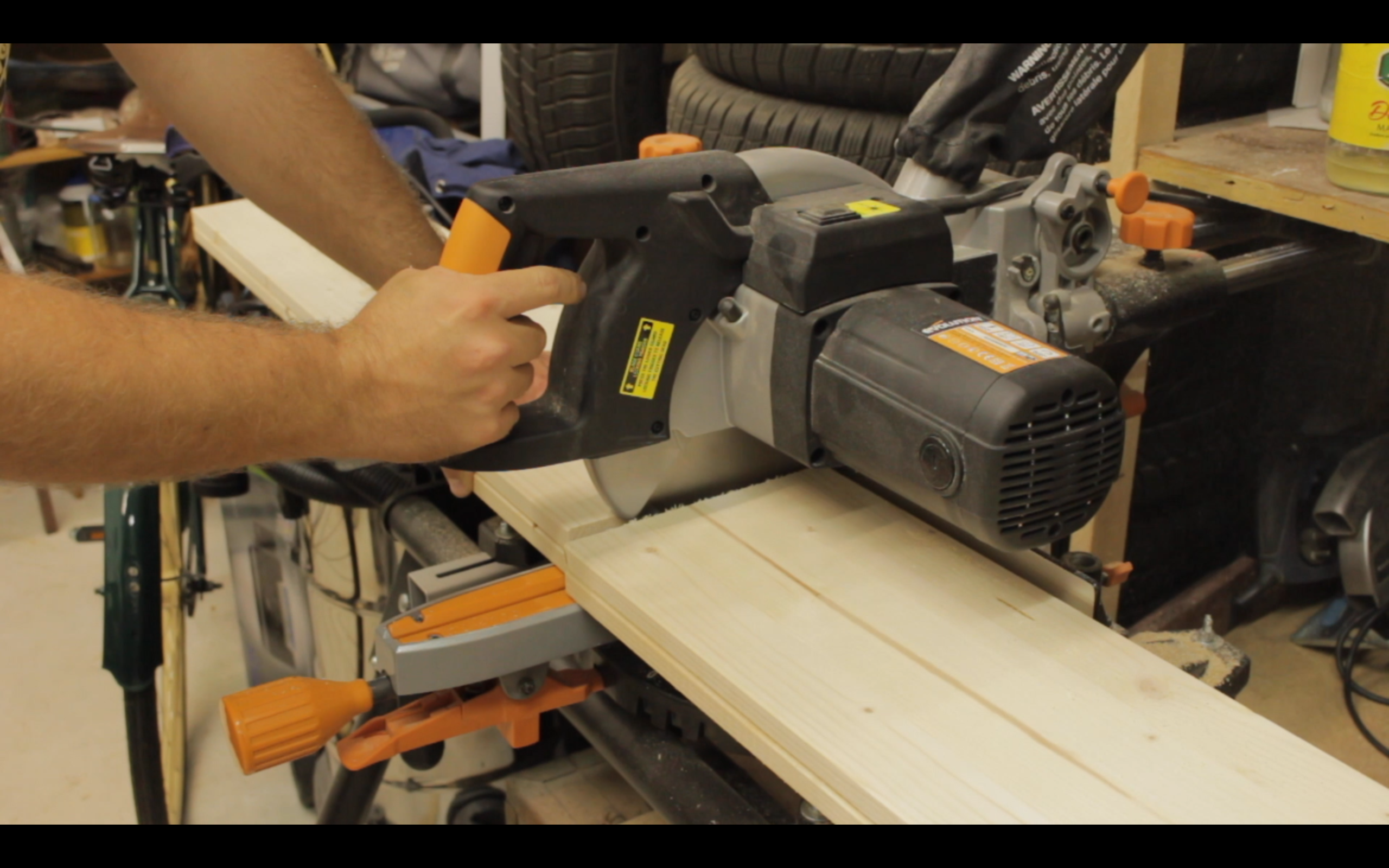

We made the cabinet by using glued up pine boards.
The joints are dovetails.
Cabinet was stained with walnut stain and then finished with one coat of Linseed oil and 3 coats Polyurethane.
The trim was added on the outside to serve as decoration and a handle at the bottom.
Piano hinges hold the two doors weight.
The drawer's shelf was made with pocket holes.
The whole cabinet is hanged with a French cleat system.

Adding the Tool Holders

Screen Shot 2017-02-27 at 22.21.33.png
Screen Shot 2017-02-27 at 22.20.54.png
Screen Shot 2017-02-27 at 22.21.45.png
Screen Shot 2017-02-27 at 22.22.08.png

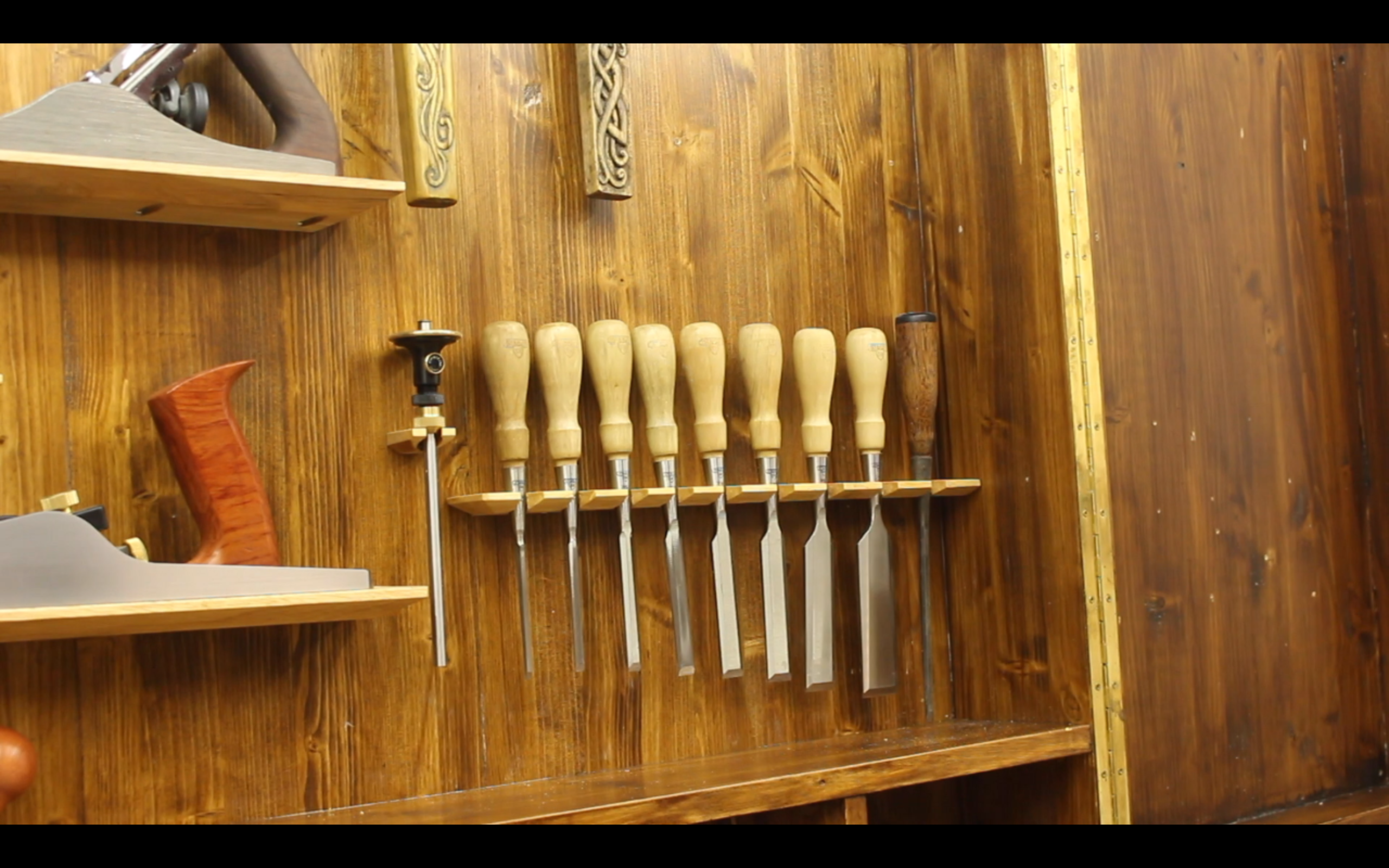

The tool holders took a long time to make because they are all custom fit to the tools.
I especially like the ''floating'' shelves for hand planes.

Adding the Drawers

Screen Shot 2017-02-27 at 22.17.28.png
Screen Shot 2017-02-27 at 20.35.21.png

Please check the video for the detailed build on drawers.

We made and added the drawers into place.
The drawers were made with half blind dovetails joinery on the front. We used pine (sides and back), beech (fronts), cherry plywood (bottoms), and teak (pulls).

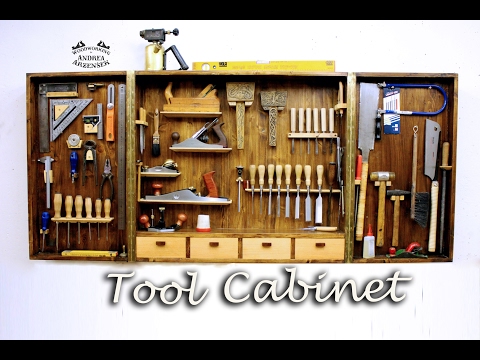

Done!

It was done and ready to use!
We love the cabinet and use it everyday more than we thought we would.
