Hand Santizer Machine

Hi guys.

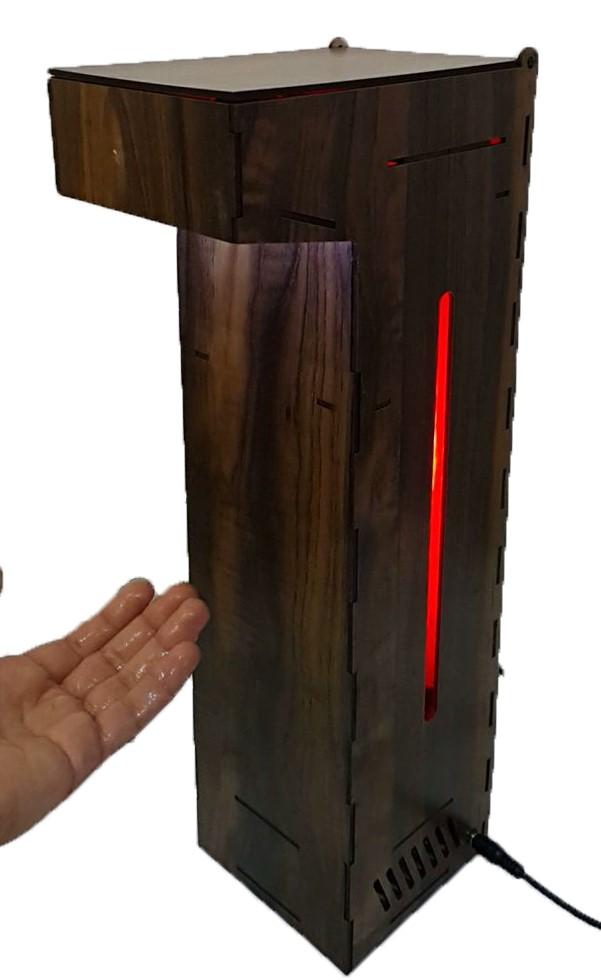

In this instructable we make an automatic hand santizer machine using Arduino. You can install it on wall or put on table. It has exact ultrasonic sensor and quick response. By make this device keep your environment healthy during pandemic!

Arduino Uno

hc-sr04 ultrasonic sensor

l298n dc motor driver (you can use rele insted of motor driver)

wiper water pump and some pipe

12V dc power supply

dc socket male - female

some led for lighting

water spray nozzle

1.5 liter soda bottle (I used a Coca-Cola bottle)

laser cut body port

Download .dxf file for laser cut body. Use 3mm (2.7 mm) MDF or plexiglass sheet.

If you have solidworks you can download Santizer_solidworks.rar and open Assem1.SLDASM for assemble guide but you have not, don't worry it's simple.

Notice : don't install front part. we install it after embedding electrical parts. Like image.

Make hole bottom of bottle then install pump using O-ring.

Download ino file and upload it on your arduino uno using Arduino IDE.

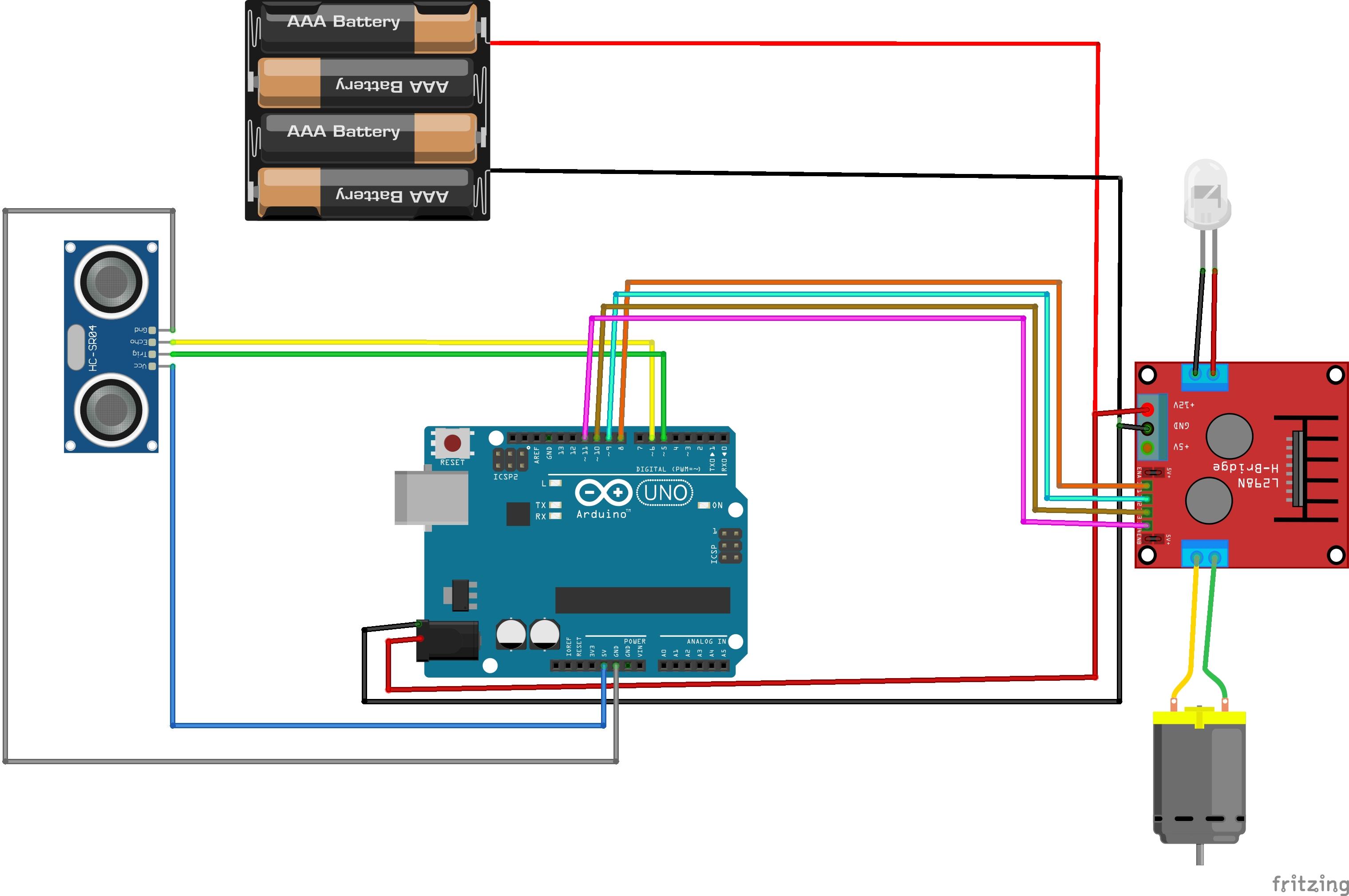

Install electrical parts according above schematic.

After assemble put disinfectant liquid on bottle and test it. :)
