Pineapple Grenade

We would be making a Hand Grenade using Cardboard. It is fairly simple and would take hardly 2-3 hrs if you have all the supplies ready with you. So let's get started.

Most of the supplies mentioned would be fairly available without you.

• CardBoard
• Scissor
• Pencil
• Rounder Compass
• Water Colors(Green and Brown)
• Brush
• X-Acto Knife. You can also use a Utility Knife

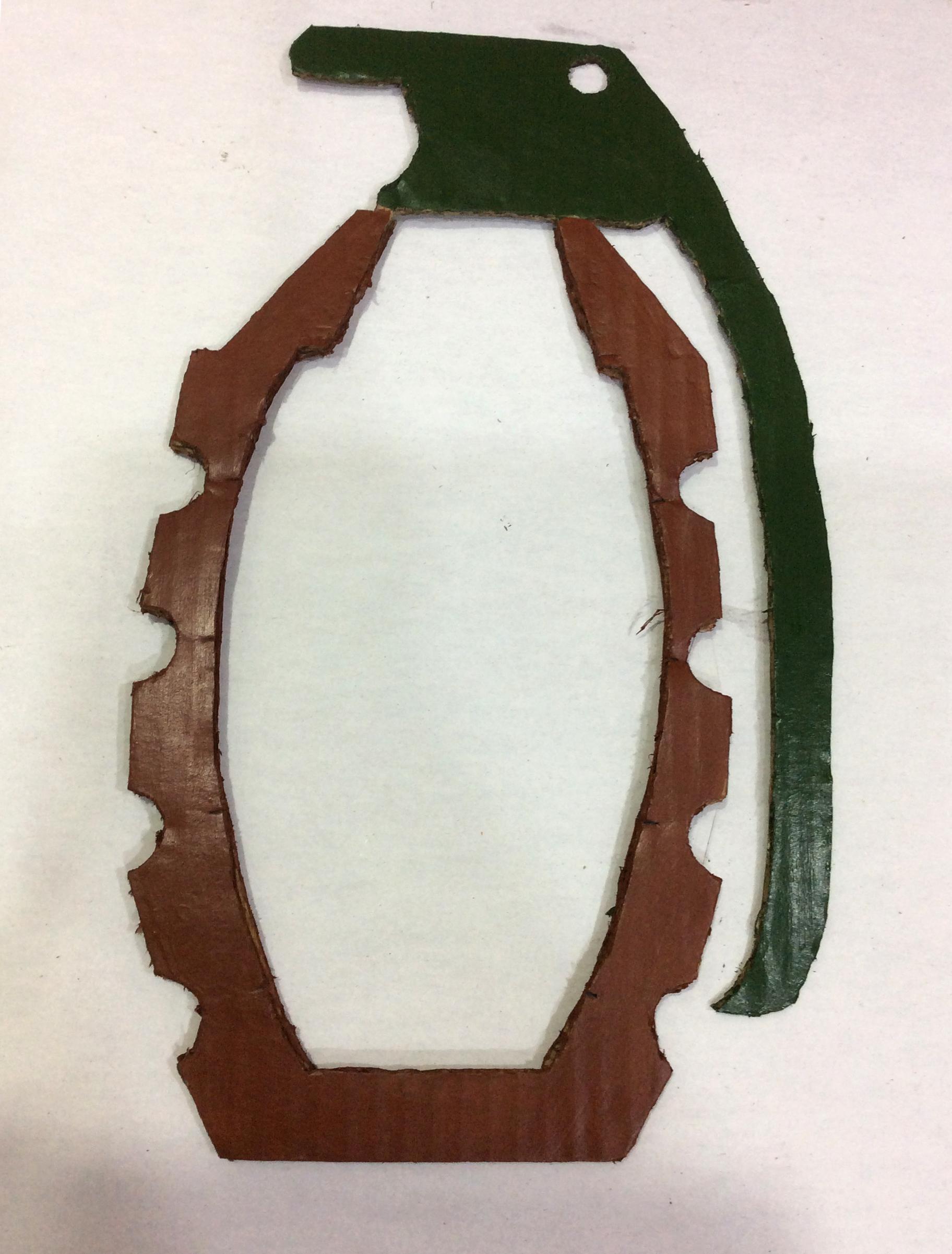

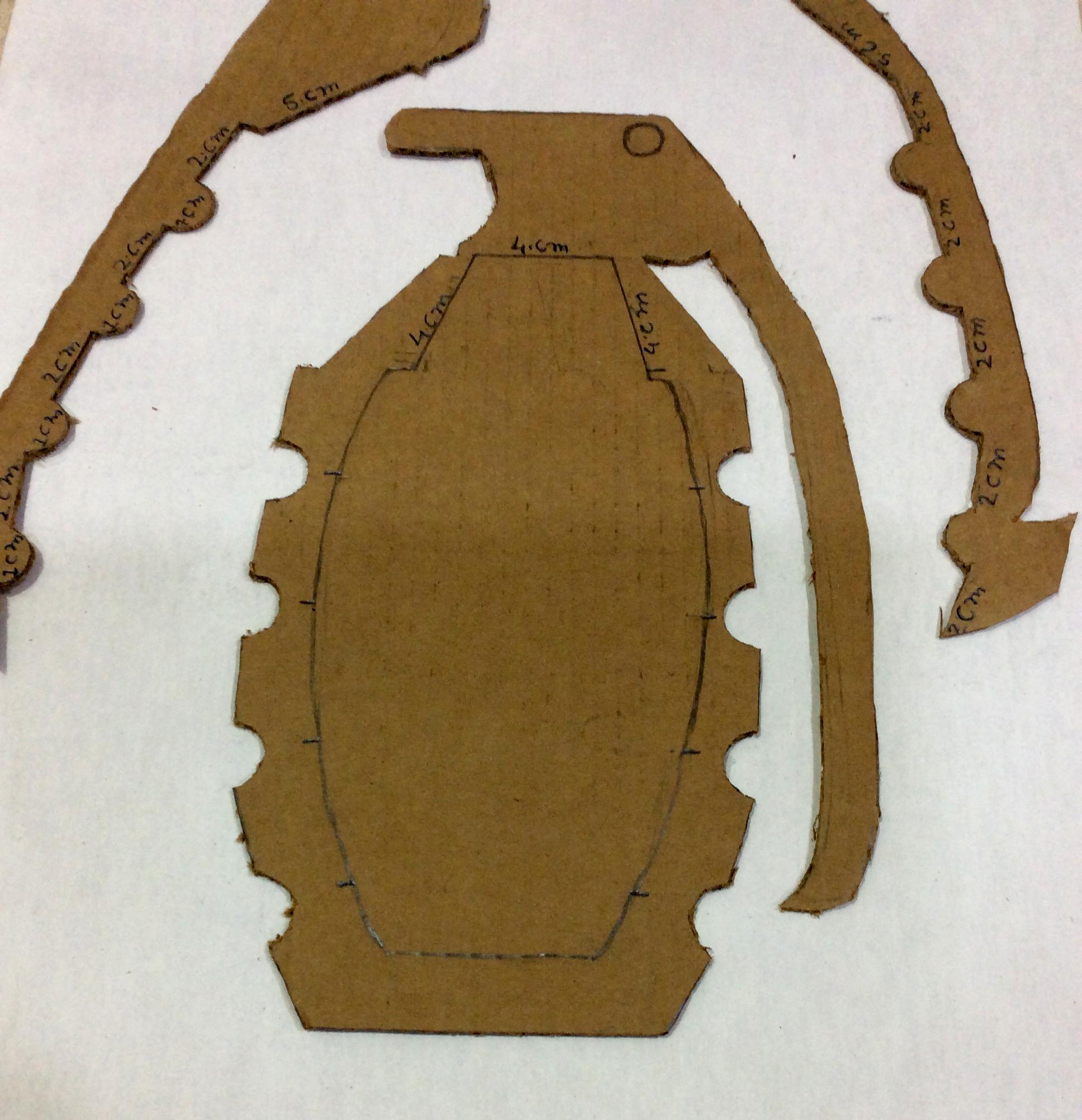

First Draw Sketch on the CardBoard as per the Image. All the Dimensions are mentioned in the Image. After that make a Cutout with Utility knife of the Outline drawn. Then color you Outline with Brown Water Color

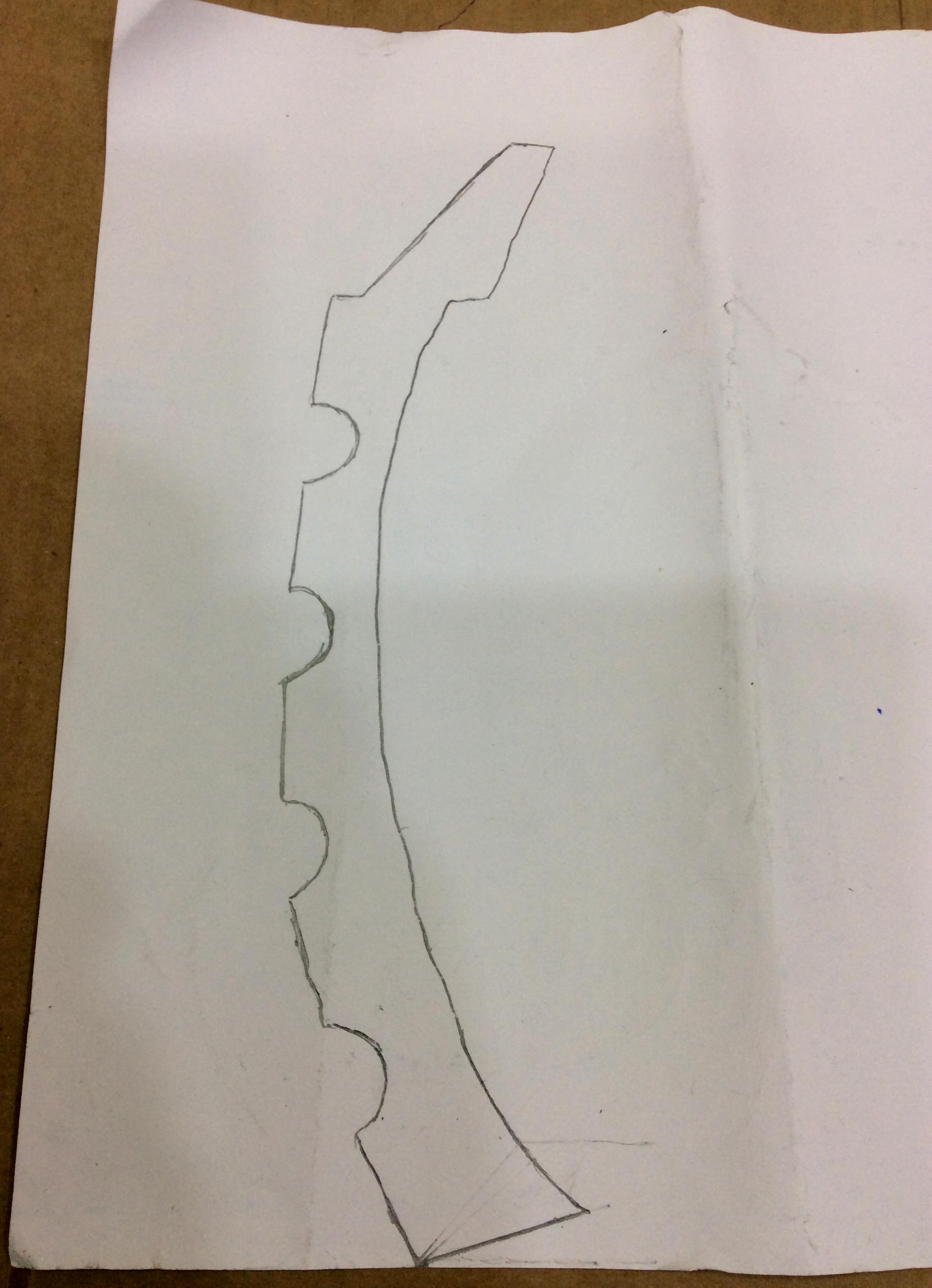

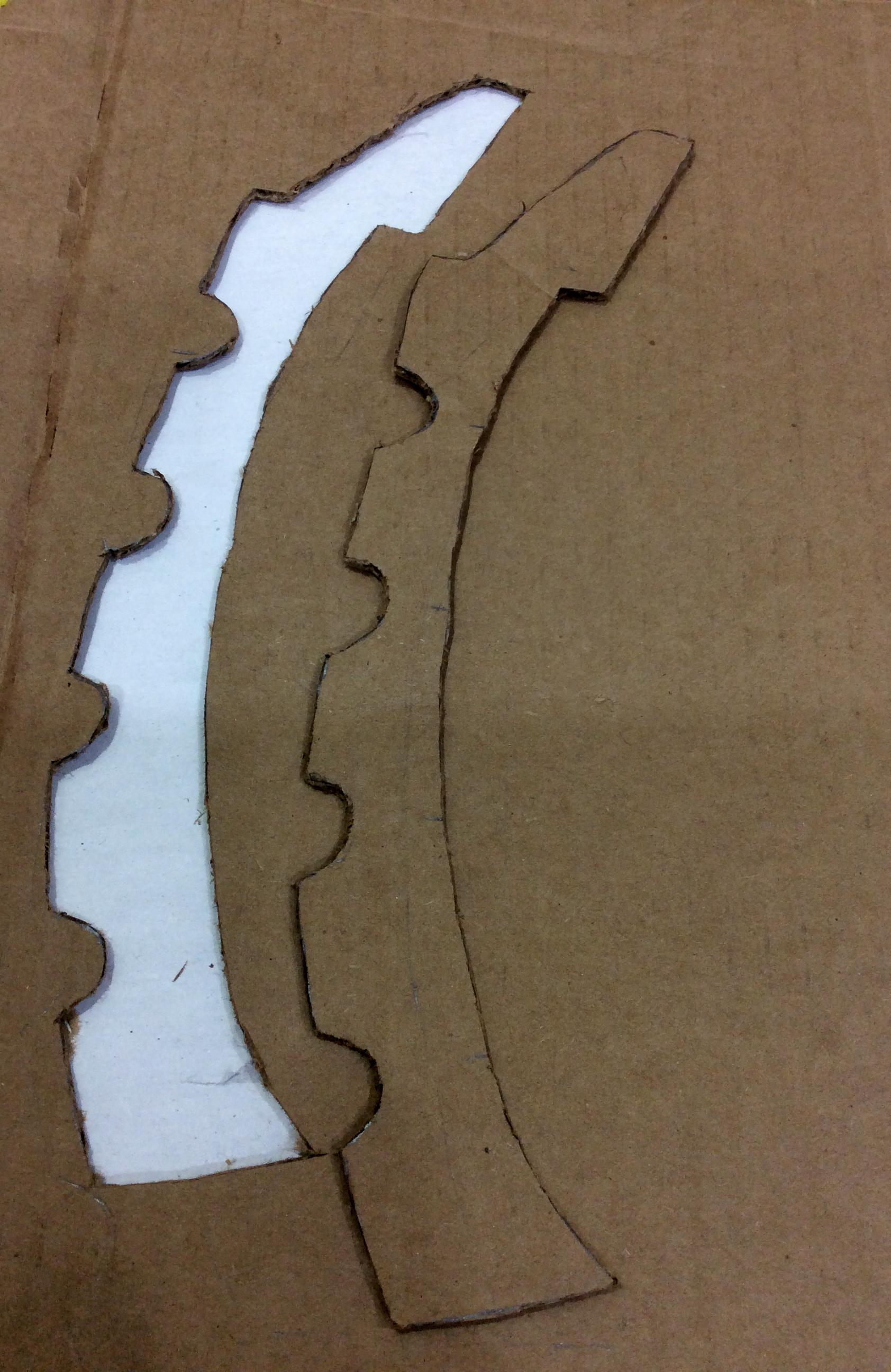

Now we will make Outer support for the Grenade. Sketch the shape on a piece of paper first as a Template then using that Template make Cutout on the Carboard as shown in the photo.

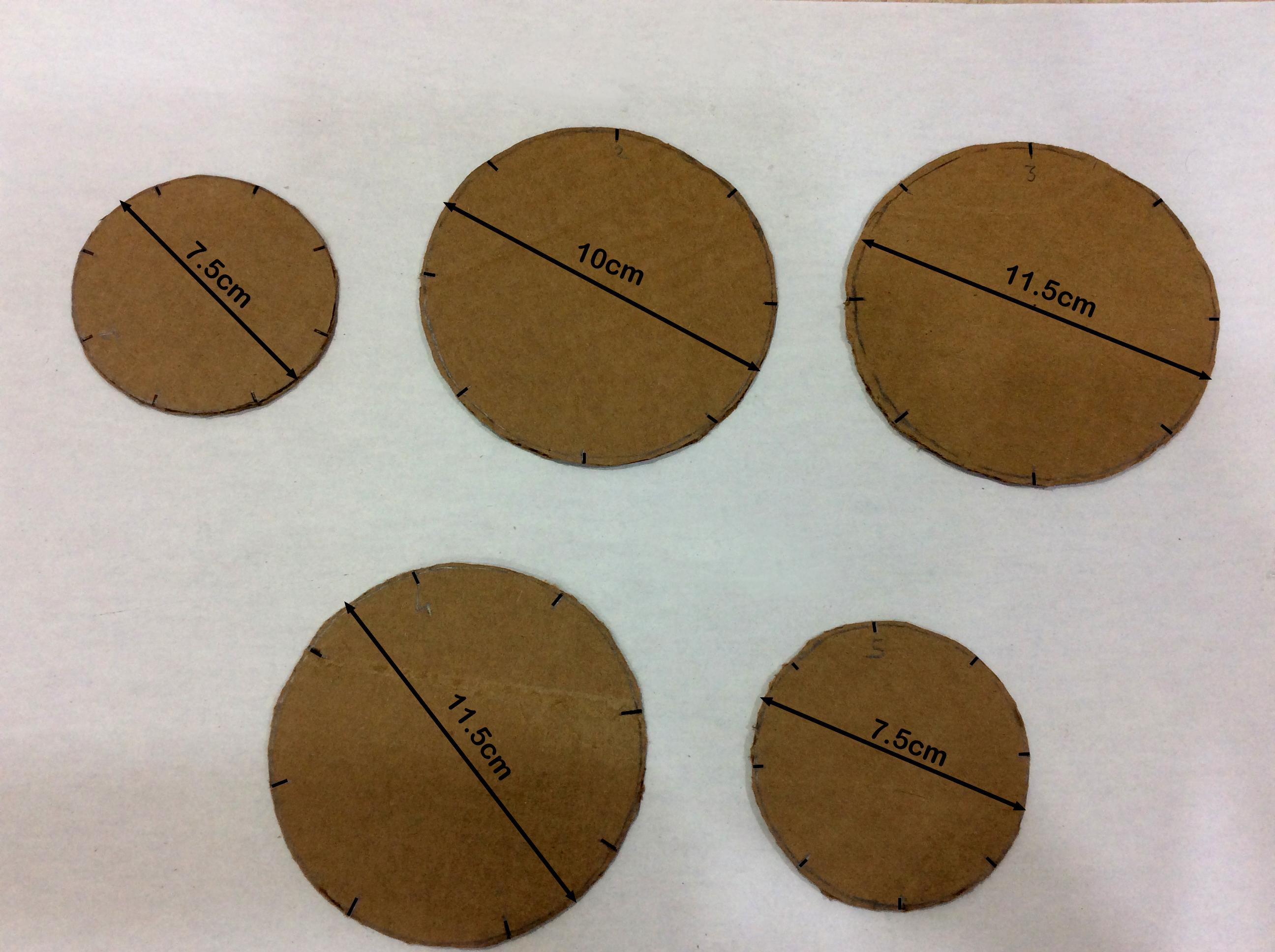

Now for the Inner Support we will follow the same steps. First we would be creating circular Templates of various Dimensions as mentioned in the photo then we would make Cutout of it and use it as Template. Using that Template make Cutout on the CardBoard. After that color it with Brown Water Color

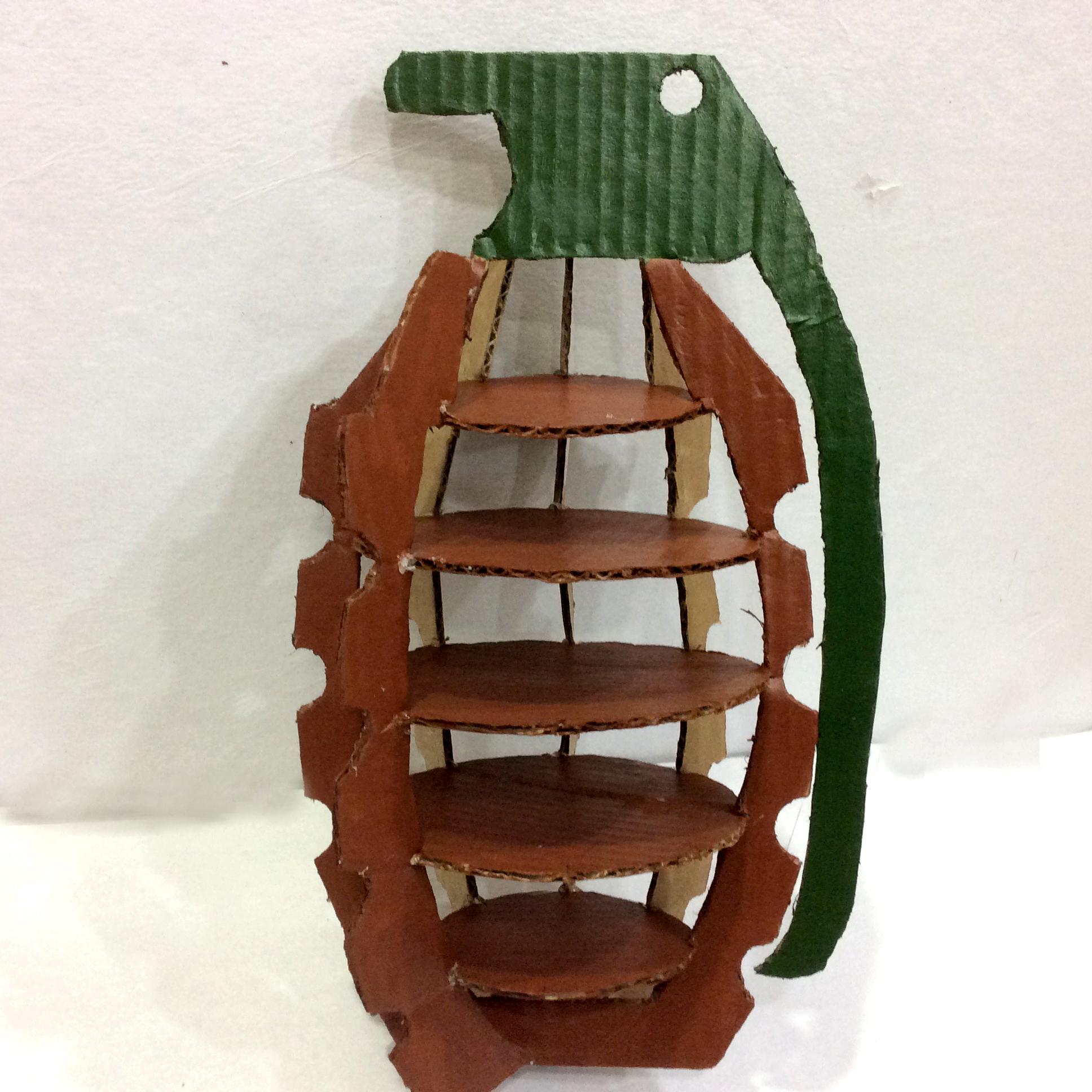

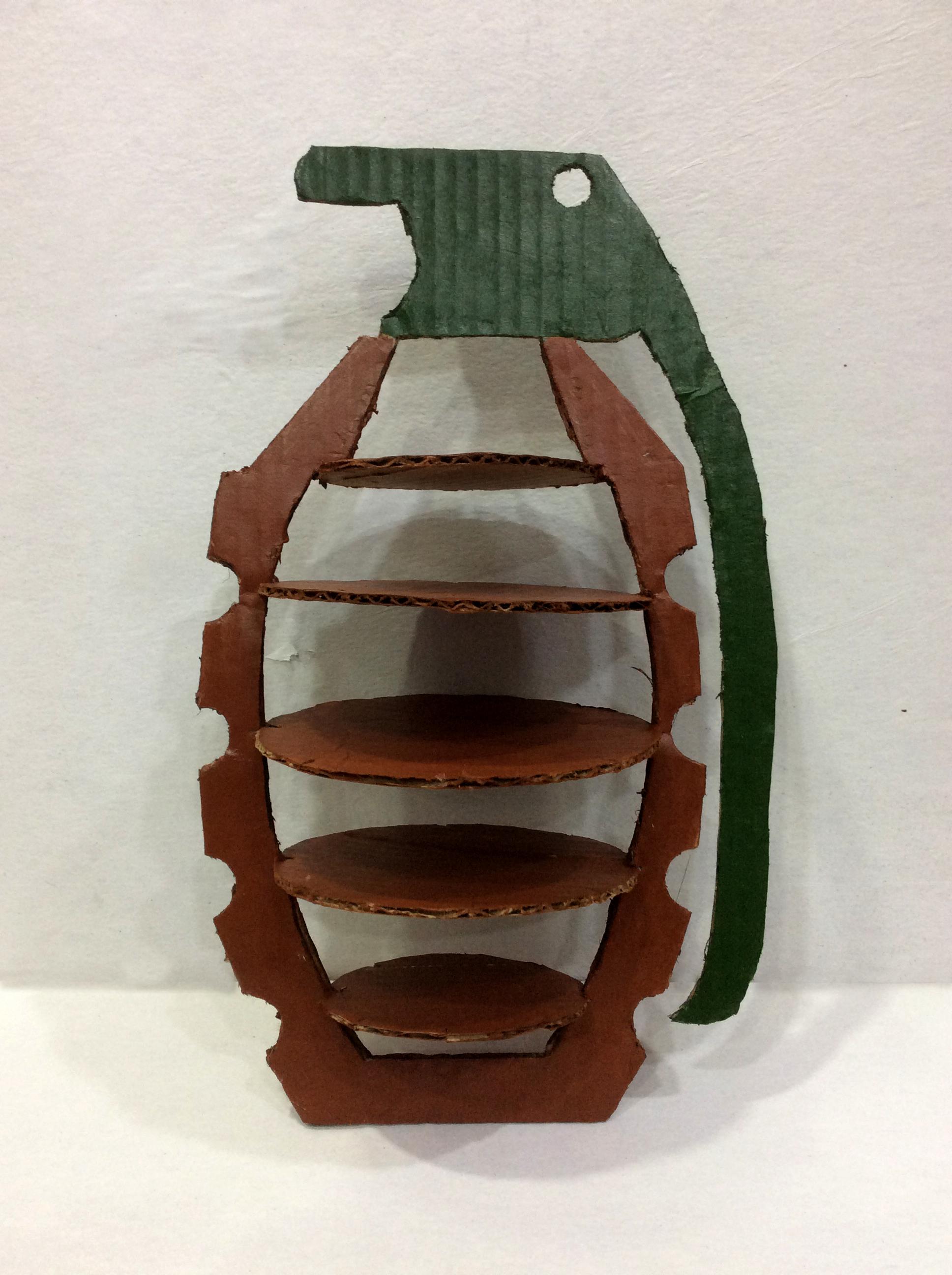

Now the Final steps. Here we would assemble all the Cutouts that we had made. After that attach the Cutouts inside the Grenade see the picture of what goes where for your reference. After attaching the inside support Cutouts, then attach Outer support Cutouts .

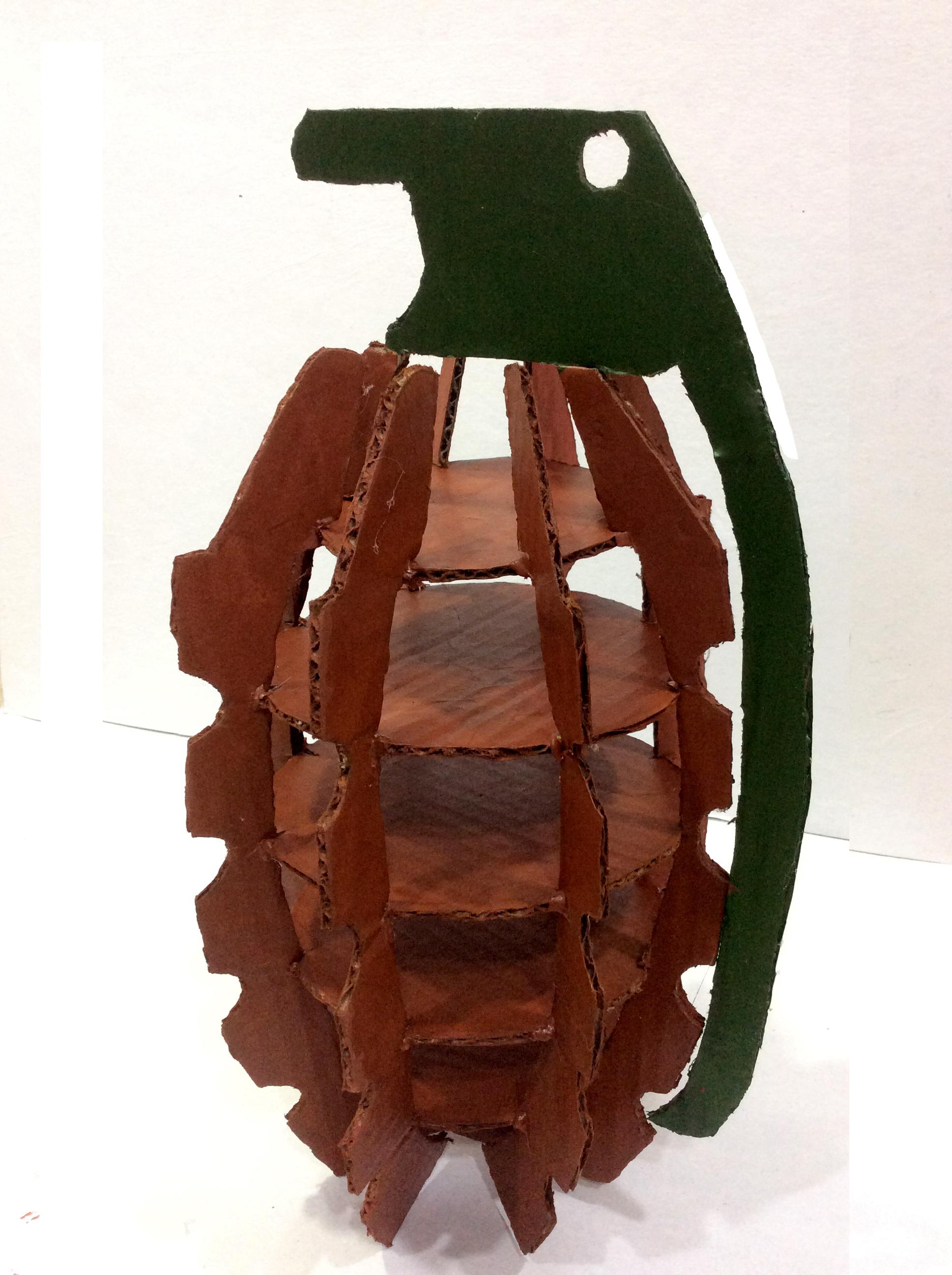

Your Grenade is ready now !!!
