Hand Crank Knex Winch

Picture 007.jpg
Picture 006.jpg
I decided to build this because i have been trying to find a way to pull a straight up to lift stuff and the knex motors just don't have enough torqe.

The Pieces

Picture 011.jpg
These are the pieces that you will need

5 long green rods
15 yellow rods
13 blue rods
5 white rods
14 short green rods
2 long gray rods
10 small grey connectors
17 yellow connectors
10 3D connectors
2 blue connectors
12 red connectors
2 white connectors
2 gear connectors
2 gears
2 rubber bands

The Base

Picture 013.jpg
Picture 025.jpg
Picture 012.jpg
This is the base of the winch
for this you will need these pieces

10 blue and gray 3D pieces
12 yellow rods
5 long green rods
2 blue rods
2 short green rods

The Shaft

Picture 029.jpg
Picture 031.jpg
Picture 030.jpg
Picture 044.jpg
for this part you will need these parts

9 small gray connectors
7 red connectors
3 yellow connectors
2 long gray rods
2 gear locks
2 gears

1st Gear Lock

Picture 028.jpg
Picture 027.jpg
Picture 021.jpg
Picture 048.jpg

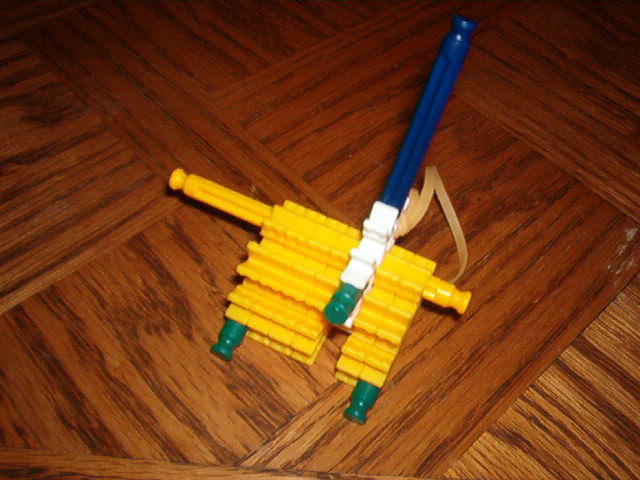

the purpose of this lock with the help of the gear lock is to keep the shaft from spinning in both directions.
all the parts that you will need are.

6 yellow connectors
1 yellow rod
1 blue rod
3 short green rods
1 white connector
1 rubber band

2nd Gear Lock Release Switch

Picture 032.jpg
Picture 034.jpg

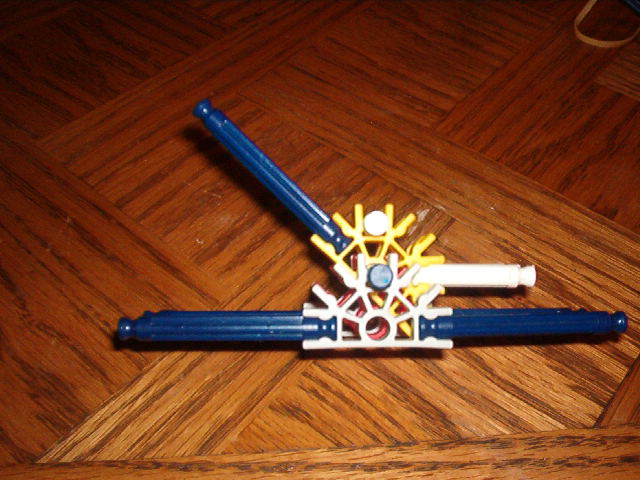

This part will release the lock on the second gear.

for this part you will need these pieces

3 white rods
4 yellow connectors
6 blue rods
1 red connector

2nd Gear Lock

Picture 035.jpg
Picture 038.jpg
Picture 037.jpg
Picture 036.jpg
Picture 022.jpg
Picture 052.jpg

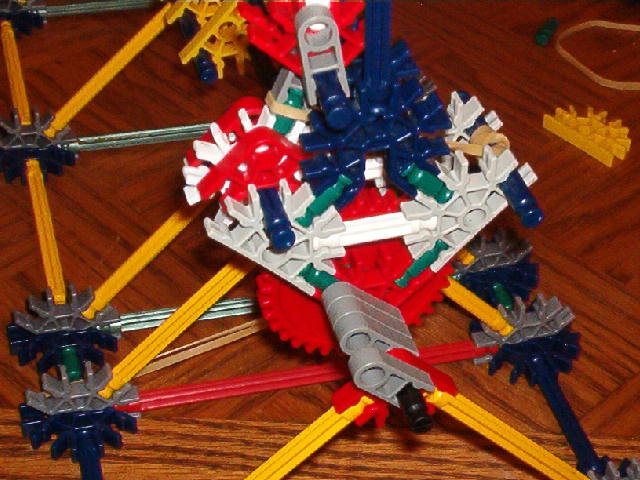

this is the gear setup that will turn the drive shaft when you pull the handle back and forth.

10 short green rods
4 yellow connectors
4 red connectors
3 blue rods
3 gray connectors
2 blue connectors
1 white connector
1 rubber band

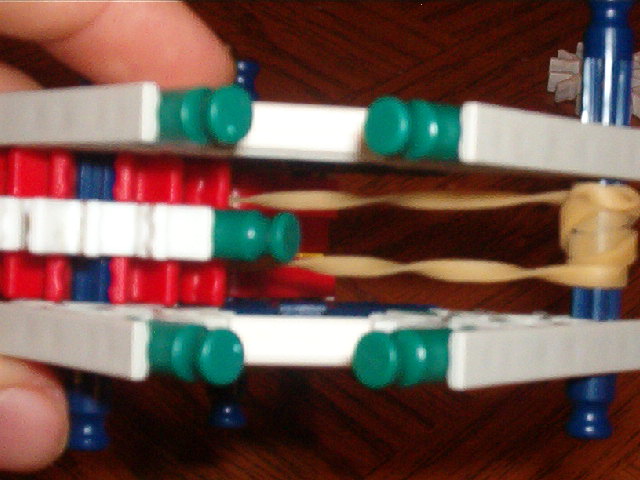

remember after you have the rubber band on you have to turn the white connector in a clockwise motion so that there is tension on the rubber band before you set it on the gear.

Putting the Parts Together Part 1

Picture 013.jpg
Picture 021.jpg
Picture 031.jpg
Picture 044.jpg
Picture 046.jpg

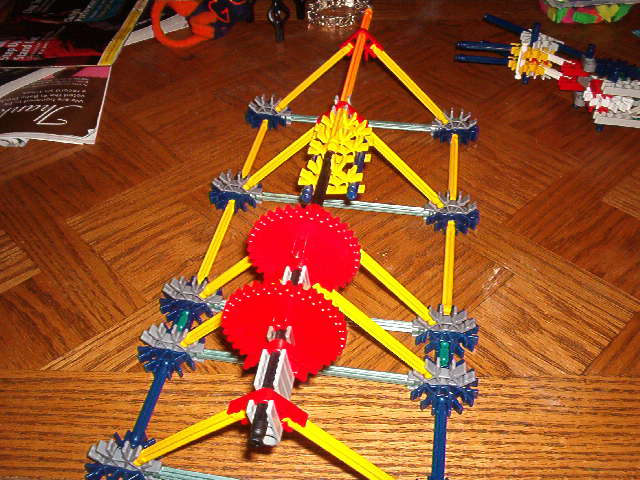

in this step you will start to put the pieces in there positions.

Putting the Parts Together Part 2

Picture 040.jpg
Picture 043.jpg
Picture 042.jpg
Picture 022.jpg
Picture 016.jpg
Picture 017.jpg
Picture 018.jpg
in this step you will put the handle together and attach it to the drive shaft.
