Halloween is right around the corner, and we know you'll need something spooky and geeky to light up your party. That's why Brown Dog Gadgets cooked up some fun LED paper decorations with our conductive tape kit.
Supplies Needed
To make the Jack-O-Lantern, Grumpy Ghost, and Spooky Spider you will need the following:
Tools
- Scissors and/or X-acto knife
- Tape or glue stick
- Pencil for tracing
Materials
- Thick craft paper. We used orange, green, black, white, and brown.
- Transparent vellum for Mr. Grumpy Ghost
- 4 black pipe cleaners for the Spooky Spider
- Large paperclips
- CR2032 batteries
- Gumdrop (10mm) LED's in yellow or red
- Conductive copper tape

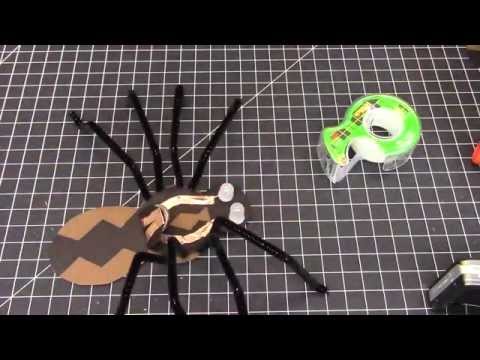

Video Guides
In case you're in need of some video directions, watch these.
Jack-O-Lantern: Cutting and LED's
Cutting
First cut the Jack-O-Lantern body out of thick orange paper. The orange bump on the top that looks like the stem is actually part of the battery holder. We'll create the stem later with green paper.
LEDs

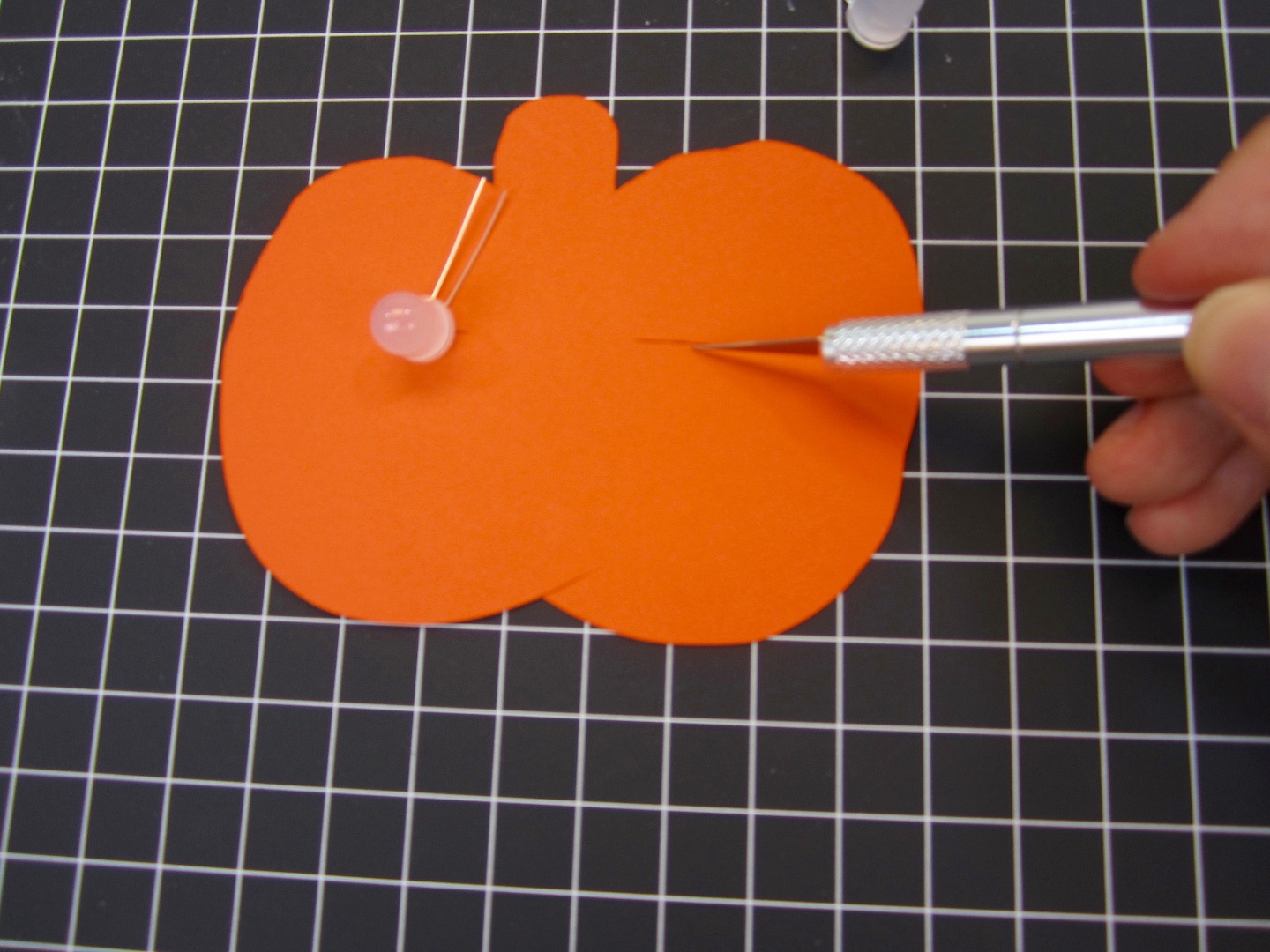

Next find your LEDs and fold the legs at 90 deg. to the LED head. Place these on your paper approximately where you want the Jack-O-Lantern eyes to sit. Cut a tiny slit in the paper directly under the LEDs.
Notice that one leg of the LED is longer than the other. Stick the longer leg of the LED through the slit so that you have a leg on either side of the paper.
Jack-O-Lantern: Conductive Tape and Battery
Conductive Tape
Front

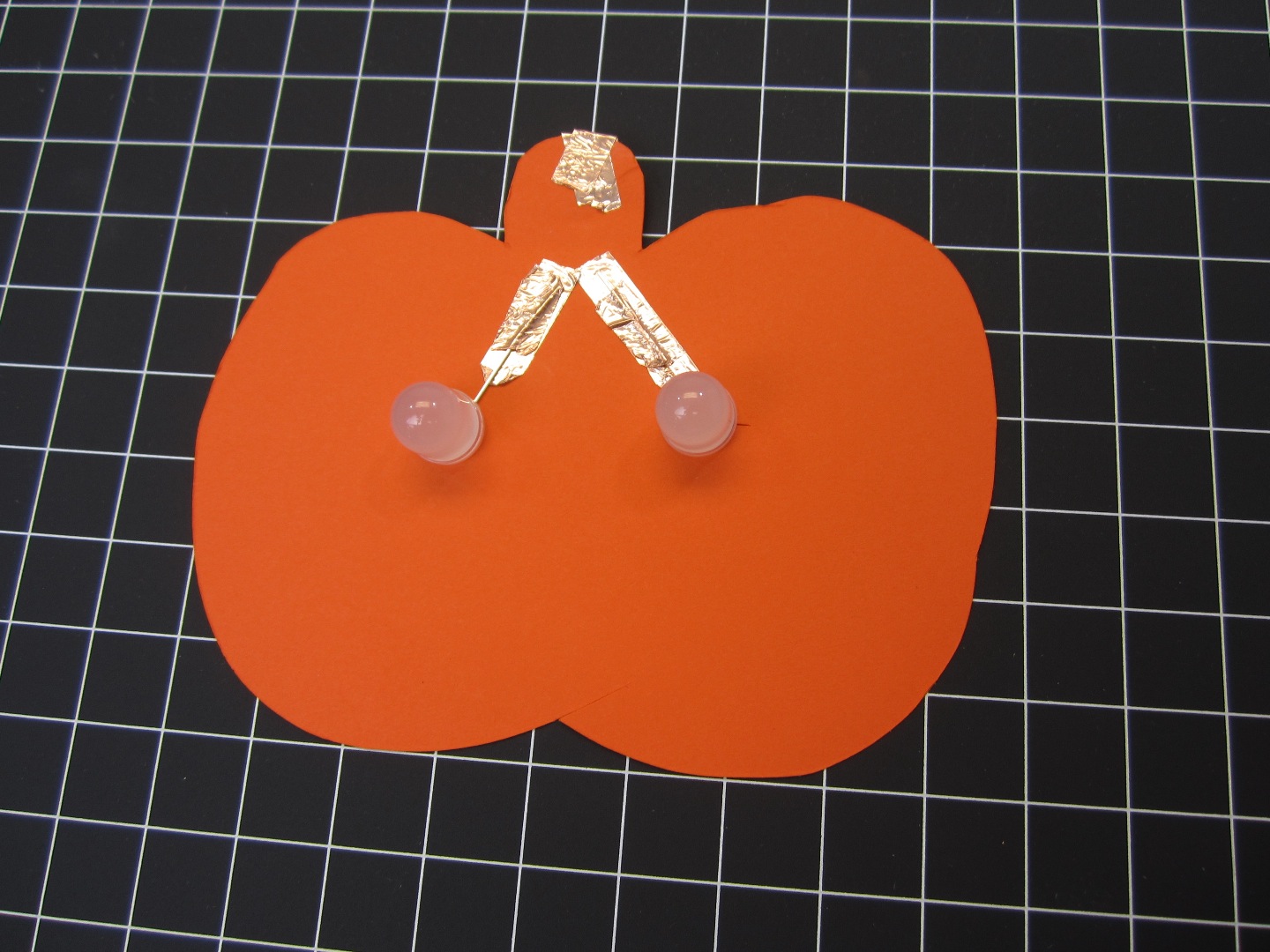

On the front of your Jack-O-Lantern place a strip of conductive copper tape diagonally from each LED towards the orange battery tab as shown. Do not extend tape onto the tab. It will work best if the two strips of tape are touching in the middle.
Bend the LED legs on the back so they are on top of the copper strip. Secure them with a 1/2 inch strip of copper tape. Make a good copper sandwich around the LED leg.
Back
Run a strip of conductive copper tape diagonally from each LED up and over the tab,onto the front as shown. Use one continuous strip, this will ensure good electrical conductivity. Do not extend the tape so far it touches the first strips on the front, as this will short out the circuit.
Bend the LED legs on the back so they are on top of the copper strip. Secure them with a 1/2 inch strip of copper tape. Make a good copper sandwich around the LED leg.
Battery
Now you are ready to test your circuit! Place your CR2032 battery just under the orange tab and fold the tab on top. Make sure the end of all 4 pieces of copper tape are touching the battery. If your circuit is working both LED should light. If neither of them lights flip the battery and try again.

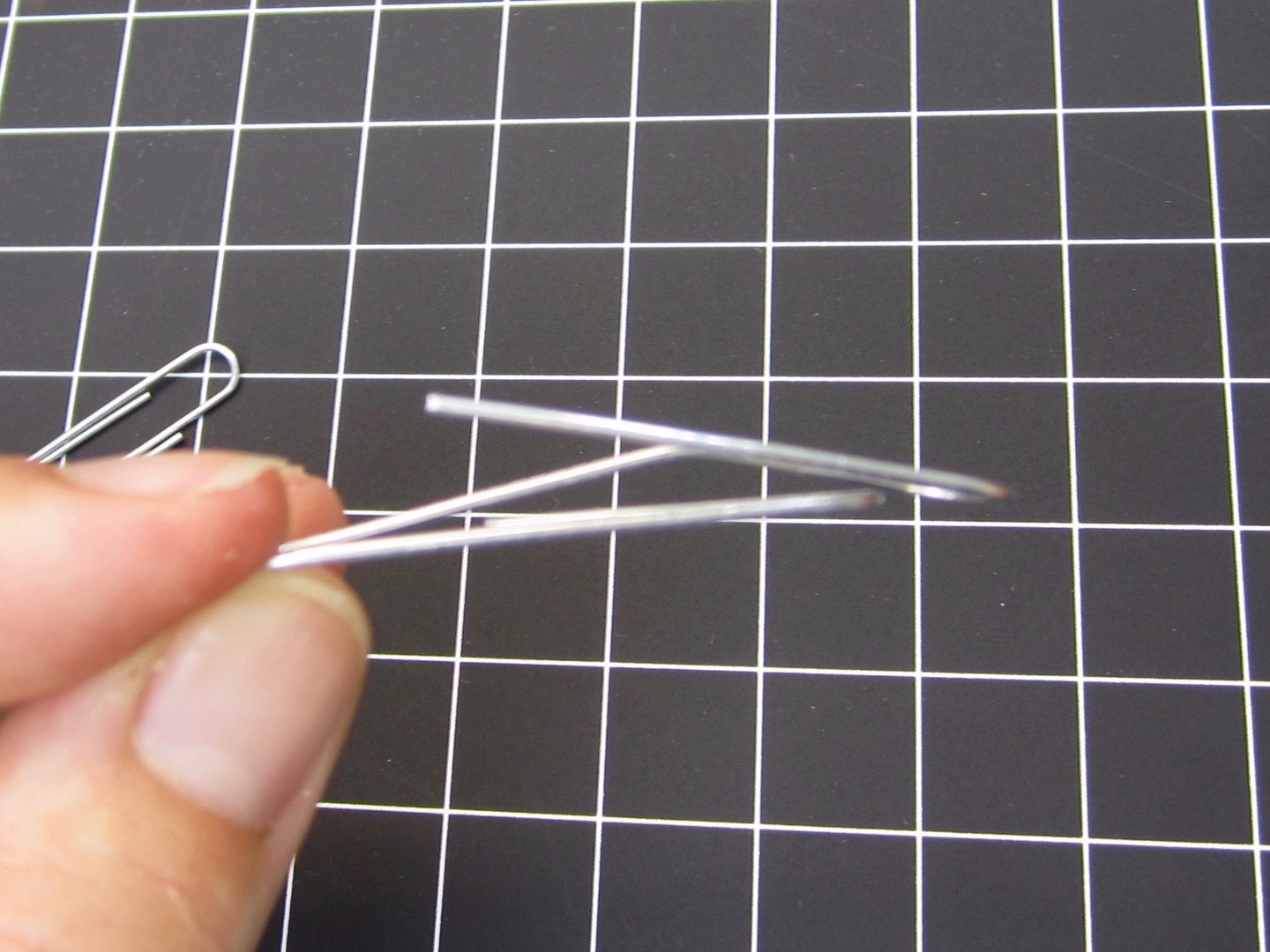

Bend a paperclip as shown and place it around the battery. This will hold it in place.
If only one LED lights, one of two things could be the problem
- The copper tape is not secure around the LED legs. Press around them and see if you can get the offending LED to light.
- One of your LEDs is backwards. Gently peel the tape off the LED legs and switch which one is inserted through the paper.
Jack-O-Lantern: Decorating
Eyes
Cut the eyes out of black construction paper. Cut a slit half way up the eye. Slide the eye under the LED as shown, with the led legs fit through the slit. Rotate the eye so it is upright.
Mouth
Cut out the mouth freehand, maybe with notches for teeth. Glue or tape it onto the Jack-O-Lantern.
Stem

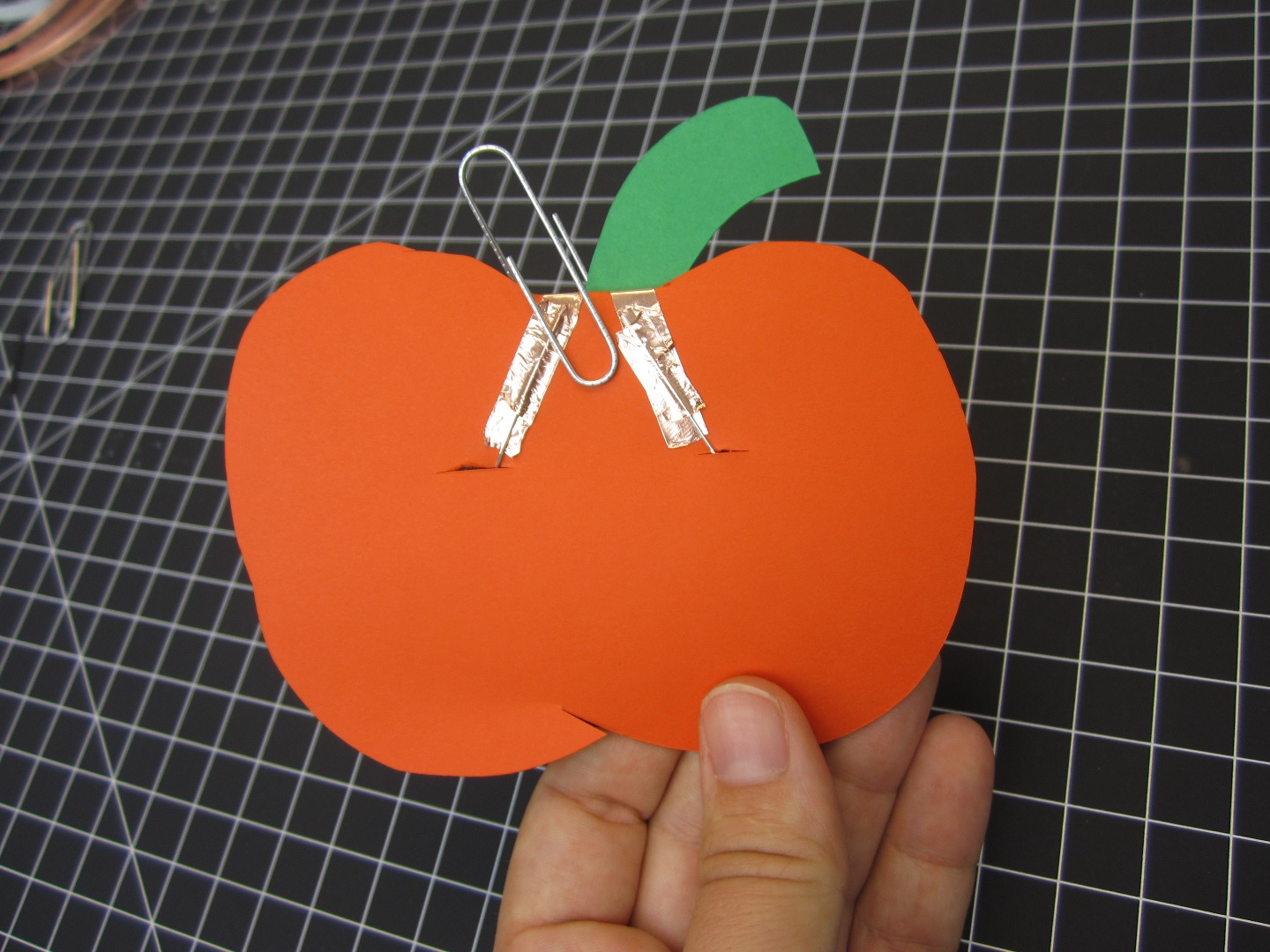

Cut the stem out of green construction paper. The round end of the stem will go under the paperclip, covering the conductive tape strips from the back of the Jack-O-Lantern. Secure the stem with tape or a glue stick if you like.
And you are done!
Grumpy Ghost: Cutting and LEDs
Next we'll make the Grumpy Ghost
Cutting
Tape the white construction paper and translucent vellum together. Next cut out the ghost shape from both pieces of paper at the same time.
LEDs

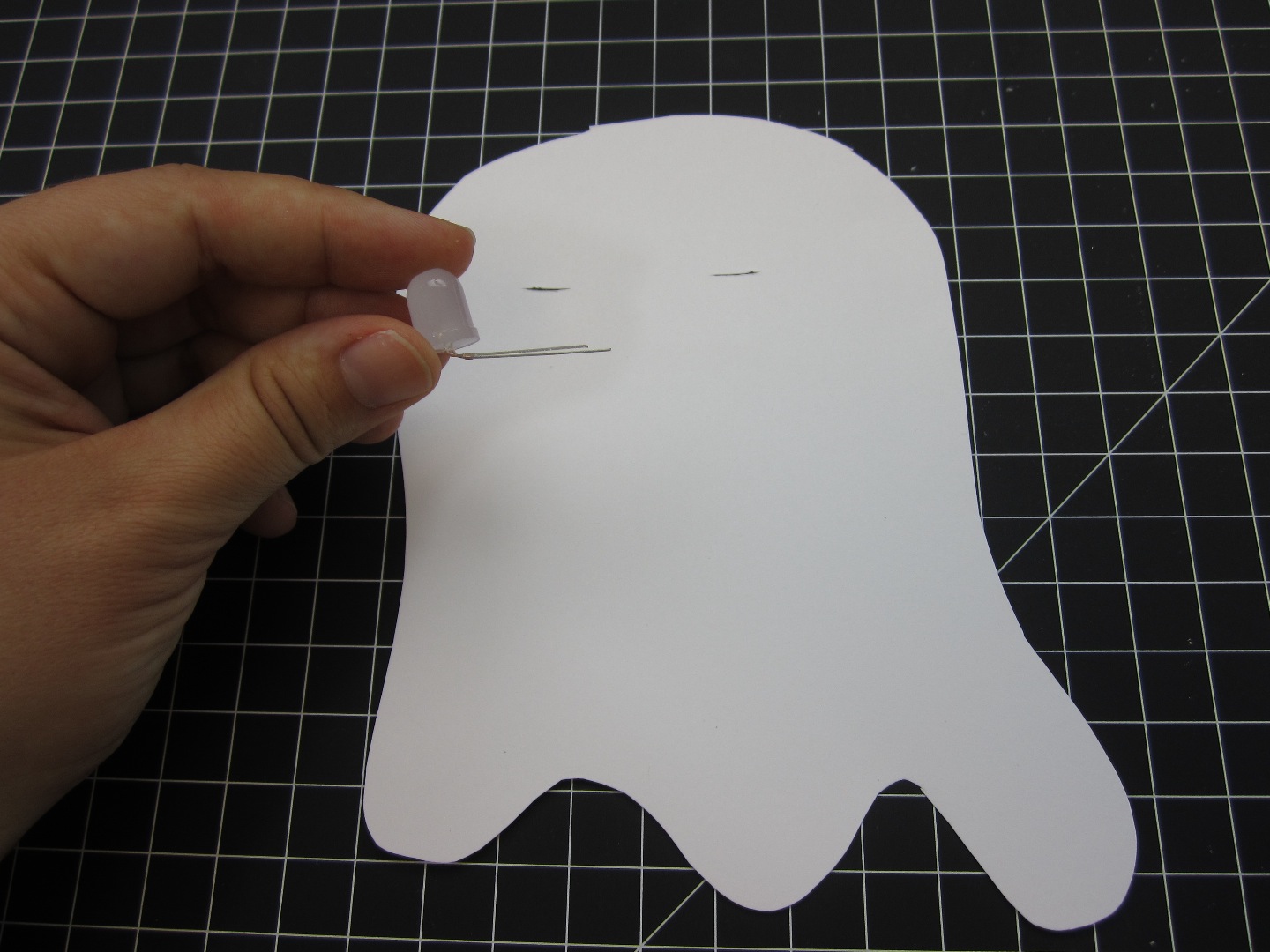

Next find your LEDs and fold the legs 90 deg. to the LED head. Place these on your paper approximately where you want the Grumpy Ghost eyes to be. Cut a tiny slit in the paper directly under the LEDs. Stick both LED legs through the paper so they are on the back side.
Grumpy Ghost: Conductive Tape and Battery
Conductive Tape

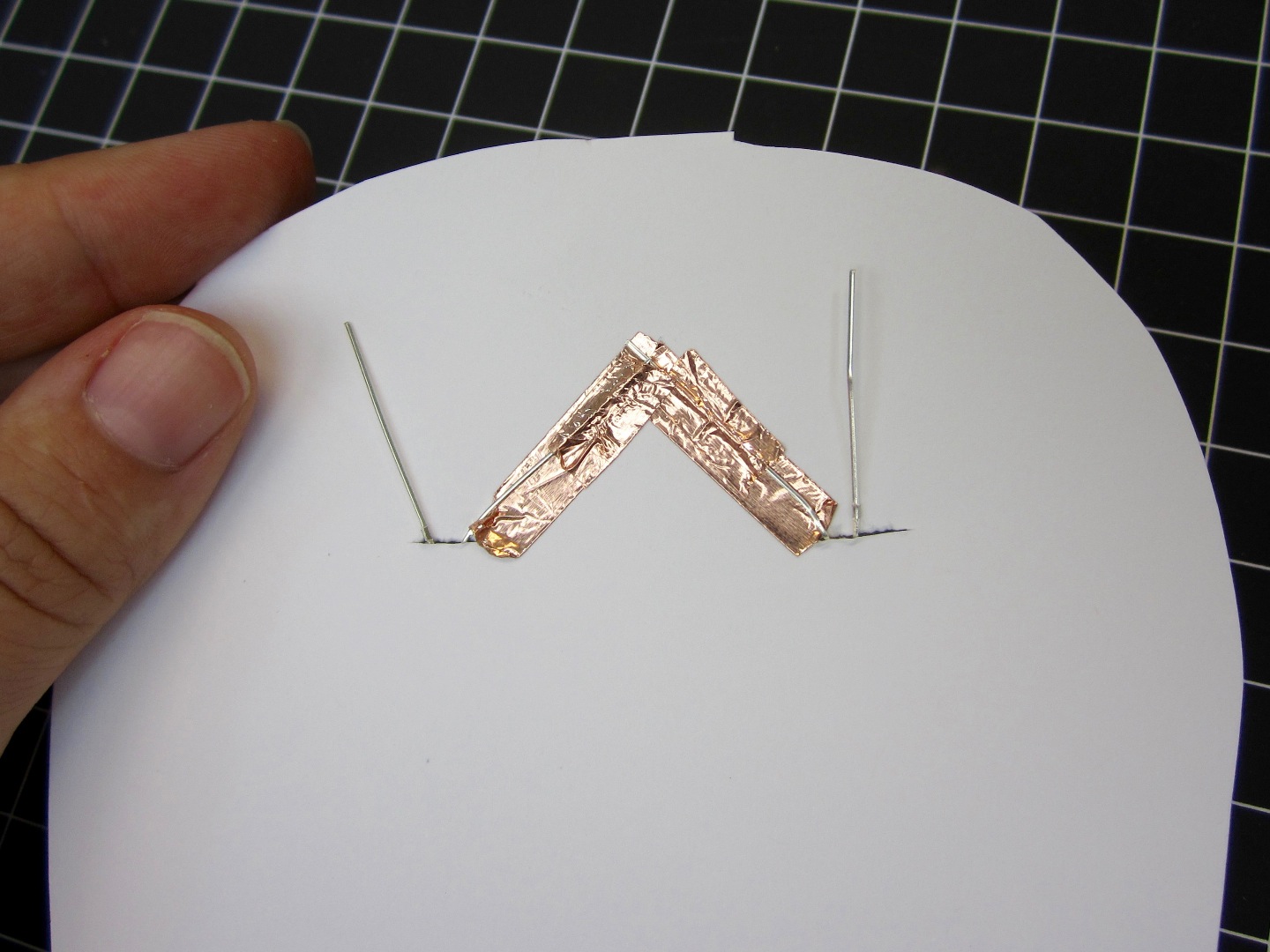

Flip your ghost over to the back side. Place a strip of conductive copper tape diagonally from each LED towards the center of the ghost. Do not tape them so high that the LED legs can't reach.
Next, notice that one leg of the LED is longer than the other. Secure the longer leg to the conductive tape with a 1/2 inch strip.
Battery
Now you are ready to test your circuit! Place your CR2032 battery just over where the conductive tape meets in the middle. Bend the un-tapped led legs so they touch the top of the battery. If your circuit is working both LEDs should light. If neither of them lights flip the battery and try again.
Finally, cut a small circle of white paper to cover the battery. Next bend a paperclip as shown and place it around the battery. This will hold it in place.
If only one LED lights, one of two things could be the problem
- The copper tape is not secure around the LED legs. Press around them and see if you can get the offending LED to light.
- One of your LEDs is backwards. Gently peel the tape off the LED legs and switch which one is inserted through the paper.
Grumpy Ghost: Vellum Sheet
Hold the vellum sheet over the ghost to determine where you want his mouth. Next cut a large frown into the vellum with an X-acto knife.
To make the mouth stand out, add black marker or pencil to the edge of the paper.
Finally, tape the top of your vellum over your ghost.
OMG he is so grumpy! But then wouldn't you be grumpy too if you were stuck as a ghost for all of eternity?
Spooky Spider: Cutting and LEDs
Finally we'll make the spooky spider with hairy black pipe cleaner legs.
Cutting

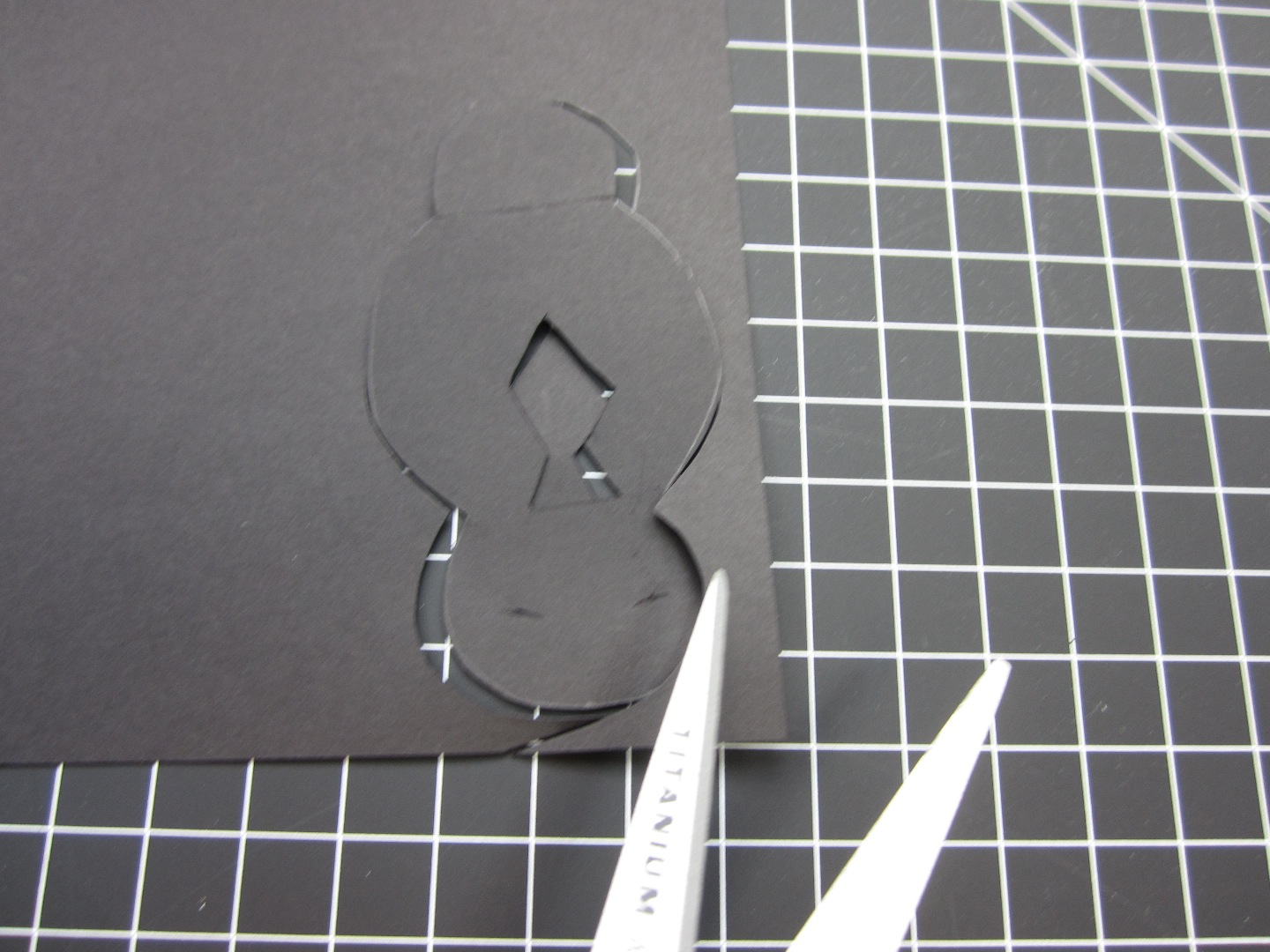

First cut the Spooky Spider body (or cephalothorax) out of thick black paper. The black bump on one end is actually the battery holder.
LEDs

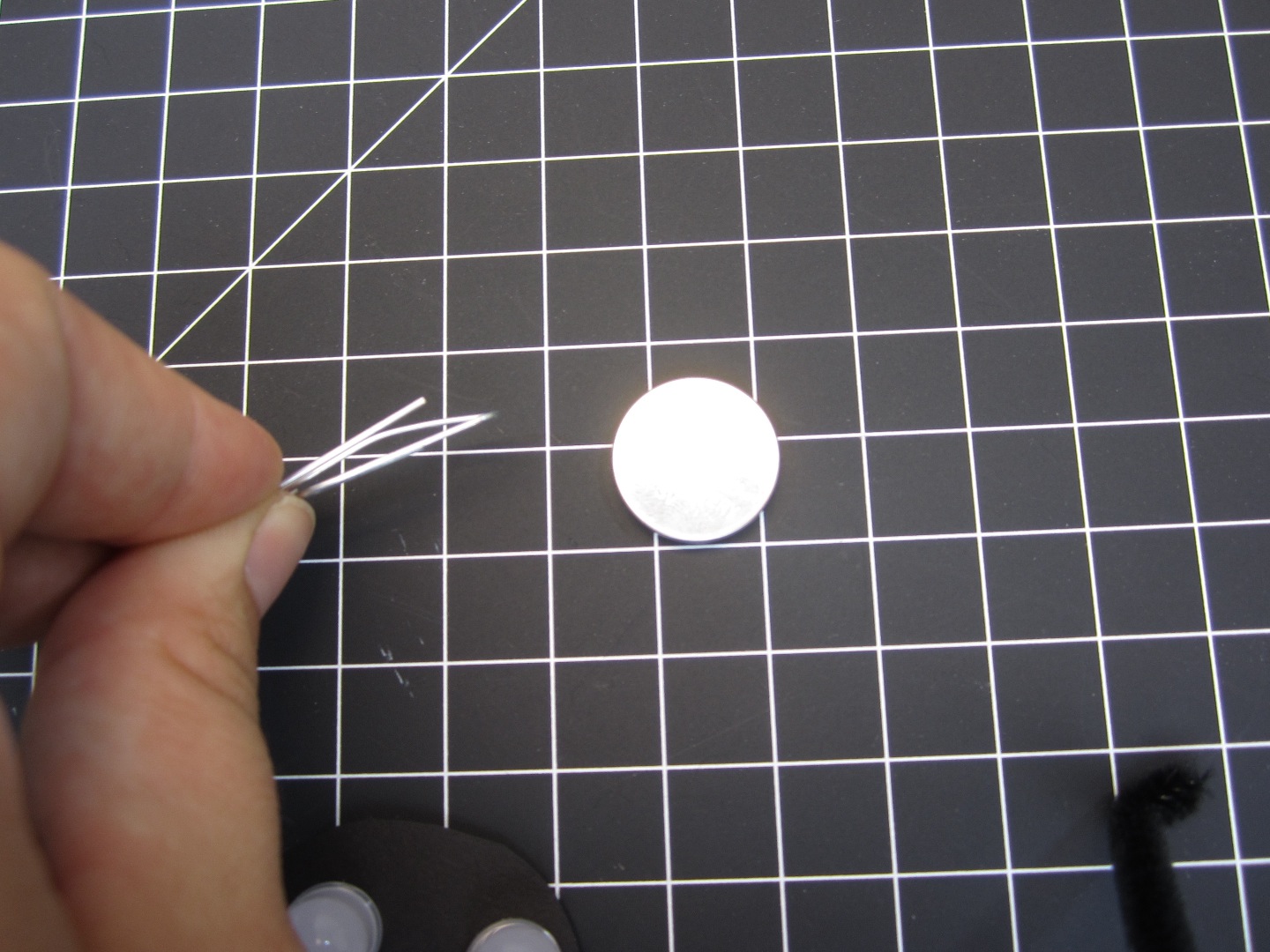

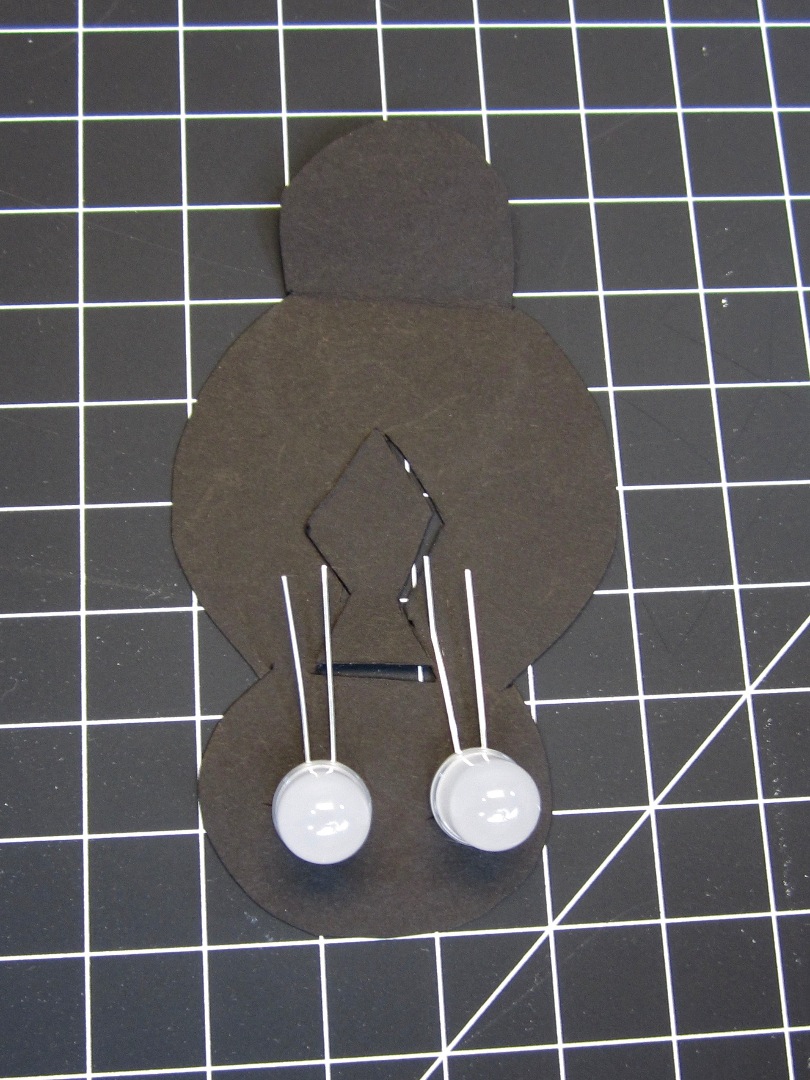

Next find your LEDs and fold the legs at 90 deg. to the LED head. Place these on the head of the spider body approximately where you want the eyes to be. Cut a tiny slit in the paper directly under the LEDs.
Notice that one leg of the LED is longer than the other. Stick the longer leg of the LED through the slit so that you have a leg on either side of the paper.
Spooky Spider: Conductive Tape and Battery
Conductive Tape
Front
On the front of your Spooky Spider place a strip of conductive copper tape starting under the LED leg and extending along the sides. Do not extend tape onto the battery tab. It will work best if the two strips of tape are touching in the middle.
Bend the LED legs on the back so they are on top of the copper strip. Secure them with a 1/2 inch strip of copper tape. Make a good copper sandwich around the LED leg.
Back
Run a strip of conductive copper tape starting under the LED leg and extending around and over onto the front of the battery tab as shown. Use one continuous strip, this will ensure good electrical conductivity. Do not extend the tape so far it touches the first strips on the front, as this will short out the circuit.
Bend the LED legs on the back so they are on top of the copper strip. Secure them with a 1/2 inch strip of copper tape. Make a good copper sandwich around the LED leg.
Battery
Now you are ready to test your circuit! Place your CR2032 battery just under the black tab and fold the tab on top. Make sure the end of all 4 pieces of copper tape are touching the battery. If your circuit is working both LEDs should light. If neither of them lights flip the battery and try again.
Bend a paperclip as shown and place it around the battery. This will hold it in place.
If only one LED lights, one of two things could be the problem:
- The copper tape is not secure around the LED legs. Press around them and see if you can get the offending LED to light.
- One of your LEDs is backwards. Gently peel the tape off the LED legs and switch which one is inserted through the paper.
Spooky Spider: Body and Legs
Cutting
Next cut the abdomen out of brown construction paper. You can decorate the abdomen with black paper diamond pattern for an extra spooky detail.
Pipe Cleaner Legs

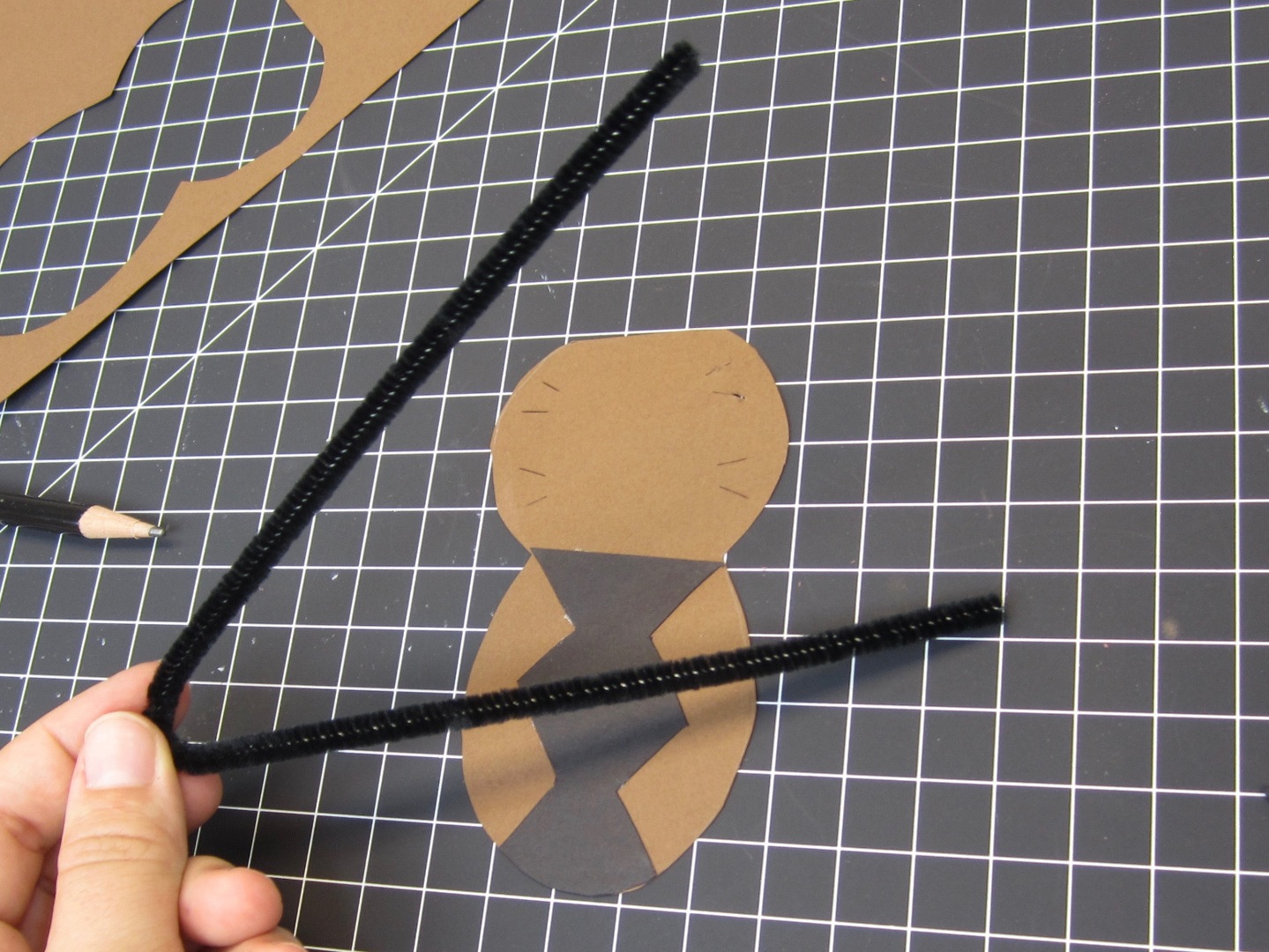

Next cut 8 slits through the body (not abdomen) of the spider, 4 on each side. Fold the pipe cleaner in half and insert each end through one slit from the bottom up. Repeat this with the other 3 pipe cleaners.

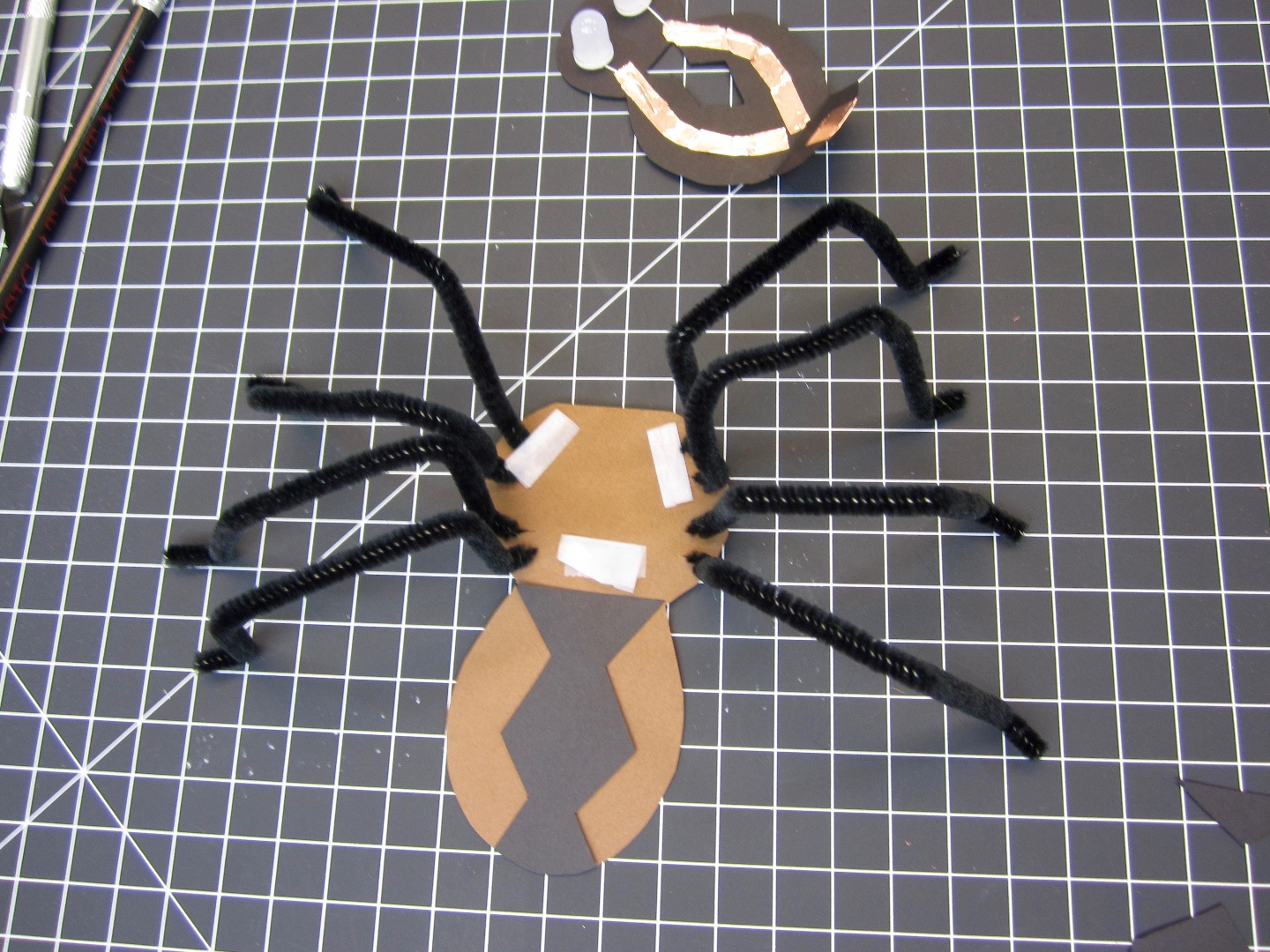

Next bend the pipe cleaners in 3 places as shown to create the legs.
Final Assembly

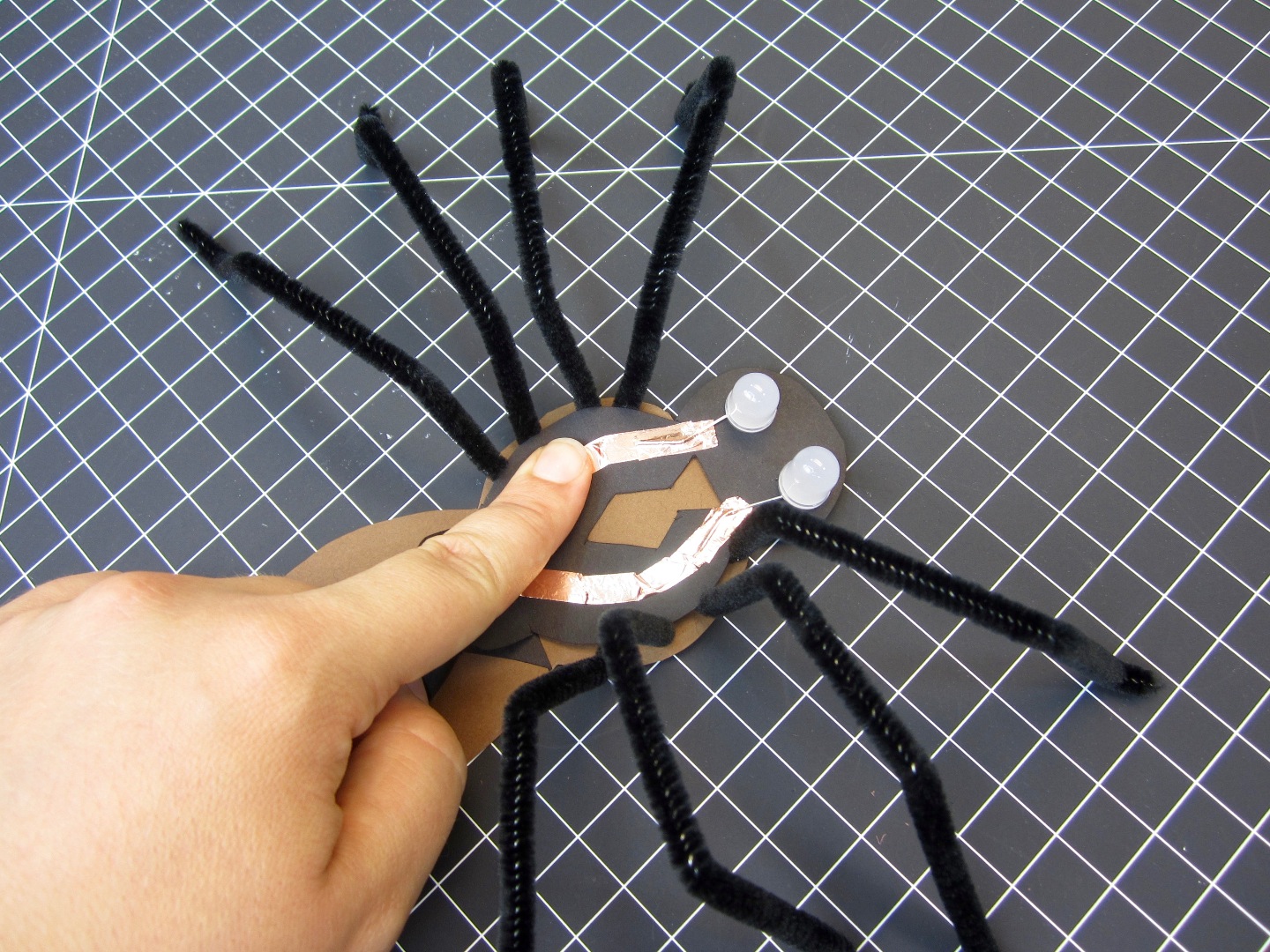

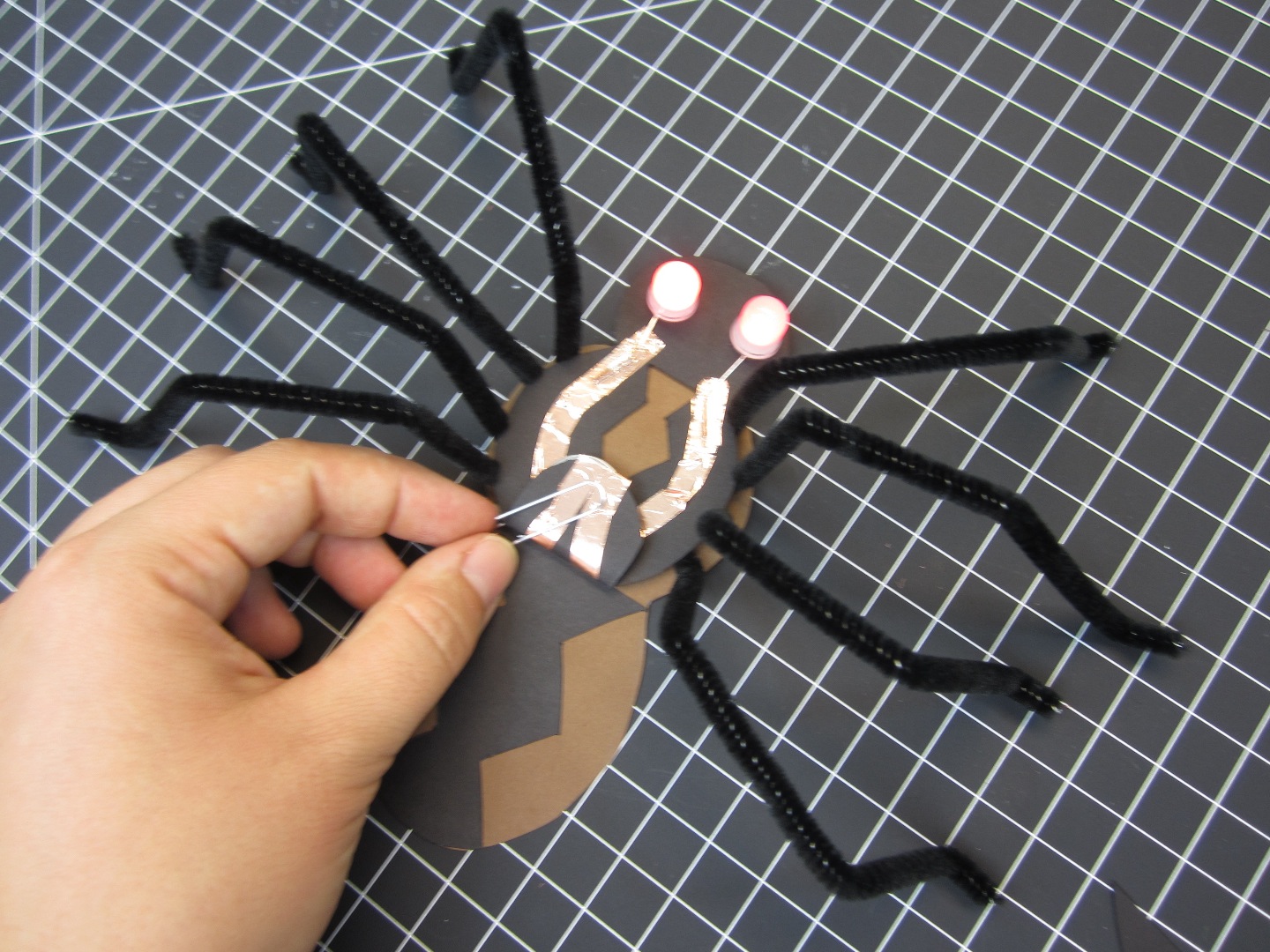

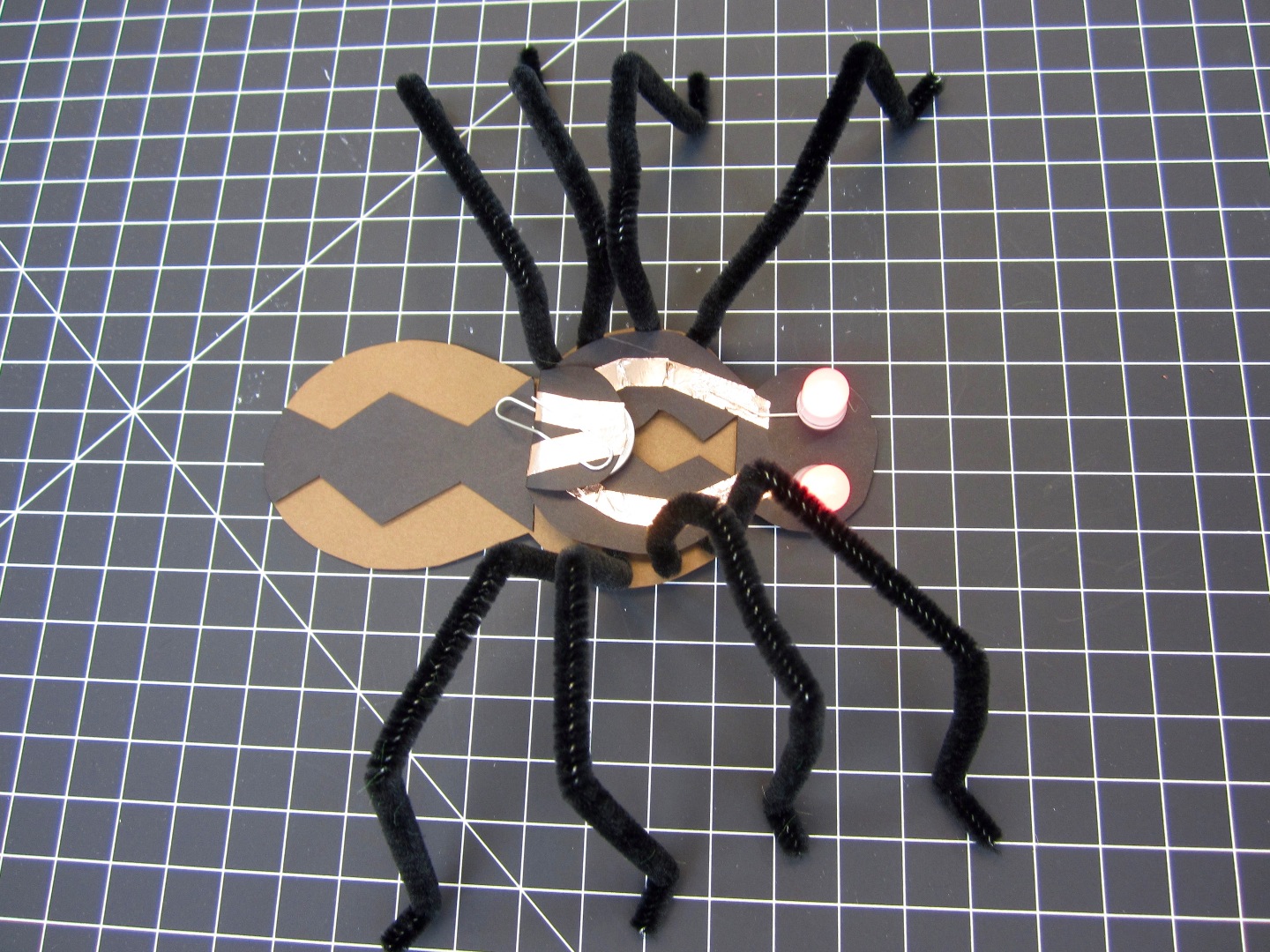

Using tape or the glue stick, attach the black body with LED eyes onto the brown abdomen as shown. She's ready to creepy crawl!
Conclusion
We hope you enjoyed making these fun filled, yet simple, LED paper crafts. If you're in need of LEDs, conductive tape, or supplies please check out our kits over at BrownDogGadgets.com.
