Hacking Retro CASIO Synth
I bought this nice synth to a friend in need for a few bucks. It is really cool, it is kind of retro but I decided to add more retro and a pot to change tune easily. I attached some pictures.
So I'll so you how to hack it easily. This will probably work with all synths and keyboards with a tune preset.
So I'll so you how to hack it easily. This will probably work with all synths and keyboards with a tune preset.
Materials
The things you will need:
Household items:
- X1 50K potentiometer (check your preset pot to confirm value)
- X1 Knob (optional)
Household items:
- Drill
- Wire
- Retro style wood
- Screwdriver
- Dremel
Making Space for the Pot

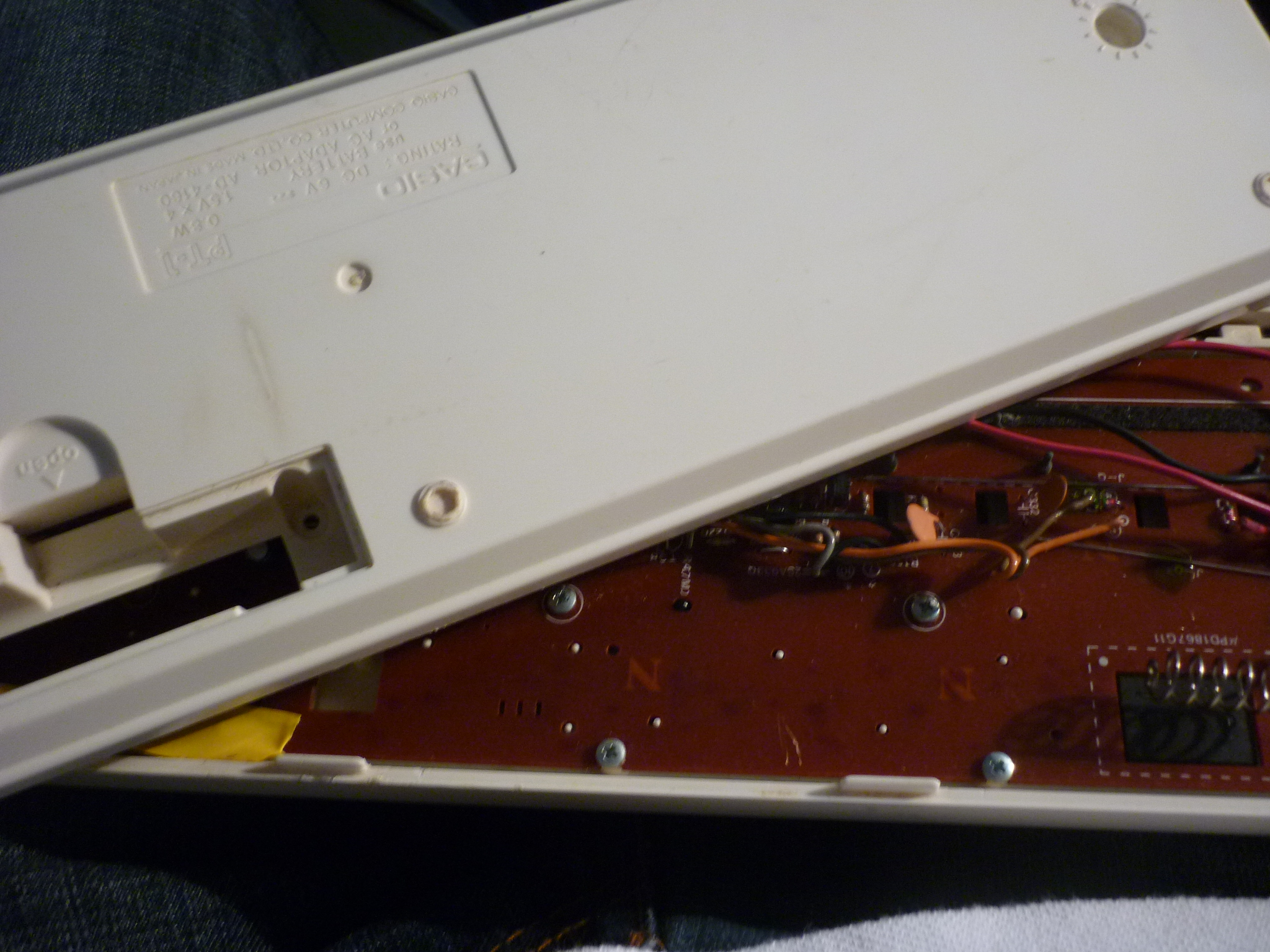

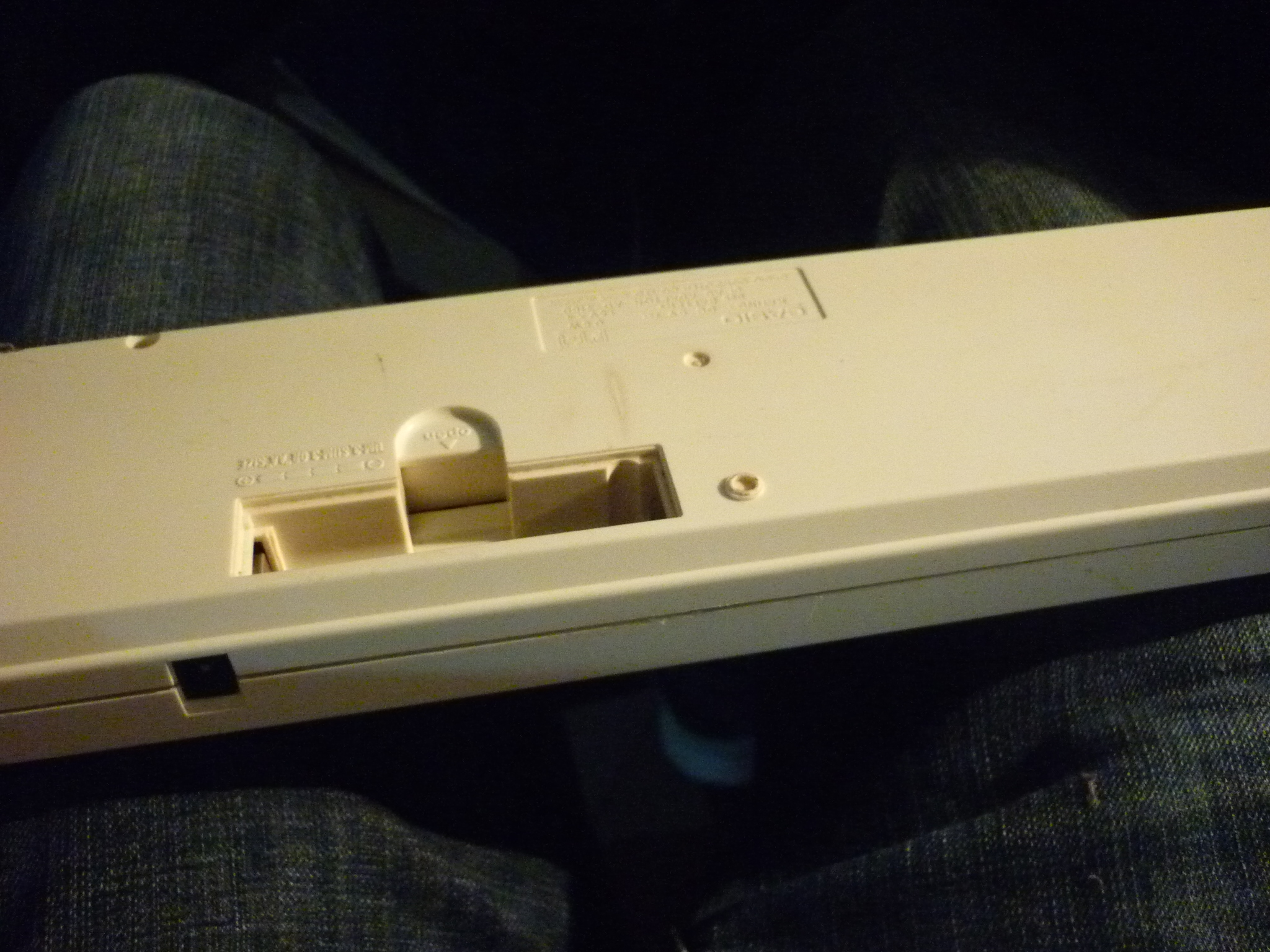

So go ahead and unscrew the synth. I got 6 screws, remember there are always hidden ones so check well for screws.

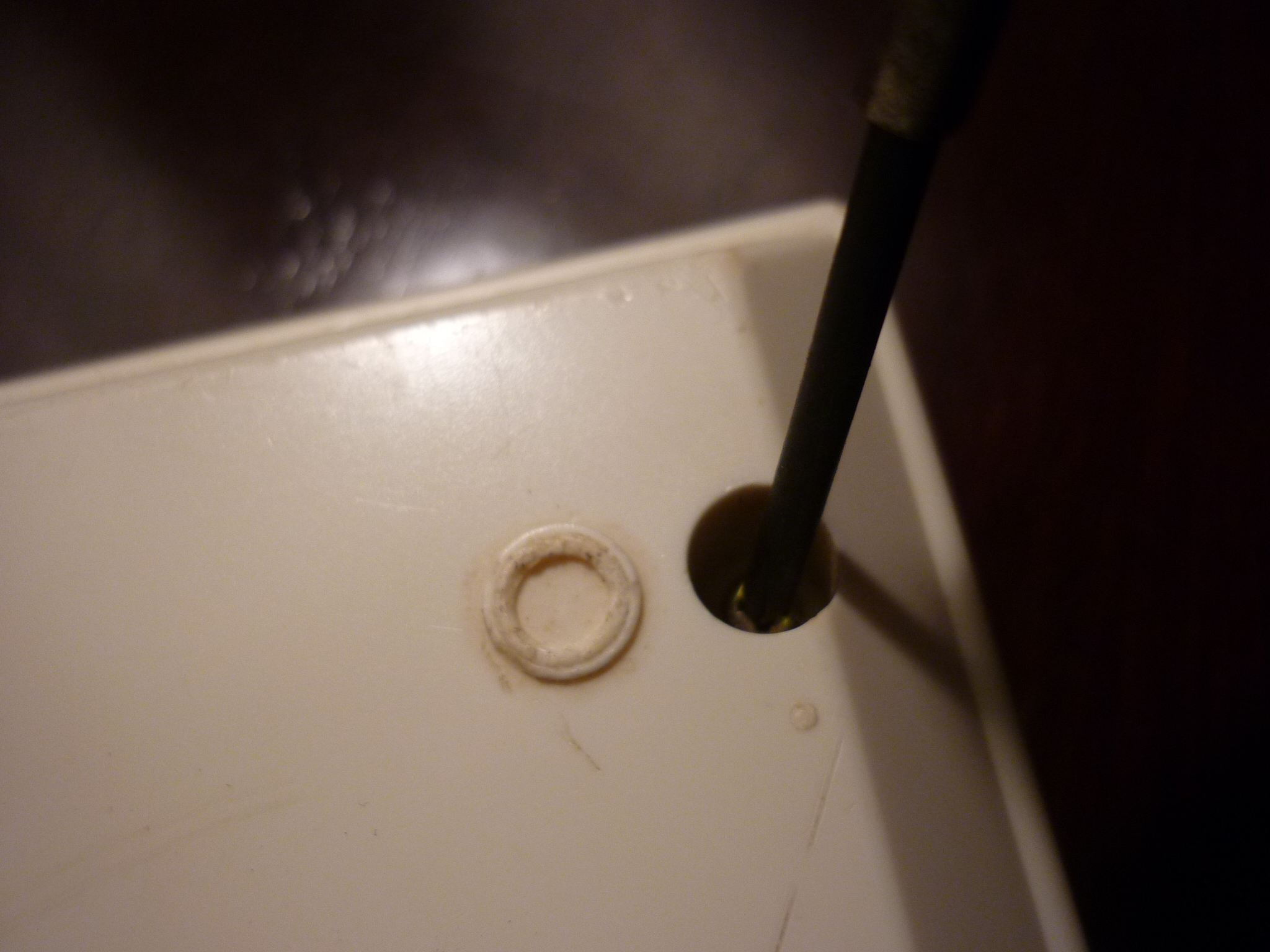

Then locate and drill a space where the pot will fit comfortable.
With a dremel clean the space around the pot's place so it can fit secure. In my case it was just in a spot where the screw was so crushed the screw place away.
After cleaning procedures make sure your pot fit well enough it can move freely.
Then locate and drill a space where the pot will fit comfortable.
With a dremel clean the space around the pot's place so it can fit secure. In my case it was just in a spot where the screw was so crushed the screw place away.
After cleaning procedures make sure your pot fit well enough it can move freely.
The Pot Issue
So once you have you pot inside we have to locate the actual pot for tune. If you synth can be circuit bend in any other way, don't be afraid to try it.

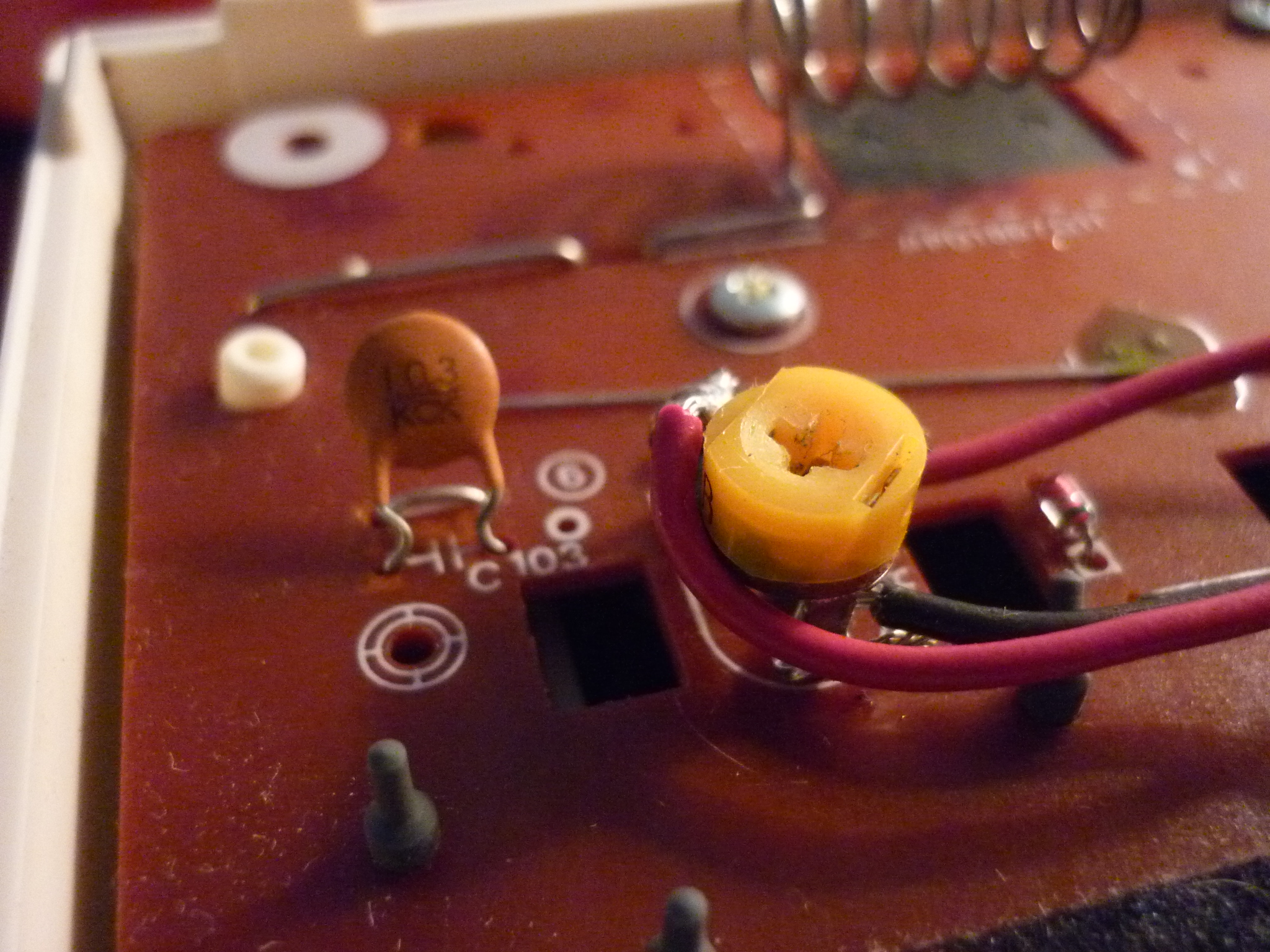

I soldered 3 wires to each terminal, about 15 cm each wire. It was pretty easy to locate the other pot.
I went ahead and destroyed the pot with some tweezers. Remember if you do not destroy the pot you will increase the value:
50 + 50 = 100
Yo have to make sure to eliminate 50K because that is the value needed.
50 = 50

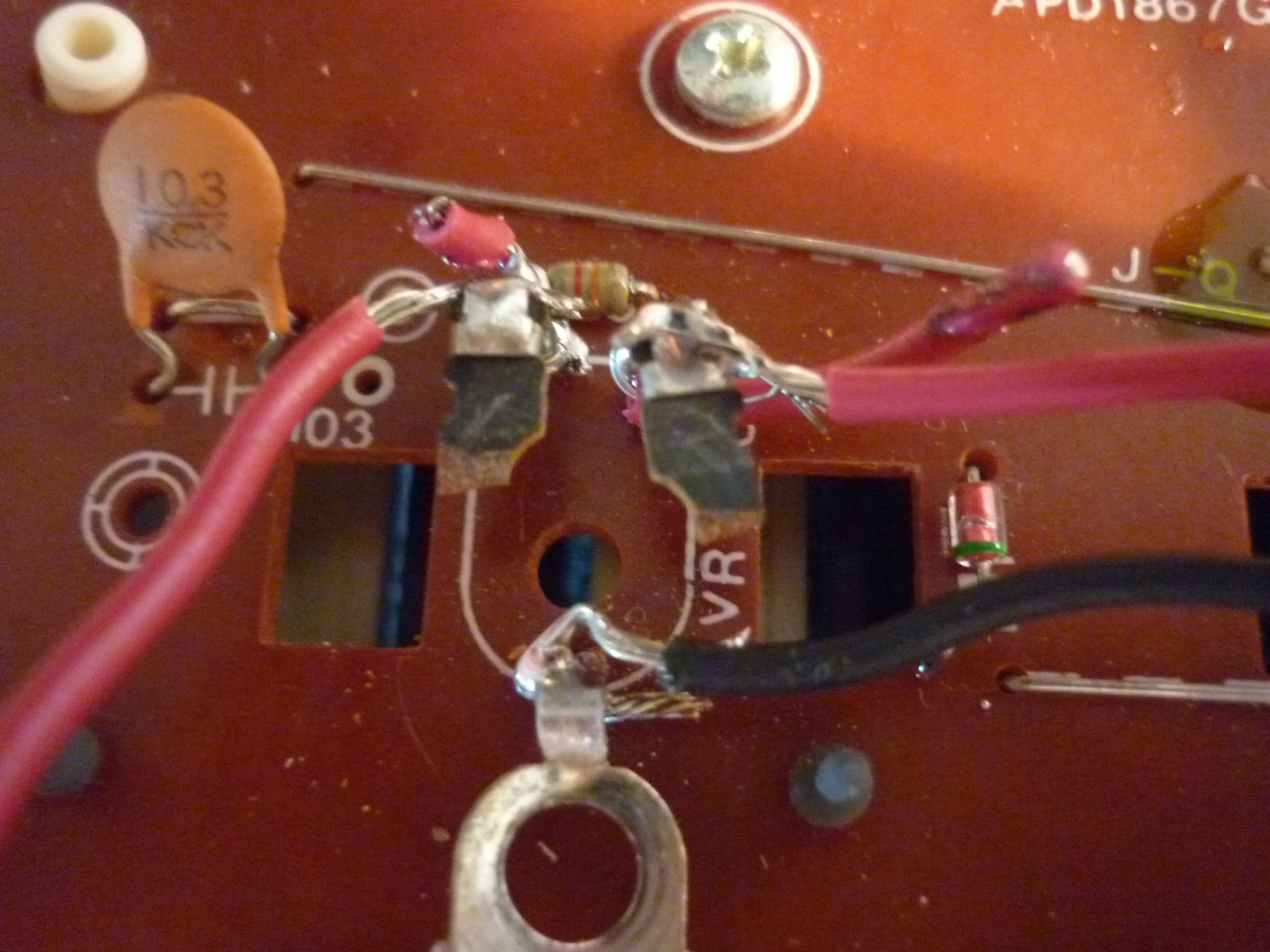

Solder to the original pot terminals, the wires, matching the polarity of the built in pot.
I soldered 3 wires to each terminal, about 15 cm each wire. It was pretty easy to locate the other pot.
I went ahead and destroyed the pot with some tweezers. Remember if you do not destroy the pot you will increase the value:
50 + 50 = 100
Yo have to make sure to eliminate 50K because that is the value needed.
50 = 50
Solder to the original pot terminals, the wires, matching the polarity of the built in pot.
Closing It Up
Tape the wires together to make sure you don't have problems later. Close everything up, put screws back on.
Finishing Retro Touches

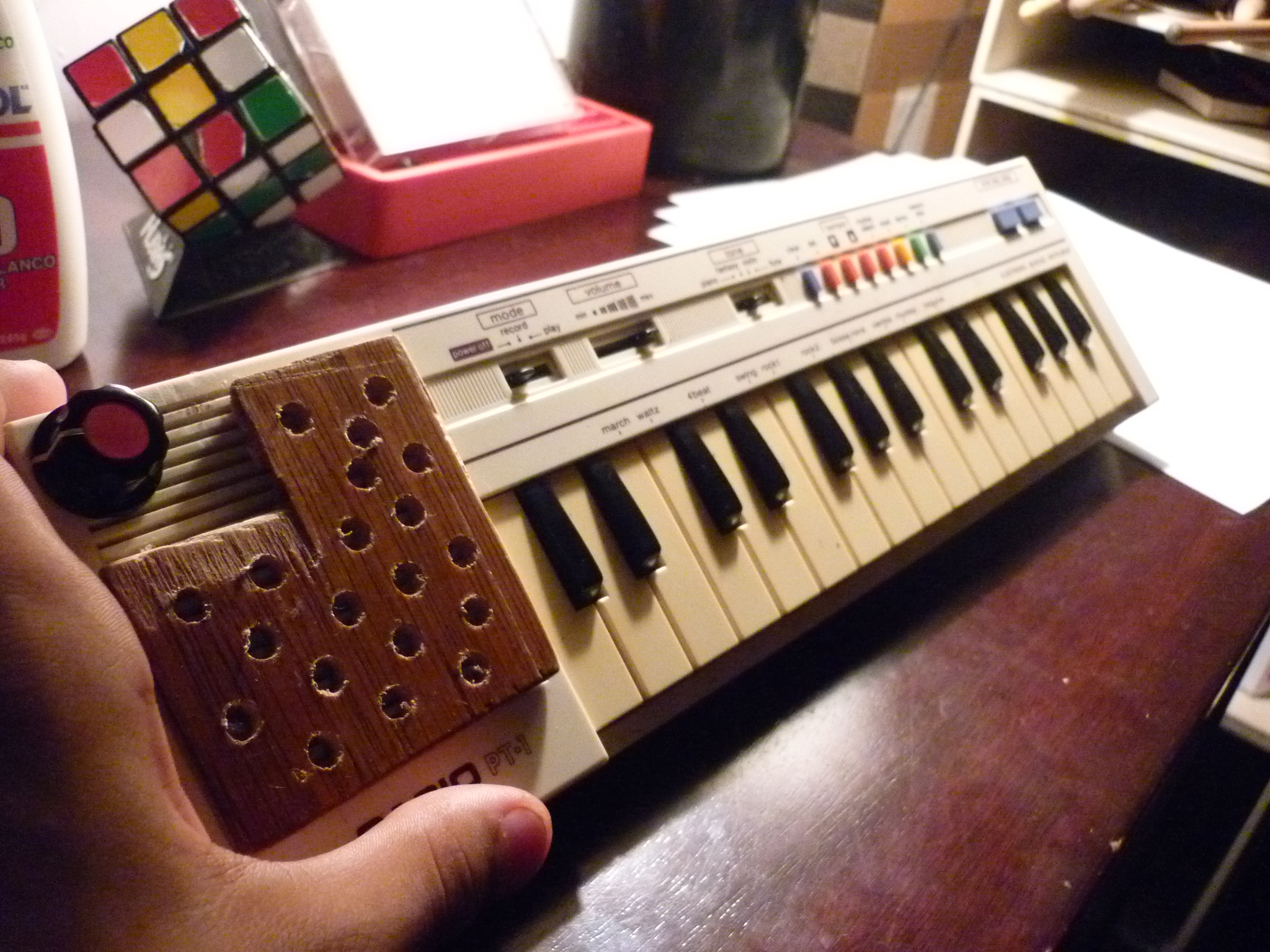

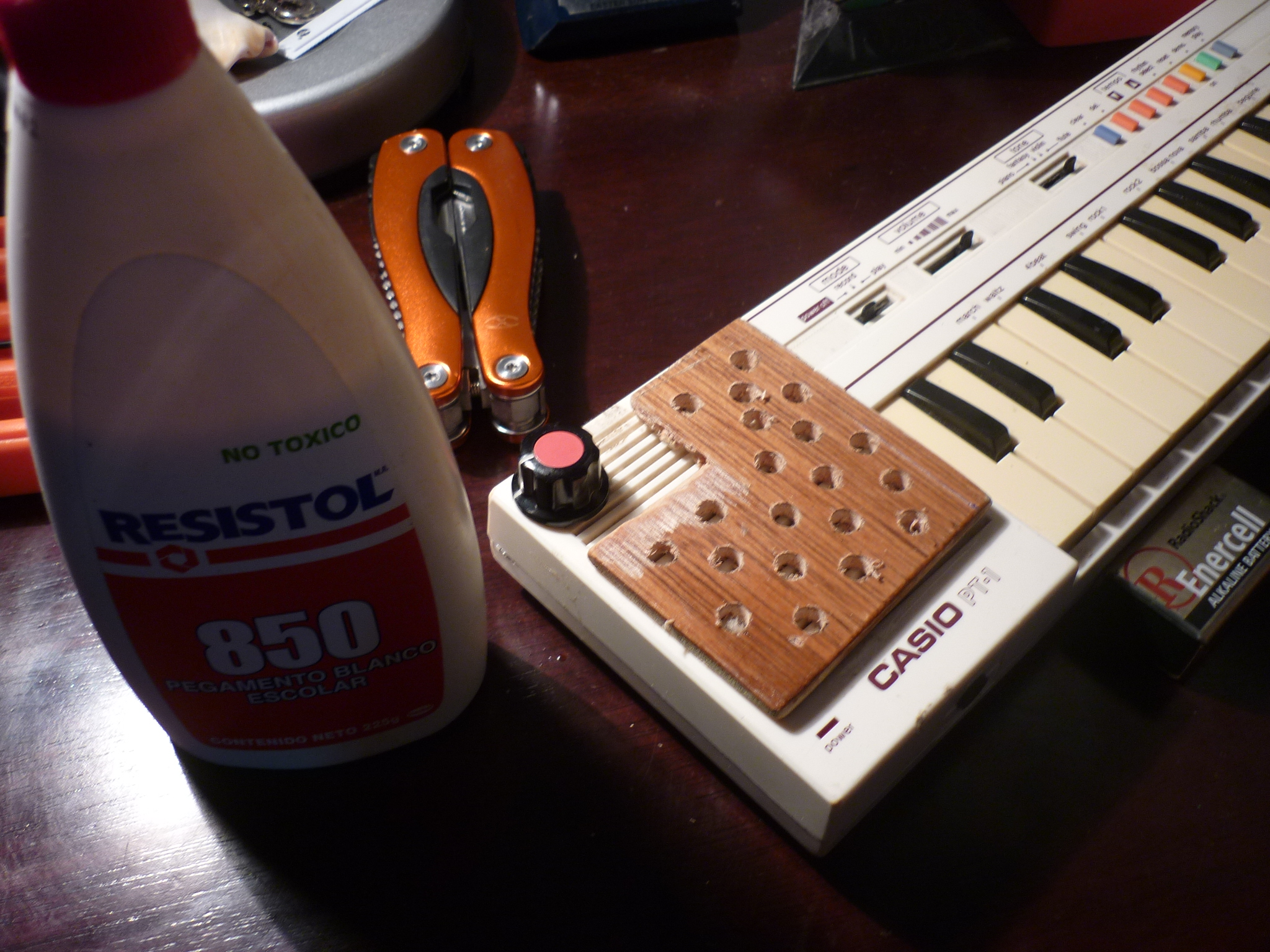

To add a retro sense I found a piece of wood I didn't need so I used it to add retro felling and drilled some holes so you can still listen to the integrated speaker.
Wrap Up
So it's really easy to add a little something to a synth. The best thing you can decide the shape and size. You can also add a knob for the pot.
