This is a simple DIY Robot Project to all kids who are interested to make it by themselves

The Kid will be going to learn:

• Doing simple & safe electrical connections.
• Assembly a simple mechanical car chassis.
• Introduction to simple coding using Arduino Board
• Play & Enjoy with his own made toy.

1-DIY Complete Bluetooth Robot Car Chassis Kit

Thats It

1-REMOVE THE STICKER ON THE ACRYLIC

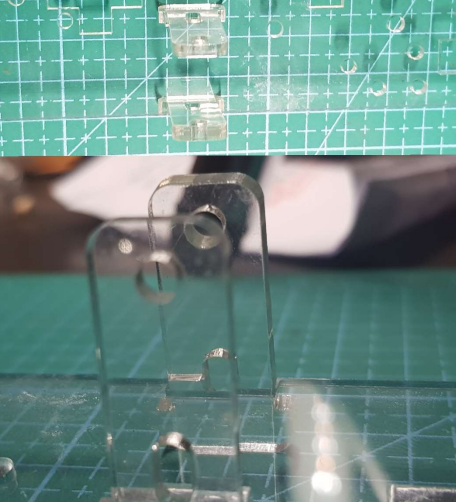

2-ADD THE T-PIECE ON ITS PLACE ON THE CHASSIS

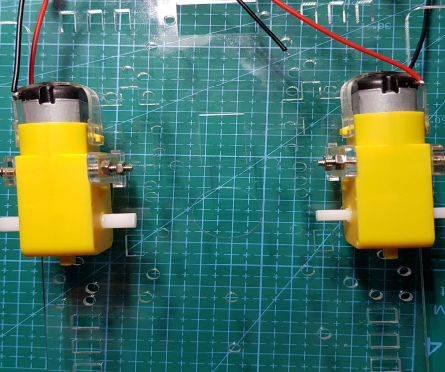

3-ADD THE MOTOR BETWEEN THE 2 T-PIECES AND ADD THE TALLEST SCREW AND DO THE SAME ON THE OTHER MOTOR

4-ADD 2 SPACERS INFRONT OF CAR

5-ADD THE CUSTER WHEEL ON THE SPACER AND ADD A SCREW

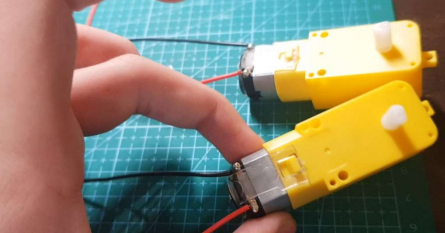

TO KNOW HOW TO SOLDER WATCH THE ATTACHED VIDEO

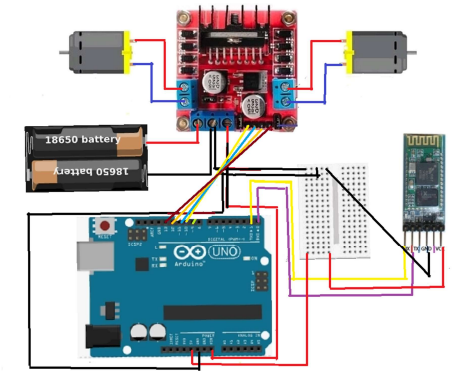

-HC-05

Tx to Rx on Arduino

Rx to Tx on Arduino

5v+ to 5v on Arduino

GND to GND on Arduino

- L298 MOTOR DRIVER

IN1 TO 10 ON ARDUINO

IN2 TO 11 ON ARDUINO

IN3 TO 12 ON ARDUINO

IN4 TO 12 ON ARDUINO

12V+ ON THE L298 TO THE POSITIVE OF THE BATTERY CASE

GND ON THE L298 TO THE NEGITIVE OF THE BATTERY CASE

SAME GND ON THE L298 TO GND ON ARDUINO

5V+ ON THE L298 TO VIN ON THE ARDUINO

Attach The Tyres To The Motor

Upload This Code To Your Arduino

INSTALL THIS APP FROM PLAY STORE

GO TO YOUR BLUETOOTH SETTINGS ON YOUR PHONE AND CONNECT YOUR BLUETOOTH MODULE ITS CALLED ( HC-05 )

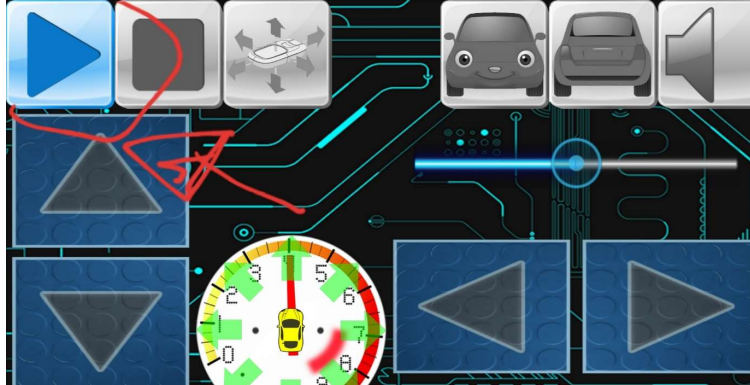

AFTER INSTALLING OPEN THE APP AND PRESS ON THE FLIPPED TRIANGLE BUTTON

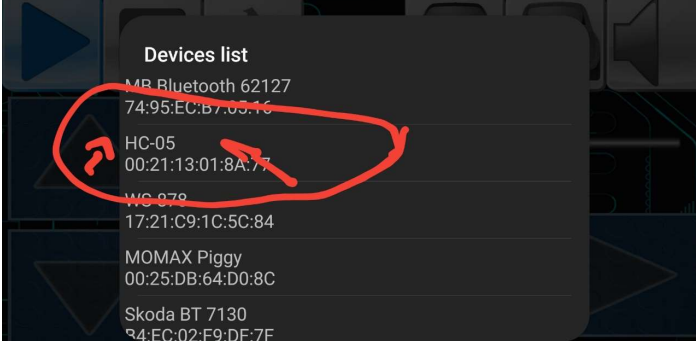

THEN CHOOSE HC-05

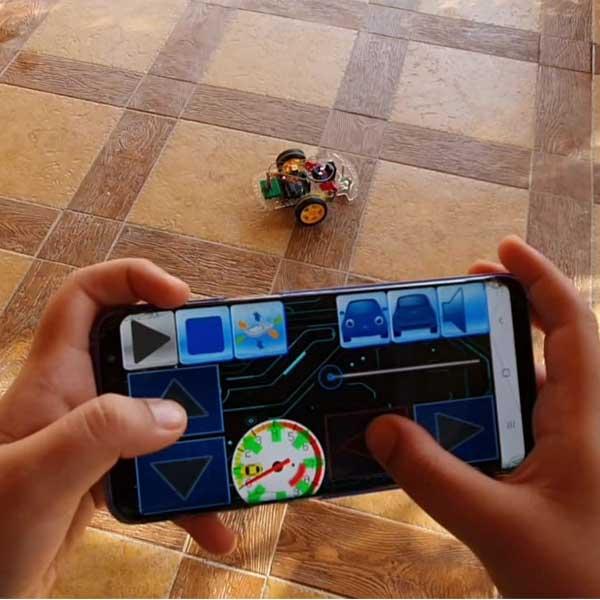

THEN HAVE FUN PLAYING WITH YOUR BLUETOOTH CAR
