HOW TO MAKE SMART USB LED AT HOME


Hi friend, This smart LED you can use with USB. it is very useful

Let's get started

Take All Components As Shown Below -


(1.) Old LED light Cover
(2.) Male USB code
(3.) LED - 3-5V
(4.) Battery - 3V (only for testing 3V LED)

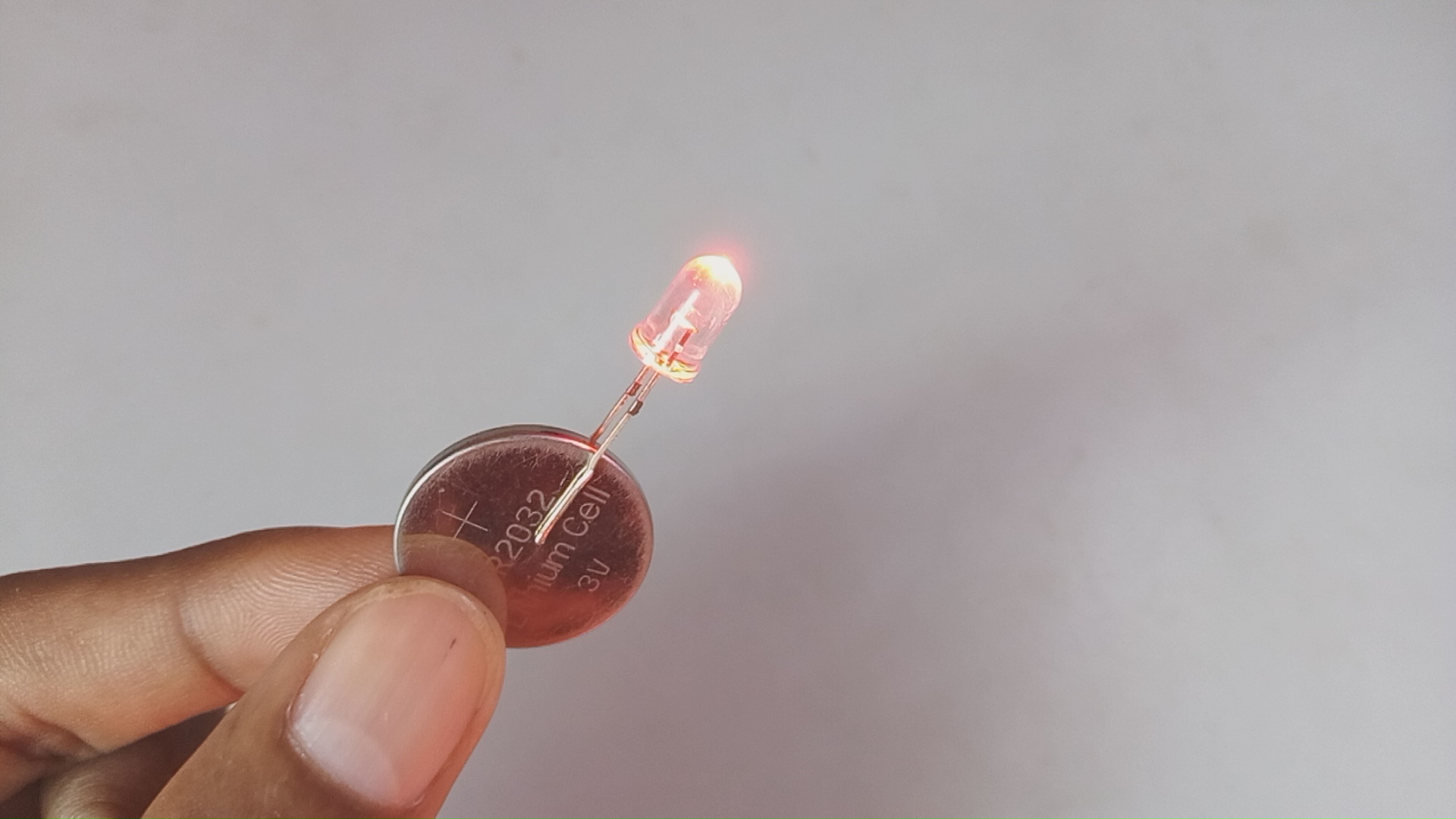

Check LED by Battery With Matching It's Polarity.


Match the polarity of LED to the Battery

Connect Extra Wires to the LED to Do Long It's Legs.


Now Put LED on Inside LED Light.


Next Solder the Legs of LED to the Male USB Code by Matching It's Polarity.


Now Fix USB Code and Steech With Glue Gun.


Close the Cover of LED Light.

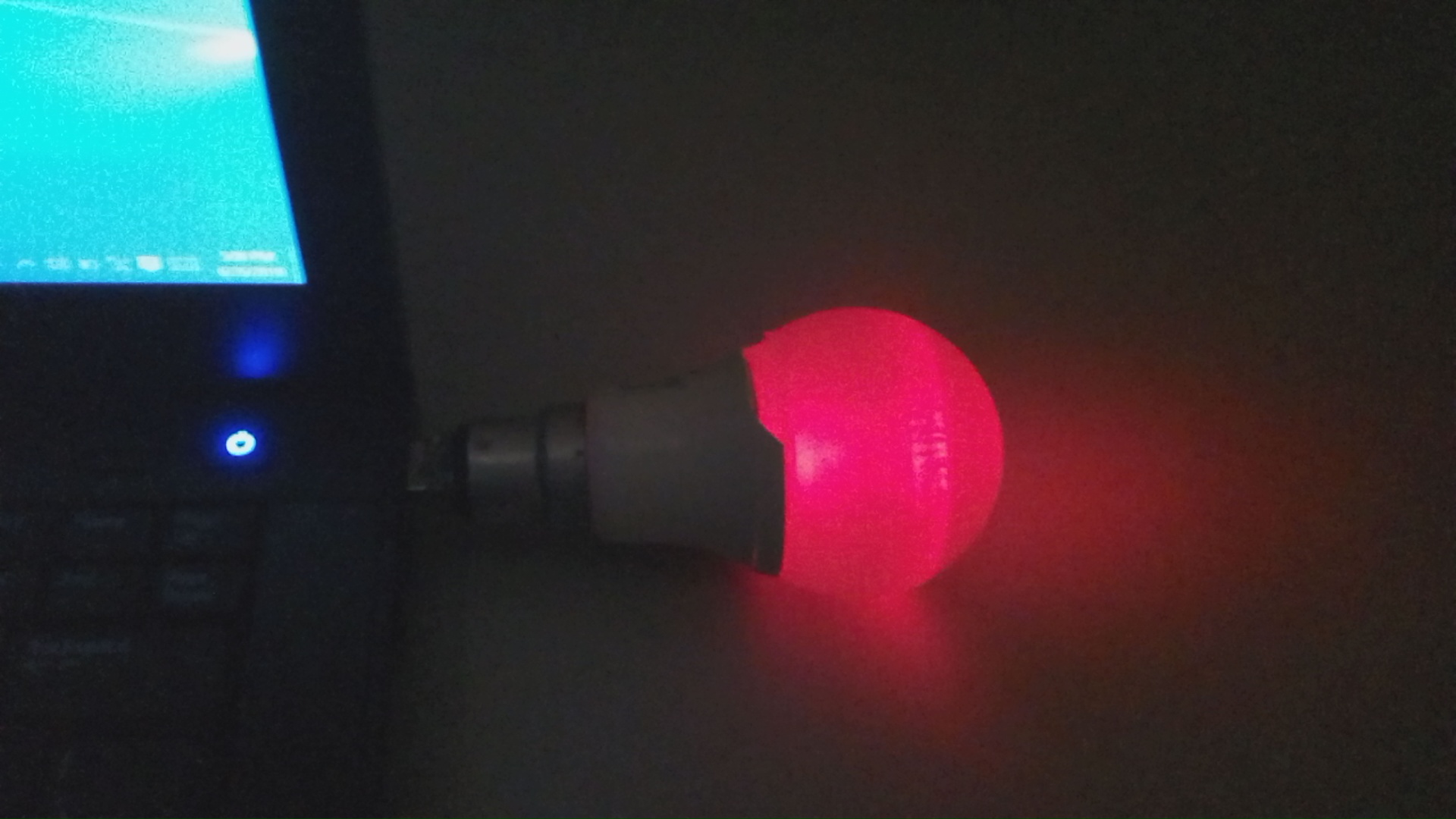

Now SMART LED IS READY to Check.


Now Check LED With the Laptops, Low Ampere Charger, Power Bank, Desktop.....


Thanks visit again for more electronics projects, I know that there may be a lot of suggestions for improvement of this project,so please use the comment section and let me and others know. :D
