HOW TO CREATE a 3D WATERCOLOUR PALETTE WITH 3D MODELLING SOFTWARE

To make any noteworthy 3D model, you ought to, specifically, pick a 3D modelling software to use in your endeavours. In the wake of deciding the right 3D modelling software, you would then begin learning its tools and different components. In this tutorial article, we're demonstrating the way that you can design a watercolour palette in SelfCAD. We picked SelfCAD as it's more straightforward to learn, and you don't have to have knowledge of 3D modelling to make the decision to utilise it.

Is it right that you are enthused about learning 3D designing? Dread not. SelfCAD is here to relieve your interests. In this way, we should begin with a simple and basic article, for example, a watercolour palette!

You can also check our website and go through our other such articles such as how to design a 3D plastic bottle!

So, with this we can proceed with our design!!

Insert Two Different Cubes of Different Sizes

First of all, go to the 3D shapes and insert a cube to the working interface. Set the width to 200 and height to 10. Then insert another cube to the working interface. Set width to 40, height to 20, depth to 65, position y to 2, position z to 12.5.

Move the Outer Smaller Face of the Smaller Cube

Next, opt for face selection and select the outer smaller face of the smaller cube. Then use the move tool and move that face along the y axis to a value of 6.

Create Copies and Move Them to the Centre

Now, from the tools category we will select the copy offsets option. Set the x to 50 and number of copies to 3. Then click on the copy button. After that move these copied cubes to 0 along the x-axis.

Insert Another Cube and Move Its Outer Smaller Face

Next, insert another cube and set width to 15, height to 20, depth to 25, position x to -87.5, position y to 2, position z to -35. Then select the outer smaller face of this cube and move it along the y axis to an amount of 6.

Create Copies and Make Them All a Group

Now, we will again select the copy offset option and set x to 20 and number of copies to 8. Then click on the copy button. After that, from the edit menu make all these newly added cube a group.

Insert a Cylinder at the Side

Next, insert a cylinder to the working interface. Set the top radius to 8, bottom radius to 6, height to 30, position x to 90, and position z to -35.

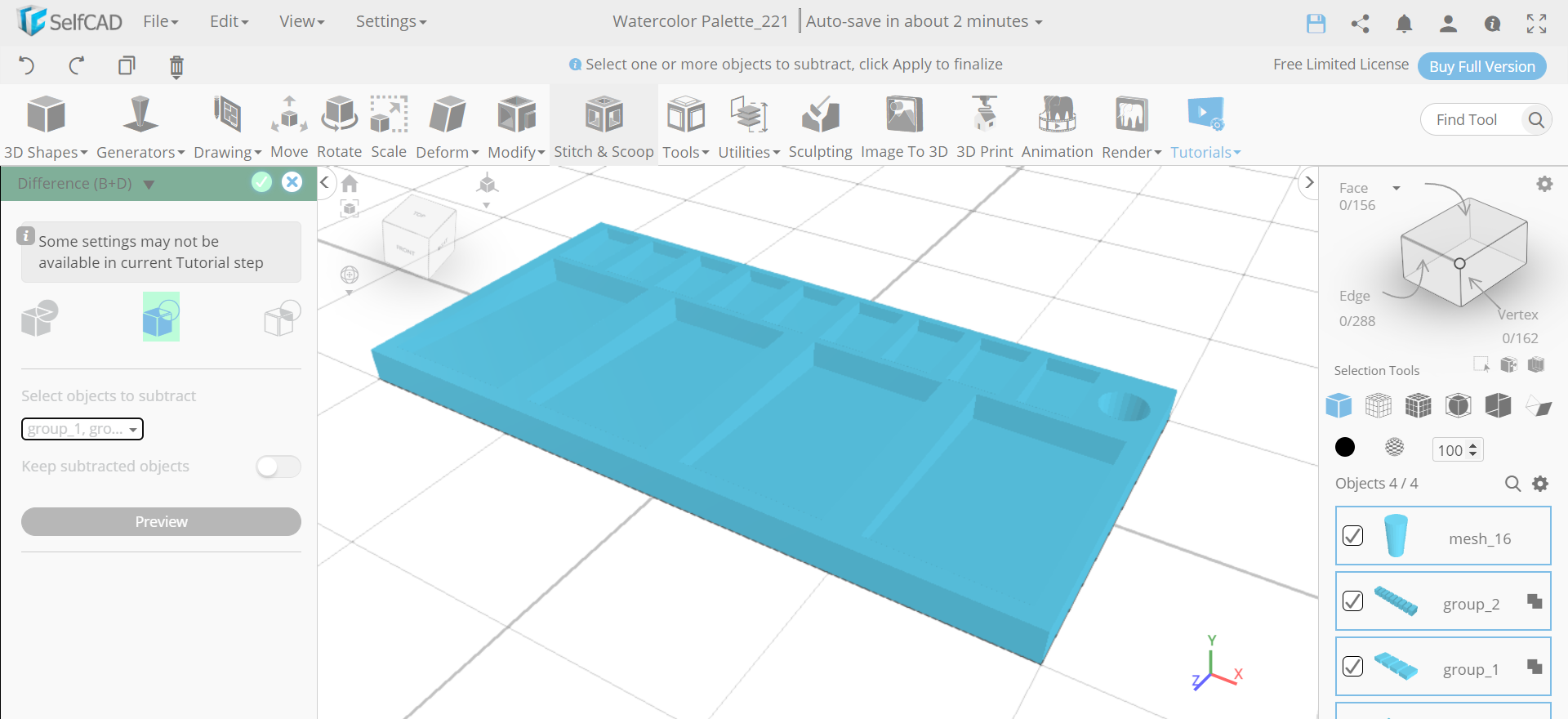

Select All the Objects and Subtract the Masses

Now, from the edit menu we will select all the objects. Then from the stitch and scoop category choose the difference. Set group_1, group_2 and mesh_16 to subtract.

CONCLUSION: THEREFORE, WE HAVE CREATED a 3D WATERCOLOUR PALETTE IN SelfCAD

We have 3D designed the watercolour palette with different tools of SelfCAD. It is astonishing to 3D design an article that might be almost immaterial, enormous, or complex. You can moreover utilise a similar strategy to 3D design other 3D objects of your decision. Subsequently, we accept you notice the tutorial article as accommodating and fascinating.
