HOW TO CREATE a 3D STAND MIXER IN 3D MODELLING SOFTWARE

To make any striking 3D model, you ought to, specifically, pick a 3D modelling software to use in your endeavours. In the wake of deciding the right 3D modelling software, you would then begin learning its tools and different components. In this tutorial article, we're demonstrating the way that you can design a 3D stand mixer in SelfCAD. We picked SelfCAD as it's simpler to learn, and you don't have to have knowledge of 3D modelling to make the decision to utilise it.

Is it right that you are excited about learning 3D designing? Fear not. SelfCAD is here to moderate your interests.

You can also visit our website to go through our other similar kinds of articles such as how to design a 3D plastic bottle!

Thus, we should begin with this simple article, a stand mixer!

First of all, from the drawing category choose the 3D sketch. Set snap to grid vertices to true. Then using the line sketch, draw an U-shaped profile as shown in the image.

Next, from the tool panel choose Arc 2 and draw an arc as shown in the image. Then go to tools and select the fill polygons option.

Now, from the modify category we will choose the add thickness tool. Set the thickness to 15. Then from the generators category, insert the shape generator. Set the top radius to 15, bottom radius to 30, number of edges to 4, extrusion height to 300, position x to 75, position y to 15 and position z to -100.

Next, select the scale tool and set z to 120. Then from the utilities tool select the mirror option. Set direction to left, create copies to true and offset to 53.

Now, insert a capsule to the working interface and set its height to 220, position y to 250, position z to -100, rotation z to 90. Then from the 3D shapes, insert a cylinder and set its top radius to 100, bottom radius to 100, height to 70, arc to 180, position y to 220, position z to -110, rotation x to 145 and rotation z to 90.

Next, we will insert a cube and set its width to 130, depth to 450, height to 25, position y to 250, position z to -40, and rotation x to 145. Then we will insert another cylinder and set its top radius to 65, bottom radius to 65, height to 25, position y to 475, position z to 150, and rotation x to 145.

Now, select mesh_17 and mesh_13 and go to stitch and scoop. Make them a union. Then insert a cylinder and set its top radius to 7, bottom radius to 7, height to 250, position y to 300, position z to 220, and rotation x to 145.

Next, insert a spiral generator and set its top radius to 5, bottom radius to 10, height to 120, revolution to 100, top thickness to 2, position x to -8, position y to 225, position z to 310, and rotation x to 145. Then insert a shape generator and set fill top to false, top radius to 120, bottom radius to 50, number of edges to 32, extrusion height to 180, bevel offset to 2, bevel level to 5, position y to 10, and position z to 150.

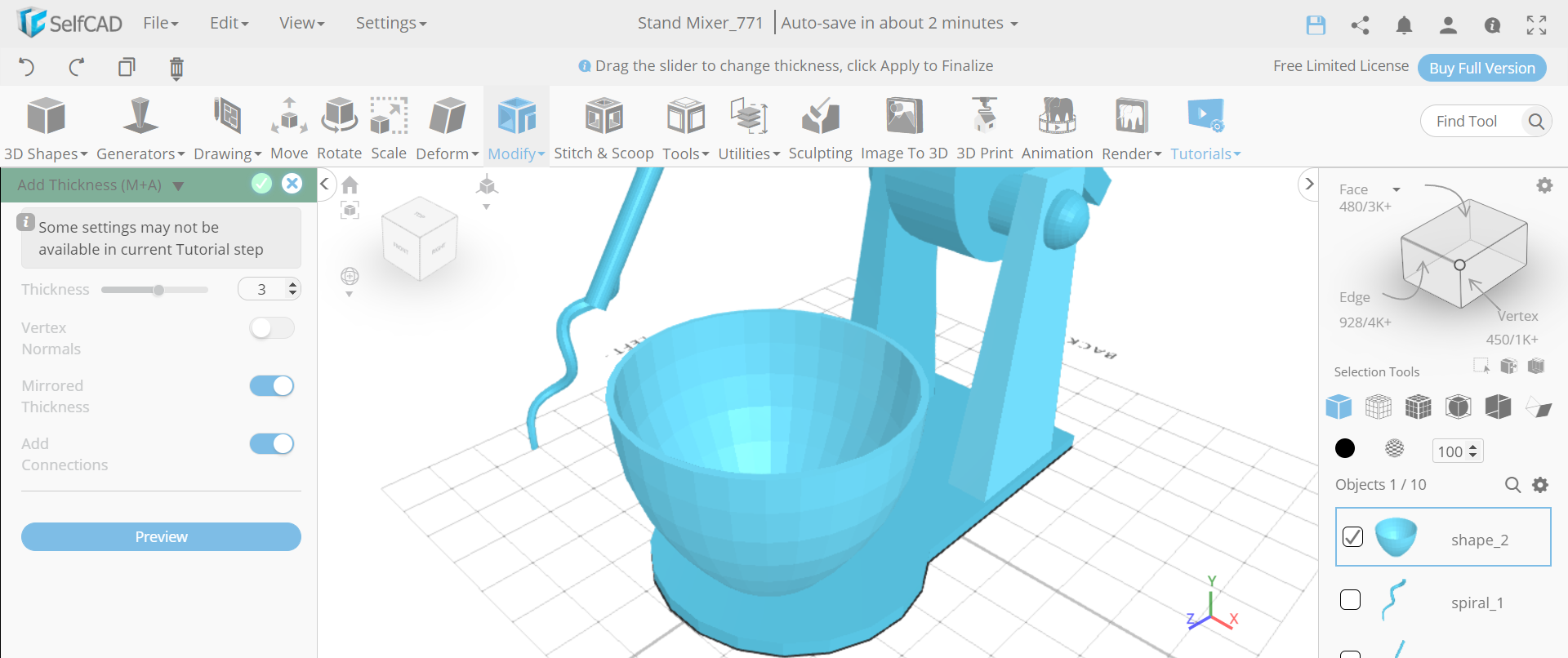

Now, we will select the add thickness tool and set the mirrored thickness to true and amount to 3.

We have 3D designed the stand mixer with different tools of SelfCAD. It is astonishing to 3D design an object that might be almost unimportant, enormous, or complex. You can moreover utilise a tantamount strategy to 3D design other 3D objects of your wish. Consequently, we accept you notice the tutorial article as accommodating and intriguing.
