HOW TO CREATE a 3D MODERN PLANTER IN 3D MODELING SOFTWARE

3D designing is becoming famous in many fields. Previously, it was just an expertise being mastered by experts in structural designing, mechanical designing, and different callings. Yet, with the approach of simple-to-utilise programs like SelfCAD, everybody, no matter what their experience, can begin with the product without sweat. What makes SelfCAD special is that as well as being not difficult to utilise, it's likewise sufficiently strong to be utilised to make complex designs. Its connection point is particularly regular, and exceptionally expected for students. It has a wide variety of instruments, including express devices expected to manage the model for genuine 3D printing.

In this article, we will design a 3D modern planter in SelfCAD. We will completely go through the process and clarification of every single step.

You can also visit our page to refer to more such articles such as how to design a 3D screwdriver.

So, let's start!

First of all, go to 3D shapes and insert a sphere on the working interface. Then go to deform and select the flatten tool. After that, we will set y to 52 using highlighted gizmo.

Next, go to the scale tool and set y to 10 using the highlighted gizmo. Then we will select the move tool and bring the object along the y axis to a 0 value.

Now, we will go to 3D shapes again but insert a capsule to the working interface this time. Then, set the top radius to 40, bottom radius to 40, height to 200 and position y to 5.

Next, opt for face selection and activate the material selection option. Then select all the faces of the capsule.

Now, go to views and choose the isolate option. Then select the top and bottom circular face and the opposite angular faces of the capsule to deselect it. After that, click on the delete button to delete it.

Next, select the mesh_7 and move it along the y axis to 11. Then go to modify and select the add thickness tool. After that, we will set the thickness to 3.

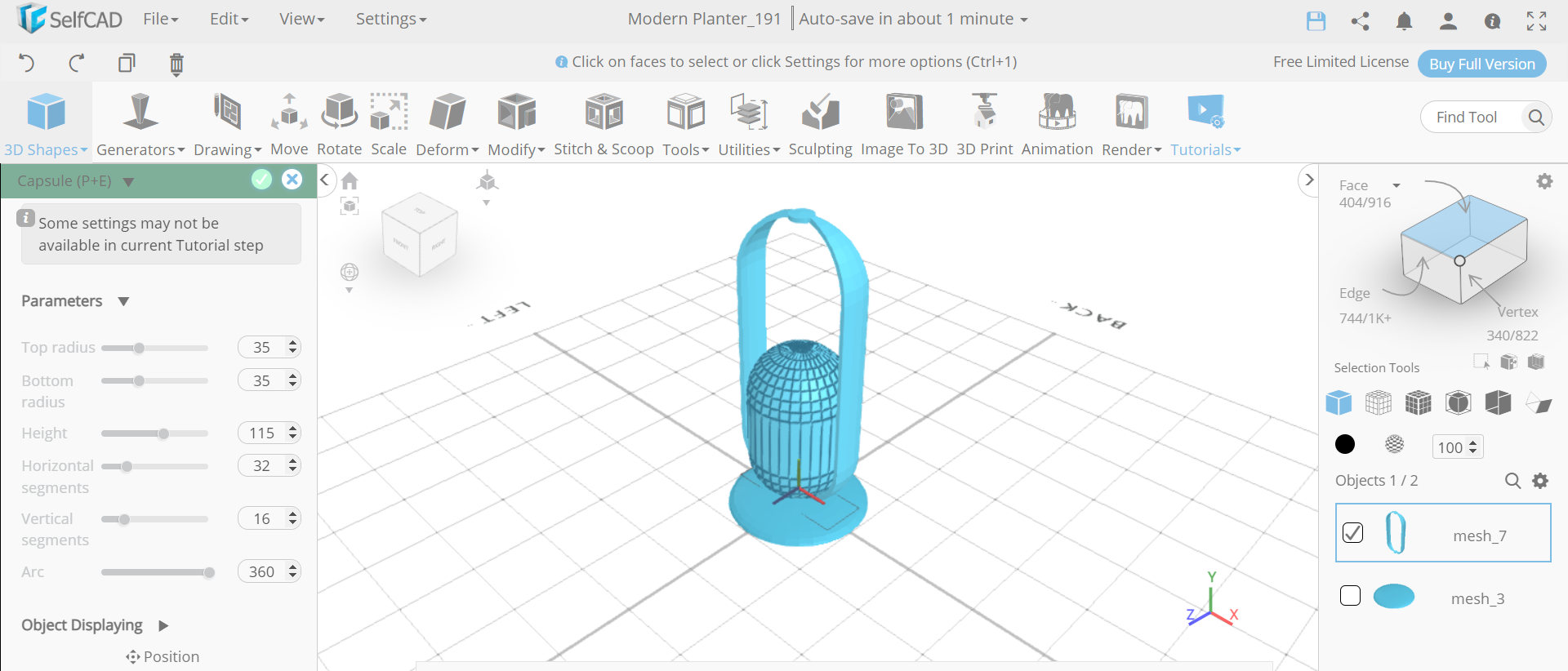

Now, insert another capsule and set the top radius 35, bottom radius to 35, height to 115 and position Y to 11. Then select the top hemispherical face of the smaller capsule. After that delete the selected face.

Next, select the bottom cylindrical face of the smaller capsule. Then we will go to modify and select the extrusion tool. Opt for individual and set the amount to 1.

Now, we will add a thickness of 1 to it. Then select mesh_7 and mesh_3, go to stitch and scoop and make them a union.

The means are smooth and can be handily executed. As we probably are aware, SelfCAD simplifies the cycle, so it will be intriguing to plan more 3D designs like this. Moreover, it's a genuinely sensible internet based plan with an extensive number of clients. SelfCAD is presently being used in schools, homes, and associations all over the planet.
