Hey everyone,
My name is Amey and I am back with another project,
Recently, I get two CFL light enclosure for really cheap with has 40 w CFL bulb in it (each), After taking look at it, the idea come in my mind that, I will use this as my work bench light, but as CFL draw more power as compare to LED lights, I decide to first convert it into LED, for that I use Combination of cold and warm LED strip which draw much less power as compare to CFL and its brighter than the CFL. So, I gather all the things required and start building it.
So, let’s make it…!!!!!!!!
Light Enclouser
![pannel.PNG](/proxy/?url=https://content.instructables.com/FVN/M1WE/KNHGQEXX/FVNM1WEKNHGQEXX.png&filename=pannel.PNG)
![cold.jpg](/proxy/?url=https://content.instructables.com/FFT/KWIK/KNHGQEW8/FFTKWIKKNHGQEW8.jpg&filename=cold.jpg)
![warm.jpg](/proxy/?url=https://content.instructables.com/FD1/7XSB/KNHGQF0V/FD17XSBKNHGQF0V.jpg&filename=warm.jpg)
I am having two light enclosure (as shown above) as I mentioned early, I am going to convert it into LED so for that I got Cold and Warm LED strip.
The reason behind using two different colure temperature LED strip is to create natural light as possible
For powering all the stuff, I am using the OLD computer ATX Power supply, but any 12 v 2 AMP power supply is sufficient for it as each light only draw 600MAH.

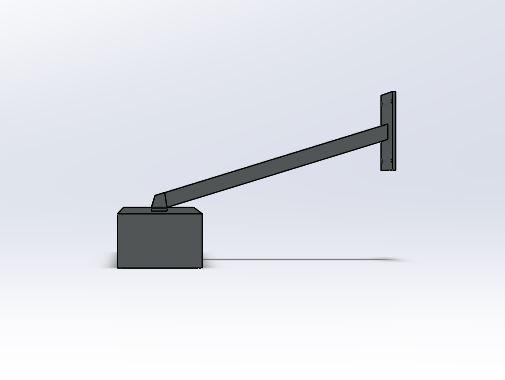

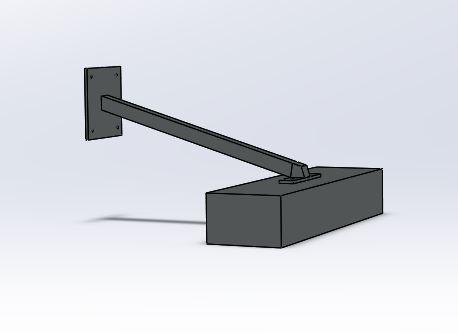

3D Design of Stands
![lightstand.JPG](/proxy/?url=https://content.instructables.com/FFS/7VL0/KNHGQEWC/FFS7VL0KNHGQEWC.jpg&filename=lightstand.JPG)
![lightstand2.JPG](/proxy/?url=https://content.instructables.com/FXF/KE9U/KNHGQEWD/FXFKE9UKNHGQEWD.jpg&filename=lightstand2.JPG)
![3d2.JPG](/proxy/?url=https://content.instructables.com/FBX/W1ZR/KNHGQEW6/FBXW1ZRKNHGQEW6.jpg&filename=3d2.JPG)
![3d3.JPG](/proxy/?url=https://content.instructables.com/FHS/8QFL/KNHGQEW7/FHS8QFLKNHGQEW7.jpg&filename=3d3.JPG)
![3d1.JPG](/proxy/?url=https://content.instructables.com/FQ6/CK85/KNHGQEW5/FQ6CK85KNHGQEW5.jpg&filename=3d1.JPG)
After adding the led strip two Both enclosures, now its time for Designing the hanging stand for it, so let’s jump into it.

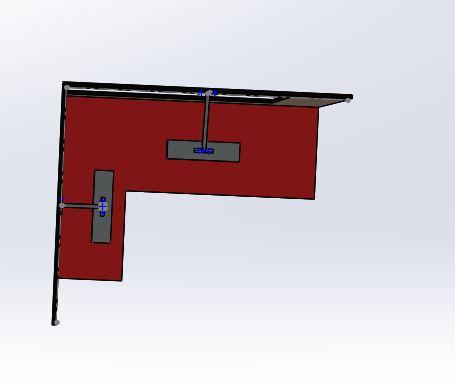

As my workbench is in corner, I have L shape desk, So I decided to mount light on above of each table

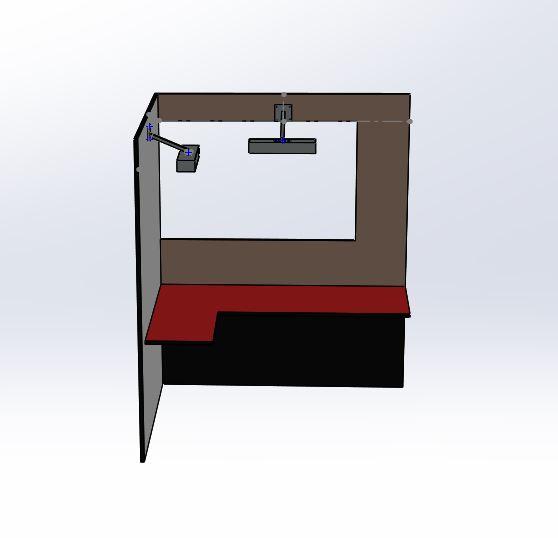

I replicate My hole workbench corner to give me accurate dimensions and preview of light and my workbench.
Process of Fabrication
![measuring.JPG](/proxy/?url=https://content.instructables.com/FXL/YXY8/KNHGQEWJ/FXLYXY8KNHGQEWJ.jpg&filename=measuring.JPG)
![cutting.JPG](/proxy/?url=https://content.instructables.com/FQ9/PIXG/KNHGQEW9/FQ9PIXGKNHGQEW9.jpg&filename=cutting.JPG)
![drilling.JPG](/proxy/?url=https://content.instructables.com/FX3/Y7WA/KNHGQEWA/FX3Y7WAKNHGQEWA.jpg&filename=drilling.JPG)
![weldding.JPG](/proxy/?url=https://content.instructables.com/FBT/GRR5/KNHGQF82/FBTGRR5KNHGQF82.jpg&filename=weldding.JPG)
ok,

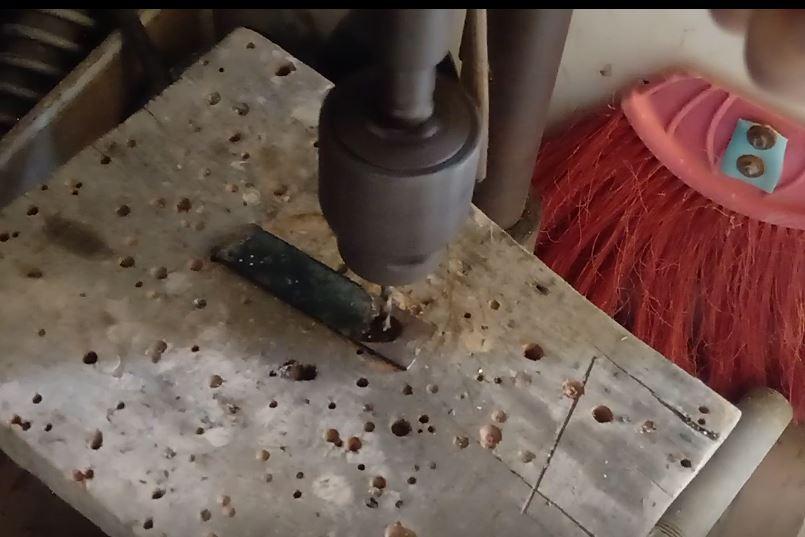

After Measuring, Cutting, Grinding, Drilling, Welding
Now stand is ready to be mount

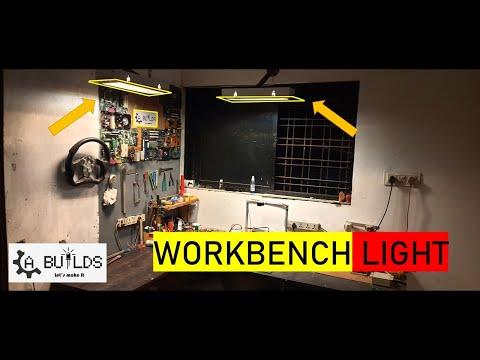

Final Result
![20210411_192934.jpg](/proxy/?url=https://content.instructables.com/FD6/FMGT/KNHGQFJ2/FD6FMGTKNHGQFJ2.jpg&filename=20210411_192934.jpg)
![20210411_192834.jpg](/proxy/?url=https://content.instructables.com/FMU/AOSD/KNHGQFJP/FMUAOSDKNHGQFJP.jpg&filename=20210411_192834.jpg)
Hope You LIKE This Project !!!!
Follow me for such amazing project
