'H'ow to Made Alexa Love Me 'A'gain

我已編輯的影片

i am wondering about that how to let AI to control the cooker, and how to let AI control the garage door ,...... and so on !

reference link : https://www.instructables.com/id/Alexa-Go-Go-With...

HA Music Player


Alexa, ask home set the Music on.
Alexa, ask home set the Music off.

1) i use an arduino nano as a player.

2) and then i write all the music into a micro sd

card, i got a 2G card but you can use the larger one .

3) connect micro sd card reader module to the player.

4) fixed nano and micro sd card reader back-to-back, and

i put a piece of plastic card between to avoid short- ckt.

5) insert the micro sd card.

6) power it on.

HA Light Control


Alexa, ask home set the light on.

Alexa, ask home set the light off.

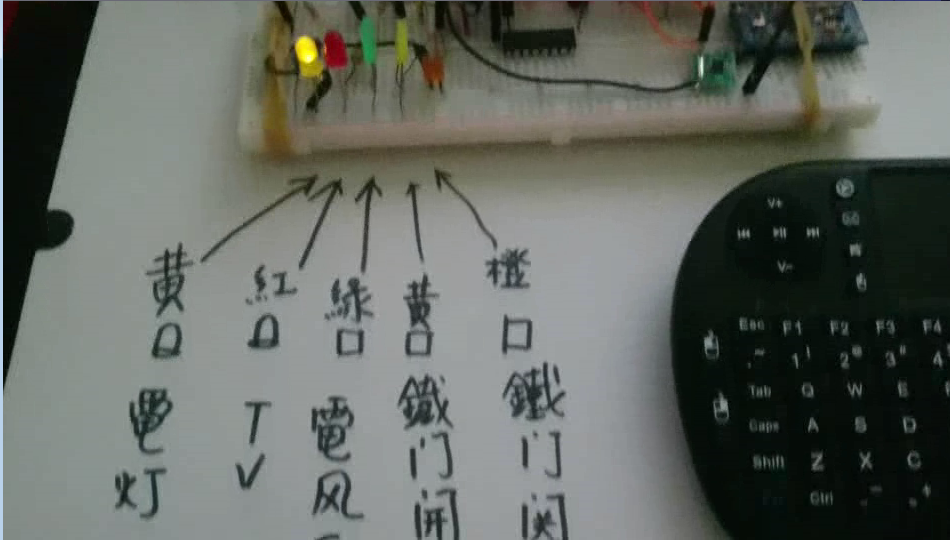

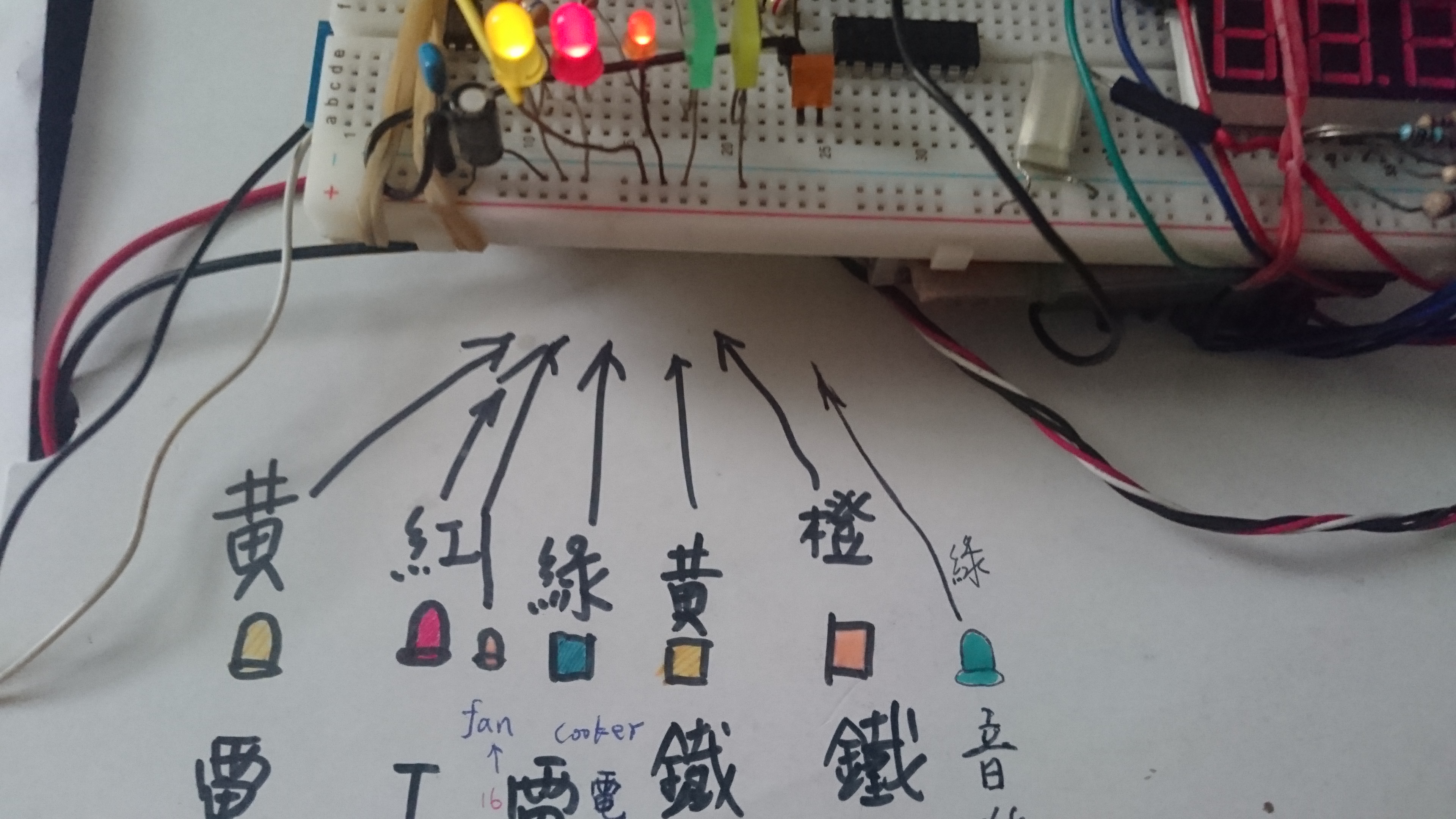

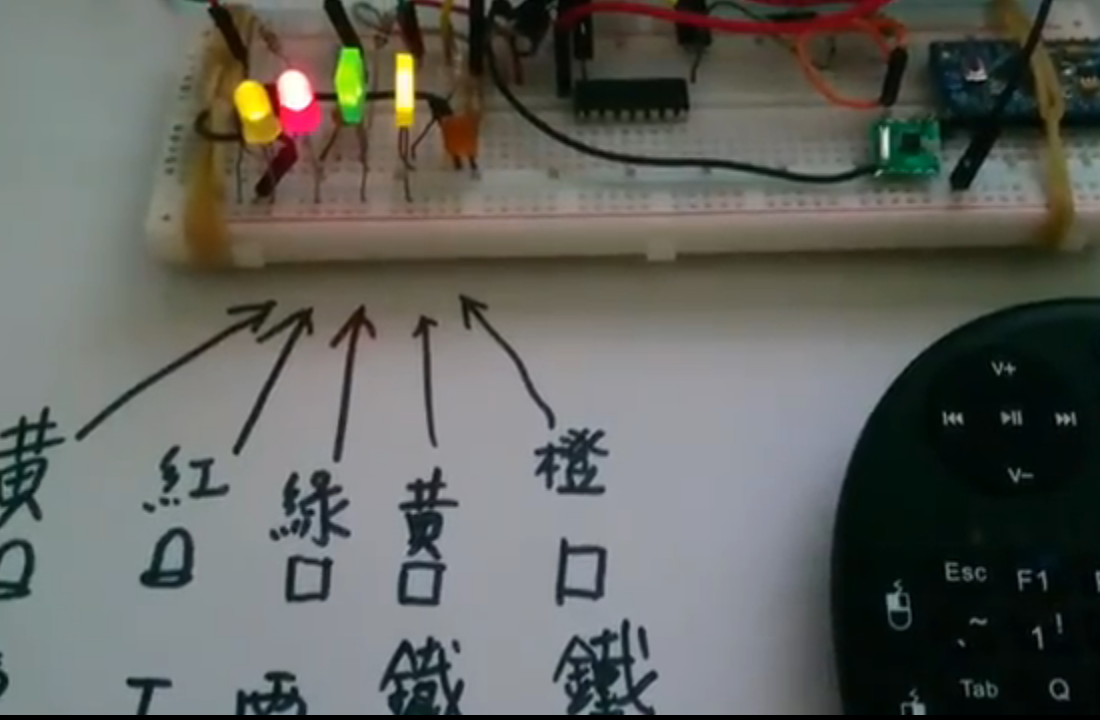

PS: Alexa control HA indicator─

yellow:light

red:TV

orange:fan

green(square): cooker

yellow(square):garage door open

orange(square):garage door close

green: music

HA TV Control


Alexa, ask home turn TV on.

Alexa, ask home turn TV off.

HA Fan Control


Alexa, ask home set fan on.

Alexa, ask home set fan off.

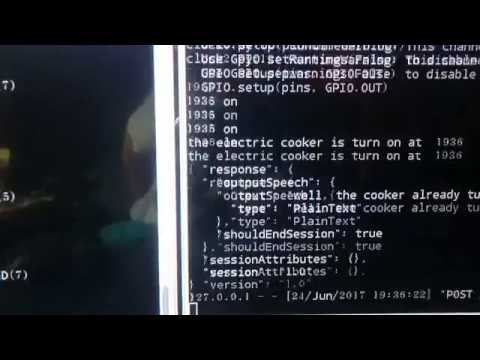

HA Cooker Control

Alexa Timer

EX: Alexa, ask home set the cooker on at ......

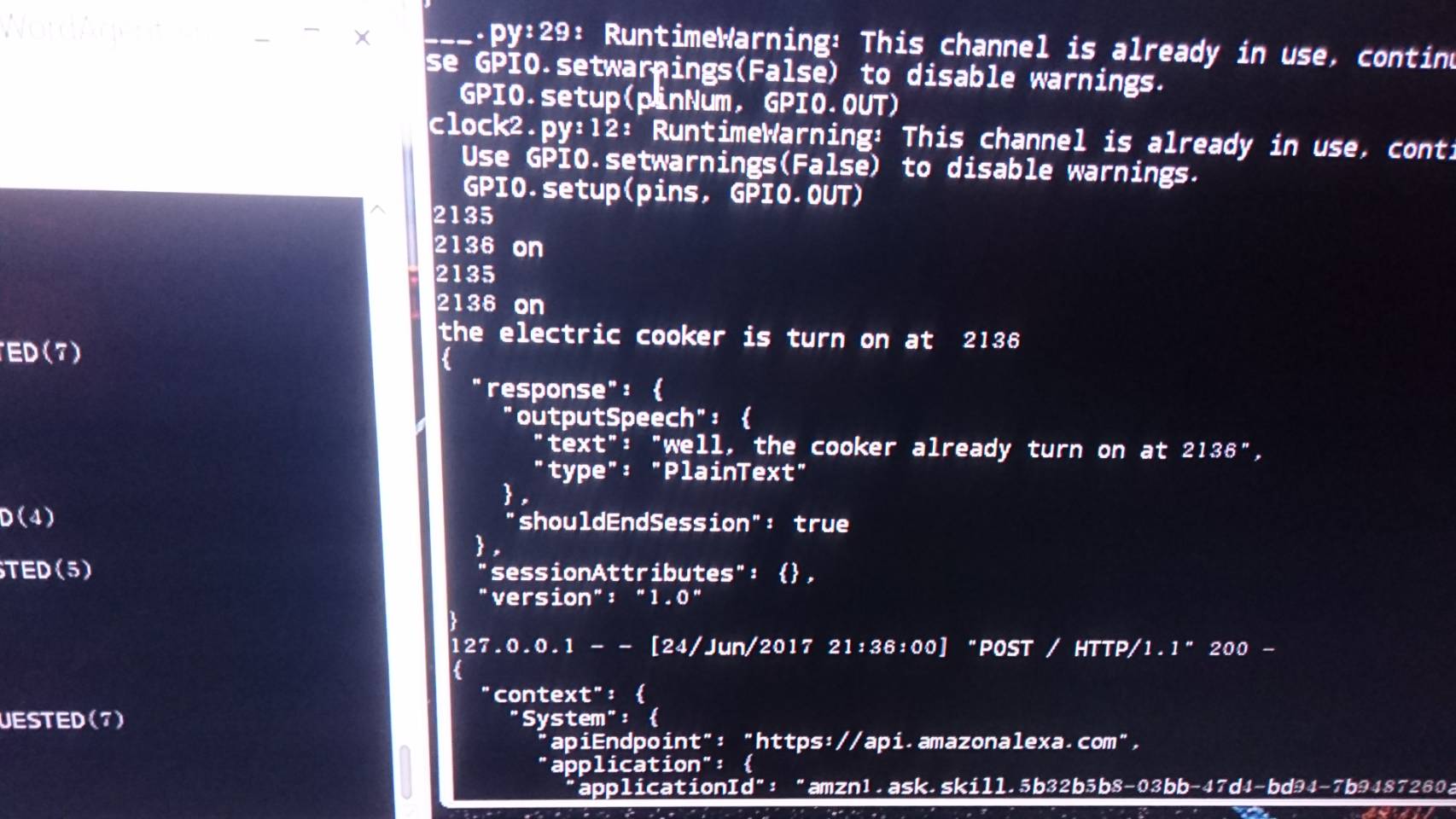

1) write a program named clock with python.

2) python program debug.

3) integrate with Alexa AI.

4) test AI for a while with voice ...

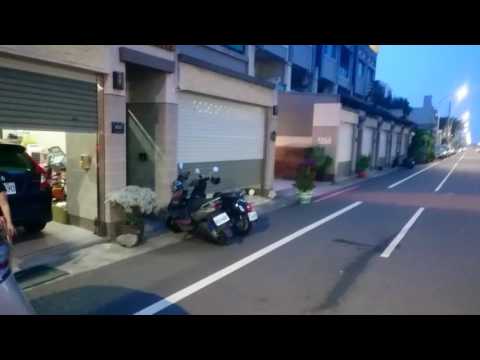

HA Garage Door Control

Alexa HA
Open garage door

To use your voice, say : ask home set open(garage) on !

and~ whala~ the garage door open.

Wired Up All the Things Together
