HELPER FOR 1453 DREMEL ATTACHMENT

by DIMITROPOYLOSS in Workshop > Tools

504 Views, 1 Favorites, 0 Comments

HELPER FOR 1453 DREMEL ATTACHMENT


Hello all

this is my first one in here

This project is for the people that have a chainsaw and sharpen it with the Dremel 1453 attachment

if u dont have a chainsaw or u dont sharpen it with 1453 Dremel attachment u may skip this one

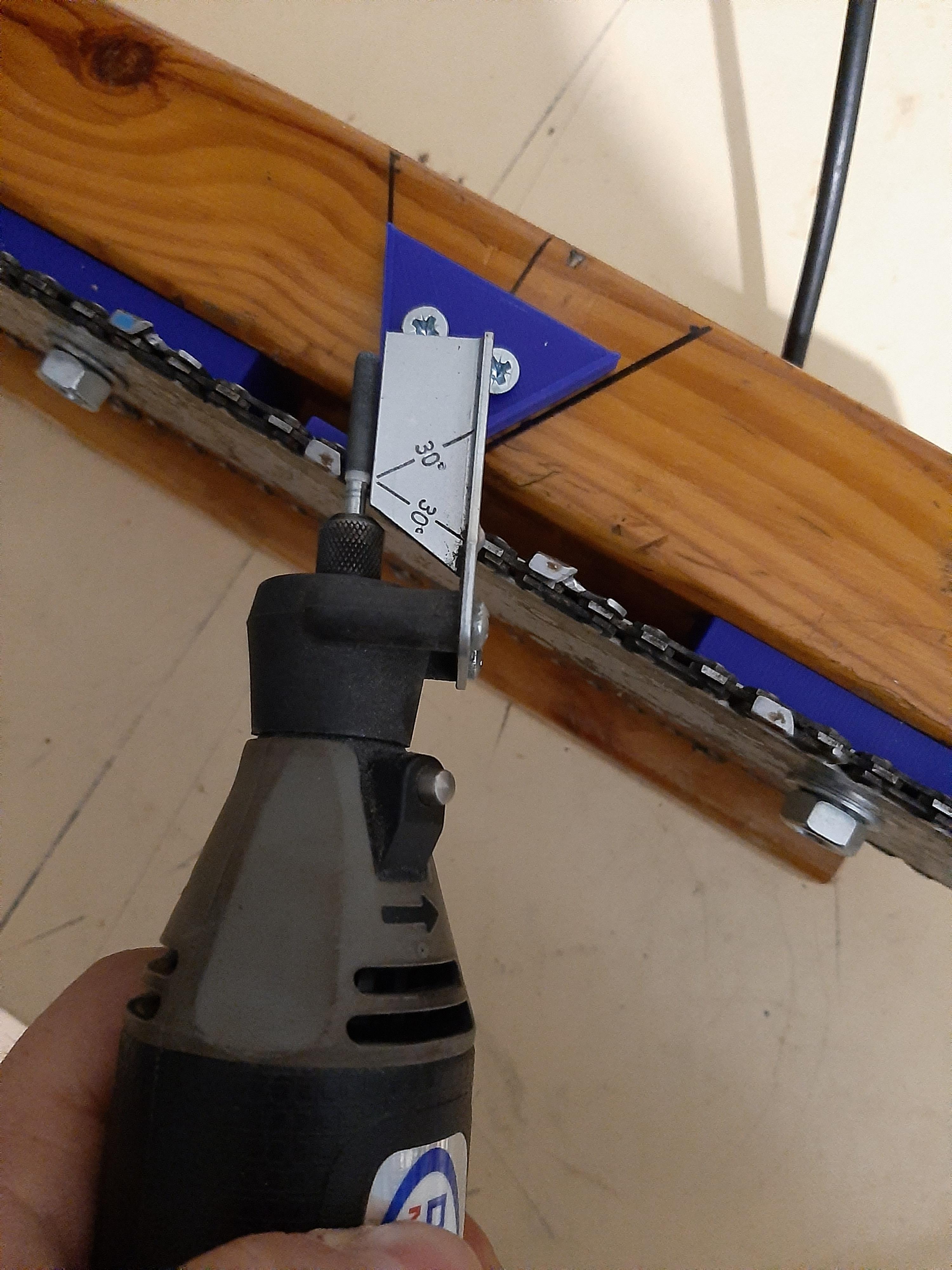

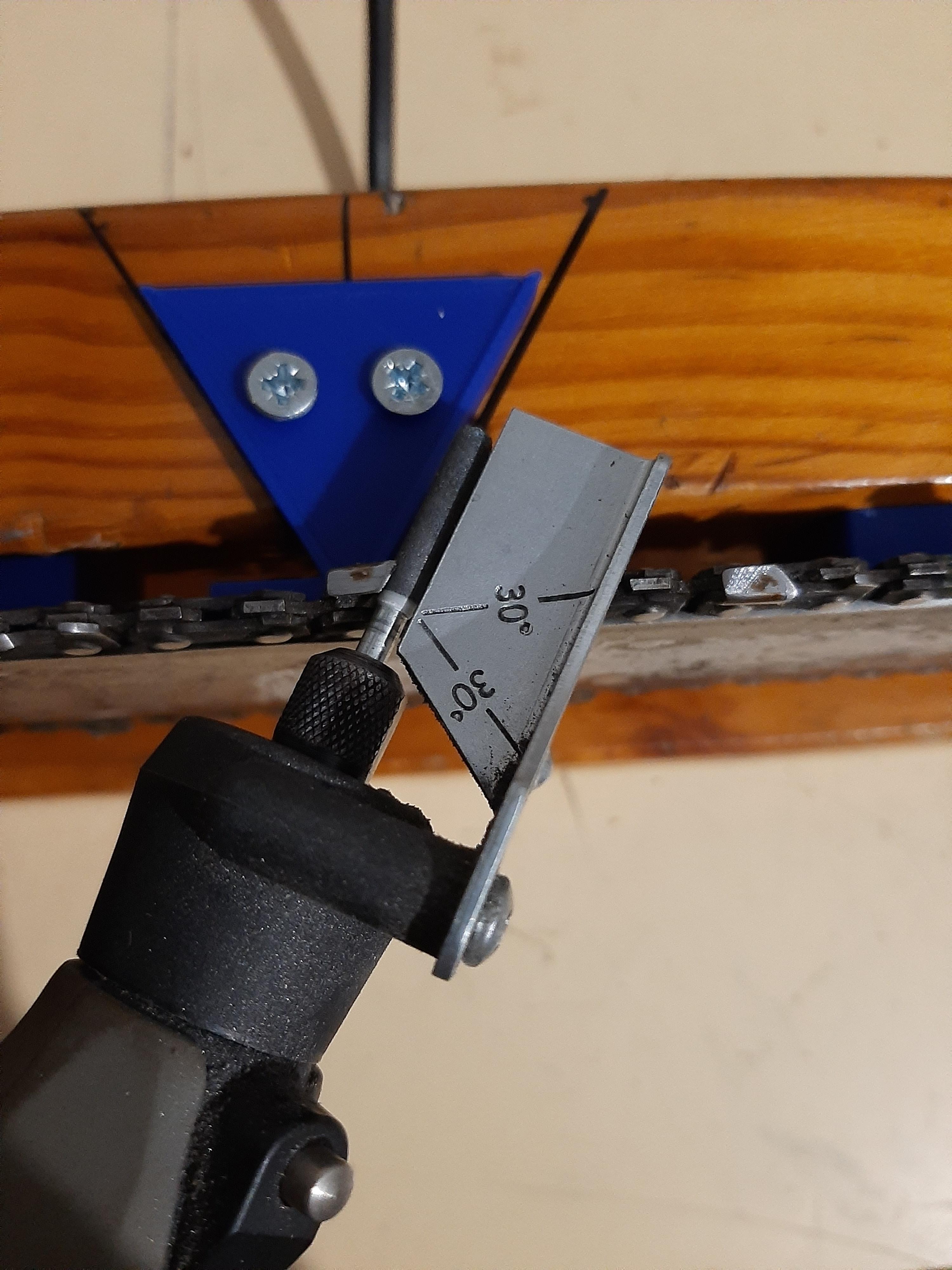

The 1453 Dremmel sharpen attachment is a great tool, it sharpens the chain very nice and easy and the best part is that u can sharpen the chain on the chainsaw.


The only problem is that if u have more chains to sharpen u cant ........ because the chain as a said before have to be ON the chainsaw ..

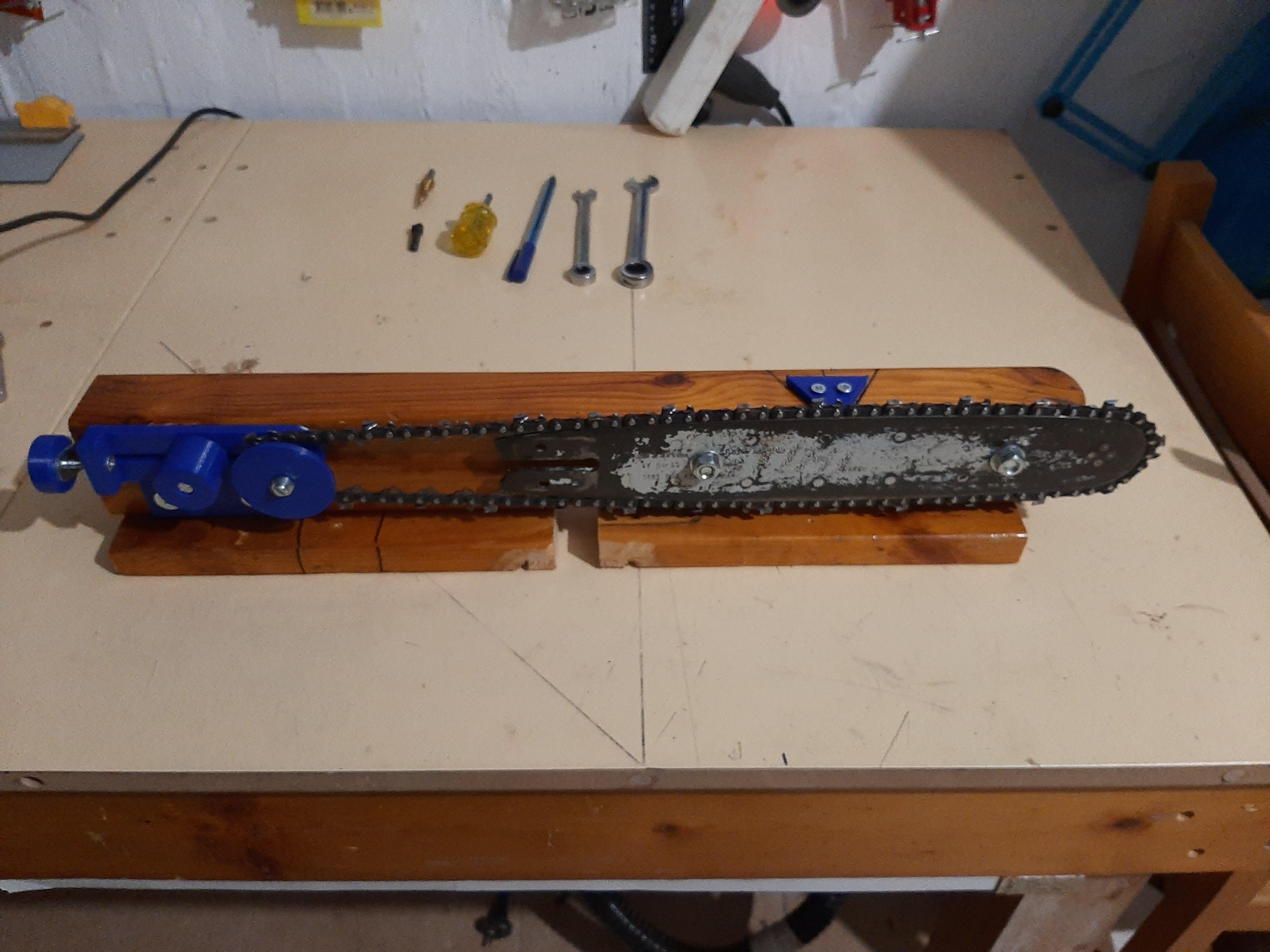

so that's this project do .. helps u to sharpen chains without the need to put them on the chainsaw

Parts for This Project


For this project u need

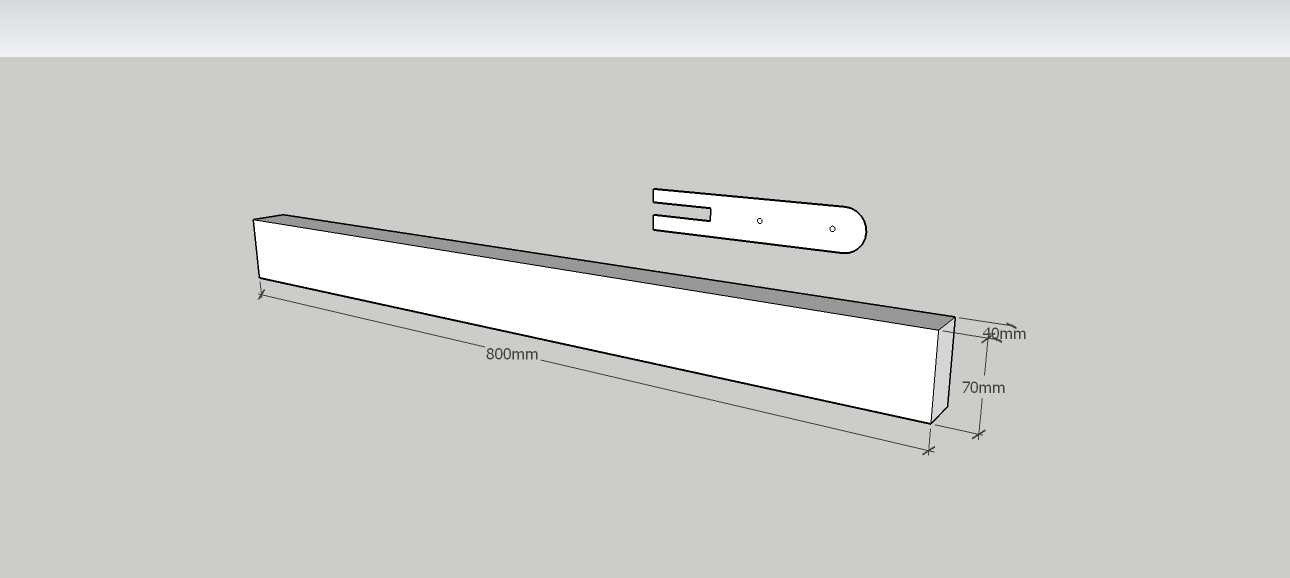

1) a scrap wood 800mm x 70mm x 40mm like the one in photo

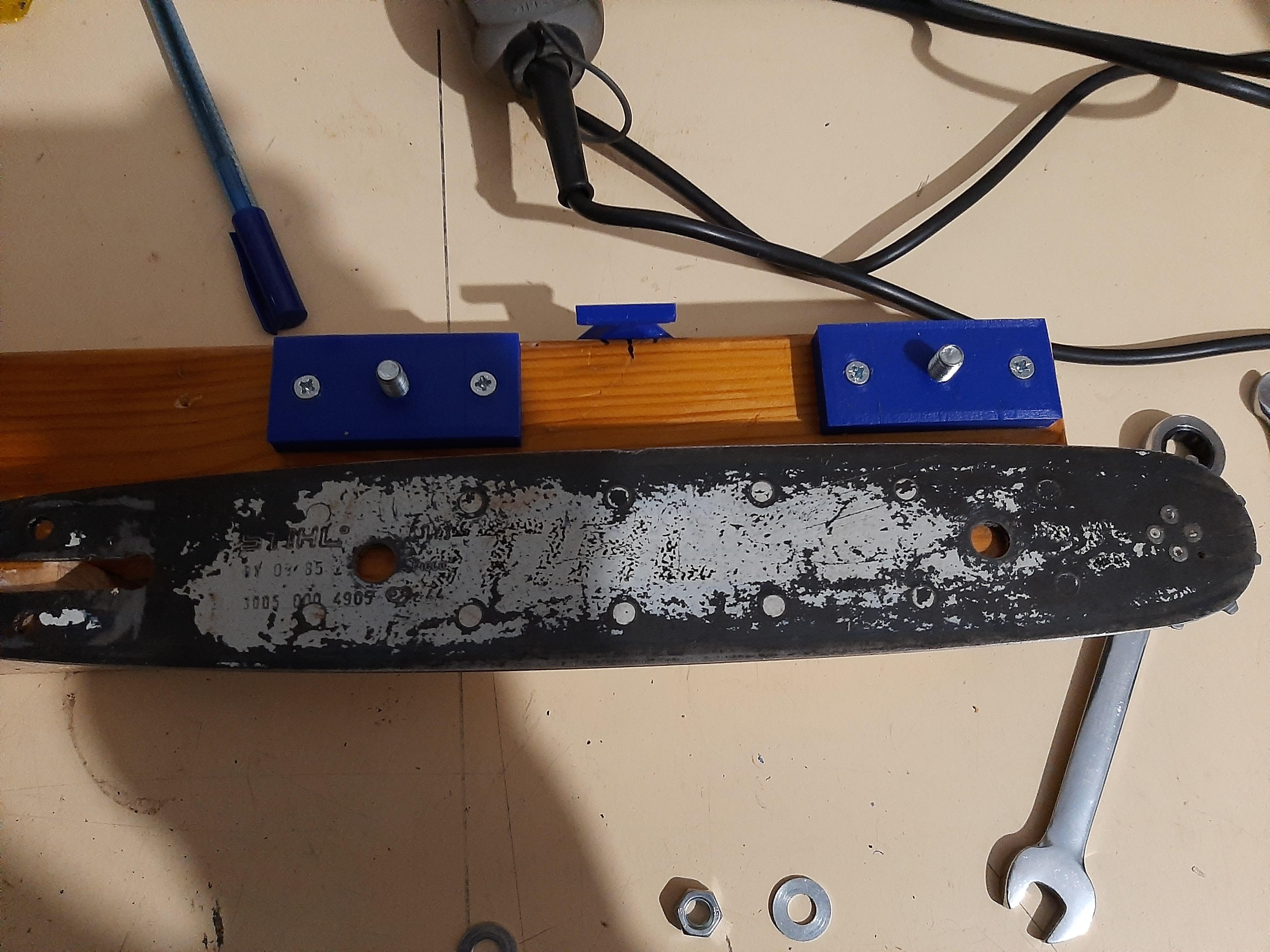

2) a spare guide chainsaw bar

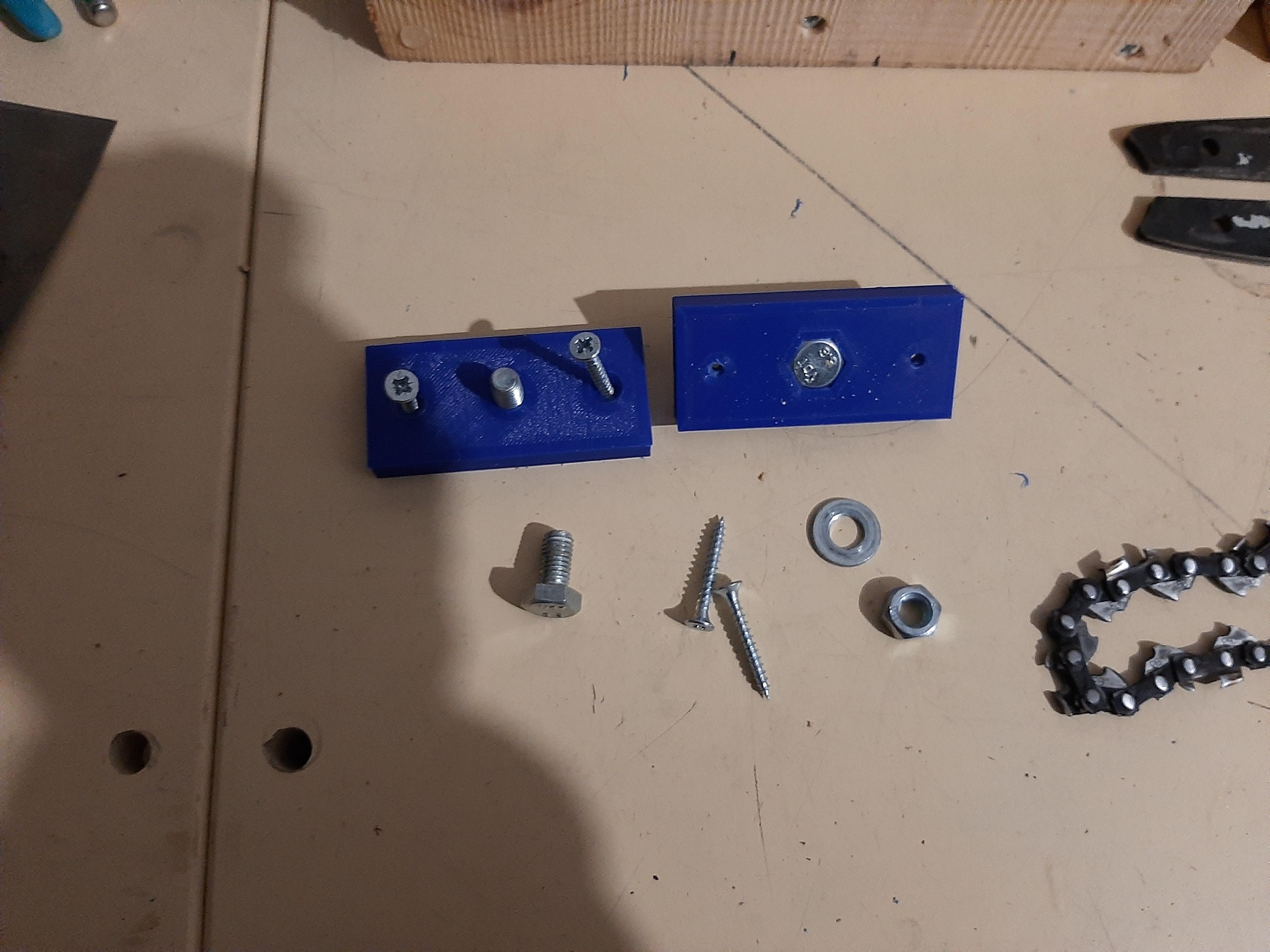

3) screws ,nuts washers

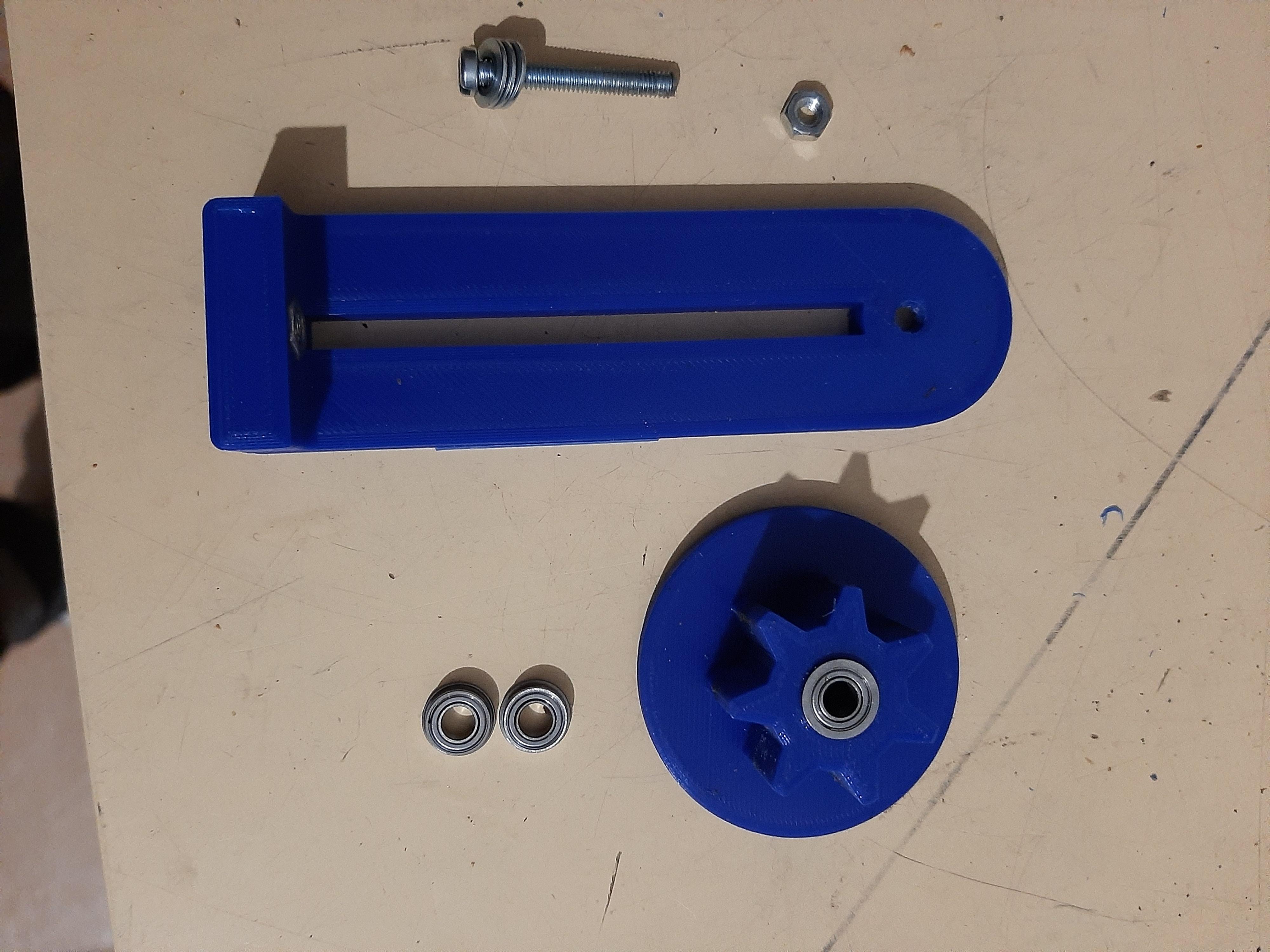

4) 2 small bearings for the chainsaw 3dprinted gear

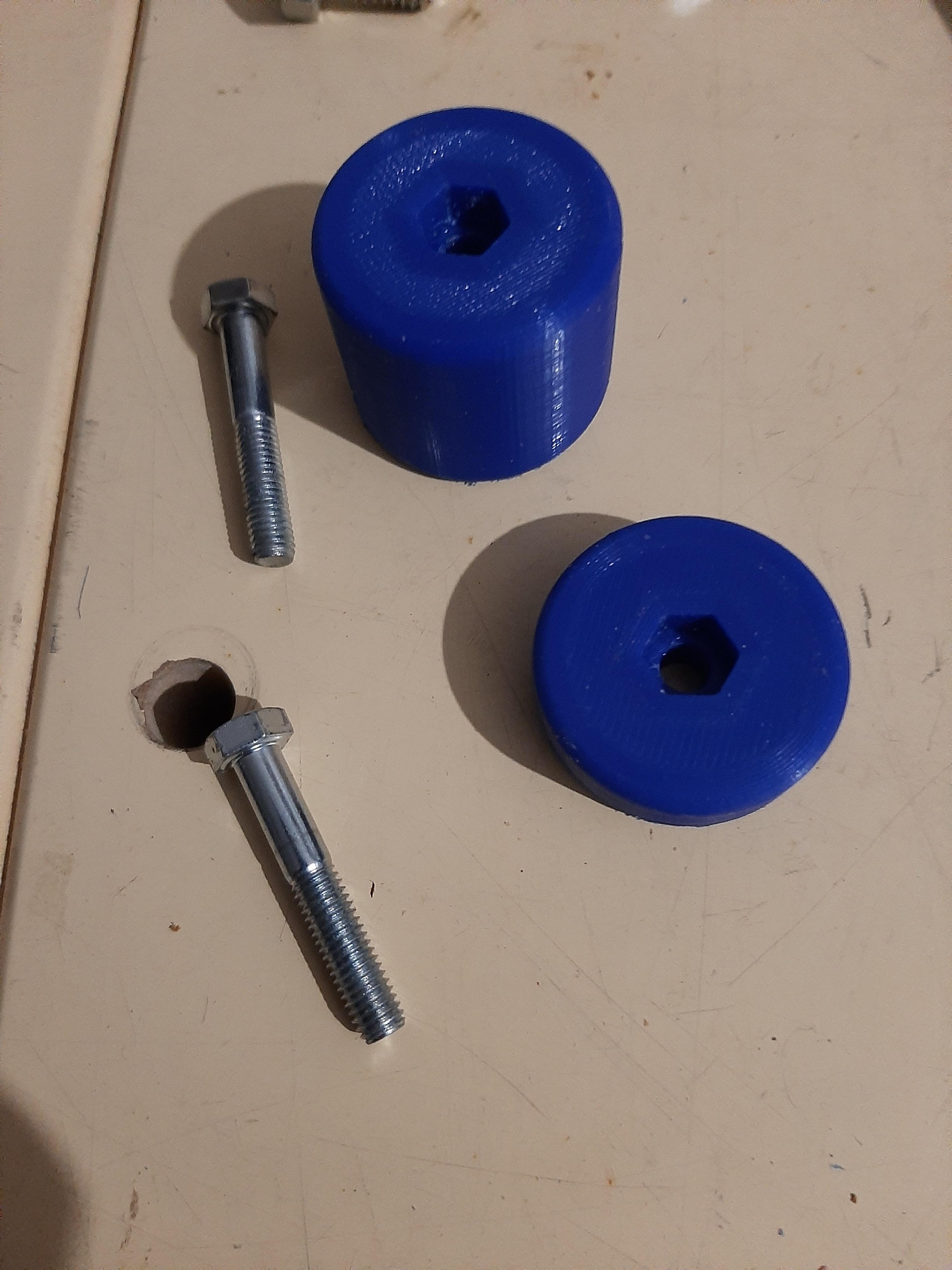

5)and a few printed parts that u can find in the thingsverse link here

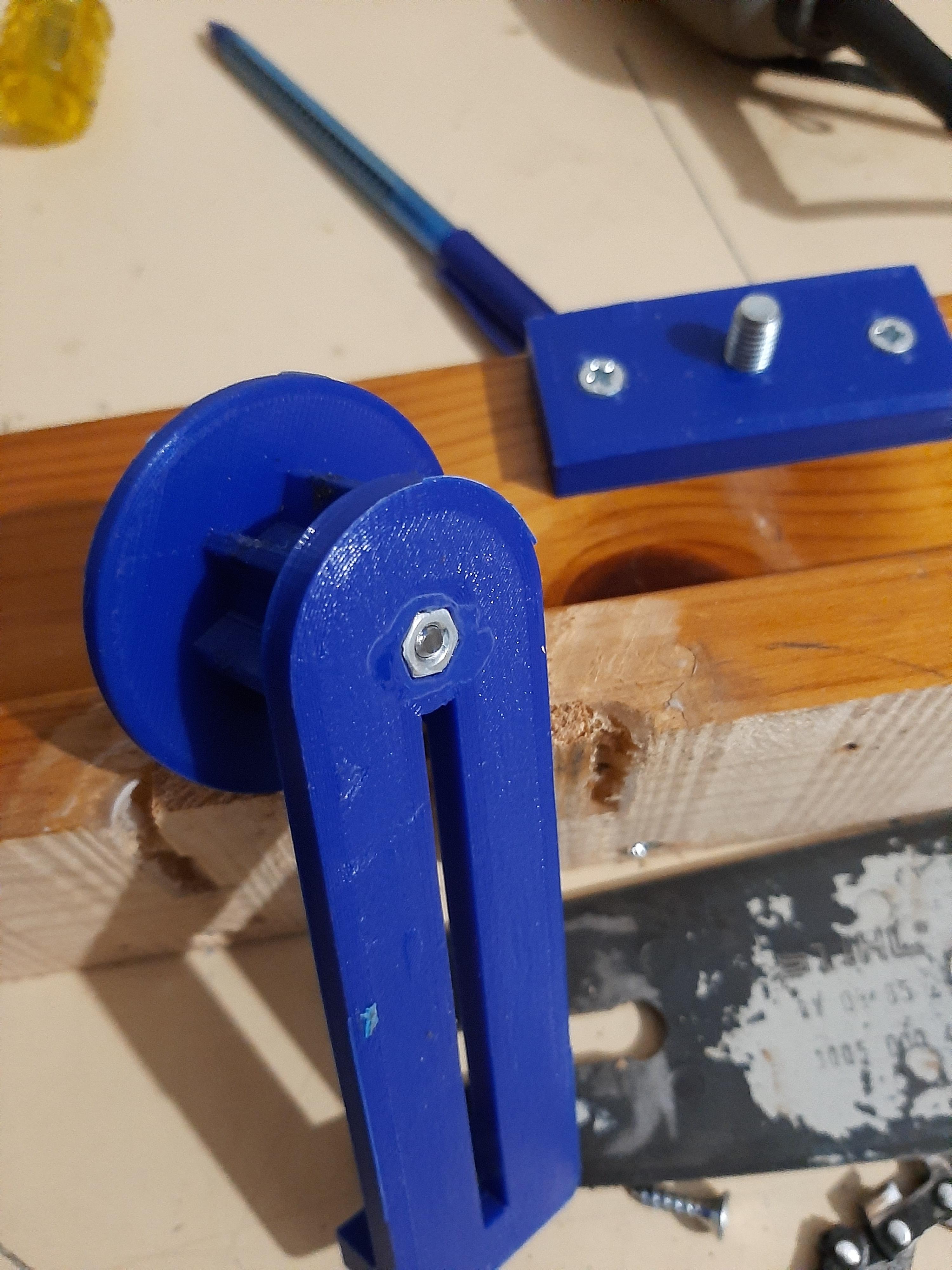

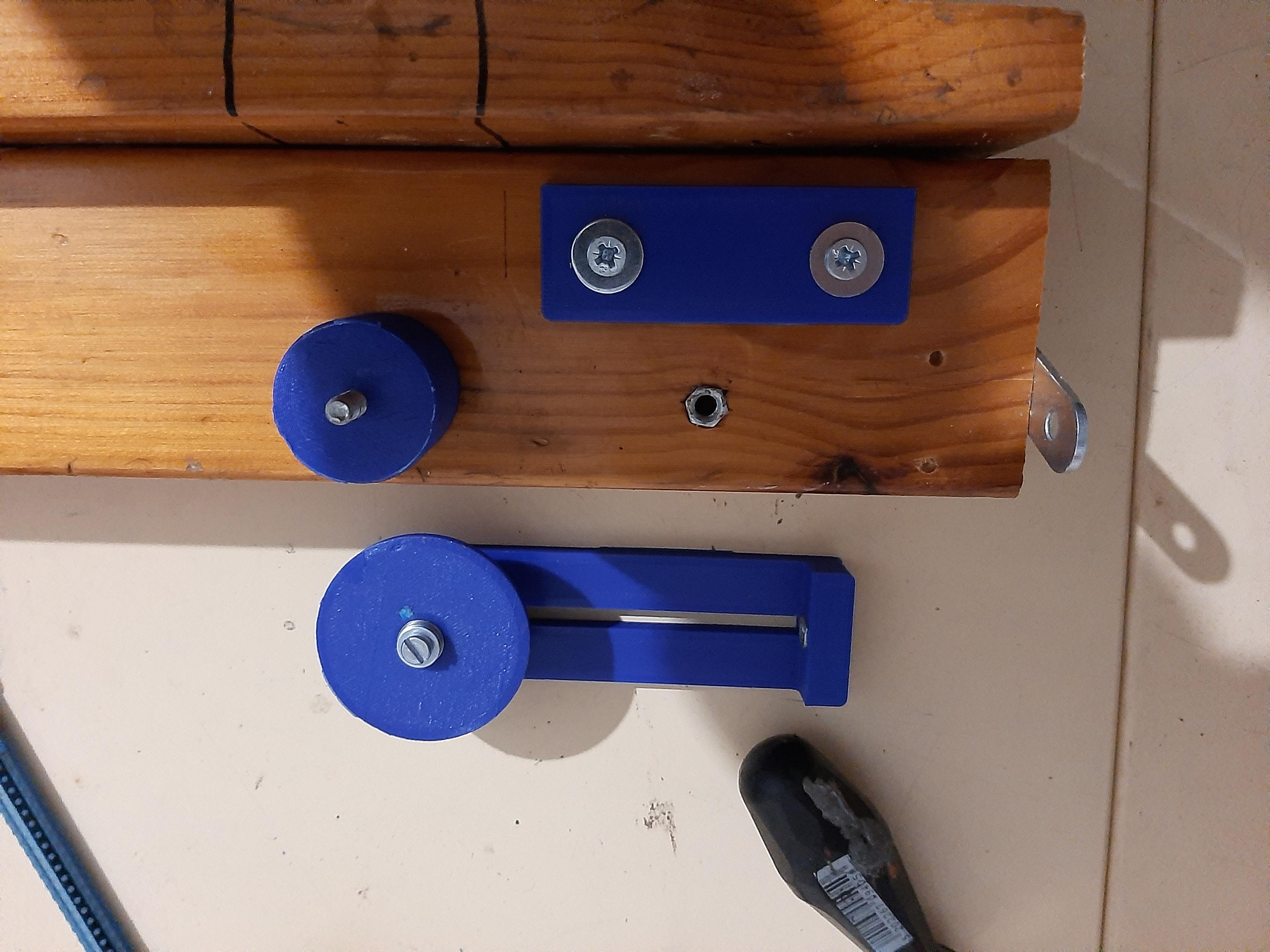

it is very easy to fit the parts together i attach many photos as a guide

a few needs adjustments like to cut or open some holes to the wood

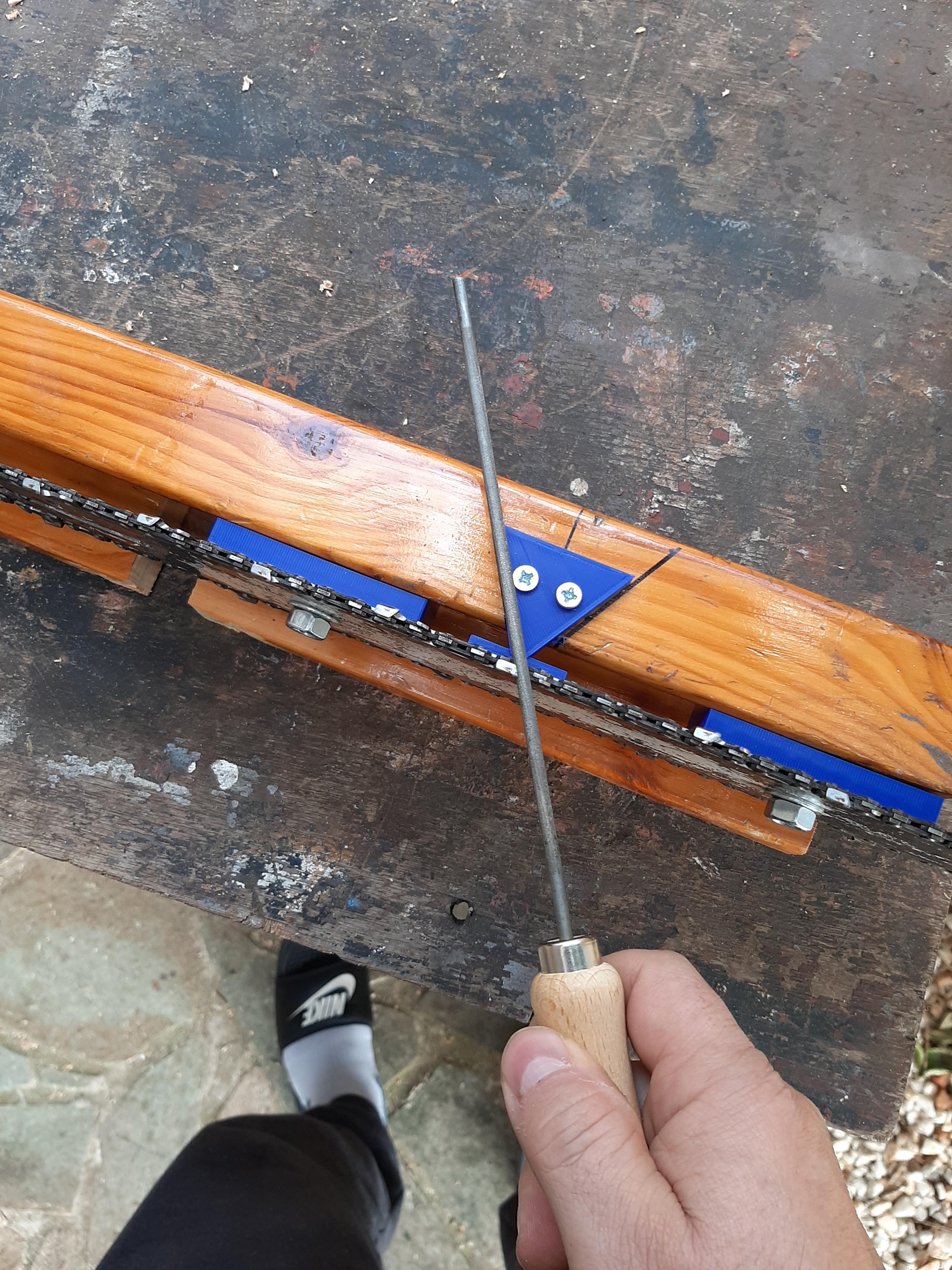

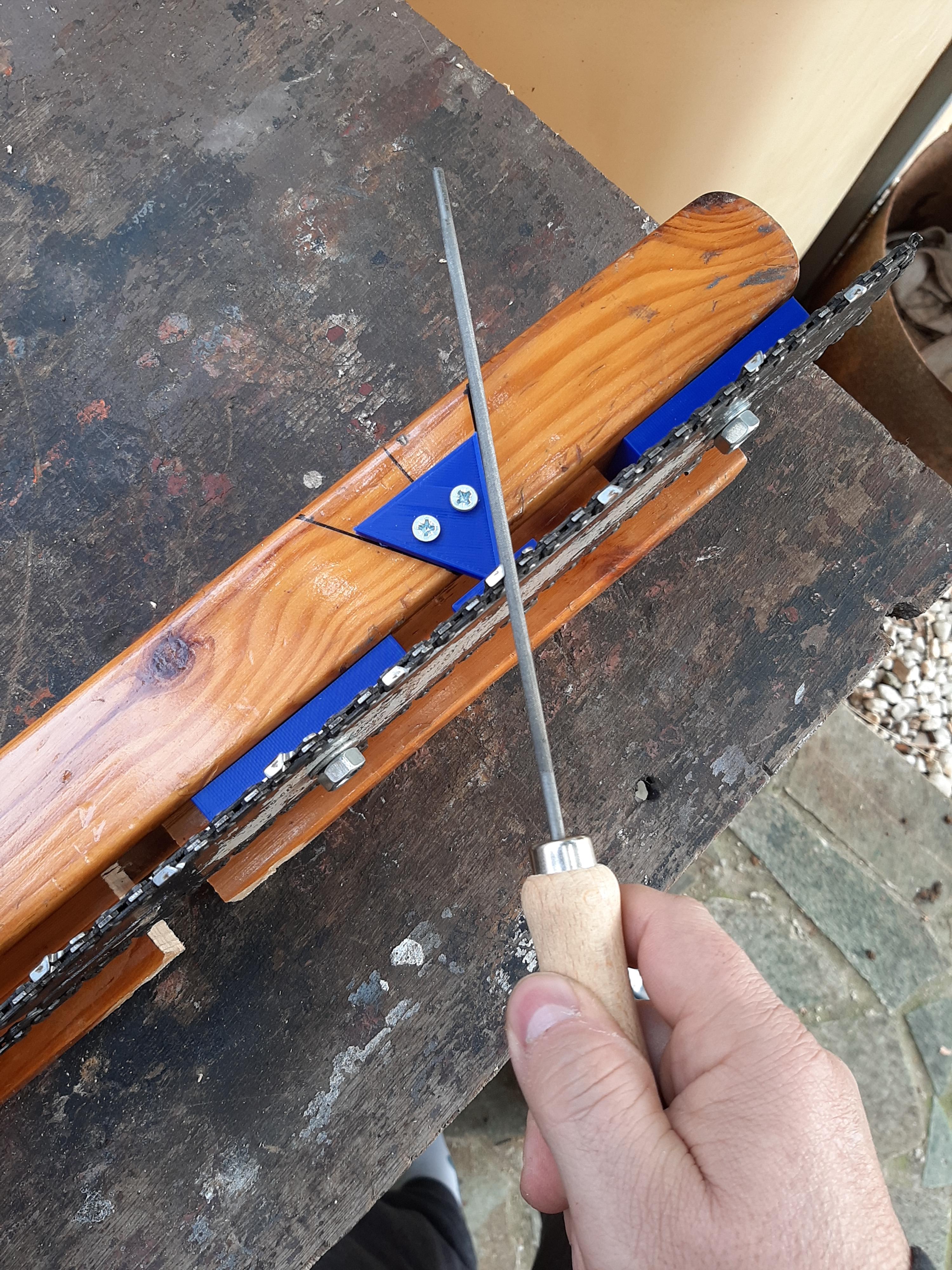

Angle Guide


this part is a exrta guide if u want to sharpen the chain with a chain file by hand

thats all Thank you.
