HDMI Input for Android

by Barely Painted in Circuits > Cameras

58965 Views, 63 Favorites, 0 Comments

HDMI Input for Android


Use your smartphone on android as a dslr camera monitor with audio output using video capture device EasyCap dc60 and hdmi converter.

Watch Video

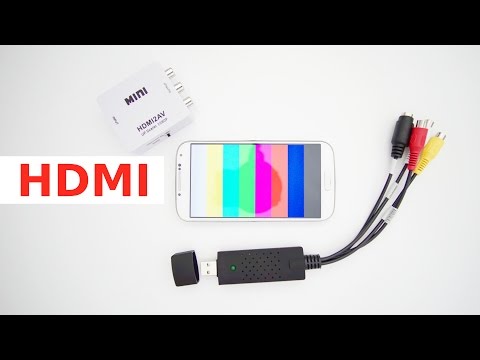

Smartphone as a Camera Monitor with Audio Out Using EasyCap on Android

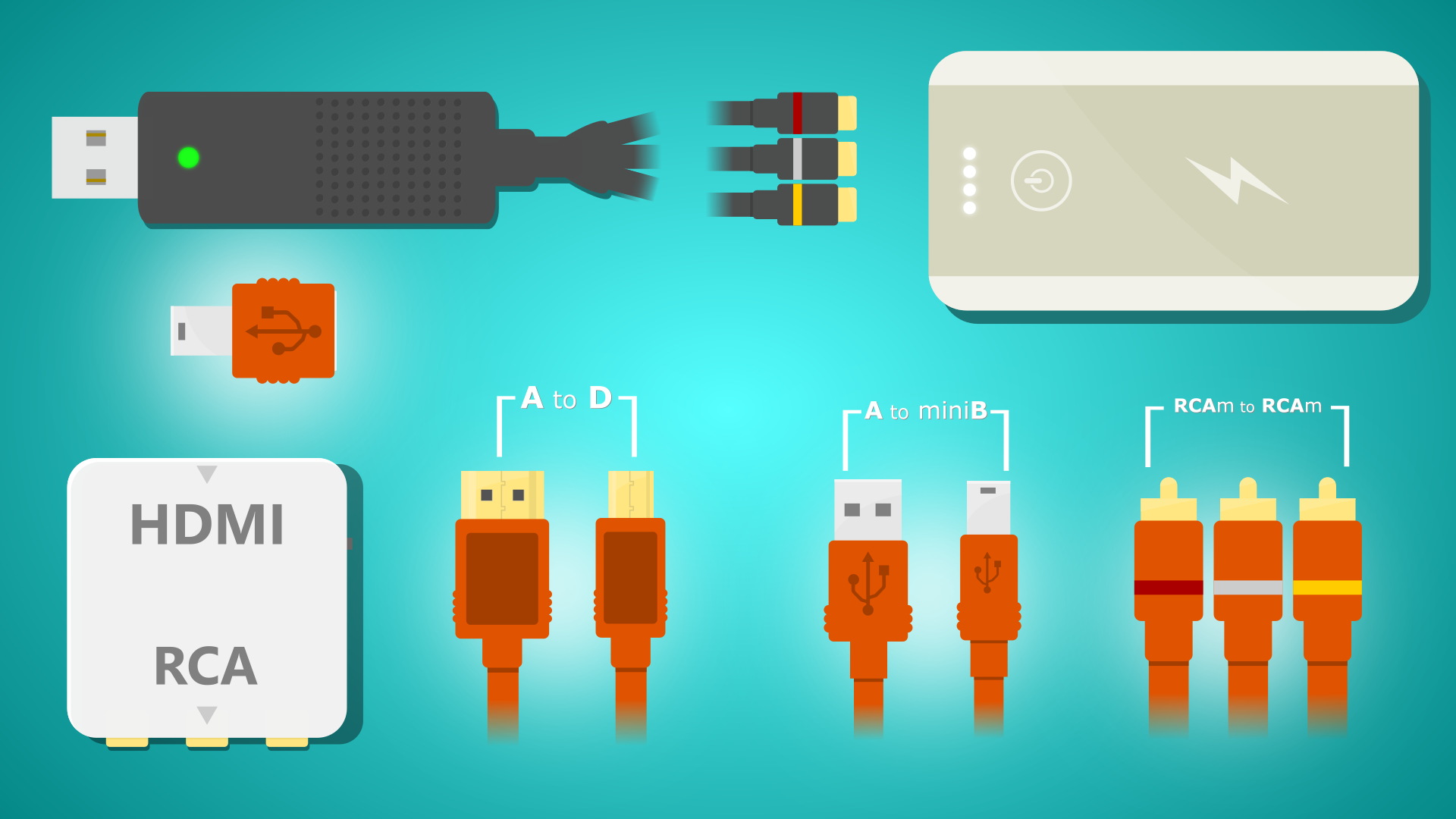

Prepare All Necessary Components


1. EasyCap dc60

2. HDMI to RCA Converter

3. Power Bank

4. USB OTG Adapter

5. HDMI A to HDMI D (also called micro HDMI) cable

6. 3 RCA male to 3 RCA male cable

7. USB A to USB mini B cable

Install App


Link for the App: EasyCap Recorder

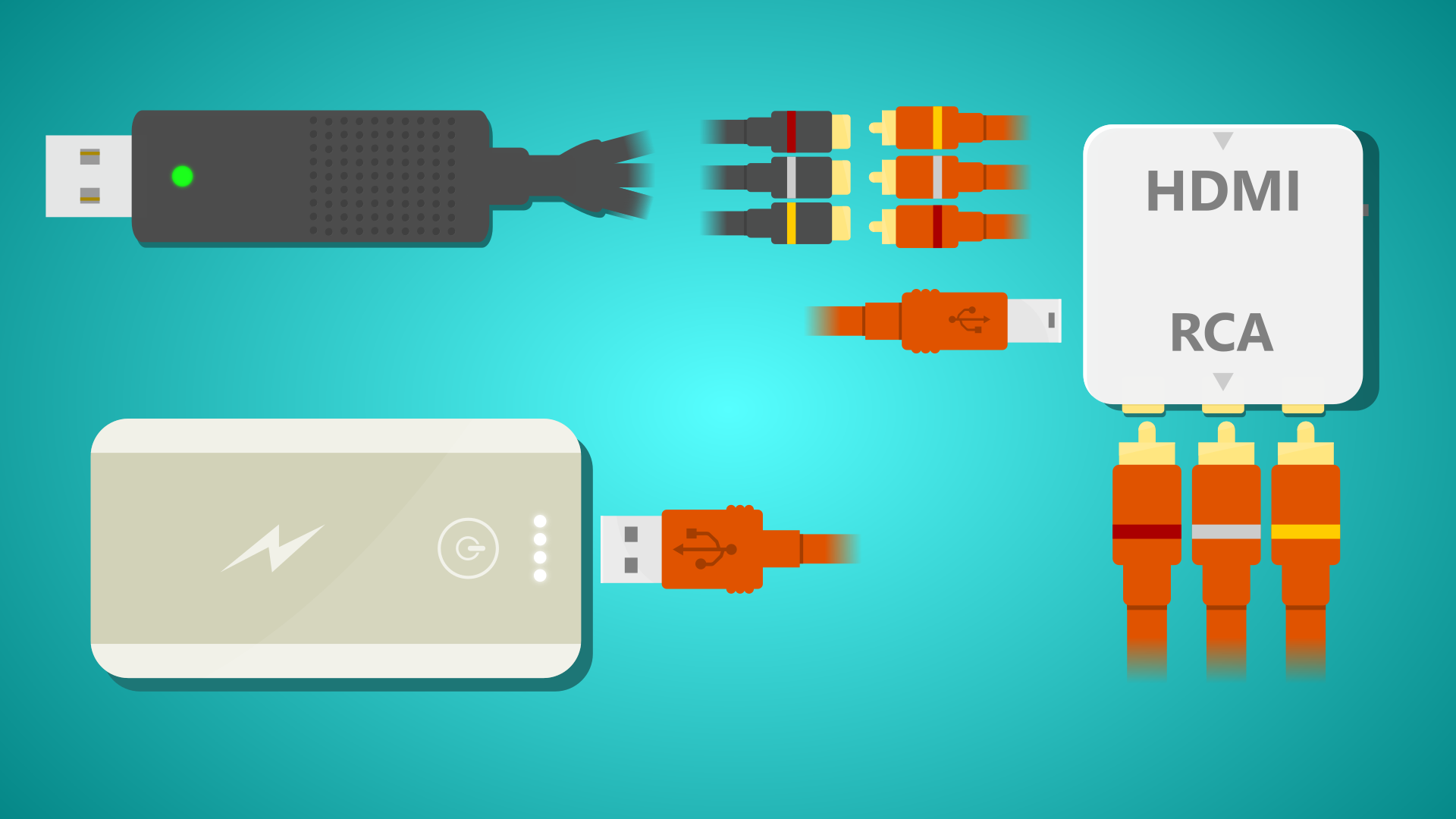

Connect All Together


Put All of This Into Camera Flash Holster


This is not necessary, but save space and looks much pleasant to eyes.

Connect Camera and Phone


You should change some setting in your camera. This depends on which camera you will use.

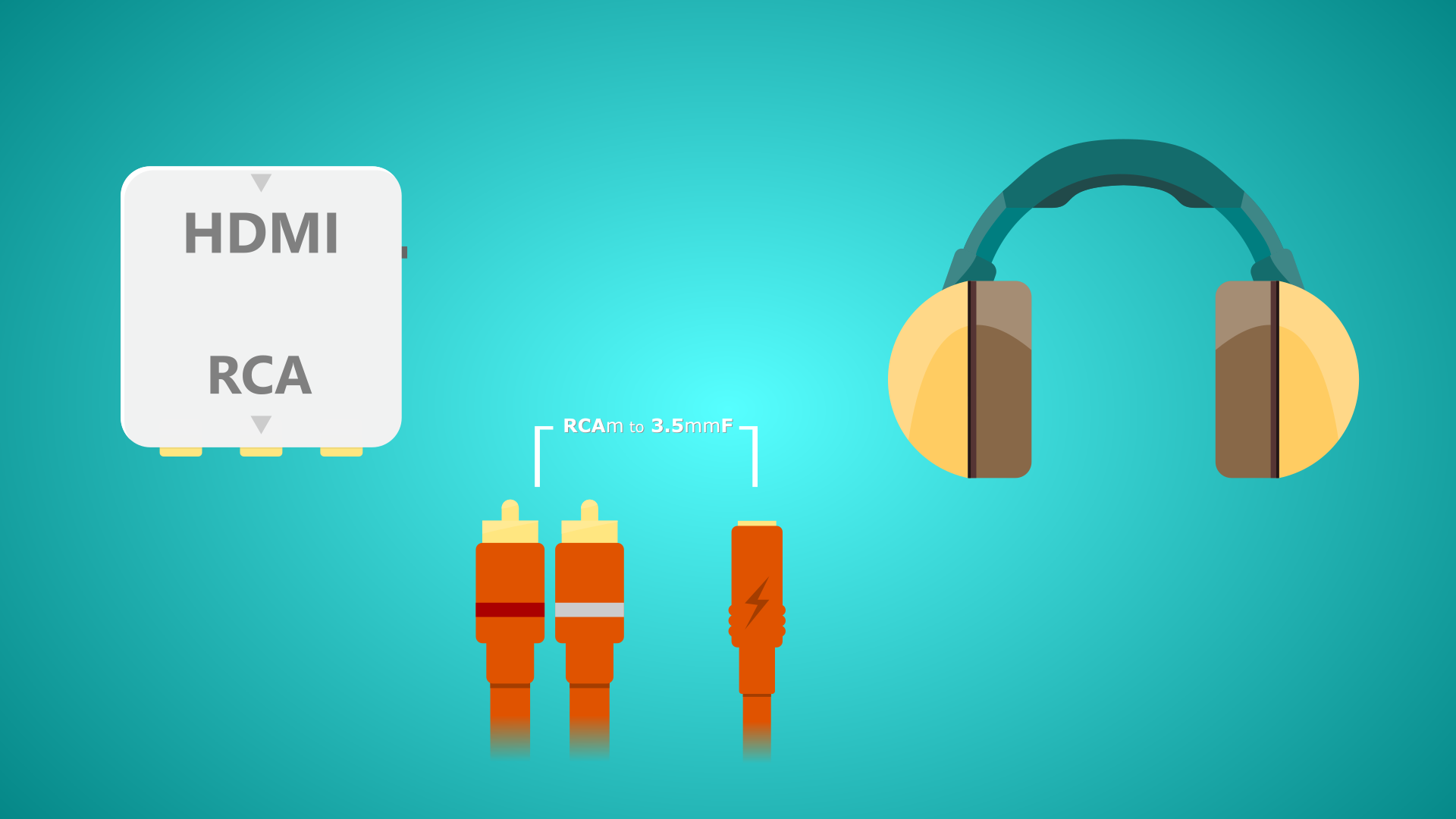

Connect Headphones for Monittoring


Not tested, but it is possible that even Bluetooth headphones will work.

Use Headphones Without Phone


Yes, You can monitor just sound without video.
