HC-12 Long Range Distance Weather Station and DHT Sensors

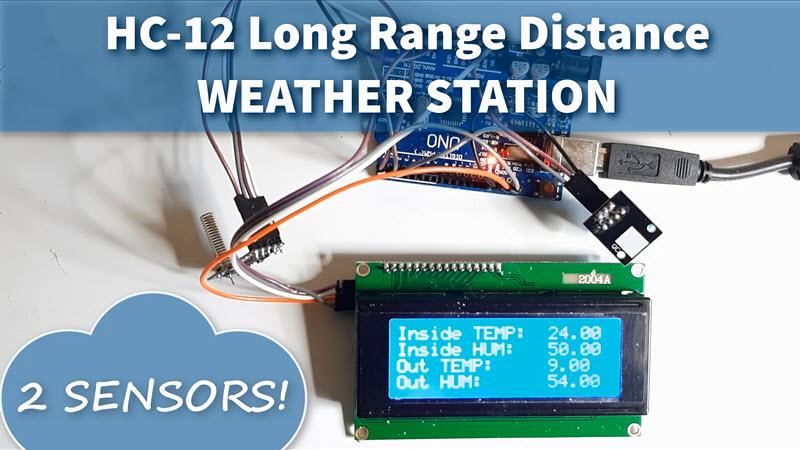

In this tutorial we will learn how to make a remote long distance weather station using two dht sensors, HC12 modules and the I2C LCD Display.

Watch the Video!

• 2X HC-12 Module
• I2C LCD Display 4X20
• 2 DHT sensors (In our project we use DHT11, DHT22)
• 2X Arduino UNO (or any other Arduino)
• Breadboard
• Jumper wires
• Visuino software: Download Visuino

• Connect HC-12 pin [VCC] to Arduino pin [5V]
• Connect HC-12 pin [GND] to Arduino pin [GND]
• Connect HC-12 pin [TX] to Arduino pin [RX]
• Connect HC-12 pin [RX] to Arduino pin [TX]
• Connect DHT22 (or any other DHT sensor) pin Out to Arduino Digital pin 3
• Connect DHT22 pin VCC (+) to Arduino pin 5V
• Connect DHT22 pin GND(-) to Arduino pin GND

Note: Make sure that you disconnect the Arduino pin [RX] when you upload the code in Visuino, and after its uploaded reconnect it back.

• Connect HC-12 pin [VCC] to Arduino pin [5V]
• Connect HC-12 pin [GND] to Arduino pin [GND]
• Connect HC-12 pin [TX] to Arduino pin [RX]
• Connect HC-12 pin [RX] to Arduino pin [TX]
• Connect LCD Display pin[VCC] to Arduino pin[5V]
• Connect LCD Display pin[GND] to Arduino pin[GND]
• Connect LCD Display pin[SDA] to Arduino pin[SDA]
• Connect LCD Display pin[SCL] to Arduino pin[SCL]
• Connect DHT11 (or any other DHT sensor) pin Out to Arduino Digital pin 2
• Connect DHT11 pin VCC (+) to Arduino pin 5V
• Connect DHT11 pin GND(-) to Arduino pin GND

Note: Make sure that you disconnect the Arduino pin [RX] when you upload the code in Visuino, and after its uploaded reconnect it back.

The Visuino: https://www.visuino.eu also needs to be installed. Download Free version or register for a Free Trial.

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

• Add "Pulse Generator" component and in the properties window set frequency to 5Hz
• Add "Humidity and Thermometer DHT11/21/22/AM2301" component, and in the properties window select the type, in our case its DHT22
• Add "Analog To Analog Array" and in the properties window set Input Pins to 2
• Add "Packet" component, double click on it and in the Elements window drag "Analog Array" to the left side, then close the Elements window.

• Connect PulseGenerator1 pin Out to HumidityThermometer1 pin Clock and Packet1 pin Clock
• Connect HumidityThermometer1 pin Sensor to Arduino Digital pin 3
• Connect HumidityThermometer1 pin Temperature to AnalogToAnalogArray1 pin[0] and pin Clock
• Connect HumidityThermometer1 pin Humidity to AnalogToAnalogArray1 pin[1] and pin Clock
• Connect AnalogToAnalogArray1 to Packet1 > Analog Array1 pin In
• Connect Packet1 Pin Out to Arduino Serial[0] pin In

• Add "Pulse Generator" component and in the properties window set frequency to 5
• Add "Humidity and Thermometer DHT11/21/22/AM2301" component and in the properties window set Type (in Our case its DHT11)
• Add "Liquid Crystal Display (LCD) - I2C" component and in the properties window set Columns to 20, Rows to 4
• Double click on the "LiquidCrystalDisplay1" and in the Elements window drag "Text Field" to the left side, and in the properties window set width to 20
• In the Elements window Drag another "Text Field" to the left side and in the properties window set Row to 1 and width to 20
• In the Elements window Drag another "Text Field" to the left side and in the properties window set Row to 2 and width to 20
• In the Elements window Drag another "Text Field" to the left side and in the properties window set Row to 3 and width to 20
• Close the Elements window

Add 4X "Formatted Text" component and for each in the properties window set Text to: %0 %1

• Double click on the "FormattedText1" and in the Elements window drag "Text Element" to the left side and in the properties window set Initial Value to: Inside TEMP:

  In the Elements window also Drag "Analog Element" to the left side and in the properties window set Precision to 2

  Close the Elements Window
• Double click on the "FormattedText2" and in the Elements window drag "Text Element" to the left side and in the properties window set Initial Value to: Inside HUM:

  In the Elements window also Drag "Analog Element" to the left side and in the properties window set Precision to 2

  Close the Elements Window
• Double click on the "FormattedText3" and in the Elements window drag "Text Element" to the left side and in the properties window set Initial Value to: Out TEMP:

  In the Elements window also Drag "Analog Element" to the left side and in the properties window set Precision to 2



  Close the Elements Window

• Double click on the "FormattedText4" and in the Elements window drag "Text Element" to the left side and in the properties window set Initial Value to: Out HUM:

  In the Elements window also Drag "Analog Element" to the left side and in the properties window set Precision to 2

  Close the Elements Window

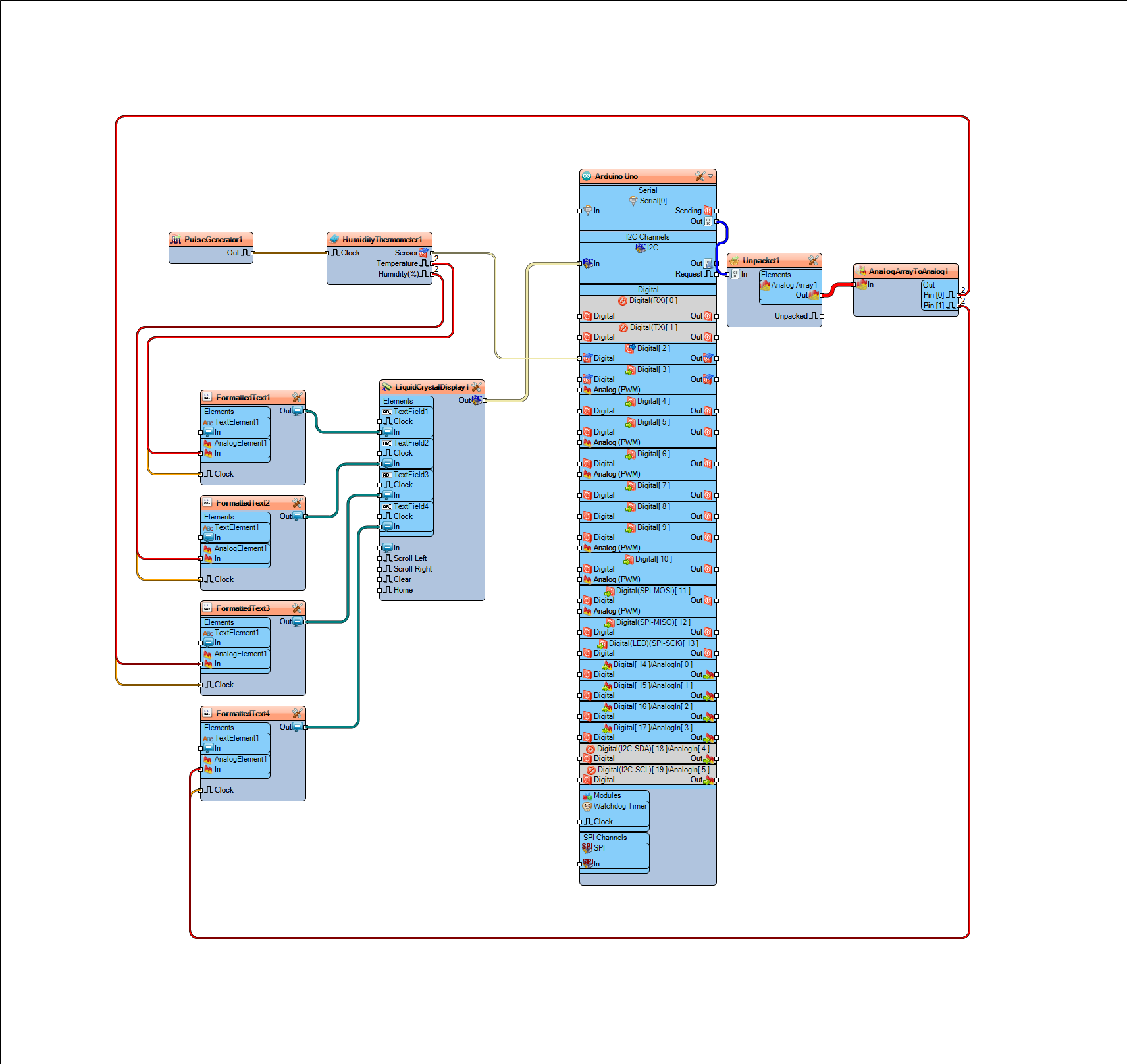

• Add "Unpacket" component
• Double Click on the Unpacket1 and in the Elements window drag Analog Array to the left side
  Close the Elements window

  Close the Elements window
• Add "Analog Array To Analog" component and in the properties window set Output Pins to 2

• Connect "PulseGenerator1" pin Out to "HumidityThermometer1" pin Clock
• Connect "HumidityThermometer1" Pin Sensor to Arduino Digital pin 2
• Connect "HumidityThermometer1" pin Temperature to "FormattedText1" > Analog Element1 pin In, and Pin Clock
• Connect "HumidityThermometer1" pin Humidity to "FormattedText2" > Analog Element1 pin In, and Pin Clock
• Connect Arduino Serial[0] pin Out to "Unpacket1" pin In
• Connect "Unpacket1" > AnalogArray1 pin Out to "AnalogArrayToAnalog1" pin In
• Connect "AnalogArrayToAnalog1" pin [0] to "FormattedText3" > Analog Element1 pin In, and Pin Clock
• Connect "AnalogArrayToAnalog1" pin [1] to "FormattedText4" > Analog Element1 pin In, and Pin Clock

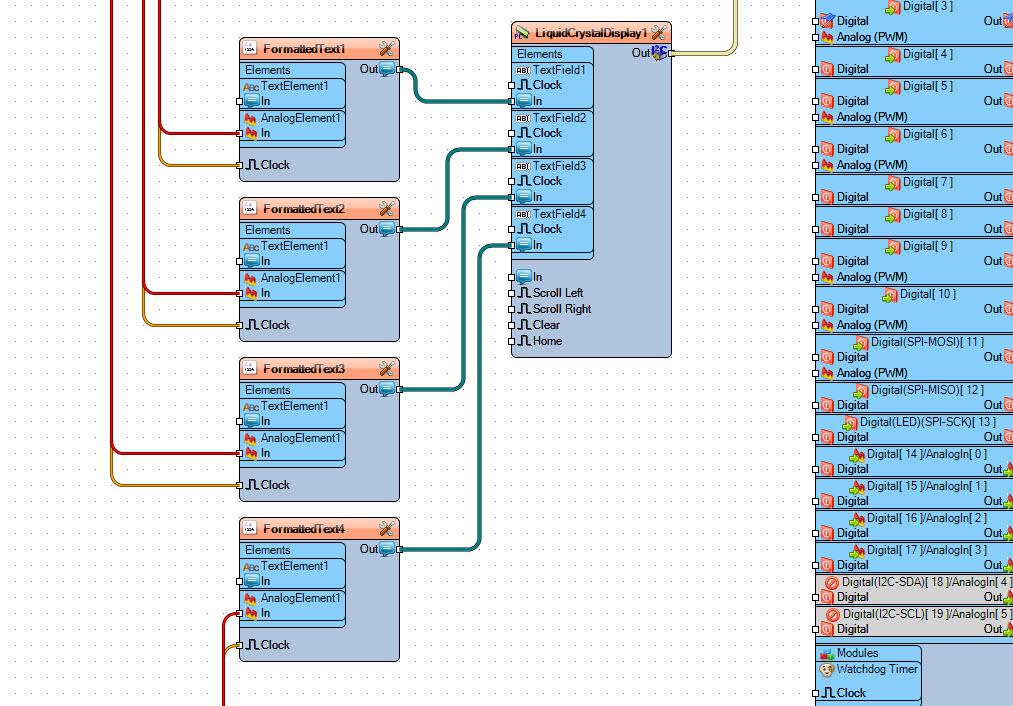

• Connect "FormattedText1" pin Out to "LiquidCrystalDisplay1" > Text Field1 Pin In
• Connect "FormattedText2" pin Out to "LiquidCrystalDisplay1" > Text Field2 Pin In
• Connect "FormattedText3" pin Out to "LiquidCrystalDisplay1" > Text Field3 Pin In
• Connect "FormattedText4" pin Out to "LiquidCrystalDisplay1" > Text Field4 Pin In
• Connect "LiquidCrystalDisplay1" pin I2C Out to Arduino pin I2C In

For both Sender and Receiver:

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Very Important! Make sure that while you are uploading the code that Pin RX on the Arduino is disconnected and after the uploading connect it back.

If you power both Arduino UNO modules, the Display on the receiver will start to show the temperature andhumidity from both sensors. You can put the sender outside and you will be able to monitor Inside and Outside temperature.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.eu
