HALLTAPE_V(curvimeter)
![photo_5253505865510666902_y.jpg](/proxy/?url=https://content.instructables.com/FZE/NEDB/L7VX4Q1O/FZENEDBL7VX4Q1O.jpg&filename=photo_5253505865510666902_y.jpg)
![photo_5253505865510666901_y.jpg](/proxy/?url=https://content.instructables.com/FGP/BM9D/L7VX4Q1P/FGPBM9DL7VX4Q1P.jpg&filename=photo_5253505865510666901_y.jpg)

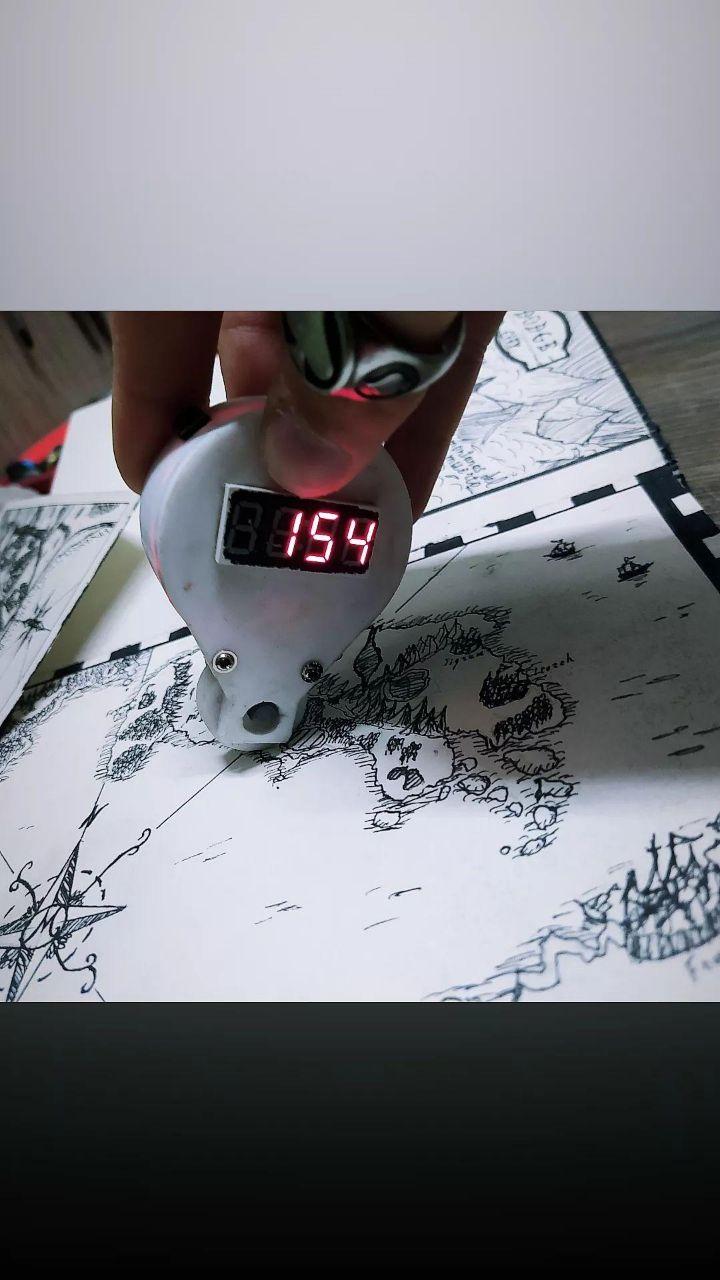

An opisometer, also called a curvimeter, meilograph, or map measurer, is an instrument for measuring the lengths of arbitrary curved lines. And I developed a cheap digital version of that all process I posted on my Instagram https://www.instagram.com/artur_rocker/
Supplies
3D printer
Encoder
Arduino pro/pro mini
TM1637 display
Button
LiPo battey
TP4056
Switch
3D Printing the Casing and Wheel
![Screenshot 2022-09-10 224659.png](/proxy/?url=https://content.instructables.com/FK3/XLV7/L7VX4Q1R/FK3XLV7L7VX4Q1R.png&filename=Screenshot 2022-09-10 224659.png)
3 parts that are 3d printed
Body
Cap
Wheel(attached to encoder later)
Thingiverse download link
https://www.thingiverse.com/thing:5506274
Circuit
![HALLTAPE_circuit.png](/proxy/?url=https://content.instructables.com/F70/P6X2/L7VX4R78/F70P6X2L7VX4R78.png&filename=HALLTAPE_circuit.png)
![photo_5253505865510666888_y.jpg](/proxy/?url=https://content.instructables.com/FKI/PUPJ/L7VX4Q1T/FKIPUPJL7VX4Q1T.jpg&filename=photo_5253505865510666888_y.jpg)
![photo_5253505865510666889_y.jpg](/proxy/?url=https://content.instructables.com/FQ9/RJGP/L7VX4Q1Q/FQ9RJGPL7VX4Q1Q.jpg&filename=photo_5253505865510666889_y.jpg)
Soldering everything as shown
P.S-if hall tape works strange you can swap(or by soldering or by changing the code) the encoder pins and try again o
Programming
just download the sketch and upload it to arduino
Downloads
Enjoy Using This Gadget
