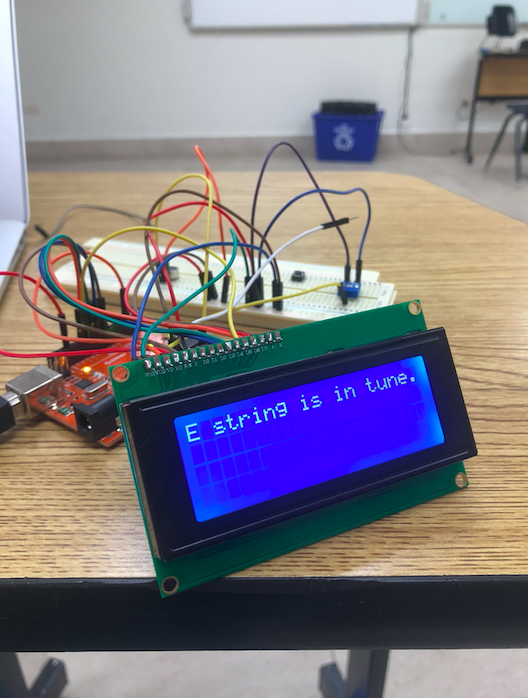

Guitar Tuner Arduino

The Guitar Tuner is a simple tuner that you build using Arduino. Using the electret microphone it can find the frequency of the Low e string, A, D,G,B, and the high E string. Using the frequencies the electret microphone will tell the display to tell you if your off-tune.

The main components are as follows:

- Arduino

- Electret Microphone

- Breadboard

- Dupont Wires

- LCD Display

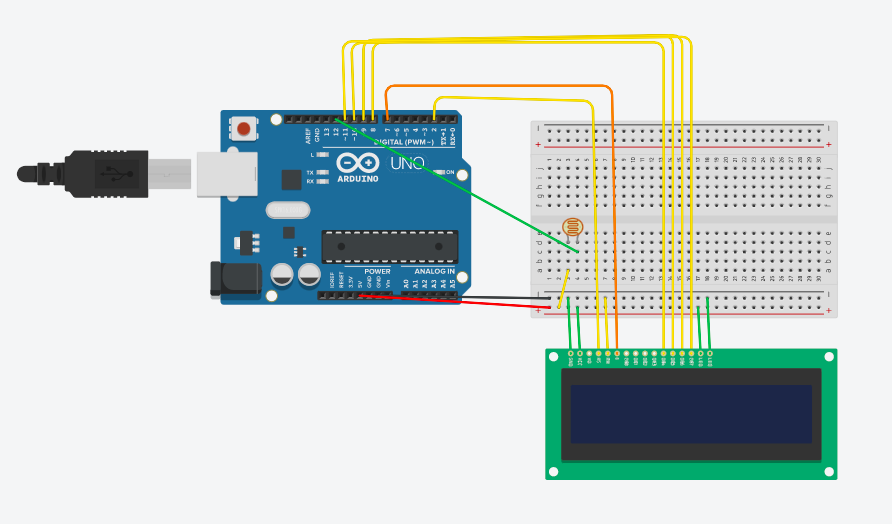

The Tinkercad above will show you how to connect each wire (NOTE: I used a photoresistor instead of an electret microphone, but it works the same way). Also, I will write down below where to connect each pin:

VSS to GND

VDD to 5V

V0 to GND

RS to 2

RW to GND

E to 7

D4 to 8

D5 to 9

D6 to 10

D7 to 11

LED Anode to 5V

LED Cathode to 5V

AND YOUR ELECTRET MICROPHONE:

Terminal 1/Left part to 5V

Terminal 2/Right part to 0

#include "arduinoFFT.h"

#define SAMPLES 128             //SAMPLES-pt FFT. Must be a base 2 number. Max 128 for Arduino Uno.
#define SAMPLING_FREQUENCY 2048 //Ts = Based on Nyquist, must be 2 times the highest expected frequency.

arduinoFFT FFT = arduinoFFT();

unsigned int samplingPeriod;
unsigned long microSeconds;

double vReal[SAMPLES]; //create vector of size SAMPLES to hold real values
double vImag[SAMPLES]; //create vector of size SAMPLES to hold imaginary values

 //LCD Display
 #include <LiquidCrystal.h>
    const byte LCD_D7 = 11;
	const byte LCD_D6 = 10;
	const byte LCD_D5 = 9;
	const byte LCD_D4 = 8;
	const byte LCD_E = 7;
	const byte LCD_RS = 2 ;

LiquidCrystal Lcd(LCD_RS, LCD_E, LCD_D4, LCD_D5, LCD_D6, LCD_D7);

      const byte LCD_WIDTH = 16;
  const byte LCD_HEIGHT = 2;
void setup()
{
    Serial.begin(115200); //Baud rate for the Serial Monitor
    samplingPeriod = round(1000000*(1.0/SAMPLING_FREQUENCY)); //Period in microseconds
  //LCD
   Lcd.begin(LCD_WIDTH, LCD_HEIGHT);
  Lcd.print("Starting...");
  delay(2500);
  Lcd.clear();
}

void loop()
{
    /*Sample SAMPLES times*/
    for(int i=0; i<SAMPLES; i++)
    {
        microSeconds = micros();    //Returns the number of microseconds since the Arduino board began running the current script.

        vReal[i] = analogRead(0); //Reads the value from analog pin 0 (A0), quantize it and save it as a real term.
        vImag[i] = 0; //Makes imaginary term 0 always

        /*remaining wait time between samples if necessary*/
        while(micros() < (microSeconds + samplingPeriod))
        {
          //do nothing
        }
    }
/*Perform FFT on samples*/
    FFT.Windowing(vReal, SAMPLES, FFT_WIN_TYP_HAMMING, FFT_FORWARD);
    FFT.Compute(vReal, vImag, SAMPLES, FFT_FORWARD);
    FFT.ComplexToMagnitude(vReal, vImag, SAMPLES);

/*Find peak frequency and print peak*/
    double peak = FFT.MajorPeak(vReal, SAMPLES, SAMPLING_FREQUENCY);
    Serial.println(peak);     //Print out the most dominant frequency.

/*Script stops here. Hardware reset required.*/
    while (1); //do one time


 //LOW E STRING
    if(peak>83.5 && peak<92) {
    Lcd.print("Your E string is too high.");
    delay (2000);
    Lcd.clear();
    }

    if(peak<82){
    Lcd.print("Your E string is too low.");
    delay (2000);
    Lcd.clear();
      }

      if(peak<=83 && peak>=82){
    Lcd.print("E string is in tune.");
    delay (2000);
    Lcd.clear();
      }

  //A STRING
  if(peak>110.5 && peak<128){
  Lcd.print("Your A string is too high.");
    delay (2000);
    Lcd.clear();
  }

     if(peak<109.5 && peak>93){
    Lcd.print("Your A string is too low.");
    delay (2000);
    Lcd.clear();
      }

   if(peak<=110 && peak>=109){
    Lcd.print("A string is in tune.");
    delay (2000);
    Lcd.clear();
      }

      //D STRING
      if(peak>147.5 && peak<170){
    Lcd.print("Your D string is too high.");
    delay (2000);
    Lcd.clear();
      }

        if(peak<145 && peak>128.5){
    Lcd.print("Your D string is too low");
    delay (2000);
    Lcd.clear();
      }

        if(peak<=146 && peak>=147){
    Lcd.print("D string is in tune.");
    delay (2000);
    Lcd.clear();
       }
         //G STRING
      if(peak>197 && peak<222){
  Lcd.print("Your G string is too high.");
    delay (2000);
    Lcd.clear();
  }

     if(peak<196 && peak>171){
    Lcd.print("Your G string is too low.");
    delay (2000);
    Lcd.clear();
      }

   if(peak<=197 && peak>=196){
    Lcd.print("G string is in tune.");
    delay (2000);
    Lcd.clear();
      }

   //B STRING
       if(peak>248 && peak<288){
  Lcd.print("Your B string is too high.");
    delay (2000);
    Lcd.clear();
  }

     if(peak<247 && peak>223){
    Lcd.print("Your B string is too low.");
    delay (2000);
    Lcd.clear();
      }

   if(peak<= 248 && peak>= 247){
    Lcd.print("B string in tune.");
    delay (2000);
    Lcd.clear();
      }

   //HIGH E STRING
   if(peak>331.5 && peak< 400){
  Lcd.print("Your high E string is too high.");
    delay (2000);
    Lcd.clear();
  }

     if(peak<329 && peak>289){
    Lcd.print("Your high E string is too low.");
    delay (2000);
    Lcd.clear();
      }

   if(peak<=331  && peak>=330 ){
    Lcd.print("Your high E string is in tune.");
    delay (2000);
    Lcd.clear();
      }
}
