Graphics in a Text World.

Sometimes when sitting at a text only terminal, It would be nice to see some kind of picture even if it was crude. For example, you just got an email saying you have to look at this picture! Here you will get a chance to experiment with pictures from the command line. Thought not perfect, you may have to stand back a bit to get the full effect of the pictures. Also too, if you want to put pictures on the text only lcd signs, this is a good way to convert the pictures.

Note: the higher screen resolution you are using will improve the pictures.

Get Some Software.

You will need a jpg to ascii converter, image converter, and a page grabber.

For Ubuntu based machines:
sudo apt-get install jp2a imagemagick curl wget

Conversion to Jpg Format.

Screenshot-eddie@oesrvr104: ~-Downloads.png
Someone just sent me the robot picture which is in ,png format.I need a jpg format. No problem...

$ convert robot.png robot.jpg

Now you want to display the picture.

$ jp2a -b --colors rogot.jpg

it is that simple.

Getting Pictures From the Web.

Screenshot-eddie@oesrvr104: ~.png
This is a little more tricky. For now we will do it the crude way. Now someone has said you need to look at a picture at www.cnn.com.

Lets get all the picture names from the from page of www.cnn.com and save the data.

$ curl www.cnn.com | grep ".jpg" > cnn.txt

$ nano cnn.txt

You will want to pick out the important file name of the picture.you want to use

$ wget http://i2.cdn.turner.com/cnn/2011/images/10/21/t1main.1228.libya.celeb.afp.gi.jpg

Display the pic.

$ jp2a -b --colors t1main.1228.libya.celeb.afp.gi.jpg

or

$ jp2a -b --colors http://i2.cdn.turner.com/cnn/2011/images/10/21/t1main.1228.libya.celeb.afp.gi.jpg

I probably did not pick out the best picture to display, but that is how it goes sometimes. Better than nothing.
--------------------------------------------------------------------------

$ curl www.cnn.com | grep ".jpg" > cnn.txt
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 107k 100 107k 0 0 192k 0 --:--:-- --:--:-- --:--:-- 270k
$ nano cnn.txt
$ vim cnn.txt
$ wget http://i2.cdn.turner.com/cnn/2011/images/10/21/t1main.1228.libya.celeb.afp.gi.jpg
--2011-10-21 12:02:29-- http://i2.cdn.turner.com/cnn/2011/images/10/21/t1main.1228.libya.celeb.afp.gi.jpg
Resolving i2.cdn.turner.com... 8.26.219.254, 205.128.65.126, 204.160.102.126
Connecting to i2.cdn.turner.com|8.26.219.254|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 17983 (18K) [image/jpeg]
Saving to: `t1main.1228.libya.celeb.afp.gi.jpg'

100%[===================================================================================>] 17,983 --.-K/s in 0.04s

2011-10-21 12:02:29 (429 KB/s) - `t1main.1228.libya.celeb.afp.gi.jpg' saved [17983/17983]

Cartoons.

Sometimes solid picture cartoons come out better. Just depends...

Screen Size Benefit.

As I said the bigger the screen, clarity should get better.

Invert It.

Sometimes using the invert option (-i) can increase clarity. If you want to print it out, lots of ink will be saved also.

$ jp2a -b -i abe.jpg
$ _

Web Page Graphic.

Create a web page graphic with:

$ jp2a --color --html --fill --background=light  hs.jpg --output=hs.html

to display:

$firefox hs.html

Video Using Text Only.

You can also do videos as text also. Use to do this on an old text (only) unix terminal. It blew peoples minds.

$ sudo apt-get install mplayer caca-utils
$ mplayer -vo caca -quiet tbhs--0025--hak5--small.h264.mp4 (Sound not included to save uploading bandwidth.)

or without speakers and or a sound card

$ mplayer -vo caca -ao null -quiet tbhs--0025--hak5--small.h264.mp4 (Sound not included to save uploading bandwidth.)

Update: You can get youtube videos with youtube-dl

$ sudo apt-get install youtube-dl

Grab the file: youtube [youtube url]

$ youtube-dl http://www.youtube.com/watch?v=4XGq3SZEDZI

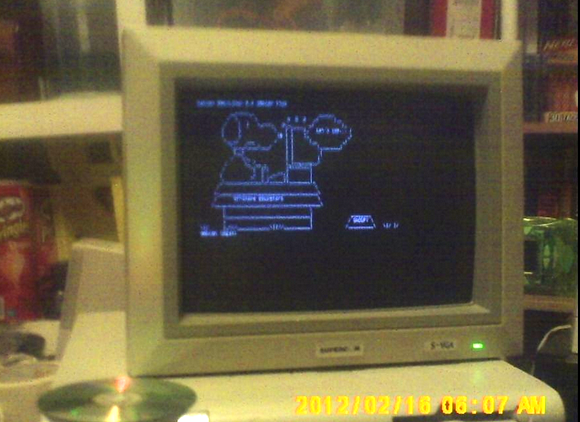

On a real ascii terminal.


Yaicp.

Yet another image conversion program.

Get the software:

$ sudo apt-get install caca-utils

Get the pic

getpic::
[code]
DAY=$(date +"%m%d%y%H%M%S")
picfn="pic$DAY.png"
# echo $picfn
wget http://radar.weather.gov/ridge/Thumbs/HGX.png -O hgx$DAY.png
[/code]

Convert

$ img2txt -W 80 -f utf8 img2txt -W 80 -H 25 -f utf8 hgx110711051503.png > hgx110711051503.txt

Display

$ cat hgx110711051503.txt


Ascii Analog Clock.

Screenshot-eddie@oesrvr104: ~-Downloads.png
Linux Analog clock (try at your own risk)


Compile with gcc aclock-unix-curses.c -o aclock -lcurses -lm

[code]
/*
* aclock - ascii clock for UNIX Console
 *
 * Copyright (c) 2002 Antoni Sawicki <tenox@tenox.tc>
 * Version 1.8 (unix-curses); Dublin, June 2002
 *
 * Compilation: cc aclock-unix-curses.c -o aclock -lcurses -lm
 *   Debian compilation: gcc clock.c -o clock -lcurses -lm
 *
 */

#include <unistd.h>
#include <curses.h>
#include <math.h>
#include <time.h>

#ifndef M_PI
#define M_PI 3.14159265358979323846
#endif

void draw_circle(int hand_max, int sYcen, int sXcen, int FontHW){
	int x,y,r;
	char c;

	for(r=0;r<60;r++){
		x=cos(r*M_PI/180*6)*hand_max*FontHW+sXcen;
		y=sin(r*M_PI/180*6)*hand_max+sYcen;
		switch (r) {
			case 0:
			case 5:
			case 10:
			case 15:
			case 20:
			case 25:
			case 30:
			case 35:
			case 40:
			case 45:
			case 50:
			case 55:
				c='o';
				break;
			default:
				c='.';
				break;
		}
		mvaddch(y,x,c);
	}
}

void draw_hand(int minute, int hlenght, char c, int sXcen, int sYcen, int FontHW){
	int x,y,n;
	float r=(minute-15)*(M_PI/180)*6;

	for(n=1; n<hlenght; n++){
		x=cos(r)*n*FontHW+sXcen;
		y=sin(r)*n+sYcen;
		mvaddch(y,x,c);
	}
}


int main(void){
	char INFO[]="Copyright (c) 2002 by Antek Sawicki <tenox@tenox.tc>\n"
		    "Version 1.8; Dublin, June 2002\n";
	char digital_time[15];
	int FontHW = 2;
	int sXmax, sYmax, smax, hand_max, sXcen, sYcen;
	time_t t;
	struct tm *ltime;

	initscr();

	while(1){
		time(&t);
		ltime=localtime(&t);
		sXmax = COLS;
		sYmax = LINES;

		if(sXmax/2<=sYmax)
			smax=sXmax/2;
		else
			smax=sYmax;

		hand_max = (smax/2)-1;

		sXcen = sXmax/2;
		sYcen = sYmax/2;

		erase();
		draw_circle(hand_max, sYcen, sXcen, FontHW);

		draw_hand((ltime->tm_hour*5)+(ltime->tm_min/10), 2*hand_max/3, 'h', sXcen, sYcen, FontHW);
		draw_hand(ltime->tm_min, hand_max-2, 'm', sXcen, sYcen, FontHW);
		draw_hand(ltime->tm_sec, hand_max-1, '.', sXcen, sYcen, FontHW);

		mvaddstr(sYmax/4, sXcen-5, ".:ACLOCK:.");
		mvprintw(4*sYmax/5, sXcen-5, "[%02d:%02d:%02d]", ltime->tm_hour, ltime->tm_min, ltime->tm_sec);

		refresh();
		sleep(1);
	}
	endwin();
	return 0;
}

[/clock]

--------------------------------

Another clock: http://webonastick.com/vtclock/

Yet Another Command Line Clock

Screenshot from 2013-09-15 02:26:47.png
You can get tty-clock at: https://github.com/xorg62/tty-clock

Couple of New Year's Scripts.

Screenshot-eddie@oesrvr104: ~-2.png
Screenshot-eddie@oesrvr104: ~-1.png
Countdown clock:

Must be run on a linux box with figlet installed.

$ sudo apt-get update
$ sudo apt-get install figlet

Code:

$ while [[ $(date +%Y) -ne 2012 ]];do figlet $(($(date -d 2012-01-01 +%s)-$(date +%s)));sleep 1;clear;done;figlet 'Happy New Year!'

-----------------------------------------------------------------

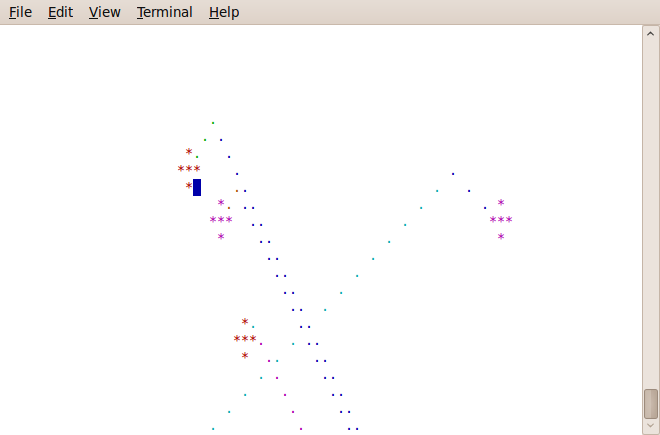

Fireworks:

Fireworks.sh
[code]
#!/bin/bash

rows=$(tput lines)
cols=$(tput cols)
colors=(red green blue purple cyan yellow brown)
lock_file=
lock_file_base=/tmp/$(basename $0 .sh)

multiple=0
if [[ "$1" ]]; then
    nsingle=$1
    shift
else
    nsingle=10
fi
if [[ "$1" ]]; then
    nmultiple=$1
    shift
    if [[ $nmultiple -gt 8 ]]; then nmultiple=8; fi
else
    nmultiple=6
fi


function colorstr()
{
    local  row=$1
    local  col=$2
    local  color=$3
    local  v
    case "$color" in
    red)     v=31;;
    green)   v=34;;
    blue)    v=32;;
    purple)  v=35;;
    cyan)    v=36;;
    yellow)  v=33;;
    brown)   v=33;;
    white)   v=37;;
    *)       v=;;
    esac
    shift 3

    if [[ $multiple -ne 0 ]]; then
        touch $lock_file
        while [[ $(ls $lock_file_base.* 2>/dev/null | head -n 1) != $lock_file ]]
        do
            sleep 0.05
        done
    fi

    tput cup $row $col
    echo -n -e "\e["$v"m"
    set -f
    echo -n $*
    set +f
    if [[ $multiple -ne 0 ]]; then
        rm -f $lock_file
    fi
}

function center_colorstr()
{
    local  row=$1
    local  color=$2
    shift 2
    local  s="$*"
    local  slen=${#s}
    colorstr $row $(((cols / 2) - (slen / 2))) $color "$s"
}

function fireworks()
{
    local row=$((rows - 1))
    local col=$(((RANDOM % (cols / 2)) + (cols / 4)))
    local height=$((RANDOM % rows - 2))
    local slant
    local h
    local color1=${colors[$((RANDOM % ${#colors[*]}))]}
    local color2=${colors[$((RANDOM % ${#colors[*]}))]}
    local color3=${colors[$((RANDOM % ${#colors[*]}))]}
    while [[ $color1 == $color2  ||  $color1 == $color3  ||  $color2 == $color3 ]]
    do
        color2=${colors[$((RANDOM % ${#colors[*]}))]}
        color3=${colors[$((RANDOM % ${#colors[*]}))]}
    done

    case $((RANDOM % 4)) in
    0) slant=-2;;
    1) slant=-1;;
    2) slant=1;;
    3) slant=2;;
    esac

    if [[ $height -gt 5 ]]; then
        h=$height

        while [[ $h -gt 0 ]]
        do
            colorstr $row $col $color1 '.'
            let row--
            if [[ $((col + slant)) -ge $((cols - 3))  ||  $((col + slant)) -le 2 ]]; then break; fi
            let col+=slant
            let h--
            sleep 0.1
        done

        if [[ $((col + slant)) -lt $((cols - 3))  &&  $((col + slant)) -gt 2 ]]; then

            h=$((height / 5))

            while [[ $h -gt 0 ]]
            do
                colorstr $row $col $color2 '.'
                let row++
                if [[ $((col + slant)) -ge $((cols - 3))  ||  $((col + slant)) -le 2 ]]; then break; fi
                let col+=slant
                let h--
                sleep 0.1
            done
        fi

        colorstr $((row)) $((col - 1)) $color3 '***'
        colorstr $((row - 1)) $((col)) $color3 '*'
        colorstr $((row + 1)) $((col)) $color3 '*'
    fi
}

for i in $(seq 1 $nsingle)
do
    clear
    fireworks
    sleep 1
done

clear

pids=
for i in $(seq 1 $nmultiple)
do
    let multiple++
    lock_file=$lock_file_base.$i
    fireworks &
    pids="$pids $!"
done

trap "kill -9 $pids 2>/dev/null" EXIT

wait $pids
sleep 3

clear
center_colorstr $((rows / 2 - 1)) red "Hope you enjoyed the show!"
center_colorstr $((rows / 2 + 1)) red "Happy New year!! "
center_colorstr $((rows / 2 + 3)) red "Computothought"
echo

sleep 5
clear


# vim: tabstop=4: shiftwidth=4: noexpandtab:
# kate: tab-width 4; indent-width 4; replace-tabs false;

[/code]

Create shell batch file:
$ vim fireworks.sh

Make it executable:
$ chmod +x fireworks.sh

Run it:
$ ./fireworks.sh

Ascii Art.

Screenshot at 2012-02-08 21:54:42.png
There is a lot of ascii art on the net but it is disappearing fast..



	    __ __                     __  __     _
	   / //_/_  ______  ____ _   / / / /__  (_)
	  / ,< / / / / __ \/ __ `/  / /_/ / _ \/ /
	 / /| / /_/ / / / / /_/ /  / __  /  __/ /
	/_/ |_\__,_/_/ /_/\__, /  /_/ /_/\___/_/
	                 /____/
	    ______      __     ________
	   / ____/___ _/ /_   / ____/ /_  ____  __  __
	  / /_  / __ `/ __/  / /   / __ \/ __ \/ / / /
	 / __/ / /_/ / /_   / /___/ / / / /_/ / /_/ /
	/_/    \__,_/\__/   \____/_/ /_/\____/\__, /
        	                             /____/


                       ___......----:'"":--....(\
                .-':'"":   :  :  :   :  :  :.(1\.`-.
              .'`.  `.  :  :  :   :   : : : : : :  .';
             :-`. :   .  : :  `.  :   : :.   : :`.`. a;
             : ;-. `-.-._.  :  :   :  ::. .' `. `., =  ;
             :-:.` .-. _-.,  :  :  : ::,.'.-' ;-. ,'''"
           .'.' ;`. .-' `-.:  :  : : :;.-'.-.'   `-'
    :.   .'.'.-' .'`-.' -._;..:---'''"~;._.-;
    :`--'.'  : :'     ;`-.;            :.`.-'`.
     `'"`    : :      ;`.;             :=; `.-'`.
             : '.    :  ;              :-:   `._-`.
              `'"'    `. `.            `--'     `._;
                        `'"'
           |
     _____ | _____        \     /   /______    |  |     / /_  /    | |
    ()____)+()____)     -----  /       |       | -+-.  /_.|_|/_.   | |
    ()____)+()____)      \ /  /___   __|__   | |  | |   / | | /    | |
    ()____)+()____)     ----- | |    | |     |_| _|_|_ /_\`-'/_\   | |
    ()____)+()____)     __|__ | |  __|_|____   |  |     ___|___    | |
    ()____)+()____)      /|\  | |      |       | / \     _/|\_     * *
         / | \
__  __                         ____   __  __            __  _
\ \/ /__  ____ ______   ____  / __/  / /_/ /_  ___     / /_(_)___ ____  _____
 \  / _ \/ __ `/ ___/  / __ \/ /_   / __/ __ \/ _ \   / __/ / __ `/ _ \/ ___/
 / /  __/ /_/ / /     / /_/ / __/  / /_/ / / /  __/  / /_/ / /_/ /  __/ /
/_/\___/\__,_/_/      \____/_/     \__/_/ /_/\___/   \__/_/\__, /\___/_/
                                                          /____/

Starwars

Screenshot - 09162014 - 10:27:41 PM.png

You can also watch the Starwars video with a real telnet connection.

$ telnet towel.blinkenlights.nl

You can also save the telnet session with ttyrec (you may need to install ttyrec or compile from source at http://sourceforge.net/projects/ttyrec/ , if your distro does not have it included) for later playback.

$ ttyrec starwars

$ telnet towel.blinkenlights.nl

<control>d (control + d)

$ ttyplay starwars.

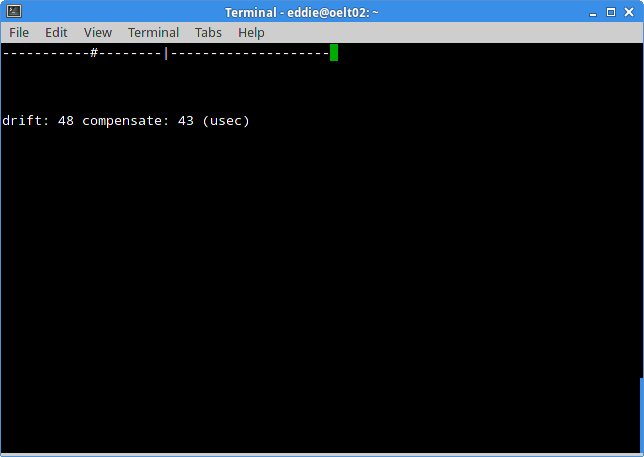

Simple Metronome.

Screenshot from 2014-11-19 18:20:51.png
Screenshot from 2014-11-19 18:21:27.png

simple metronome program that works on ascii terminals. there is no sound just all visual. You can call the program with

$ ./metronome [speed]

Compile the code with:

$ gcc metronome.c -o metronome


Downloads

metronome.c

Holiday Trees.

Screenshot - 12022014 - 02:14:11 PM.png
Screenshot - 12022014 - 02:42:32 PM.png

Code is at:

http://computoman.blogspot.com/2014/12/simple-holiday-tree.html

Arduino Ascii Output.

Screenshot - 01302015 - 06:18:42 PM.png

The c compiler just loves the "\".
