Graduation Cap Art Design
There are usually a variety of designs for graduations caps utilizing standard art supplies. This graduation cap art design will showcase electronics as the art medium.
Check out youtube for assembly video. https://youtu.be/fkp0vbt6Q-c
Supplies
- Graduation Cap
- 32x32 RGB LED Matrix Panel - 6mm pitch
- Teensy 3.2 + header
- SmartMatrix SmartLED Shield (V4) for Teensy 3
- Phone Charger Backup Battery
- Cellphone Armholder for Cell Phones / Cell Phone Holder for Running
- Elastic Hair Tie
- 2 Velcro Brand One-Wrap Strap 8"
- 2 wires
- 6 Machine Screws (fits the 32x32 RGB)
- 6 Gardner Bender 1/2" Plastic Cable Clamp
Connect the Microcontrollers
![IMG_20211211_220716[1].jpg](/proxy/?url=https://content.instructables.com/FVA/GMEY/KX4OWZ5A/FVAGMEYKX4OWZ5A.jpg&filename=IMG_20211211_220716[1].jpg)
![IMG_20211211_184313[1].jpg](/proxy/?url=https://content.instructables.com/FU1/KNZ9/KX4OX0AB/FU1KNZ9KX4OX0AB.jpg&filename=IMG_20211211_184313[1].jpg)
Connect the SmartMatrix and Teensy together. Keep straps away from pins that will connect to the RGB.
Connect to the 32x32 RGB
![IMG_20211211_184156[1].jpg](/proxy/?url=https://content.instructables.com/FT9/DTG6/KX4OXD4F/FT9DTG6KX4OXD4F.jpg&filename=IMG_20211211_184156[1].jpg)
![IMG_20211211_183750[1].jpg](/proxy/?url=https://content.instructables.com/F6F/8UWN/KX4OXD98/F6F8UWNKX4OXD98.jpg&filename=IMG_20211211_183750[1].jpg)
![IMG_20211211_181556[1].jpg](/proxy/?url=https://content.instructables.com/FU7/KRJZ/KX4OXDDL/FU7KRJZKX4OXDDL.jpg&filename=IMG_20211211_181556[1].jpg)

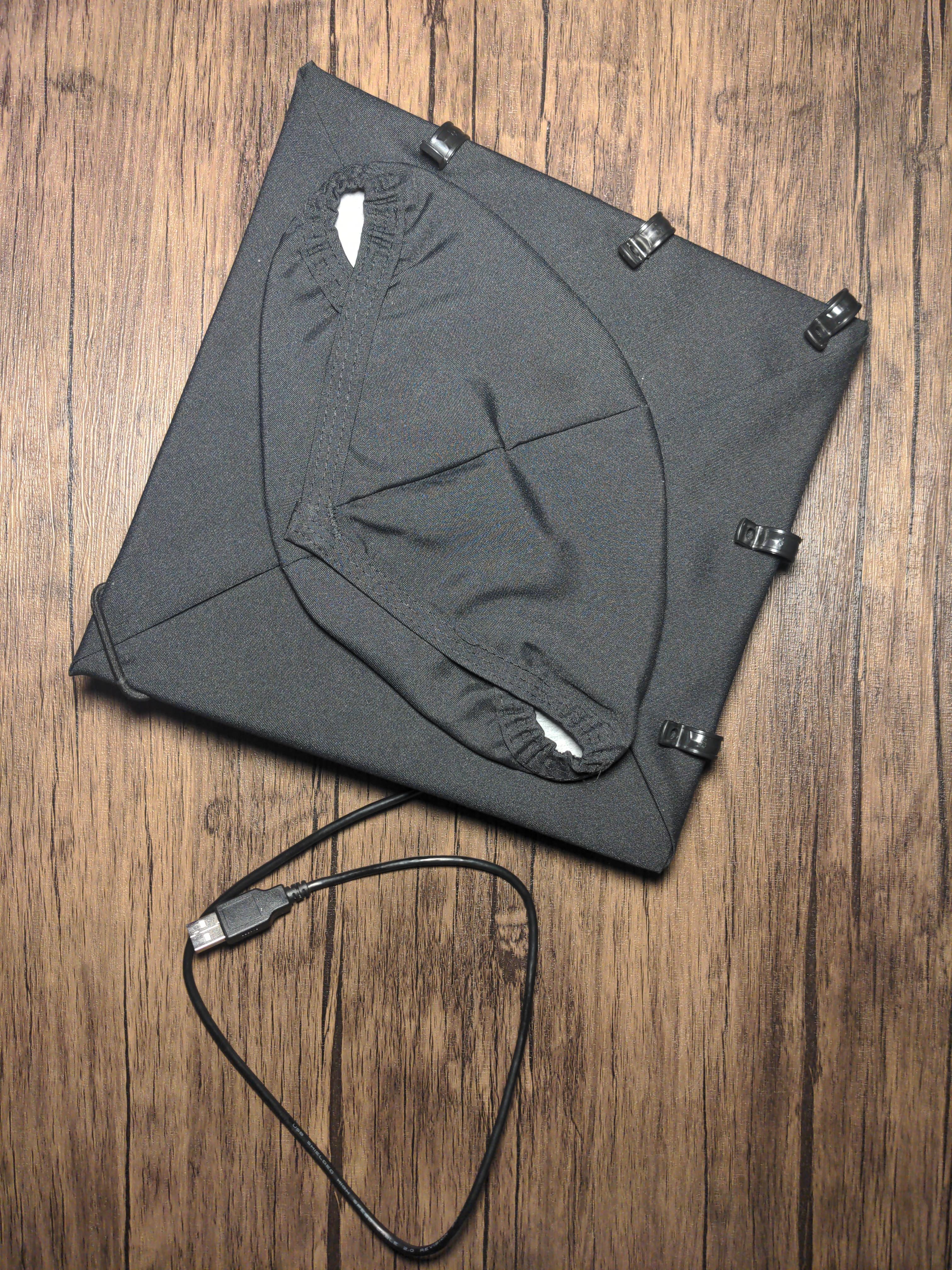

Put on Cap
![IMG_20211211_181419[1].jpg](/proxy/?url=https://content.instructables.com/FCZ/66G9/KX4OWWBW/FCZ66G9KX4OWWBW.jpg&filename=IMG_20211211_181419[1].jpg)
