Gooseneck Shop Light LED Conversion
by ChromationSystems in Circuits > LEDs
2111 Views, 7 Favorites, 0 Comments
Gooseneck Shop Light LED Conversion
![DSCN1858.JPG](/proxy/?url=https://content.instructables.com/FVR/UR7W/GXDWS0EI/FVRUR7WGXDWS0EI.jpg&filename=DSCN1858.JPG)
![gooseled_schem.png](/proxy/?url=https://content.instructables.com/FM5/WFQ4/GXDWOOCP/FM5WFQ4GXDWOOCP.png&filename=gooseled_schem.png)
![DSCN1735.JPG](/proxy/?url=https://content.instructables.com/F8I/CXLR/GXDWH7EP/F8ICXLRGXDWH7EP.jpg&filename=DSCN1735.JPG)
![DSCN1837.JPG](/proxy/?url=https://content.instructables.com/FS7/Y16F/GXDWH7EQ/FS7Y16FGXDWH7EQ.jpg&filename=DSCN1837.JPG)
![DSCN1839.JPG](/proxy/?url=https://content.instructables.com/F8X/JBOM/GXDWY6LG/F8XJBOMGXDWY6LG.jpg&filename=DSCN1839.JPG)
![DSCN1841.JPG](/proxy/?url=https://content.instructables.com/FDK/A8RN/GXDWH7ER/FDKA8RNGXDWH7ER.jpg&filename=DSCN1841.JPG)
![DSCN1844.JPG](/proxy/?url=https://content.instructables.com/FT0/F9SZ/GXDWY6LK/FT0F9SZGXDWY6LK.jpg&filename=DSCN1844.JPG)
![DSCN1846.JPG](/proxy/?url=https://content.instructables.com/FKO/5IDJ/GXDWDO0V/FKO5IDJGXDWDO0V.jpg&filename=DSCN1846.JPG)
![DSCN1848.JPG](/proxy/?url=https://content.instructables.com/F74/QO7H/GXDWY6N1/F74QO7HGXDWY6N1.jpg&filename=DSCN1848.JPG)
![DSCN1850.JPG](/proxy/?url=https://content.instructables.com/FCU/T43O/GXDWY6LM/FCUT43OGXDWY6LM.jpg&filename=DSCN1850.JPG)
![DSCN1851.JPG](/proxy/?url=https://content.instructables.com/FU4/6NYO/GXDWY6LO/FU46NYOGXDWY6LO.jpg&filename=DSCN1851.JPG)
![DSCN1736.JPG](/proxy/?url=https://content.instructables.com/FOO/AUMZ/GXDWS0D9/FOOAUMZGXDWS0D9.jpg&filename=DSCN1736.JPG)
![DSCN1737.JPG](/proxy/?url=https://content.instructables.com/FX2/A7BY/GXDWONSF/FX2A7BYGXDWONSF.jpg&filename=DSCN1737.JPG)
![DSCN1877.JPG](/proxy/?url=https://content.instructables.com/FG3/ZELP/GXDWONSI/FG3ZELPGXDWONSI.jpg&filename=DSCN1877.JPG)
![DSCN1855.JPG](/proxy/?url=https://content.instructables.com/FD4/PKUN/GXDWONSG/FD4PKUNGXDWONSG.jpg&filename=DSCN1855.JPG)
![DSCN1857.JPG](/proxy/?url=https://content.instructables.com/FQ0/6GT8/GXDWDO0Y/FQ06GT8GXDWDO0Y.jpg&filename=DSCN1857.JPG)
![DSCN1858.JPG](/proxy/?url=https://content.instructables.com/FVR/UR7W/GXDWS0EI/FVRUR7WGXDWS0EI.jpg&filename=DSCN1858.JPG)

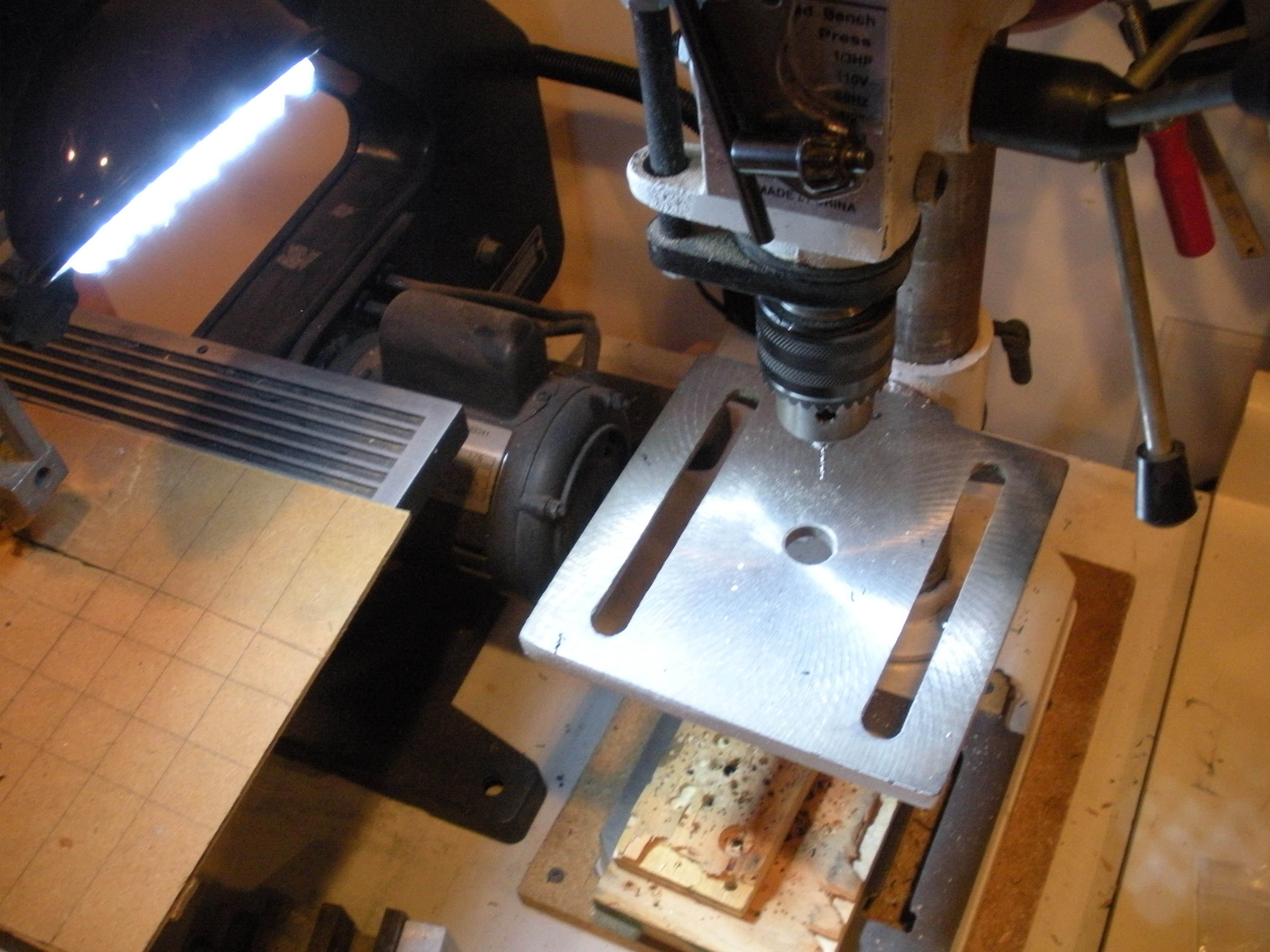

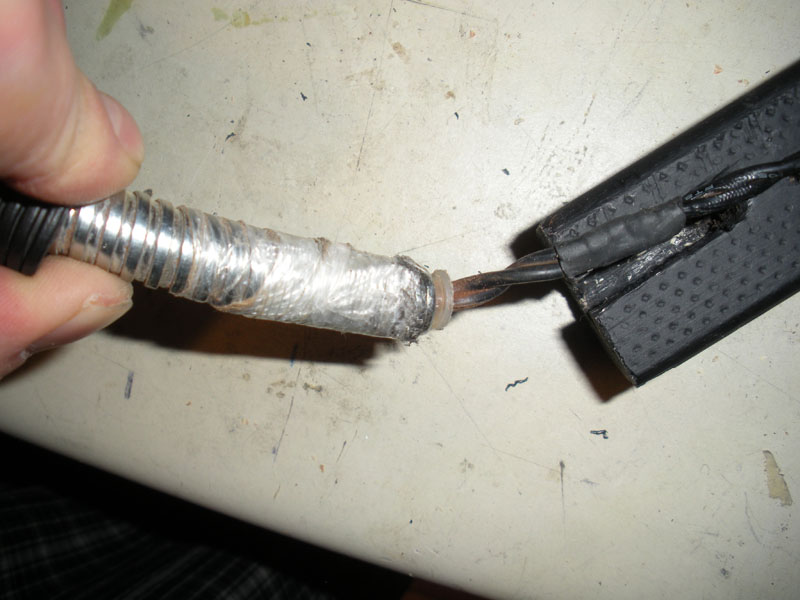

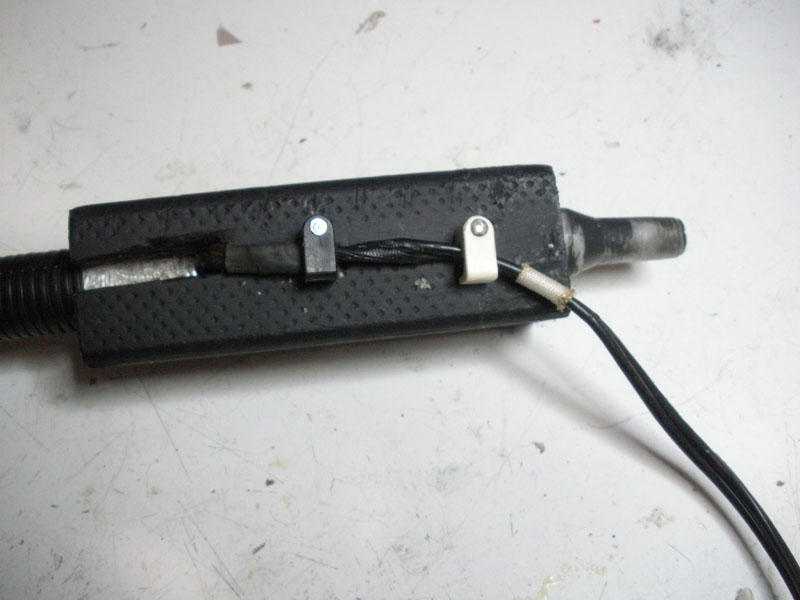

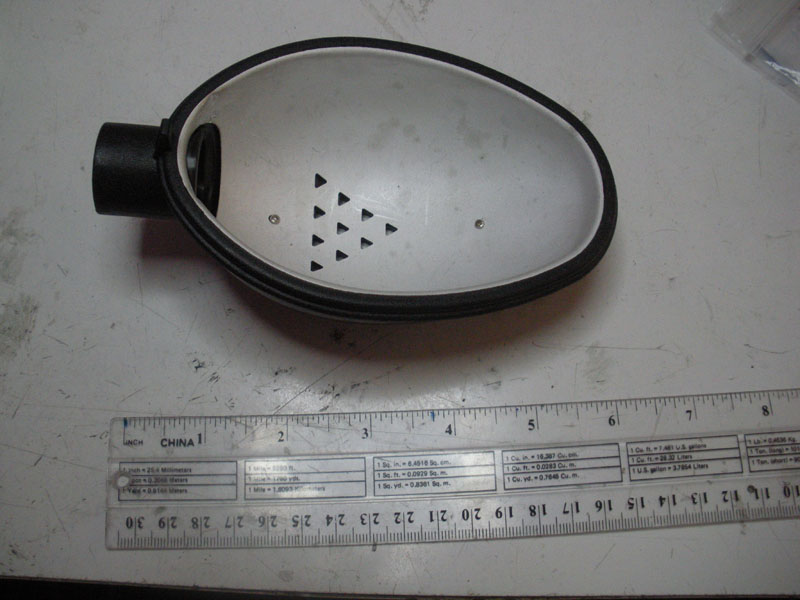

Bought a gooseneck light from a garage sale for a few dollars. It had a hook on the end to hang it, that was useless, not sure what it was meant for, but it had to go. I converted it from using a small incandescent bulb to 24x 0.5w Cool White LEDs in a 10mm package, 12w total. Wanted to keep it as simple as possible, run it from mains AC and build a more useful way to mount it. I used a surplus clamp style base, a 2x2, a 1/4" bolt and some Shapelock plastic to create a versatile mount.(That was all recycled or scavenged)
Powering LEDs from Mains AC:
There is a lot of information out there on how to do this, it gets a bit hard to sort through as there are many different configurations people have used. And none that I found had used these type of 0.5w LEDs.
I found these sites to be quite helpful:
http://www.electronics2000.co.uk/calc/reactance-calculator.php
http://www.marcspages.co.uk/tech/6103.htm
http://www.ele.uva.es/~pedro/optoele/LEDs/Appnotes/LED_AC_operation.pdf
This circuit uses the reactance of a capacitor to limit the current supplied to the LEDs. This method is a lot more efficient and safer than trying to rectify the AC and then use resistors to limit the current. The 0.5w LEDs require 100ma and 130ma Peak. I wanted to keep it in the safe area as I want this to last, rather than trying to make it brighter.
Through trial and error on a calculator and checking what capacitor values were available to me, I settled on a 1.8uF, 250v, X1 type capacitor, the X1 designates it as a fail-safe capacitor which I required.
Reactance of a 1.8uF at 60hz = 1.474kohm
Peak: 170 vac / 1.474 = 115.33ma
Nominal: 120 vac / 1.474 = 81.41ma
Electronics:
- C1: 1.8uF, 250v, X1 type. Such As This
- C2: High uF Capacitor,(I used an 18uf I had around) Smooths the rectified DC, 100v or higher
- R1 & R2: 100ohm 1/4w, prevent transient currents and act as a fuse.
- R3: 1 Mohm or so, bleeds the capacitor when power gets turned off. Note I used two 3.3 Mohm in parallel to get a 1.65 Mohm
- R4: Most designs have this, I did not include it in my device.
- Diodebridge: 250v or higher, I made mine out of 1n4007s
- LEDs: 10mm, 0.5w(100ma), Cool White LEDs Find Some Here
Take a look at the Image notes for more details.
