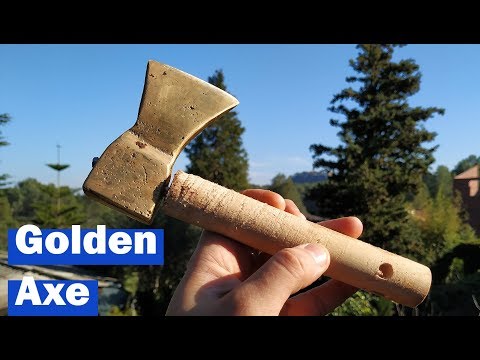

Golden Axe! How to Make It

Golden axe! How to make it

I use the foundry to make the golden brass axe. This little hatchet is almost for decoration because it performs very poorly but it is beautiful.

I use recycle brass from different sources. Brass metal is melt in the foundry and poured in a beach sand mold. After that, excess is remove with a saw and a file. It is finish with sand paper. Finally performance is compare with a commercial one.

Make or Get a Mold Out of Wooden

2019-01-01 23_04_36-Window.png

Make or get a mold out of wooden, you can use any other material

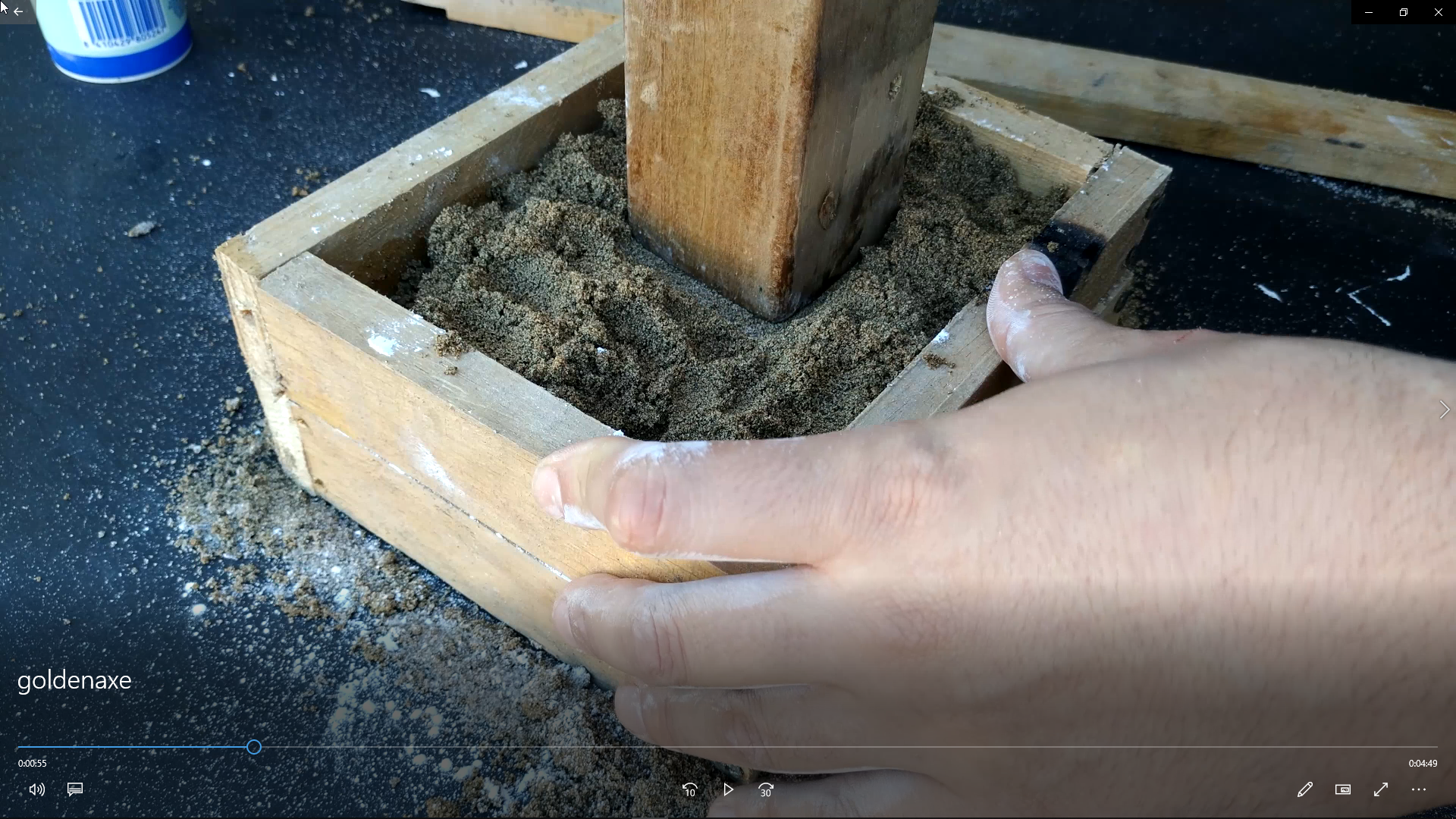

Pour Sand in the Mold Frame and Smash It

2019-01-01 23_05_13-.png

Pour sand in the mold frame and smash it until you fill the frame

Place the Wooden Mold on the Sand

2019-01-01 23_05_27-Window.png

Place the wooden mold on the sand

Smash the Sand, the Mold and Remove Excess Sand

2019-01-01 23_05_39-Window.png

Smash the sand, the mold and remove excess sand

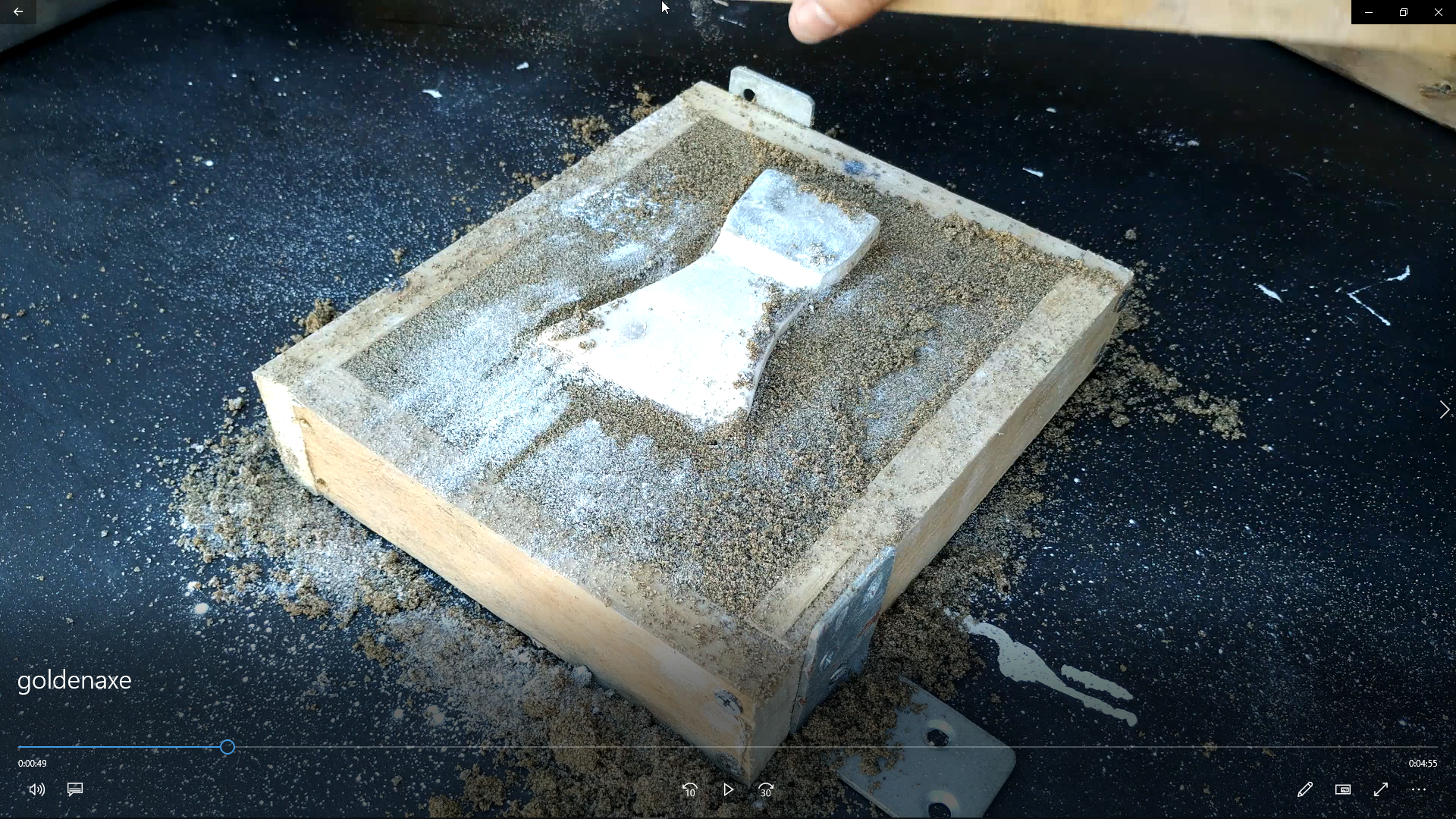

Pour Quite a Lot of Talcum Powder

2019-01-01 23_05_54-Window.png

Pour quite a lot of talcum powder

Prepare Top Frame of the Mold

2019-01-01 23_06_06-Window.png
2019-01-01 23_06_24-Window.png

Put the top frame of the mold. Fill it with sand and smash it. When it is fill, remove excess

Open the Mold

2019-01-01 23_06_35-Window.png

Open the mold

Remove the Mold

2019-01-01 23_06_49-.png

Remove the mold using screws

Make Two Holes in the Mold

2019-01-01 23_07_02-.png

Make two holes in the mold. Metal intake and air outtake

Close the Mold

2019-01-01 23_07_10-.png

Close the mold

Pour Molten Metal

2019-01-01 23_07_28-.png

Pour molten metal

Remove the Axe Blade From the Mold

2019-01-01 23_07_40-.png

Remove the axe blade from the mold

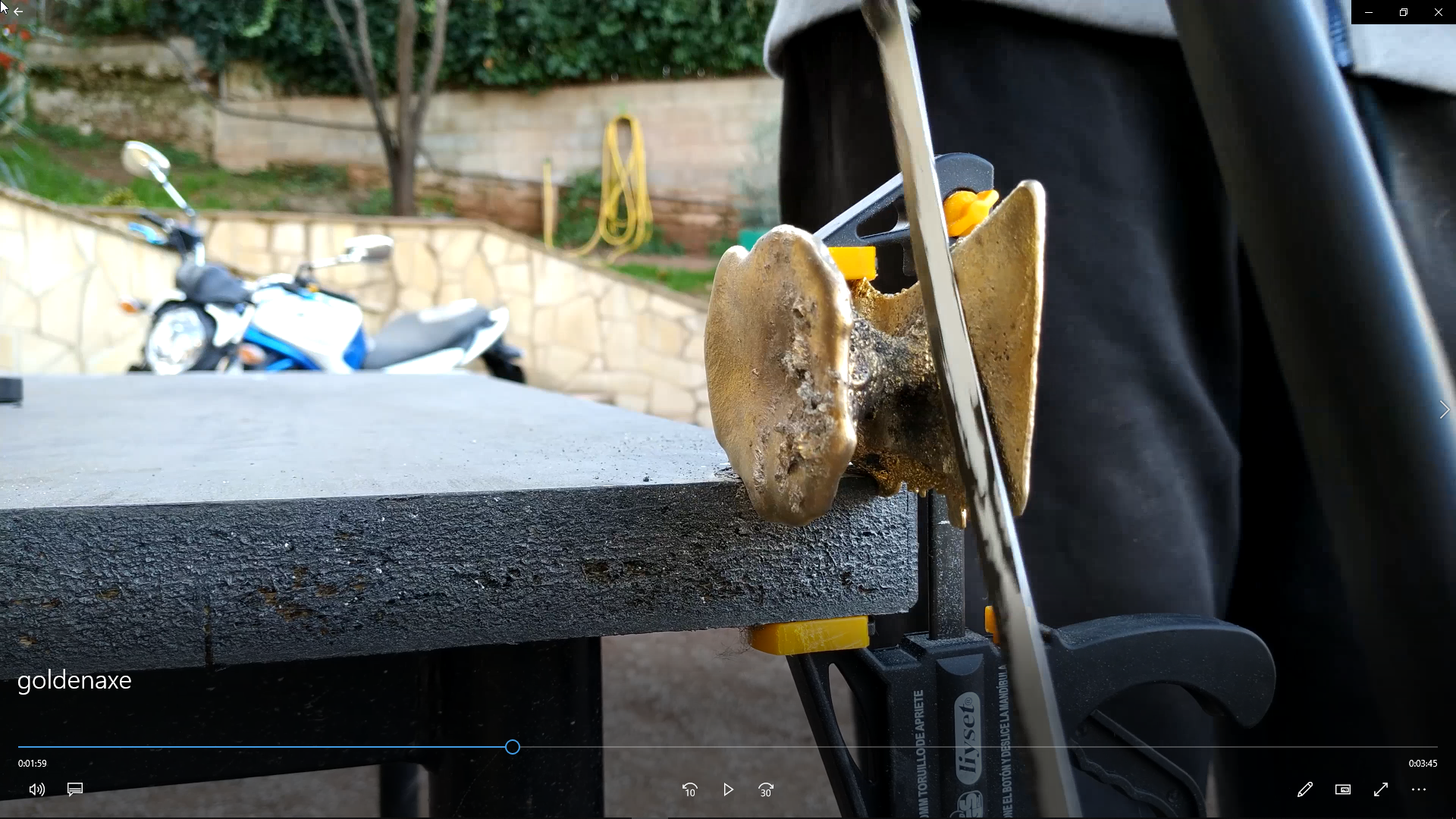

Saw and File Excess Material

2019-01-01 23_07_50-.png
2019-01-01 23_08_00-.png
2019-01-01 23_08_08-.png

Saw and file excess material

Polish the Blade

2019-01-01 23_08_14-.png

Polish the blade

Make a Hole for the Stick

2019-01-01 23_08_24-.png

Make a hole for the stick

Put a Stick to the Blade

2019-01-01 23_08_42-Window.png
2019-01-01 23_08_34-.png
2019-01-01 23_08_53-.png
2019-01-01 23_08_59-Window.png

Put a stick to the blade
