Glowing Old USB Flash Drive
![IMG_2499.JPG](/proxy/?url=https://content.instructables.com/F0I/5ZFI/K8HKFEIC/F0I5ZFIK8HKFEIC.jpg&filename=IMG_2499.JPG)
so after going through many instructables, i finally decided to make one.i was having an old usb flash drive without any cover and three old halogen bulbs so i decided to test on it.
on first i was trying to put the pcb inside bulb by cutting the bulb because separately it was a bit longer but pcb was wider so the bulb broke out.then i tried separately...have a look
what you will need
MATERIALS
- an old halogen bulb from car headlight
- old usb flash drive
- blue led
- 220 ohm resistor
- soldering iron & wire
- super glue
- glue gun
- perfume bottle neck and cover(according to usb)
MAKING
![IMG_2491.JPG](/proxy/?url=https://content.instructables.com/FAM/0W2E/K8HKFEHI/FAM0W2EK8HKFEHI.jpg&filename=IMG_2491.JPG)
![IMG_2492.JPG](/proxy/?url=https://content.instructables.com/FHJ/JGMW/K8HKFEI7/FHJJGMWK8HKFEI7.jpg&filename=IMG_2492.JPG)
![IMG_2490.JPG](/proxy/?url=https://content.instructables.com/FAH/19X2/K8HKFEGT/FAH19X2K8HKFEGT.jpg&filename=IMG_2490.JPG)
![IMG_2522.JPG](/proxy/?url=https://content.instructables.com/F3S/7LNG/K8J0CQ8P/F3S7LNGK8J0CQ8P.jpg&filename=IMG_2522.JPG)
![usb2-Apinout-600.jpg](/proxy/?url=https://content.instructables.com/F9K/FH64/K8HKHZCF/F9KFH64K8HKHZCF.jpg&filename=usb2-Apinout-600.jpg)
![IMG_2495.JPG](/proxy/?url=https://content.instructables.com/FX8/O3G5/K8HKFEI9/FX8O3G5K8HKFEI9.jpg&filename=IMG_2495.JPG)
![IMG_2497.JPG](/proxy/?url=https://content.instructables.com/FEG/0JUY/K8HKFEIA/FEG0JUYK8HKFEIA.jpg&filename=IMG_2497.JPG)

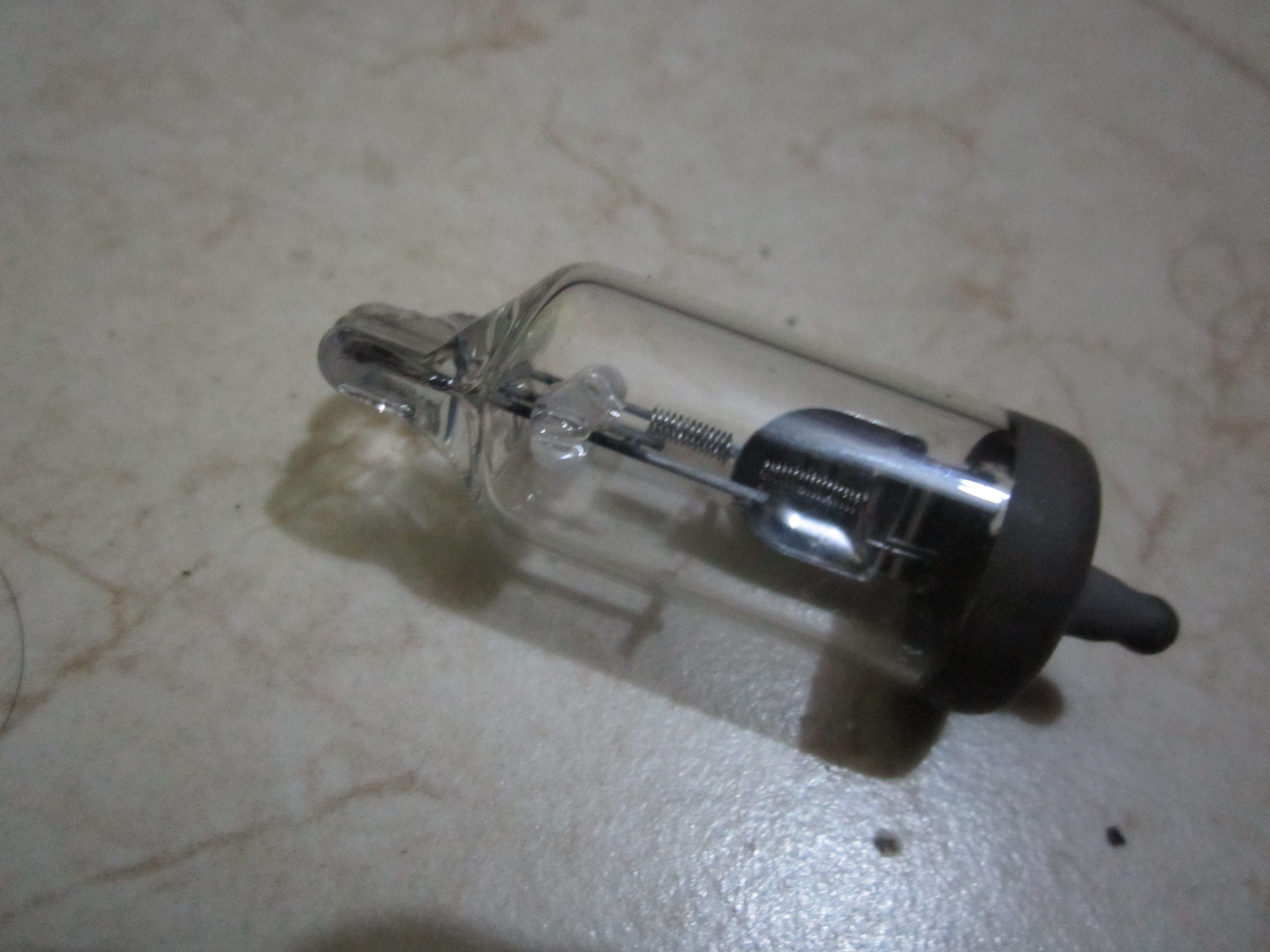

- first of all take out the glass bulb from its holder without breaking it as u can see i have broke one too ;-)
- take out glass holder which i have mentioned in picture.you can use it for other project too and its size is perfect for usb male port as u can see.in my case its 2 points are fitted accurately at the usb connector to pcb soldering points so i soldered the metal with the pcb.
- sold the 220 ohm resistor on led+ leg and sold the other end of the resistor to 5v pin of usb connector and led- with gnd (see usb connector picture for pin outs)
- take out perfume bottle neck (see picture for reference) and make its hole wider so the flash drive`s pcb can go through it.in this way the neck will get connected to the glass holder metal.
- as you know the bottle neck provides a top cover support also so cut the cover by required length
- connect one side of the cover with glass holder metal and on the other side put the halogen bulb

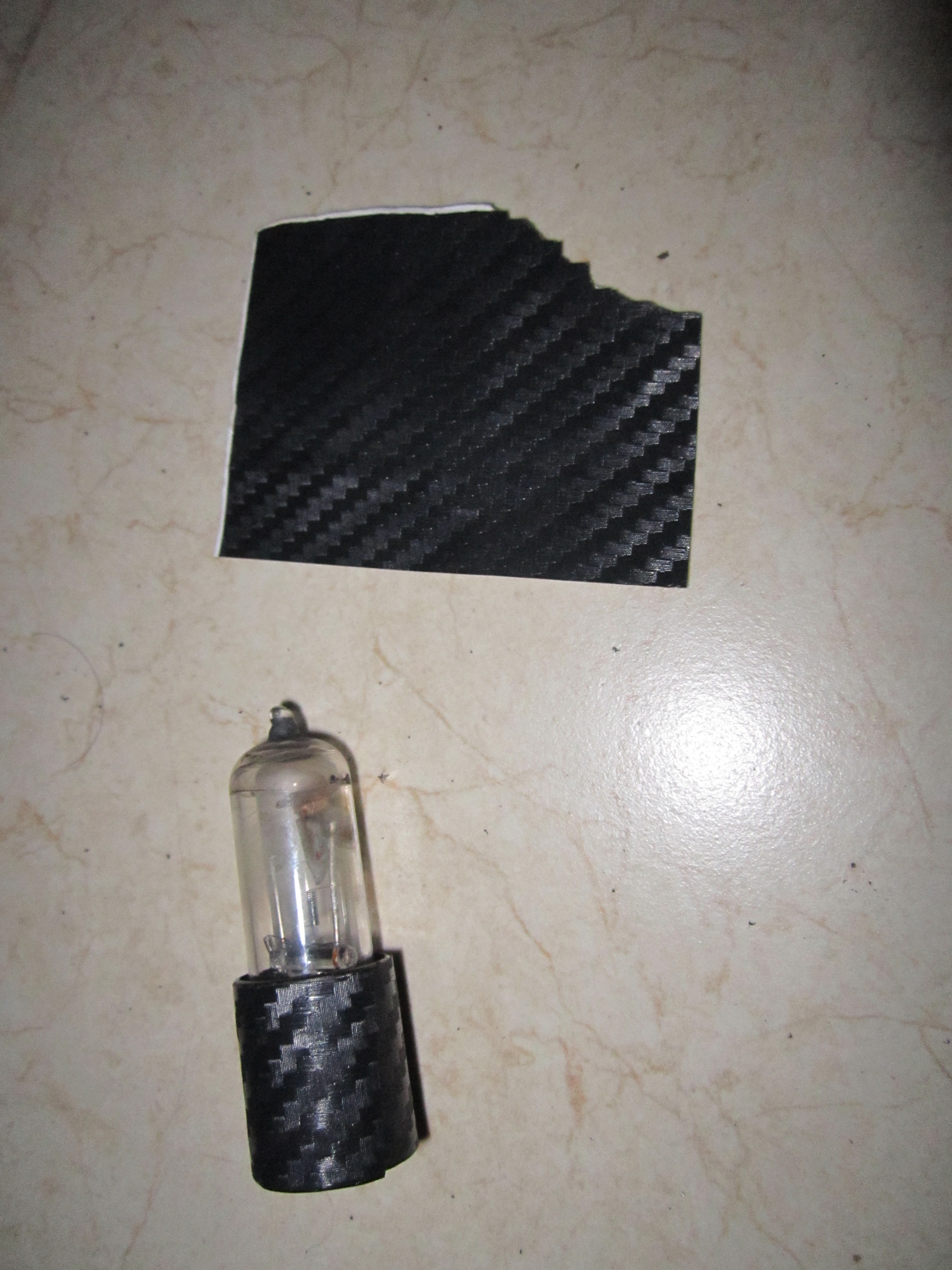

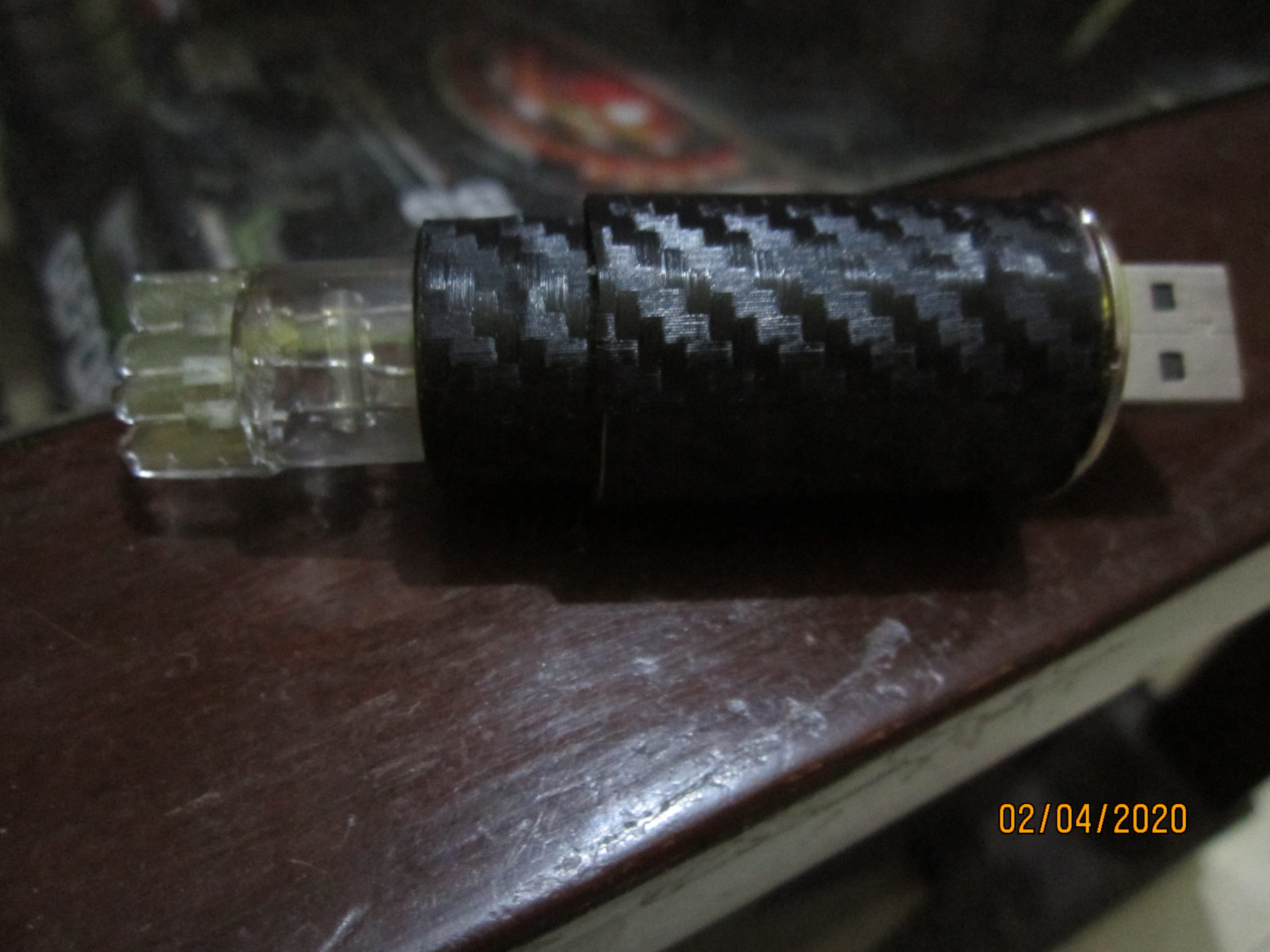

- finally wrap all with sticker and there you go....usb ready
![IMG_2499.JPG](/proxy/?url=https://content.instructables.com/FLL/TBXB/K8HKFDSJ/FLLTBXBK8HKFDSJ.jpg&filename=IMG_2499.JPG)
![IMG_2519.JPG](/proxy/?url=https://content.instructables.com/FAI/XM0M/K8HKI1D5/FAIXM0MK8HKI1D5.jpg&filename=IMG_2519.JPG)
![IMG_2521.JPG](/proxy/?url=https://content.instructables.com/FSY/999W/K8J0CMIO/FSY999WK8J0CMIO.jpg&filename=IMG_2521.JPG)
CONCLUSION
- i broke 2 bulbs in this preparation.
- so in case if you broke one too just put the bulb in opposite direction..it will also look cool..
- sorry for my bad english
