Glow in the Dark, Low Voltage Monitoring Station With USB and Fan
In November of 2022 I bought a 1961 Scad-A-Bout teardrop camper.
I had been planning to build a small camper from scratch for over 4 years, but this teardrop camper came up for sale in my area for a really good price and in fairly good condition. New tires, new rims, clean rust free fame and all of the electrical with plenty of fuses was done right. So, I decided to add a few extras that I have seen on newer teardrop campers that provides some nice features while out on our camping adventures.
- Having a USB port for charging phones and other electronics would be nice.
- A way to measure the voltage on the main battery would allow me to quickly see the state of charge of the camper battery.
- I also wanted to add a fan near the roof vents that has a switch to draw in fresh air.
- Since the car stereo already installed into the inside of the camper AND has an auxiliary input port, I thought it would be nice to add a input port so we could run our cell phone audio to our sound system.
Wanting all of those functions in one central location inside the camper, I looked around on line and either it didn't have everything I wanted or it would cost much more than I wanted to spend. So, I figured I would design and build the Voltage Monitoring Station, USB power, Audio input and fan control panel myself.
Using tinkerCAD I designed the panel that would hold all of the electronics.
I drew up a schematic, printed the panel with Glow-in-the-Dark PLA on my 3D printer and built up my panel.
Purchasing the electronics from " https://theelectronicgoldmine.com/" I was able to put together a 'bill of materials' that was a good price and allowed me all the features I wanted.
The next few steps detail the build.
Supplies
Bill of materials:
Electronics:
Miniature 2.5VDC to 30VDC red three digit voltmeter
Resistor, 1K Ohm
Resistor, 330 Ohm
5 Volt DC regulator 7805
2 - 0.1 micro Farad capacitor
Computer fan
2- switches, single pole, single throw
2 USB ports
Wire, as required, red 14 gauge
Wire, as required, black 14 gauge
Red LED
Blue LED
1/8 inch audio jack
Push button switch
Heat shrink
Fuse and fuse holder; 2 AMP spade fuse
Wood:
MDF 3/8 sheet cut to fit, approximately 13 inches by 5 inches
Other items and tools needed:
PLA glow in the dark, as required
Access to a 3D printer
Old map
jig saw
drill
1 inch drill bit
Mod Podge glue
solder
solder iron
Hot glue gun
micrometer
3 inch hole saw
Schematic and CAD File
Using simple components I drew up a fairly easy schematic for the control panel. A fuse, a power switch that controls the entire panel is the input section from the 12 Volt Camper power.
I 3D printed the panel out of glow in the dark PLA and measured all of the components so that they would all have a solid connection that would be easy to see in the dark of the camper.
I used a black permanent marker to go over the raised letters on the panel so you can read each function of the panel.
Fit Components and Solder

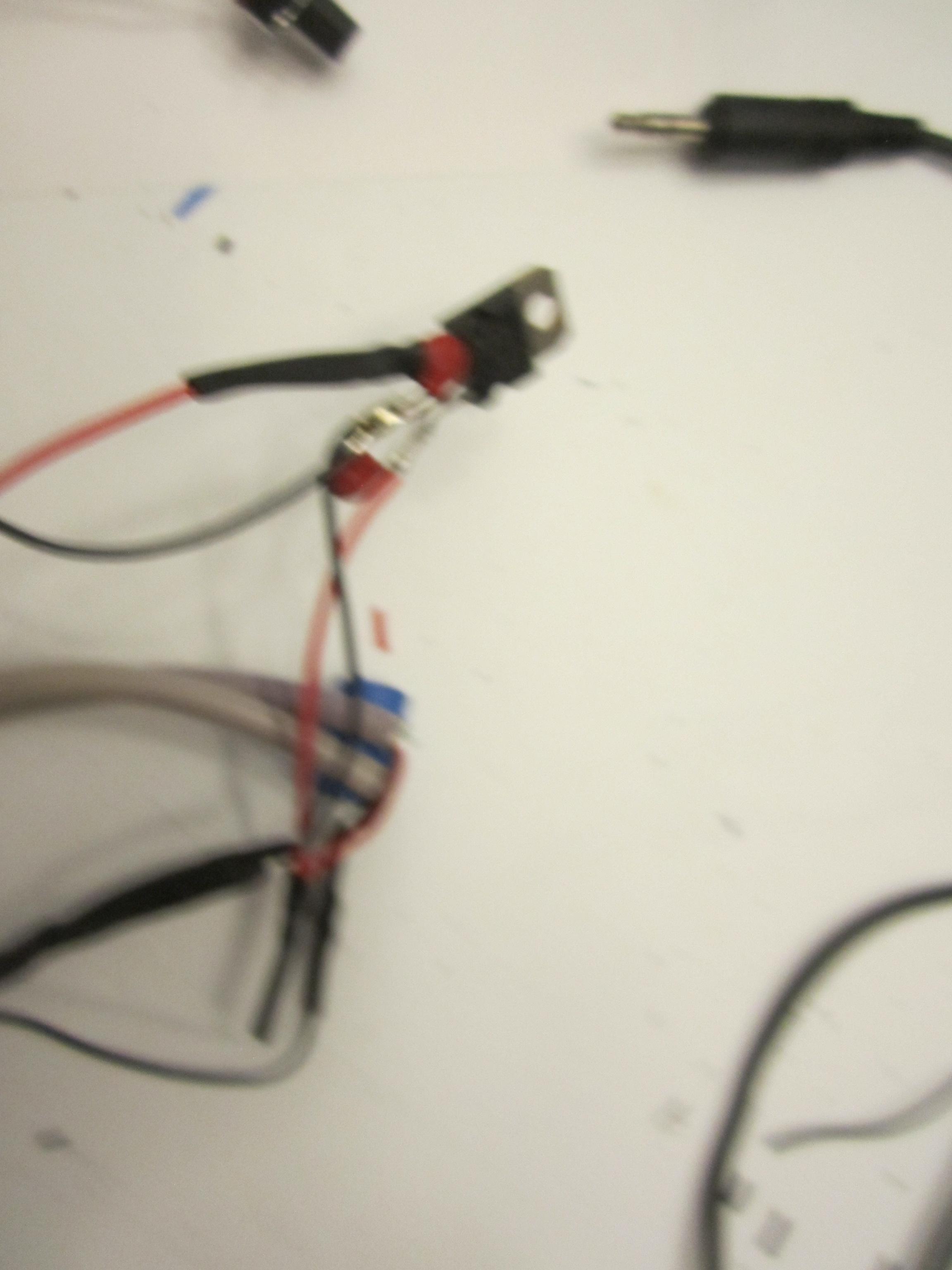

Soldering the components and wires I used my schematics to correctly wire each point. I used heat shrink to cover areas that wires might short out other components.
Cut Out Wood Panel and Fan Hole
The specific size for my mounting area was measured and I cut out a section of MDF and drilled holes for the fan and the cut out for the glow in the dark panel.
I used screws and hot glue to mount each component into the panel and the panel into the small cut out in the board.
Paint or Decorate
I did not get a photo before I glued the paper map to the wood board. But this could have been skipped if there is no need to decorate the panel. You could paint it, but I have a theme in the camper that I have been using old maps to glue on counter, cupboard doors, and now the panel. You want to do this prior to attaching the fan and the electronics, as it makes it much easier to work on.
Verify All Functions Operational and Install
I used metal brackets and small screws to mount the panel.
Mated the fuse wire to the power bar of the camper power and the ground wire to the ground bar.

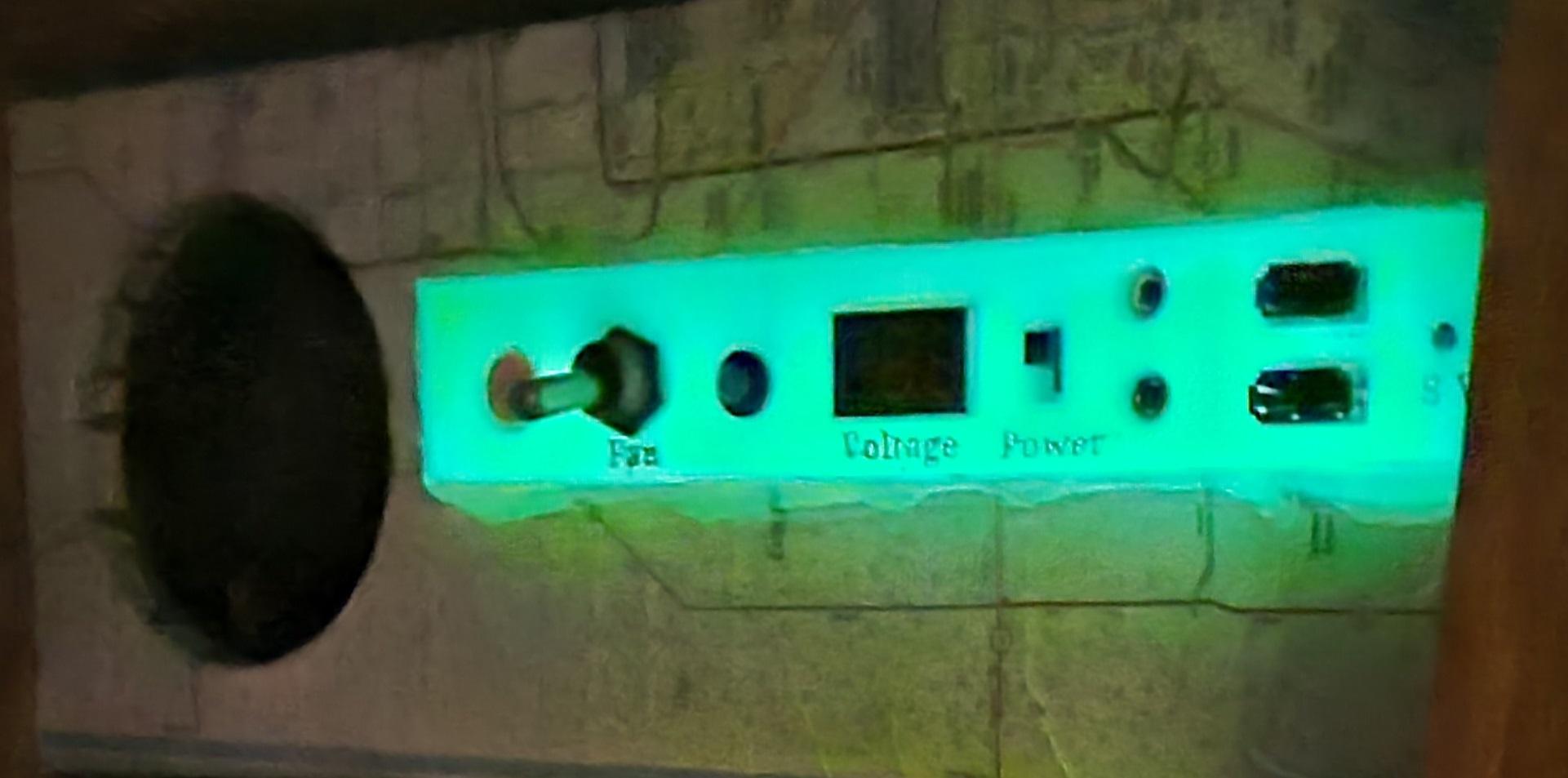

I closed the doors and verified the glow was not too over powering and let my eyes adjust, I know over time that the glow will reduce and shouldn't be too big of a distraction in the sleeping area.
The reason for the fan, directly above the fan in the roof are three small exhaust holes covered by screens and will allow the air circulation to be a bit more controllable by turning on or off the fan.
