Glow in Dark Ring & Pendant
![20220123_142053.jpg](/proxy/?url=https://content.instructables.com/FNJ/Q7DY/KYPUHT4T/FNJQ7DYKYPUHT4T.jpg&filename=20220123_142053.jpg)
![20220123_142118.jpg](/proxy/?url=https://content.instructables.com/FV1/JFCA/KYPUHT59/FV1JFCAKYPUHT59.jpg&filename=20220123_142118.jpg)
![20220123_141608.jpg](/proxy/?url=https://content.instructables.com/FH3/CZ85/KYPUHUSU/FH3CZ85KYPUHUSU.jpg&filename=20220123_141608.jpg)
Hello makers.
Recently I bought Glow in dark Powder for some other project.
after that project completion, I have extra powder for use.
Then idea strike in mind to use that powder in making of Glow in dark jewelry.
so, i make this Ring and pendant set using that Material.
Now begin to make this Instructables.
Gather all Supplies and Let's start making.
Supplies
![download (49).jpg](/proxy/?url=https://content.instructables.com/F0Q/J8EJ/KYPUHTI5/F0QJ8EJKYPUHTI5.jpg&filename=download (49).jpg)
![download (53).jpg](/proxy/?url=https://content.instructables.com/F5C/PU0U/KYPUHTKA/F5CPU0UKYPUHTKA.jpg&filename=download (53).jpg)
![download (48).jpg](/proxy/?url=https://content.instructables.com/FTB/U8HG/KYPUHTHI/FTBU8HGKYPUHTHI.jpg&filename=download (48).jpg)
![download (50).jpg](/proxy/?url=https://content.instructables.com/FM9/P3PA/KYPUHTIO/FM9P3PAKYPUHTIO.jpg&filename=download (50).jpg)
![download (51).jpg](/proxy/?url=https://content.instructables.com/FF4/ITAU/KYPUHTJ6/FF4ITAUKYPUHTJ6.jpg&filename=download (51).jpg)
![download (52).jpg](/proxy/?url=https://content.instructables.com/FNH/JKJ5/KYPUHTJP/FNHJKJ5KYPUHTJP.jpg&filename=download (52).jpg)
![download (54).jpg](/proxy/?url=https://content.instructables.com/F7D/L6U9/KYPUHTL6/F7DL6U9KYPUHTL6.jpg&filename=download (54).jpg)
1> Plywood or Solid wood
2> Cutting tool
3> Surface finish Tools( die grinder set ,Sand Papers)
4> Wood Polish
5> Glow in dark powder
6> colour Acrylic Flakes
7> Feviquick adhesive / Fevicol Adhesive
8>Paper cutter
Preparing Wooden Piece for Ring Shape
![20220106_104324.jpg](/proxy/?url=https://content.instructables.com/F2V/4NKX/KYPUHTO6/F2V4NKXKYPUHTO6.jpg&filename=20220106_104324.jpg)
![20220108_121158.jpg](/proxy/?url=https://content.instructables.com/FWO/7W1D/KYPUHTOU/FWO7W1DKYPUHTOU.jpg&filename=20220108_121158.jpg)

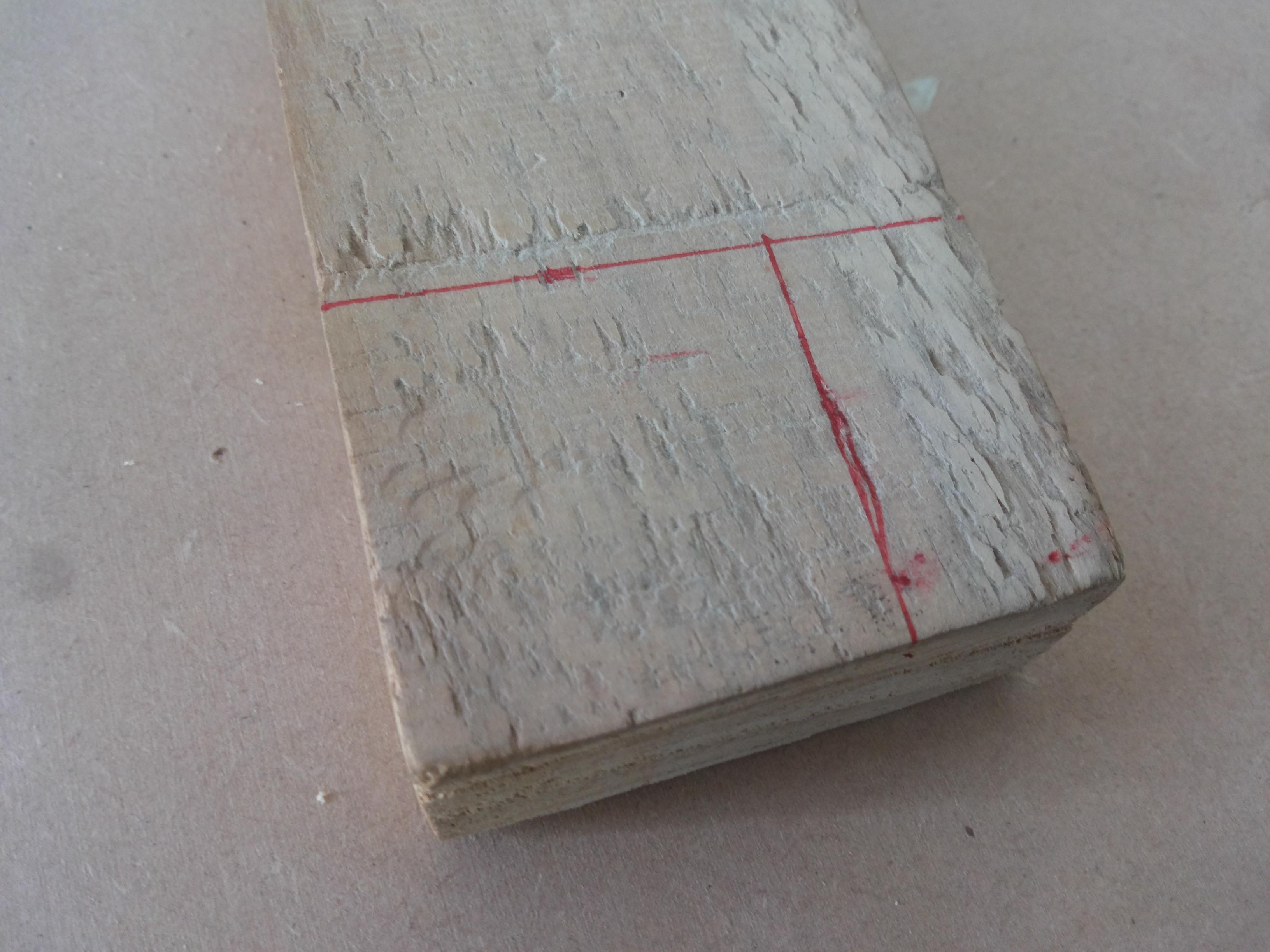

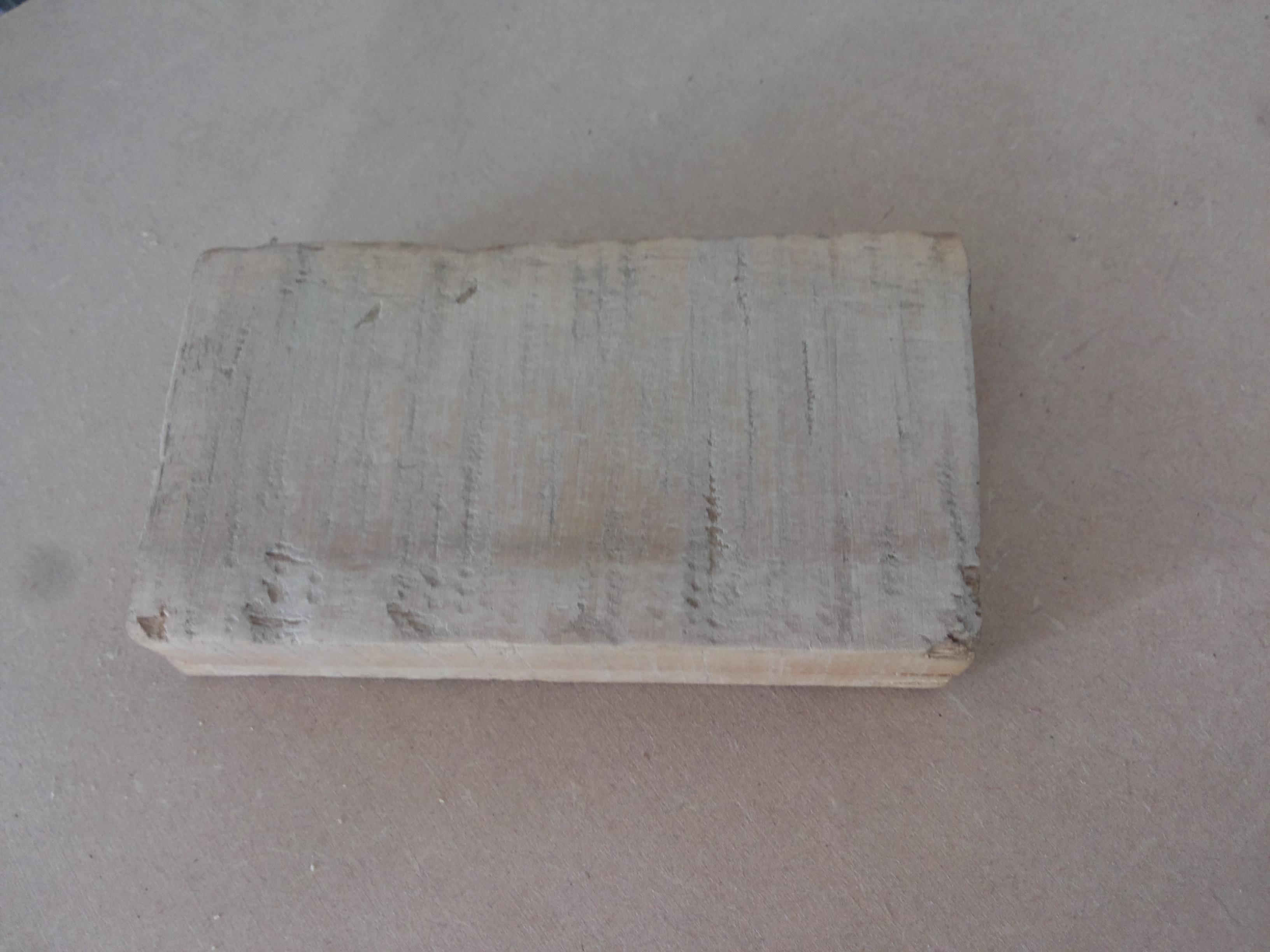

- Cut Appropriate size of wooden Piece from Wooden block .
- After separating the block , check Flatness of all sides.
- If it is not flat, use a file to flatten surfaces.
Measurement for Internal Diameter of Ring.
![download (55).jpg](/proxy/?url=https://content.instructables.com/FK5/Y1FC/KYPUHTPJ/FK5Y1FCKYPUHTPJ.jpg&filename=download (55).jpg)
- First take your finger measurement for the internal diameter of the Ring. Example : my finger diameter is 16mm .
- Draw a circle of 16 mm from the centre of the block. This indicates we need a 19 mm hole for perfect fit in our fingers.
Mark Outer Diameter and Remove Material.
![20220108_121211.jpg](/proxy/?url=https://content.instructables.com/FQK/OG0C/KYPUHTR9/FQKOG0CKYPUHTR9.jpg&filename=20220108_121211.jpg)
![20220108_122336.jpg](/proxy/?url=https://content.instructables.com/FTO/KPH3/KYPUHTRA/FTOKPH3KYPUHTRA.jpg&filename=20220108_122336.jpg)
![20220108_151526.jpg](/proxy/?url=https://content.instructables.com/FVB/RAVG/KYPUHTRB/FVBRAVGKYPUHTRB.jpg&filename=20220108_151526.jpg)

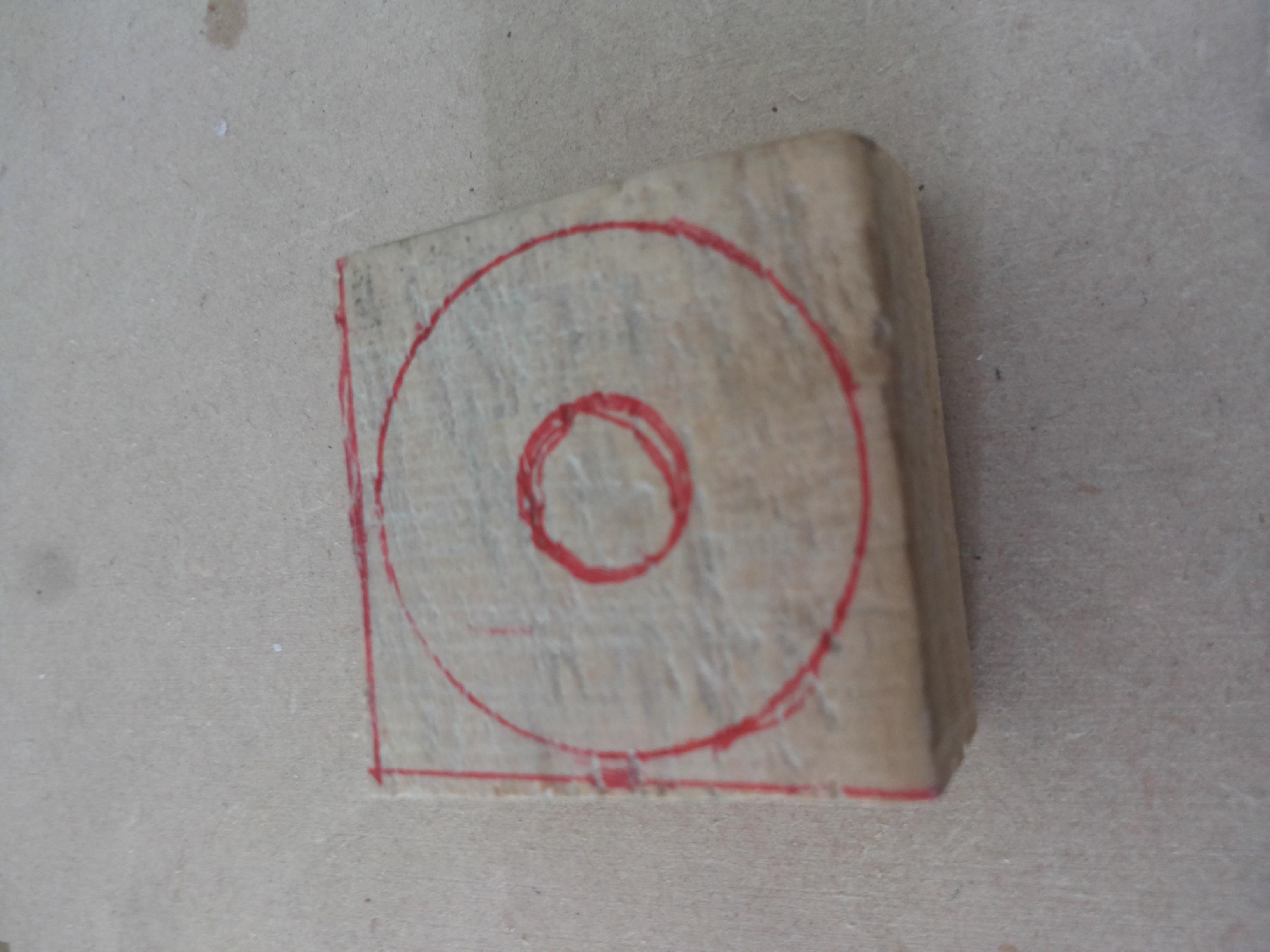

- Take same centre of internal circle and draw outer circle of diameter of 26 mm .(it affects ring thickness.Draw as per your need)
- Outer circle is out ring boundary, other material outside of outer circle will be removed by using wooden File or Rough Sanding or Cutting.
Make an Internal Hole.
![20220108_173607.jpg](/proxy/?url=https://content.instructables.com/FO2/BQIH/KYPUHTSG/FO2BQIHKYPUHTSG.jpg&filename=20220108_173607.jpg)
![20220109_102837.jpg](/proxy/?url=https://content.instructables.com/FXY/QN4X/KYPUHTSP/FXYQN4XKYPUHTSP.jpg&filename=20220109_102837.jpg)
![20220109_102843.jpg](/proxy/?url=https://content.instructables.com/FOF/RMJ9/KYPUHTSQ/FOFRMJ9KYPUHTSQ.jpg&filename=20220109_102843.jpg)
![20220109_112718.jpg](/proxy/?url=https://content.instructables.com/F4M/Z6LE/KYPUHTS7/F4MZ6LEKYPUHTS7.jpg&filename=20220109_112718.jpg)

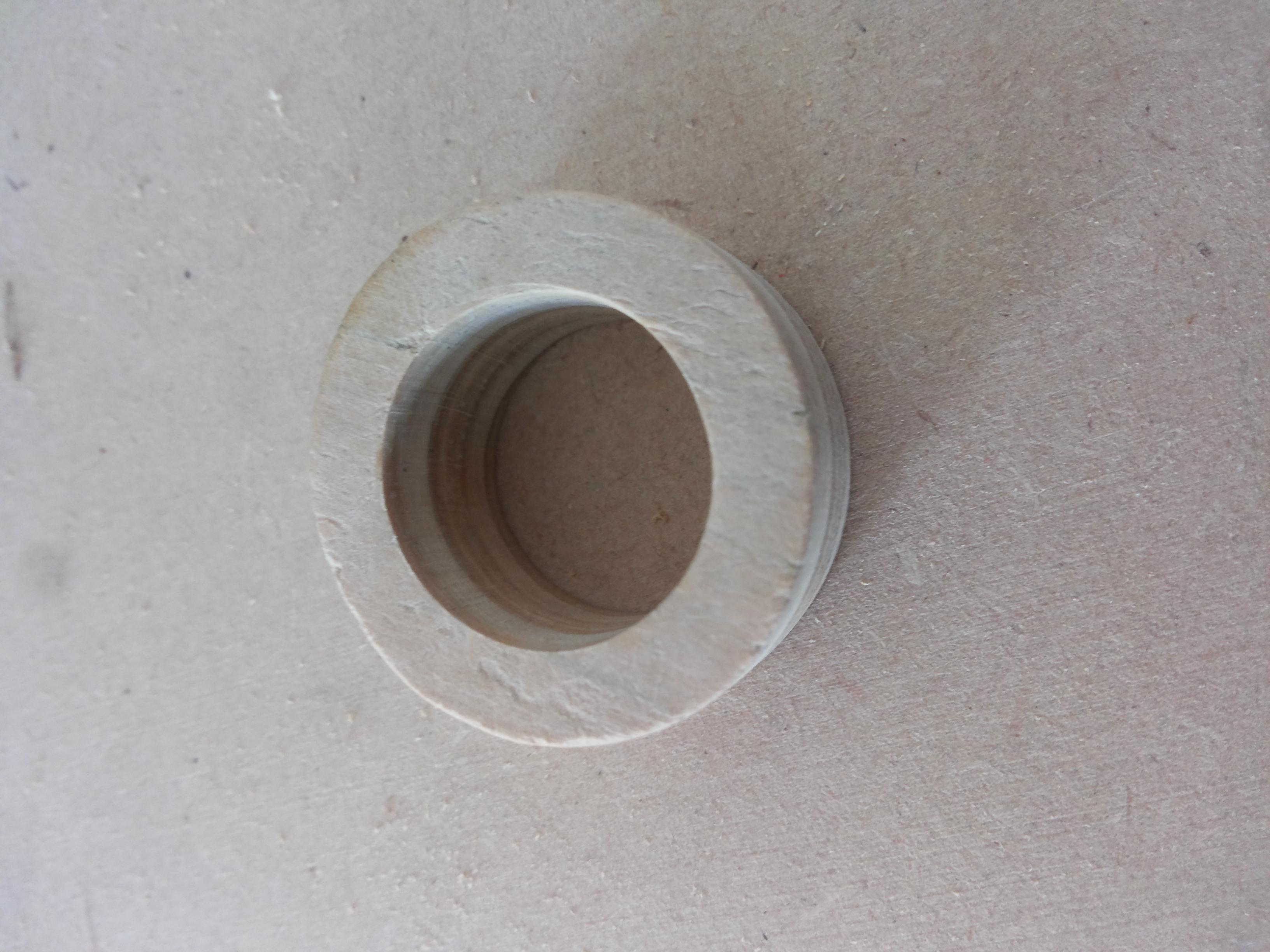

- Starting From smaller drill like 3 mm to drill the internal circle.
- Gradually increase drill size till 16 mm.
- If you don't have a 16 mm drill in your Set ,use a Die grinder to remove material .
Making Groove on Top Surface
![20220109_120929.jpg](/proxy/?url=https://content.instructables.com/FAL/B6YL/KYPUHTVP/FALB6YLKYPUHTVP.jpg&filename=20220109_120929.jpg)
![20220109_113922.jpg](/proxy/?url=https://content.instructables.com/F14/75FP/KYPUHTW0/F1475FPKYPUHTW0.jpg&filename=20220109_113922.jpg)
![20220109_115054.jpg](/proxy/?url=https://content.instructables.com/F3C/82I1/KYPUHTW9/F3C82I1KYPUHTW9.jpg&filename=20220109_115054.jpg)
![20220109_115103.jpg](/proxy/?url=https://content.instructables.com/F31/4WLE/KYPUHTWA/F314WLEKYPUHTWA.jpg&filename=20220109_115103.jpg)

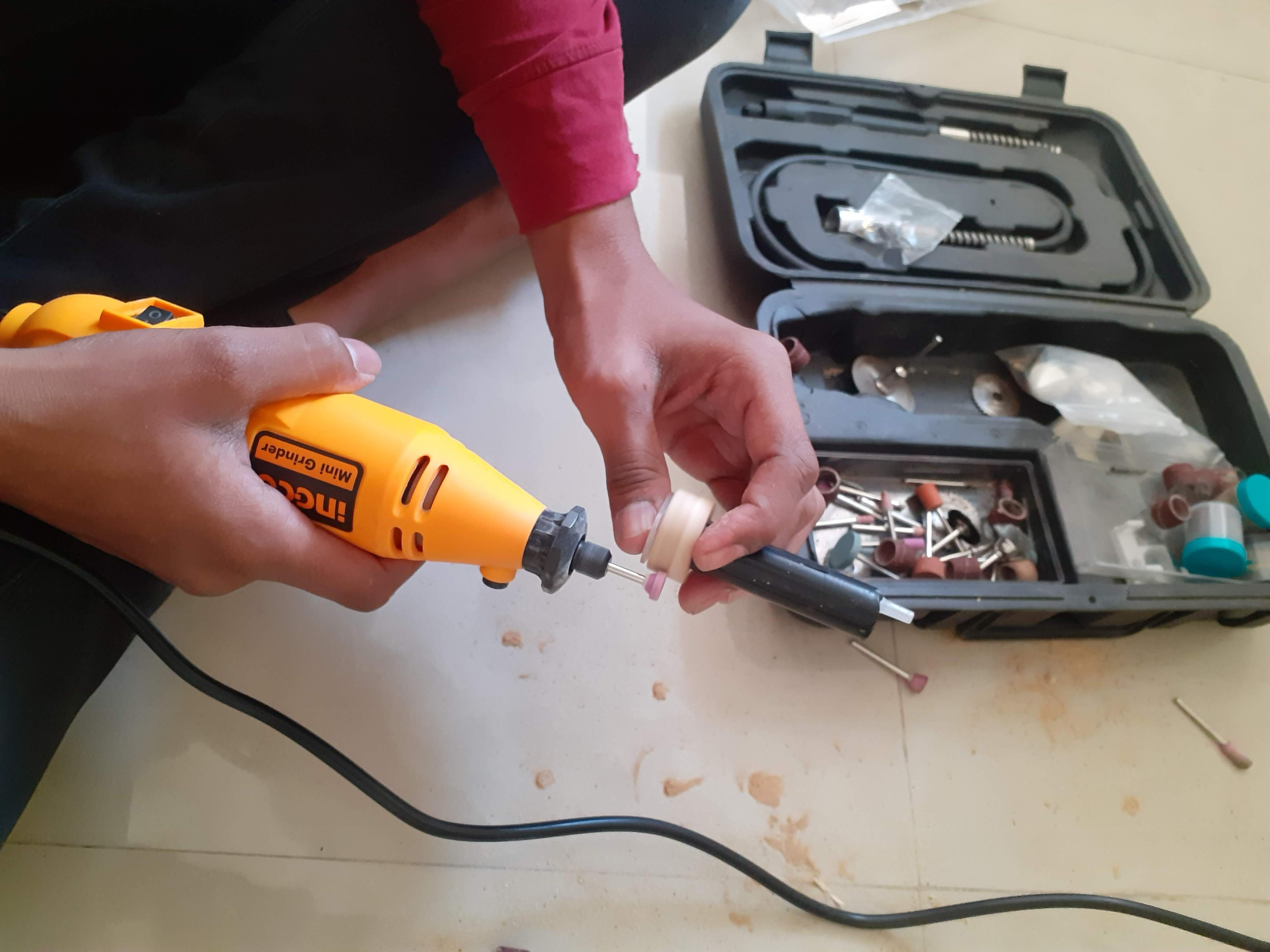

- I use Die grinder and a grinding tool for making a groove on the top surface.
- Grinding Tool diameter is 10mm and thickness of cutting surface is 5mm.
- For Finer Semi circular groove ,I use Metal Spherical Grooving tool to make an Exact semi spherical Groove .
Make Outer Ring Grooves
![20220109_134556.jpg](/proxy/?url=https://content.instructables.com/F0F/M3PF/KYPUHTZK/F0FM3PFKYPUHTZK.jpg&filename=20220109_134556.jpg)
![20220109_133025.jpg](/proxy/?url=https://content.instructables.com/FKU/VRCT/KYPUHTZJ/FKUVRCTKYPUHTZJ.jpg&filename=20220109_133025.jpg)
![20220109_134559.jpg](/proxy/?url=https://content.instructables.com/FSR/5ZMB/KYPUHTZL/FSR5ZMBKYPUHTZL.jpg&filename=20220109_134559.jpg)
![20220109_134608.jpg](/proxy/?url=https://content.instructables.com/FE5/ZI52/KYPUHTZM/FE5ZI52KYPUHTZM.jpg&filename=20220109_134608.jpg)
![20220109_134609.jpg](/proxy/?url=https://content.instructables.com/FEZ/9S4G/KYPUHTZN/FEZ9S4GKYPUHTZN.jpg&filename=20220109_134609.jpg)
![20220109_135700 - Copy.jpg](/proxy/?url=https://content.instructables.com/F0A/TLCH/KYPUHTZO/F0ATLCHKYPUHTZO.jpg&filename=20220109_135700 - Copy.jpg)
![20220109_132125.jpg](/proxy/?url=https://content.instructables.com/FRR/PQRY/KYPUHTZP/FRRPQRYKYPUHTZP.jpg&filename=20220109_132125.jpg)
![20220109_132926.jpg](/proxy/?url=https://content.instructables.com/FWJ/FZT6/KYPUHTZQ/FWJFZT6KYPUHTZQ.jpg&filename=20220109_132926.jpg)
![20220109_133016.jpg](/proxy/?url=https://content.instructables.com/FRS/HTC5/KYPUHTZS/FRSHTC5KYPUHTZS.jpg&filename=20220109_133016.jpg)

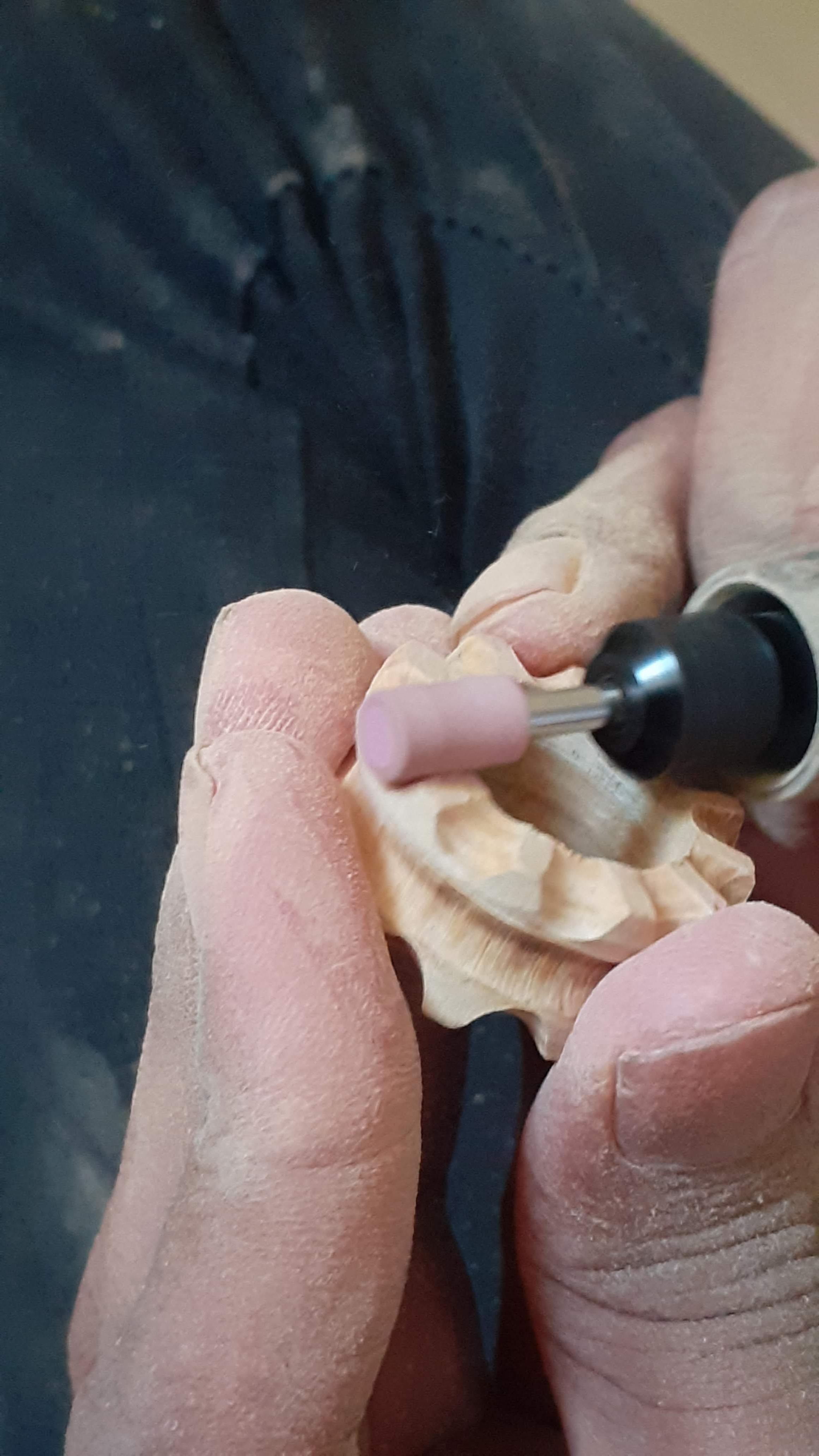

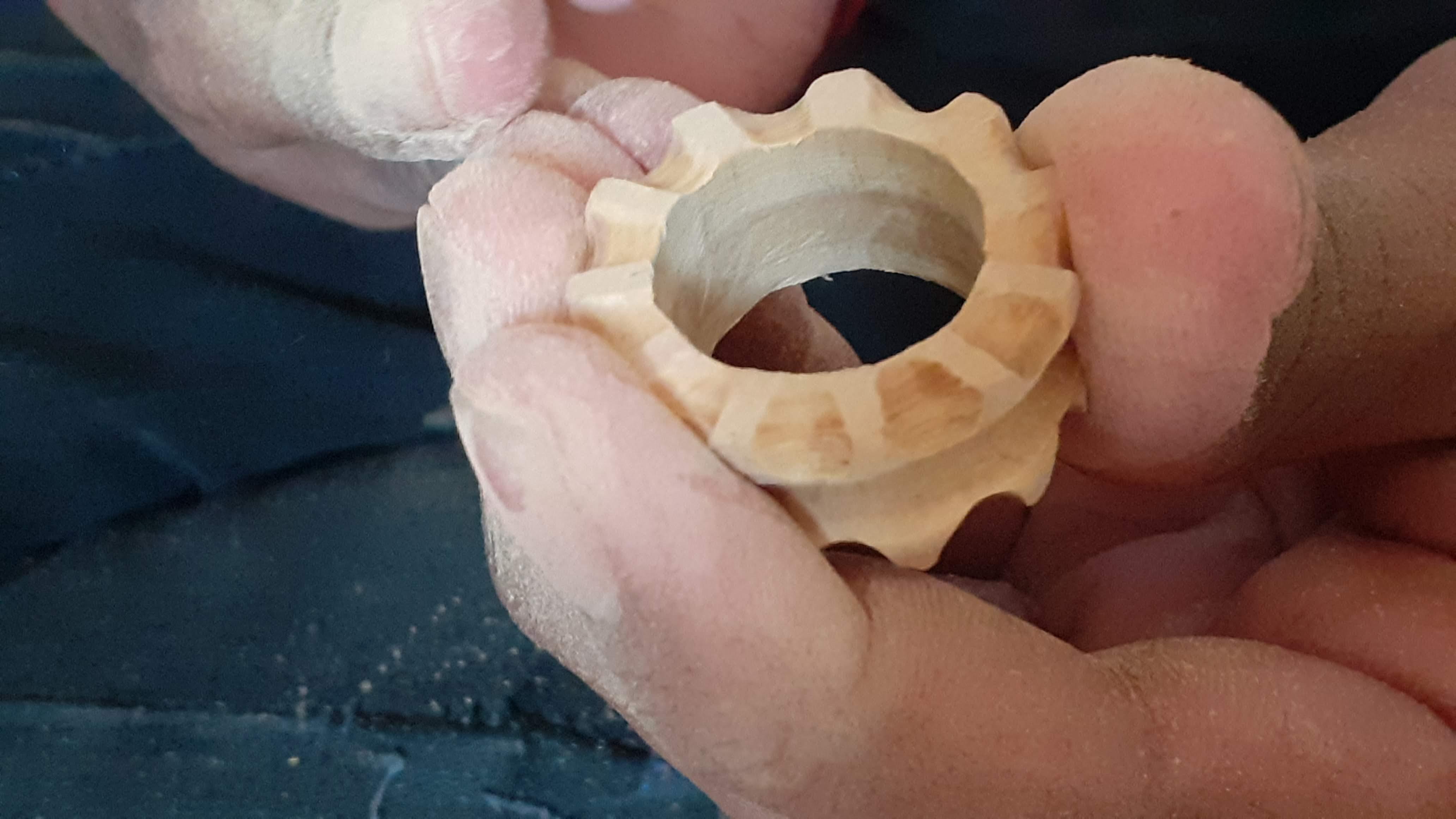

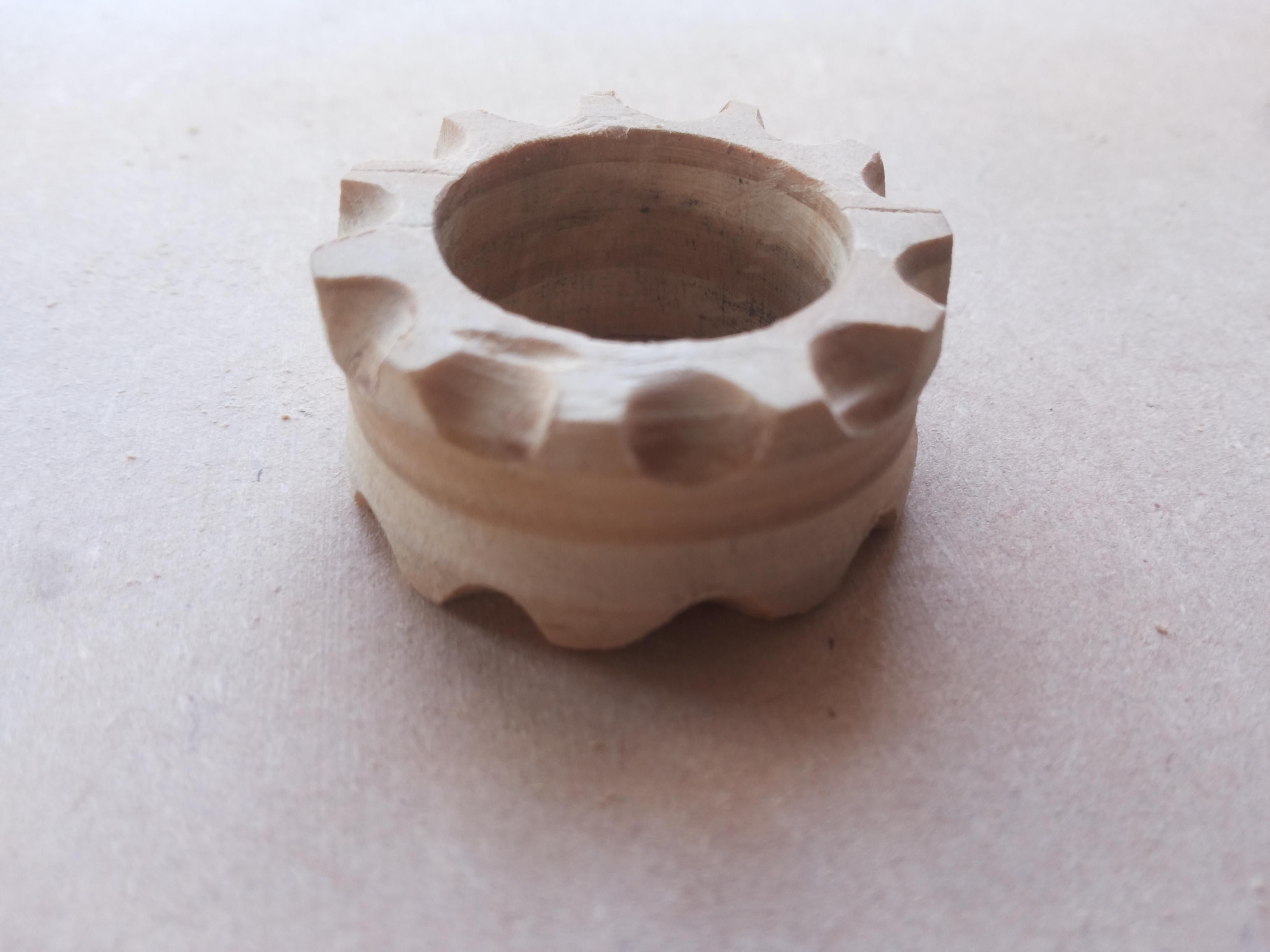

- For the outer groove I use a cylindrical grinding tool.
- Use cylindrical tool orientation 45 degree to groove on outer Grooves.
- Make 10 to 12 grooves as per your tool & ring size.
Acrylic Flakes + Glow in Dark Material
![20220110_103732.jpg](/proxy/?url=https://content.instructables.com/F49/03RO/KYPUHU1R/F4903ROKYPUHU1R.jpg&filename=20220110_103732.jpg)
![20220109_162920.jpg](/proxy/?url=https://content.instructables.com/F6N/9JRE/KYPUHU1W/F6N9JREKYPUHU1W.jpg&filename=20220109_162920.jpg)
![20220109_162609 - Copy (2).jpg](/proxy/?url=https://content.instructables.com/F0M/AU5E/KYPUHU1U/F0MAU5EKYPUHU1U.jpg&filename=20220109_162609 - Copy (2).jpg)
![20220110_115348.jpg](/proxy/?url=https://content.instructables.com/FW3/2BMM/KYPUHU1T/FW32BMMKYPUHU1T.jpg&filename=20220110_115348.jpg)
![20220109_162650.jpg](/proxy/?url=https://content.instructables.com/FH5/17C7/KYPUHU1V/FH517C7KYPUHU1V.jpg&filename=20220109_162650.jpg)
![20220110_115337.jpg](/proxy/?url=https://content.instructables.com/FW4/XNH7/KYPUHU1S/FW4XNH7KYPUHU1S.jpg&filename=20220110_115337.jpg)
![20220109_175935.jpg](/proxy/?url=https://content.instructables.com/FUV/I11S/KYPUHU1X/FUVI11SKYPUHU1X.jpg&filename=20220109_175935.jpg)
![20220109_185018.jpg](/proxy/?url=https://content.instructables.com/FS7/EFPG/KYPUHU1Y/FS7EFPGKYPUHU1Y.jpg&filename=20220109_185018.jpg)
- For acrylick flakes I use a paper cutter to make small pieces from acrylic flakes.
- You can purchase glow in dark powder from Hardware stores or online sites.

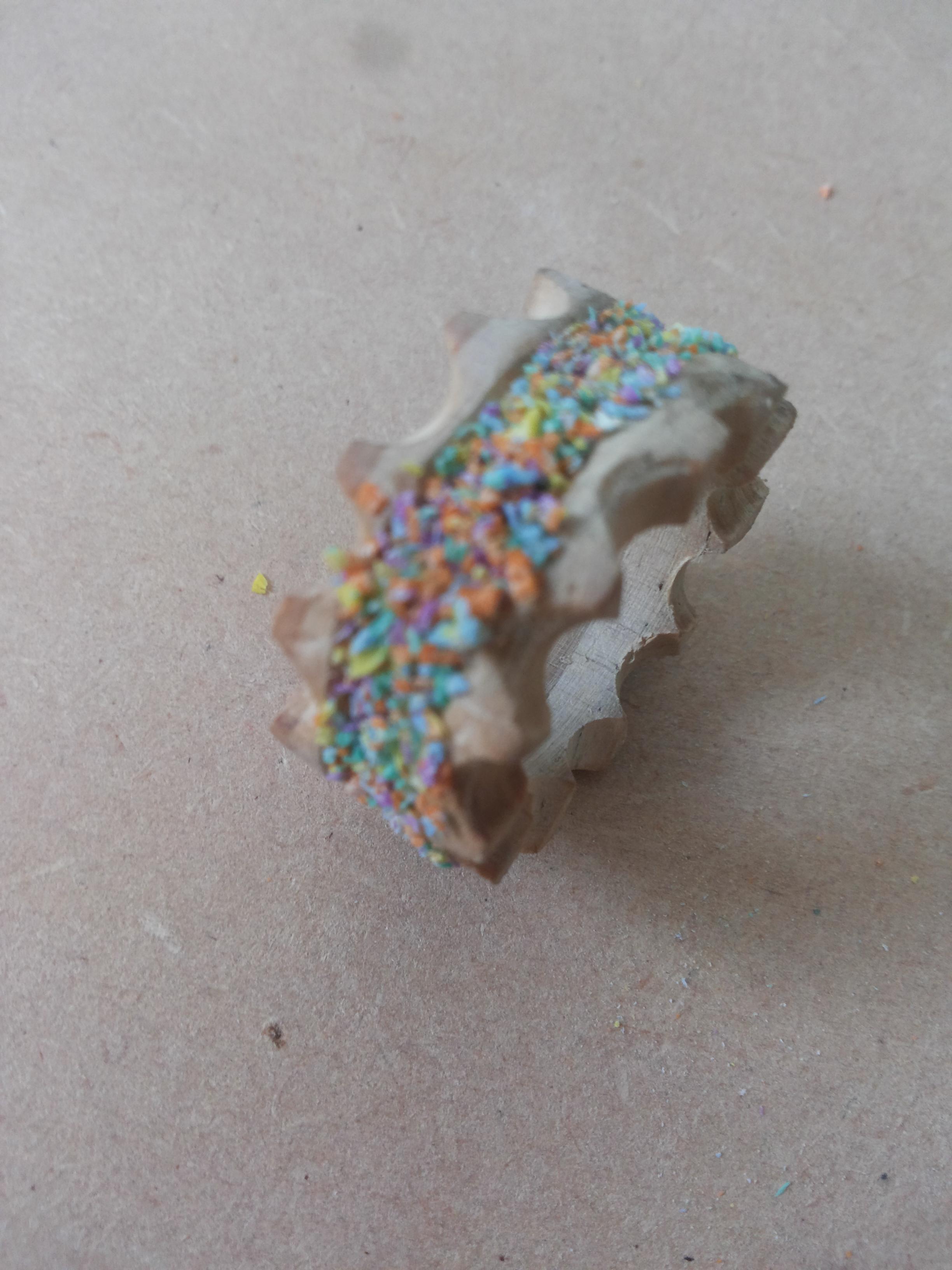

- I mix up Acrylic Flakes and Glow in dark material with Feviqick adhesive to fill in grooves.
- This mixture takes time to be Solid. place in sunlight for faster solidification.
Final Finish
![20220111_095939.jpg](/proxy/?url=https://content.instructables.com/F5X/FCWQ/KYPUHU3M/F5XFCWQKYPUHU3M.jpg&filename=20220111_095939.jpg)
- For final Finish i use 400 grade sandpaper to sand out extra material and make proper shape of ring.
- Apply Wooden polish for better finish of wood .
- Wait for wooden Polish to dry.
- Your Ring is ready to wear.
Make Pendent
![20220110_124632.jpg](/proxy/?url=https://content.instructables.com/FDN/88FH/KYPUHU5I/FDN88FHKYPUHU5I.jpg&filename=20220110_124632.jpg)
![20220110_124639.jpg](/proxy/?url=https://content.instructables.com/FD8/M1O0/KYPUHU5J/FD8M1O0KYPUHU5J.jpg&filename=20220110_124639.jpg)
![20220110_125028.jpg](/proxy/?url=https://content.instructables.com/FO4/EGIU/KYPUHU5K/FO4EGIUKYPUHU5K.jpg&filename=20220110_125028.jpg)
![20220110_125335.jpg](/proxy/?url=https://content.instructables.com/FB3/Q79Y/KYPUHU5L/FB3Q79YKYPUHU5L.jpg&filename=20220110_125335.jpg)
![20220110_154524.jpg](/proxy/?url=https://content.instructables.com/F1Y/UGFK/KYPUHU5M/F1YUGFKKYPUHU5M.jpg&filename=20220110_154524.jpg)
![20220110_154526.jpg](/proxy/?url=https://content.instructables.com/FJI/JTH4/KYPUHU5N/FJIJTH4KYPUHU5N.jpg&filename=20220110_154526.jpg)
![20220123_095138.jpg](/proxy/?url=https://content.instructables.com/FE3/PGL0/KYPUHU5O/FE3PGL0KYPUHU5O.jpg&filename=20220123_095138.jpg)
![20220123_104116.jpg](/proxy/?url=https://content.instructables.com/FQF/AL2E/KYPUHU5P/FQFAL2EKYPUHU5P.jpg&filename=20220123_104116.jpg)
![20220123_104148.jpg](/proxy/?url=https://content.instructables.com/FSF/YFTD/KYPUHU5G/FSFYFTDKYPUHU5G.jpg&filename=20220123_104148.jpg)
![20220123_110809.jpg](/proxy/?url=https://content.instructables.com/F2X/Y7TB/KYPUHULJ/F2XY7TBKYPUHULJ.jpg&filename=20220123_110809.jpg)

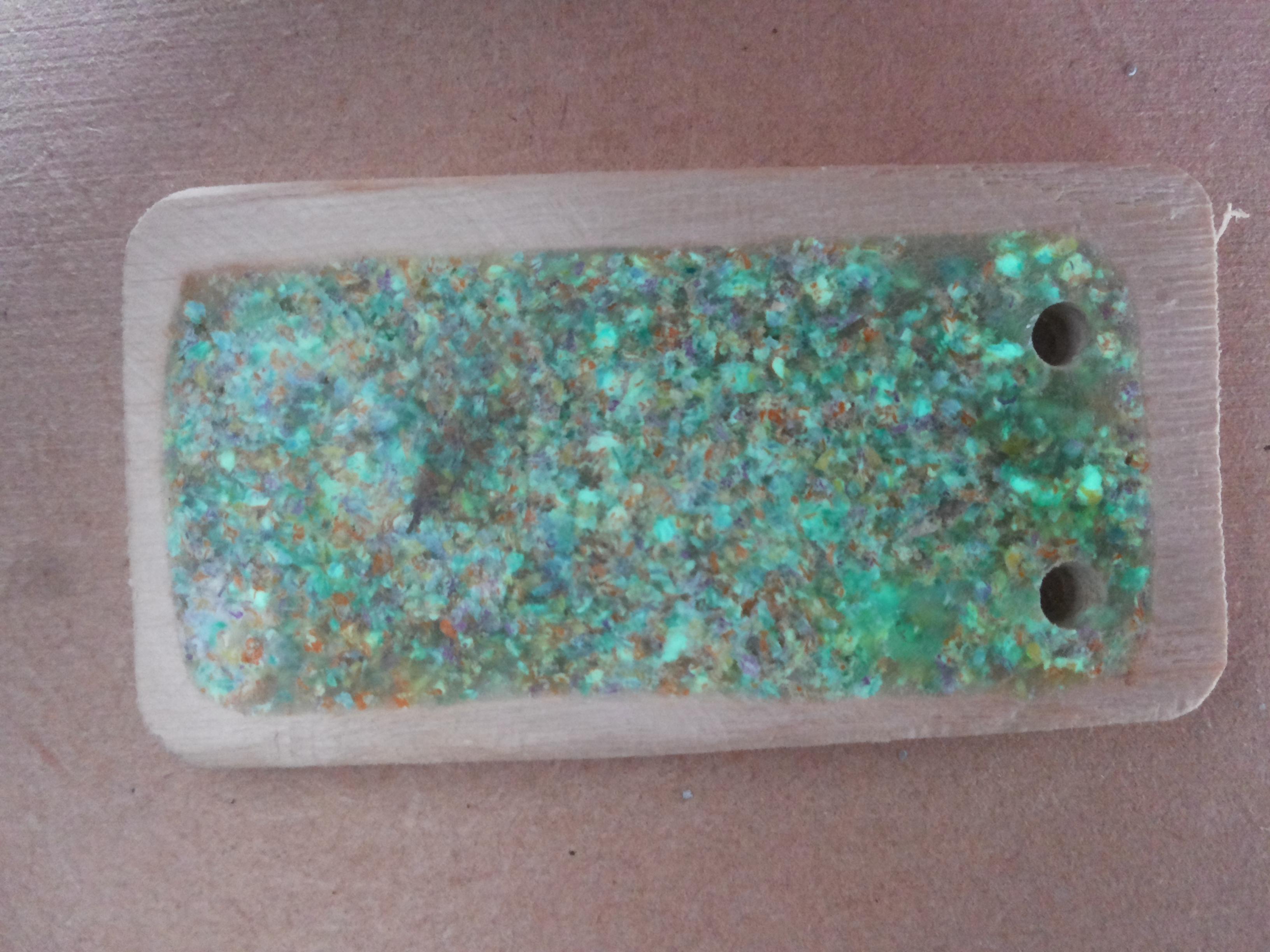

- For pendant cut rectangle pieces with dimension 58mm x 34mm x 6mm.
- Smoothen edges using Sand Papers.

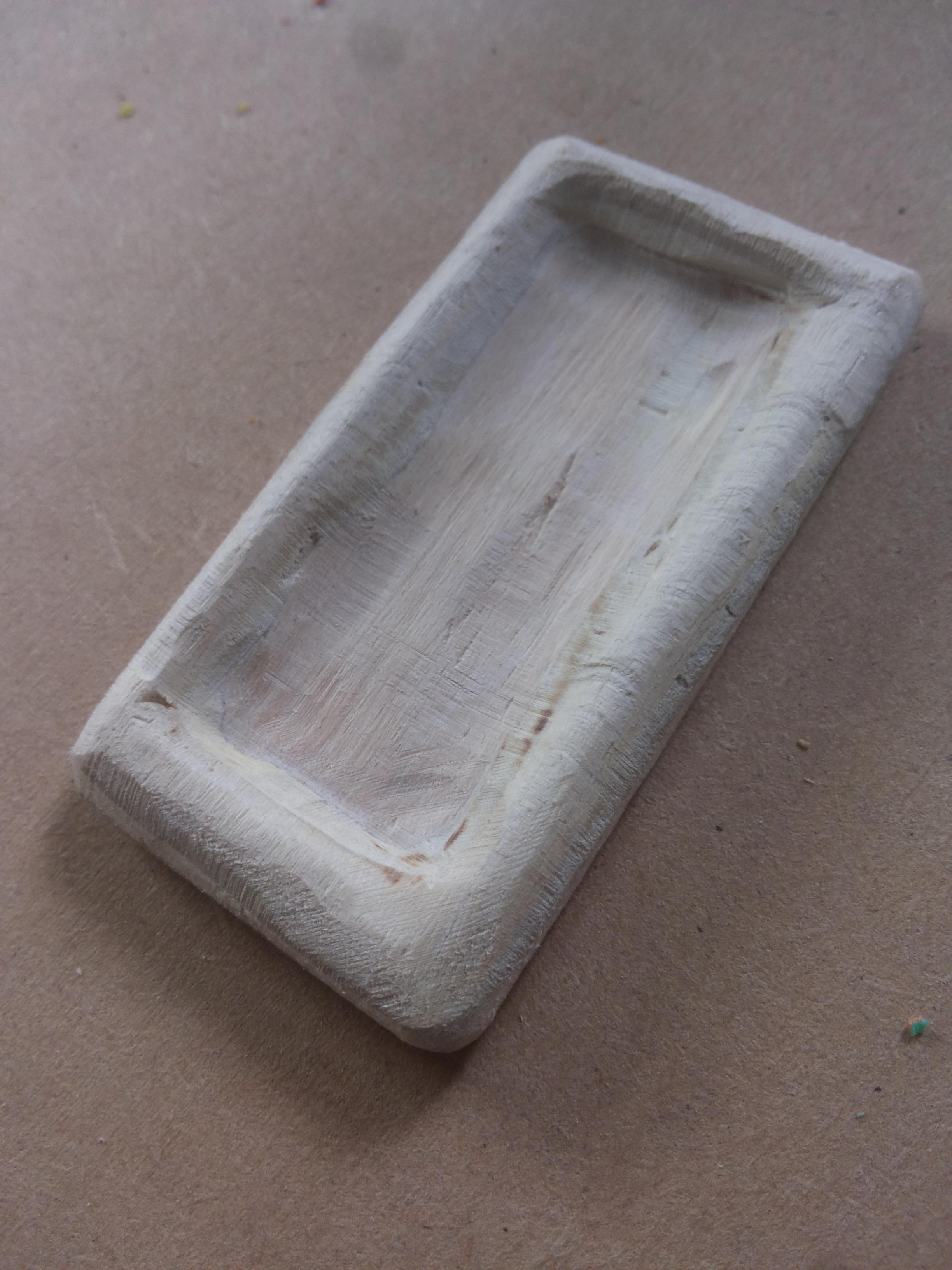

- Make inner depth to fill material of 3 mm and size of 45 x 28x3 mm using cutting tools.
- Use material made in step-7 to fill the inside pendant.
- It takes time to dry in sunlight.
- Make 2 drills side by side with a pendant for chain.
- For Final Finish Follow Step-8 .
- Use chain for wear pendant.

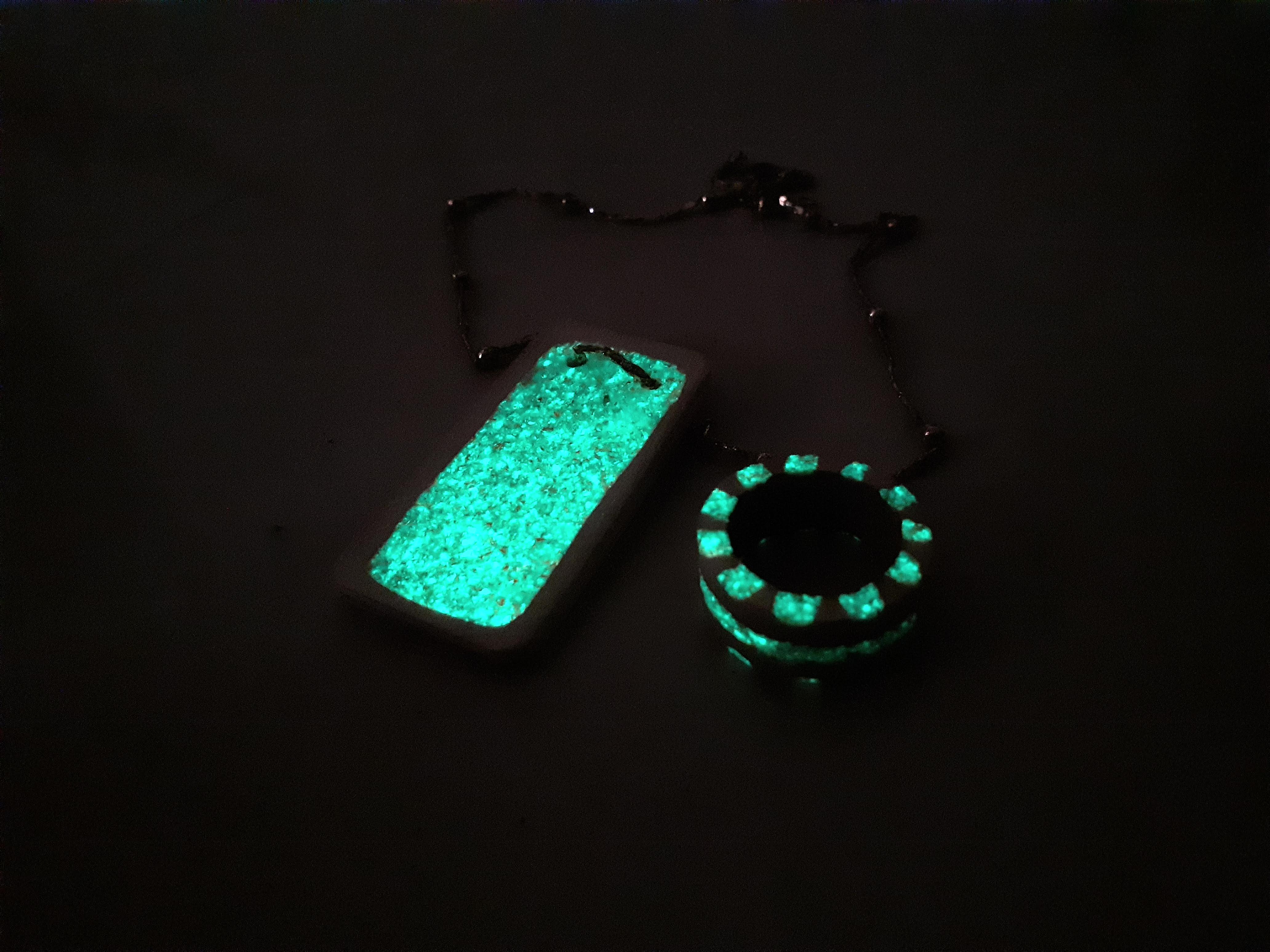

Final Product Testing
![20220123_141456.jpg](/proxy/?url=https://content.instructables.com/FQY/VBVK/KYPUHUNN/FQYVBVKKYPUHUNN.jpg&filename=20220123_141456.jpg)
![20220123_142053.jpg](/proxy/?url=https://content.instructables.com/FFF/89RZ/KYPUHUNR/FFF89RZKYPUHUNR.jpg&filename=20220123_142053.jpg)
![20220123_141329.jpg](/proxy/?url=https://content.instructables.com/F3A/C8O1/KYPUHUNU/F3AC8O1KYPUHUNU.jpg&filename=20220123_141329.jpg)
![20220123_141608.jpg](/proxy/?url=https://content.instructables.com/FGB/QHYB/KYPUHUNQ/FGBQHYBKYPUHUNQ.jpg&filename=20220123_141608.jpg)
![20220123_142118.jpg](/proxy/?url=https://content.instructables.com/FTK/8MN2/KYPUHUNS/FTK8MN2KYPUHUNS.jpg&filename=20220123_142118.jpg)
![20220123_112206.jpg](/proxy/?url=https://content.instructables.com/FHL/FIFQ/KYPUHUNT/FHLFIFQKYPUHUNT.jpg&filename=20220123_112206.jpg)
After Final Finish we get a Ring and Pendant ready to wear.
