Your attention to the cardboard cover on flashlights.

Task of cardboard nozzle on flash is to make possible high-quality shooting of small objects using a standard flash.

The principle of the cardboard nozzle on the flashlights is quite simple.

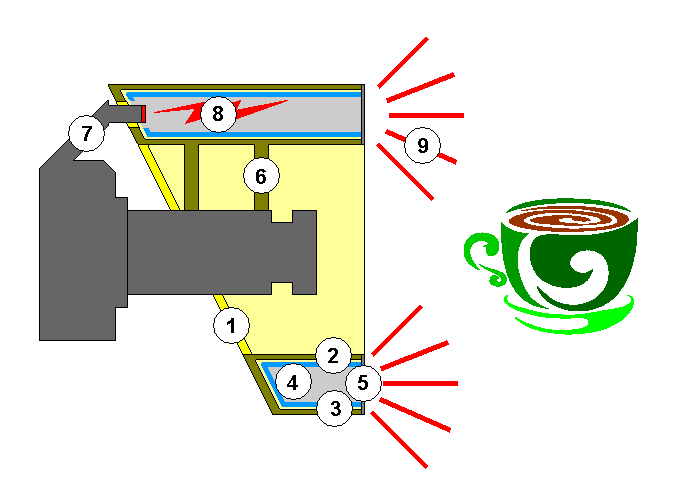

Around the camera lens of the camera, a cylindrical apparel is made consisting of an oblique slanted divider (1) inner cylinder (2) of the outer cylinder (3) and translucent paper spreader (5).

The inner space between cylinders (1) and (2) are covered with a reflective film (4).

At the top of the sloping wall (1) a hole is made where you can insert the default flashlight (7).

Then, when shooting with a flash, the light flux (8) is redistributed between mirrored walls and distributed to get on disperser (5) where finally diffusor (9), lighting the object of shooting equally from all angles.

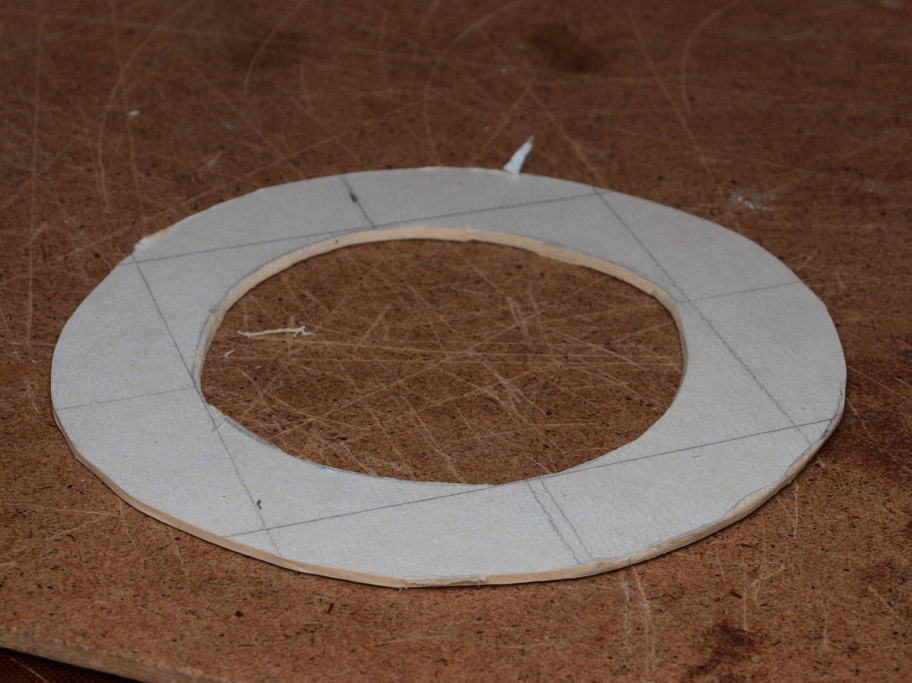

First of all, we make a basic ellipse

(the future sloping wall (1) starting from which, subsequently, entire installation will be carried out and will determine sizes of all components).

If you have several different lenses, we will fix the fixture so that it then did not interfere with the work of any of them

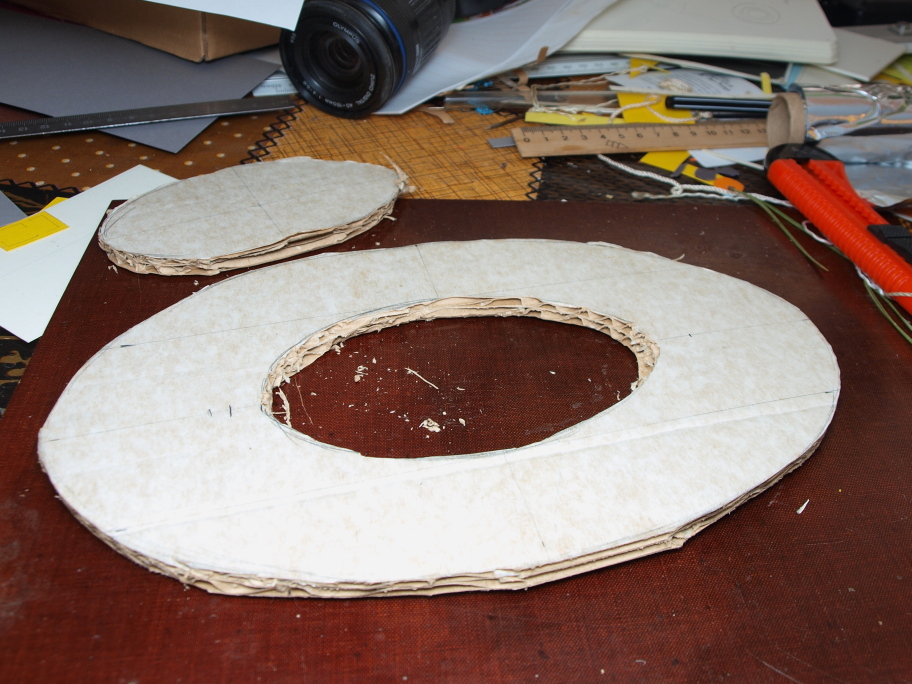

We make a working version of the slanted divider

Making the internal cylinder (2).

Cover the inner cylinder (2) and inclined wall (1) with a layer of mirror foil (4)

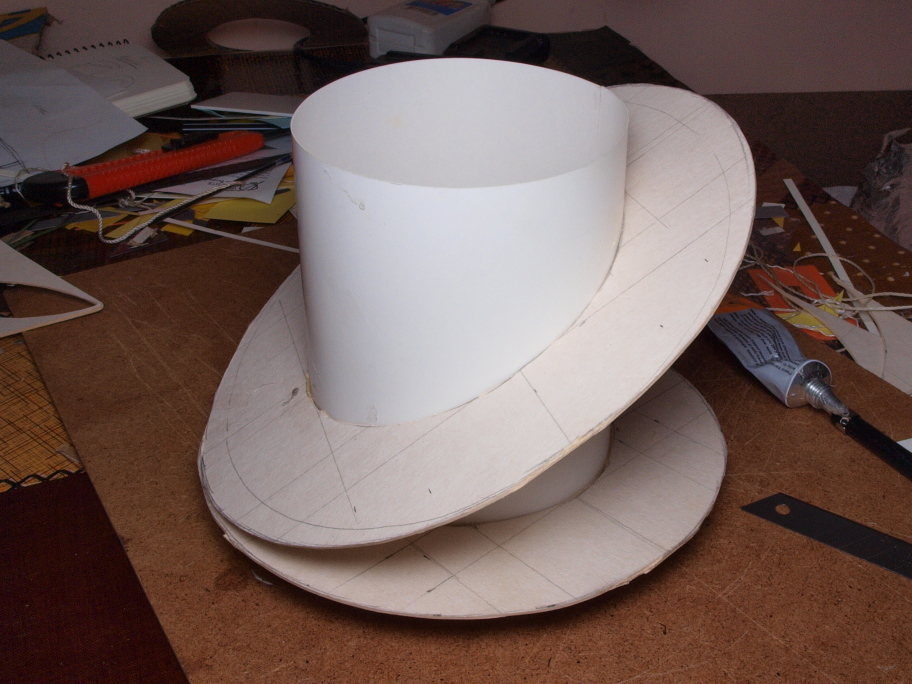

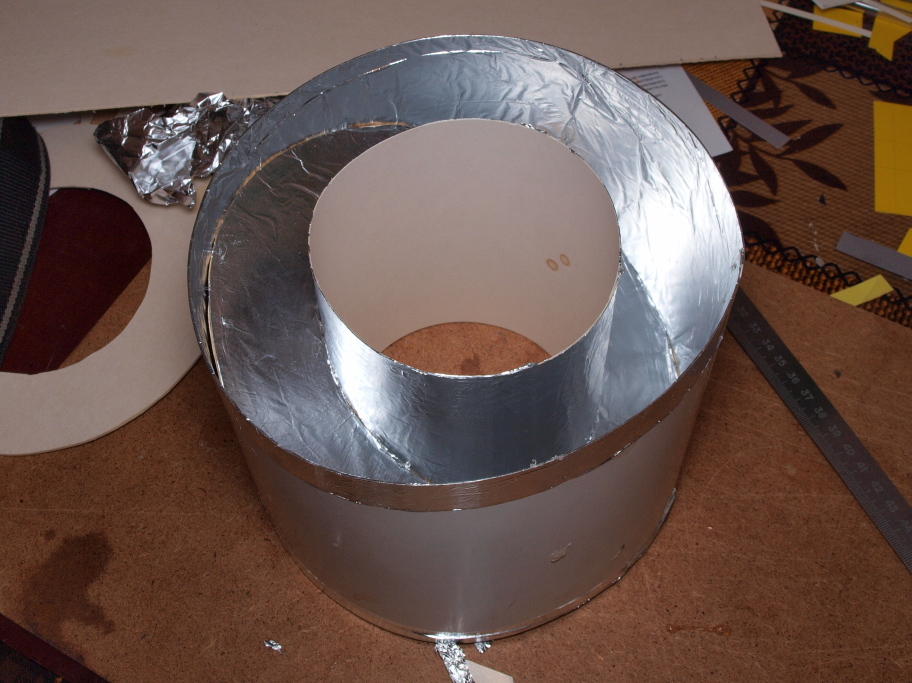

We make external cylinder (3) and also cover it with a foil (4)

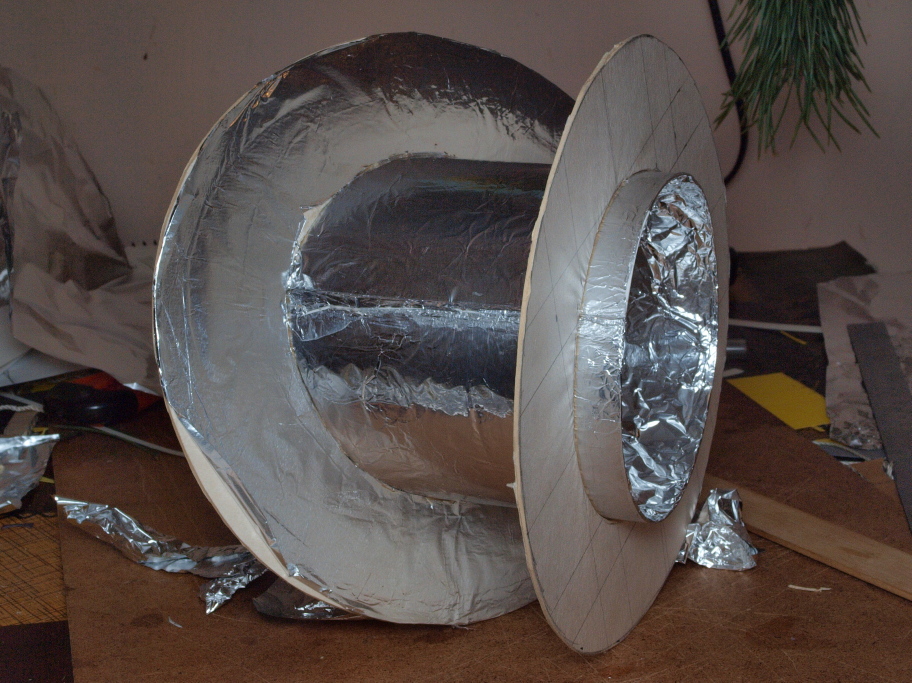

With the ring (1), gluing cylinders 2 and 3 together.

Cropping any surplus, that is unneeded

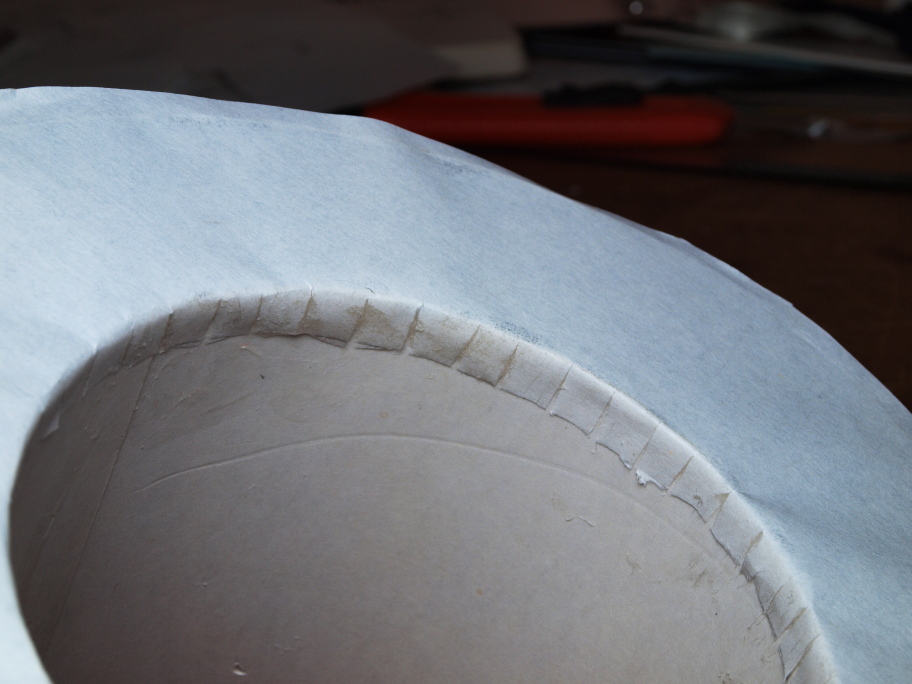

Insert a thin paper spreader (5).

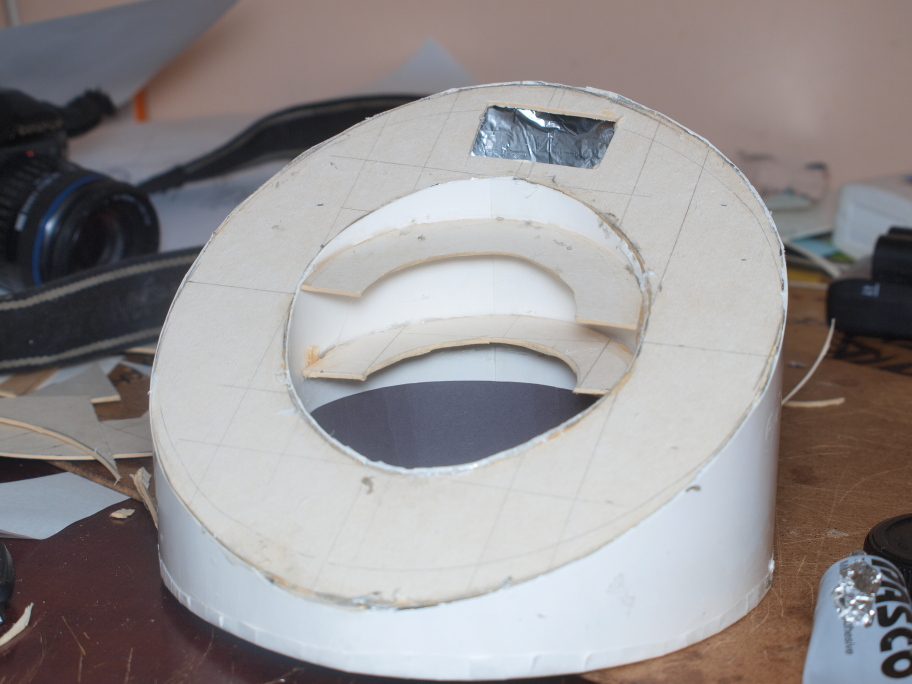

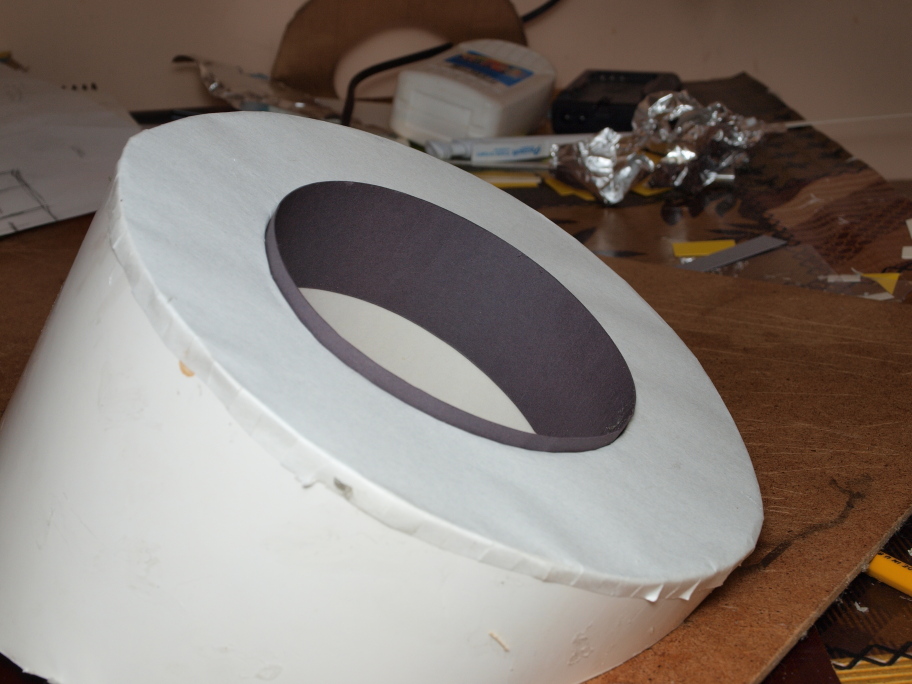

Place the inner lens hood, made from the dark cardboard

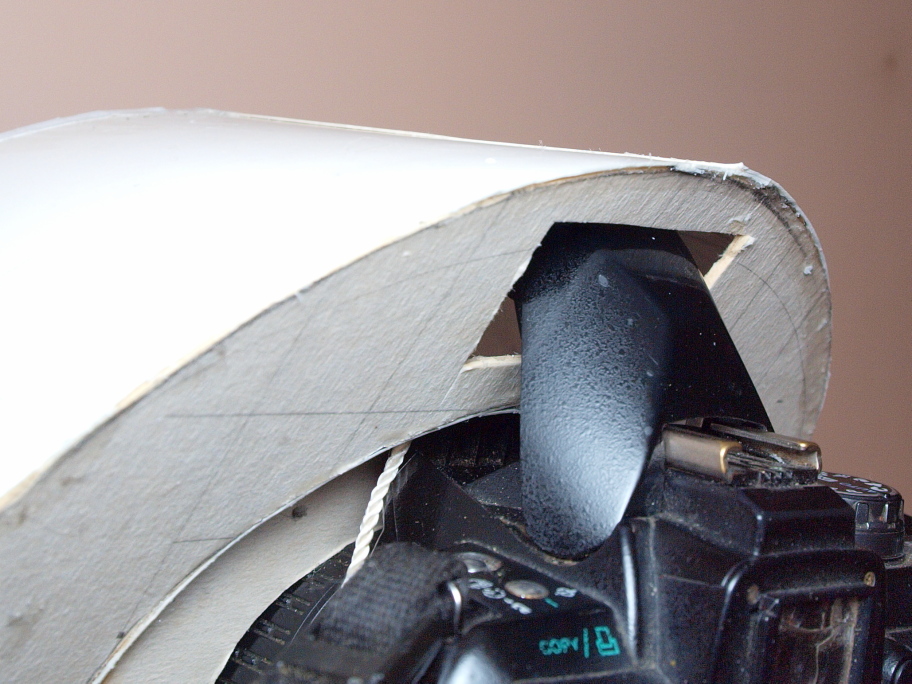

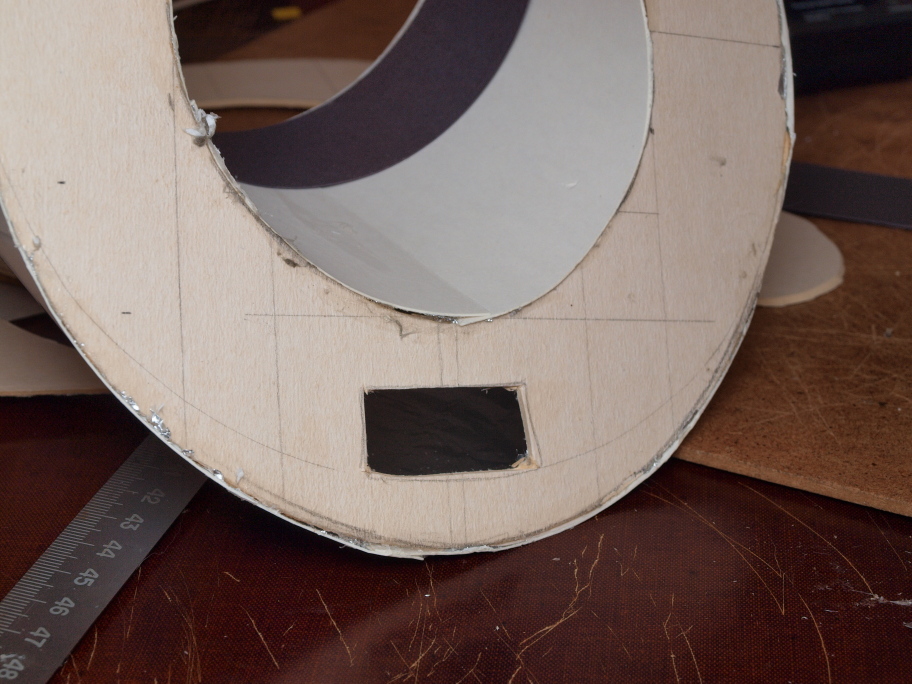

We cut the hole for the flash

From the scraps of cardboard and lace, we make fixture(6) for the lens

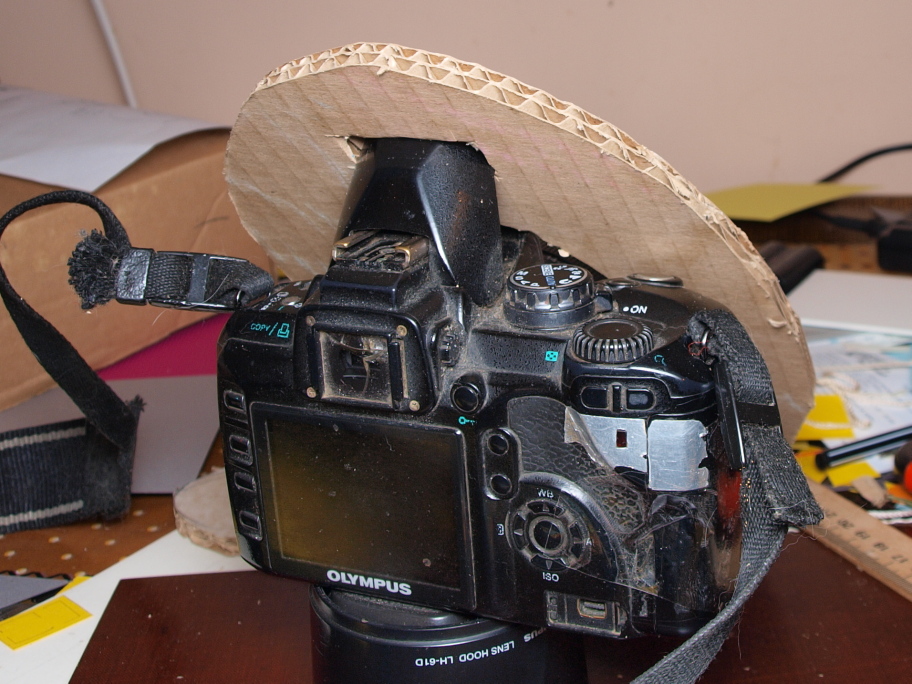

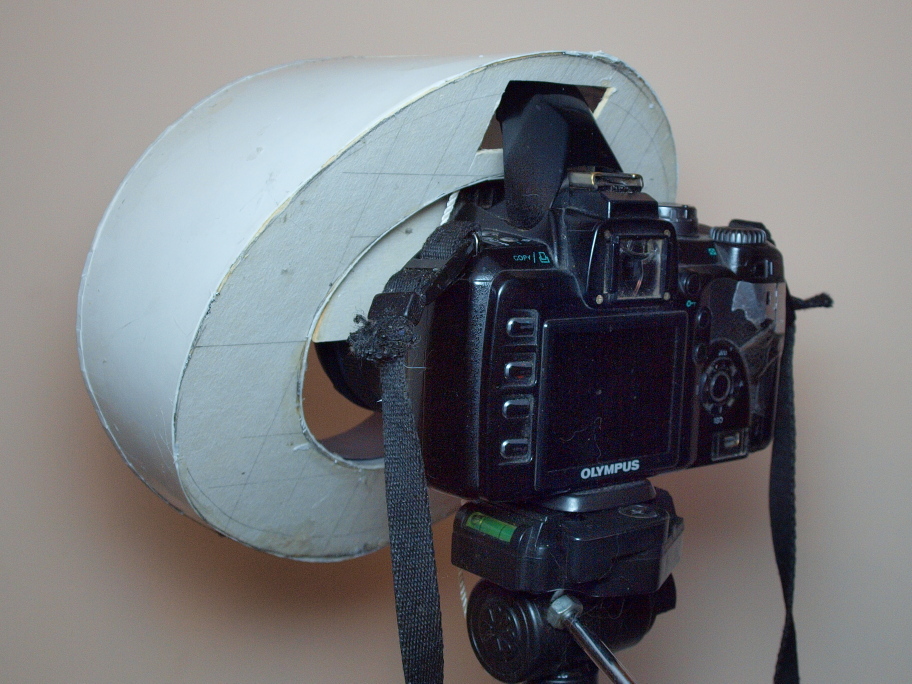

Check functionality of fastening cardboard diffusor for a flash.

The first frame with a new scatterer ...

Orange

Seashell

And how can it without them? - Cats!

(real toys size 8 * 8 cm)
