A few weeks ago my wife and I saw some interesting wine bottle lamps and after one glance at the price tag, instantly thought to ourselves "we could totally make this!" As i did some research though, I found that cutting the glass wasn't going to be as straight forward as I thought. I had seen plenty of videos all with completely different methods; some people wrapped a flaming piece of string around the bottle, others took a file to it, and some simply scored and snapped. I think all of them had the right idea, but i couldn't find both a reliable method for consistent cuts AND an adjustable platform on which to cut various shapes and sizes at different points on the bottle (unless of course you wanted to shell out upwards of $50...but I just wanna cut glass here people not build rockets!).

So, in true instructables fashion I decided to make my own on the cheap. Hope you enjoy, and thanks for reading!


WHAT YOU'LL NEED:


Materials:

1  kobalt glass cutter
4  patio door rollers
1  1x6x14 piece of wood for the base
1  5/8" dowel
2  pieces of wood for the dowel holder/bottle stop (these can be any size...use your judgement)
4  small pieces of wood for the feet (again size is not important, they just have to clear the bottom of the rollers)
1  1/2" conduit hanger
2  1/4"-20x1" cap screws
2  1/4" hex nuts
a small length of coat hanger wire (1" should be plenty)
wood glue
wood stain (optional)

Tools:

Dremel/router
Drill
Forstner bits
drill bits
sandpaper
files

Layout the Cutting Areas

glass bottle cutter 004.JPG

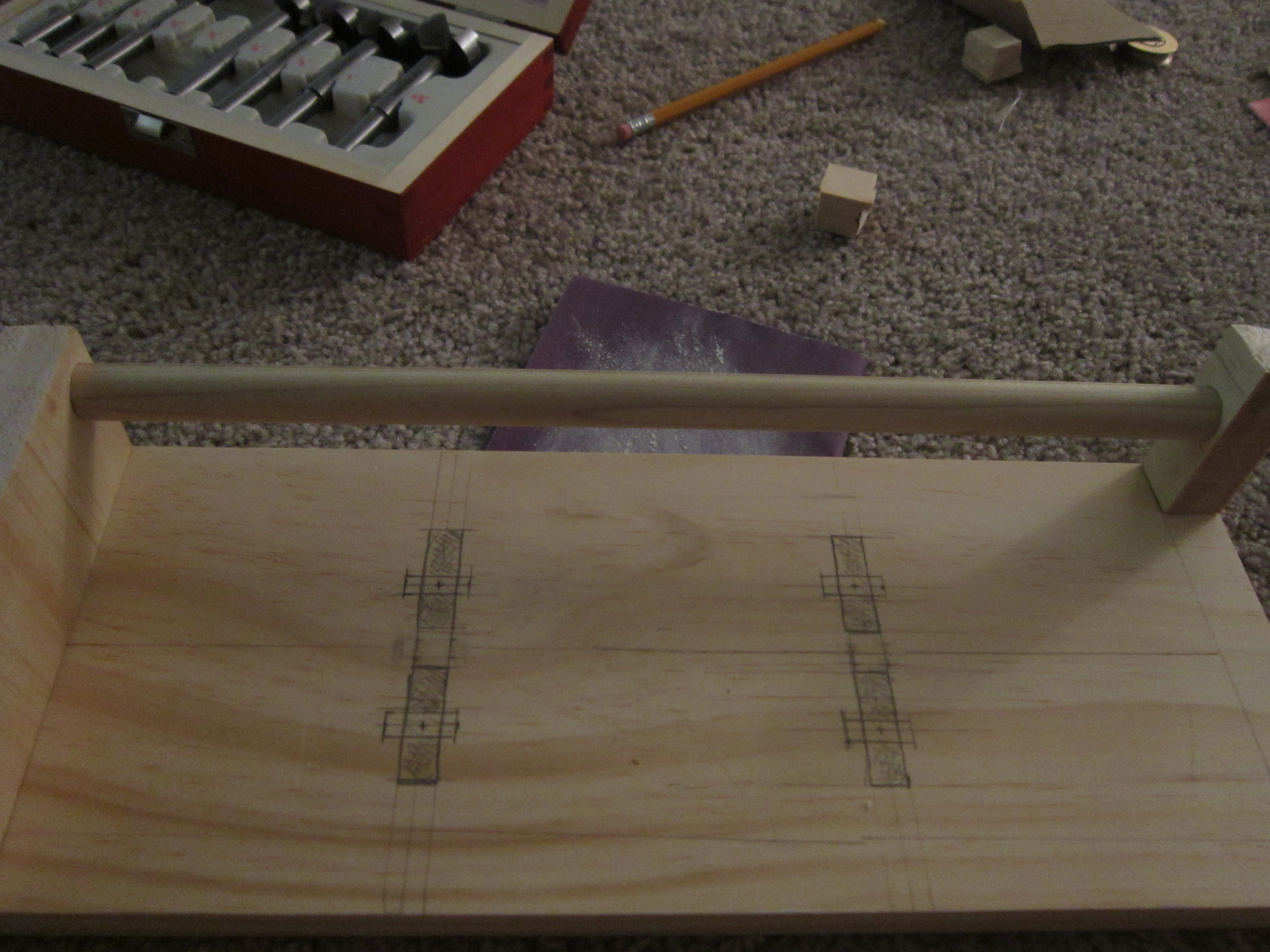

Before you start cutting anything, make sure you've laid out/sketched where all the pieces will go. It helps to have an idea of what you plan to cut. In this case I know I intend to cut cut bottles ranging in size from a beer bottle to a magnum wine bottle...so the layout of the four rollers has to accommodate that.

Start Hacking Away!

glass bottle cutter 005.JPG
glass bottle cutter 006.JPG
glass bottle cutter 007.JPG

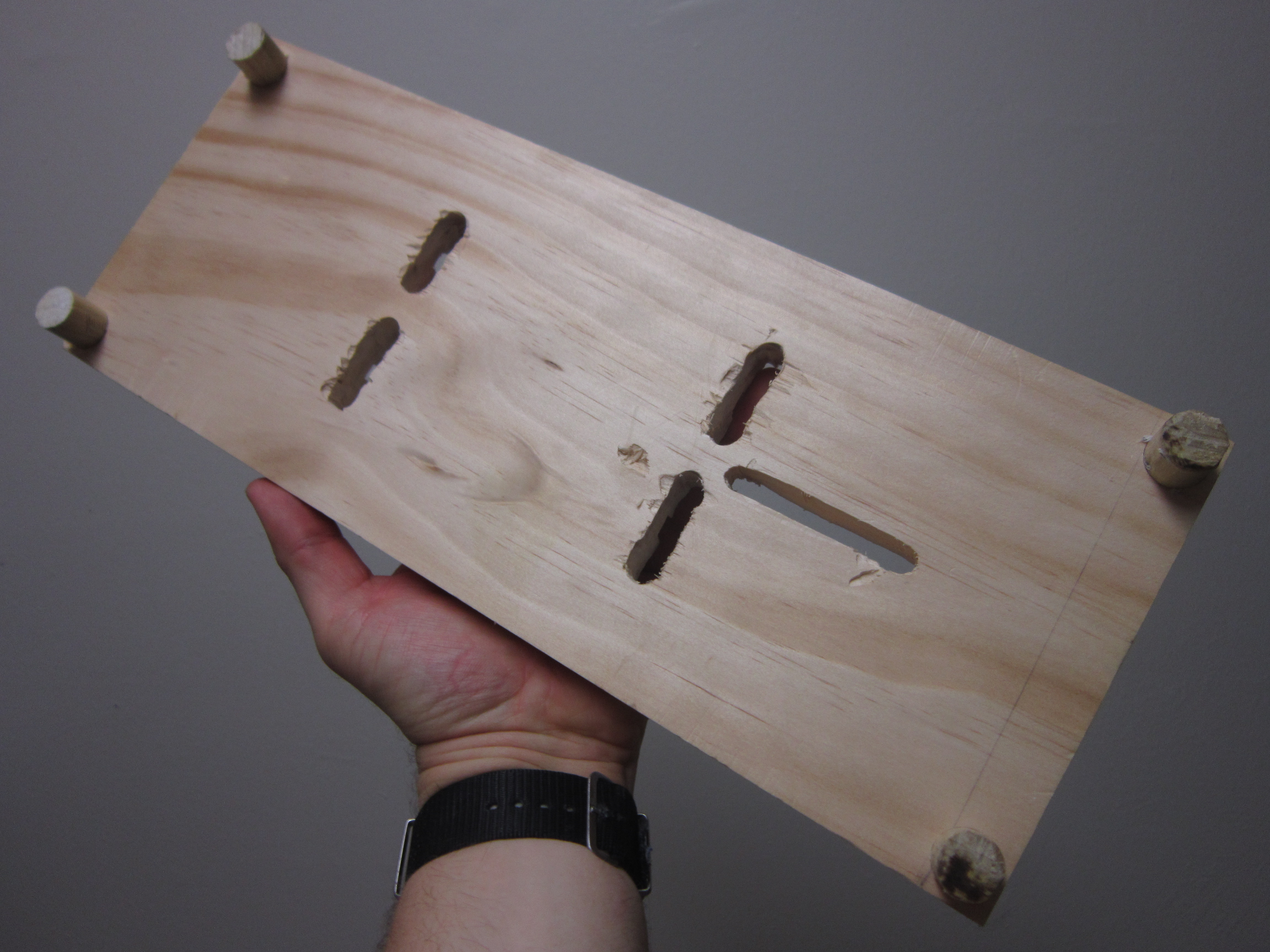

Now that you've got everything laid out go ahead and drill out the spaces for the rollers. I used a forstner bill to get rid of the majority of the wood and a dremel with a sanding bit/files to clear the edges.

Rout Space for the Axles

glass bottle cutter 009.JPG
glass bottle cutter 008.JPG

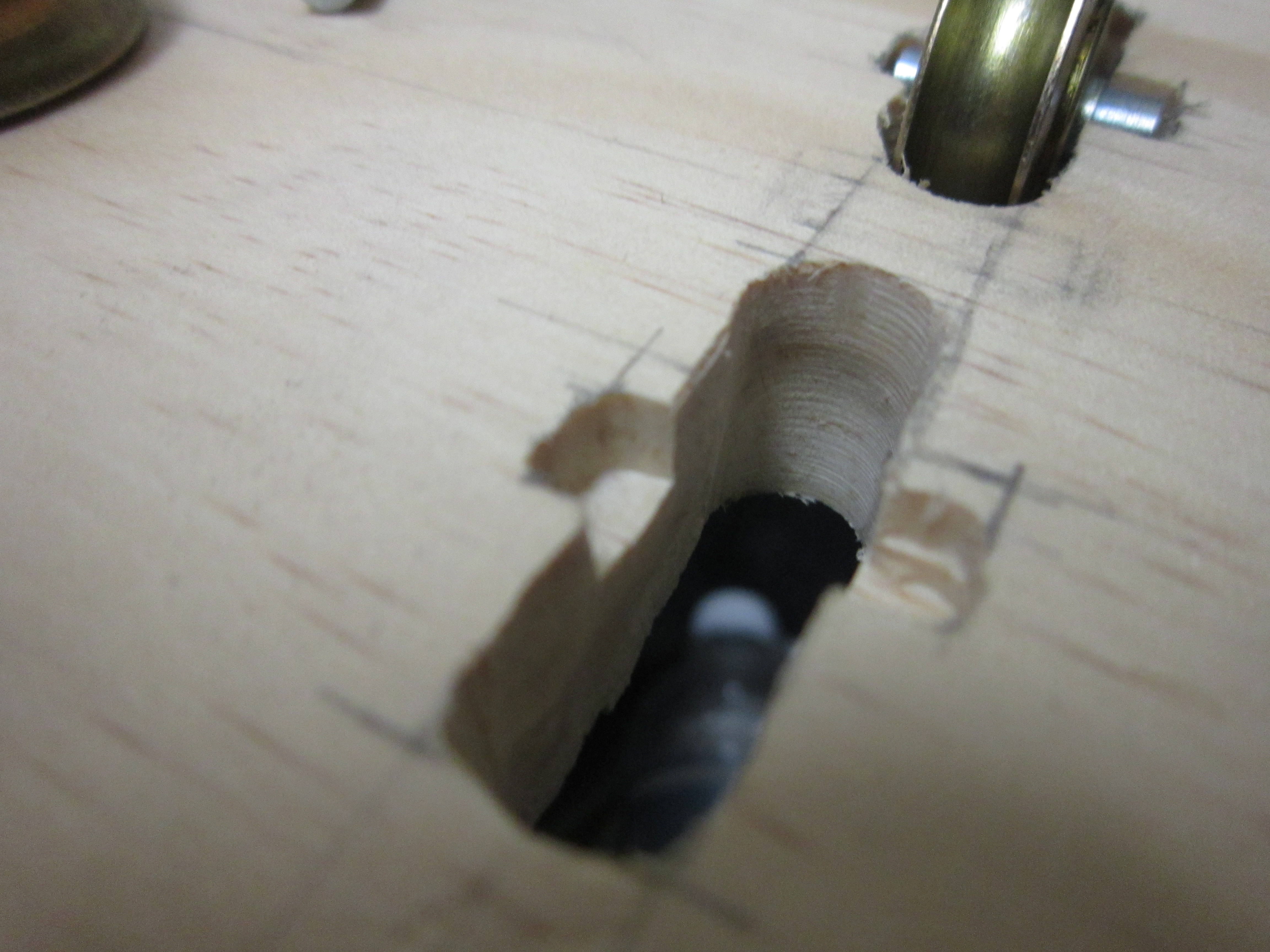

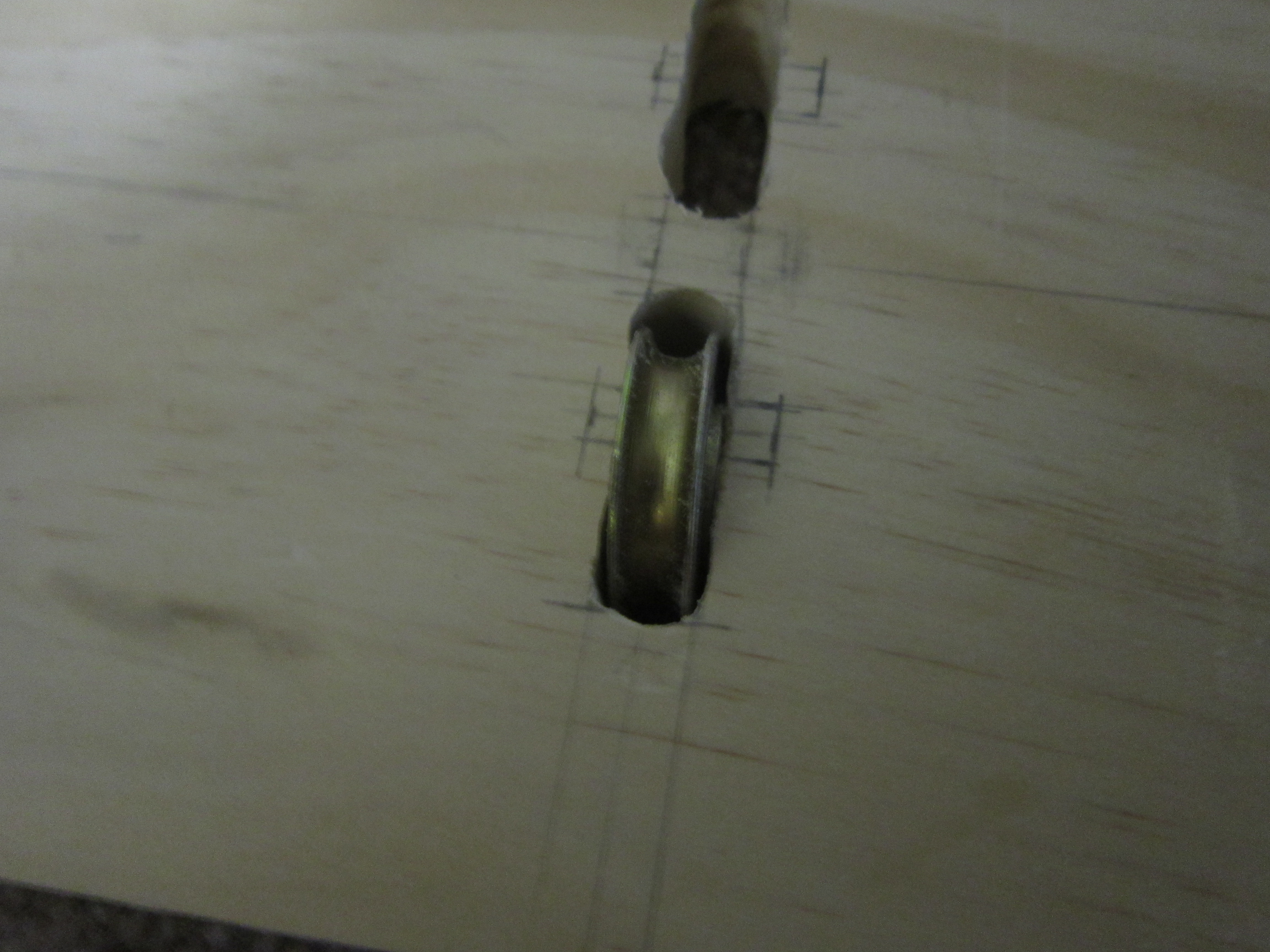

Once you have the cutouts for the rollers set you'll need to cut out a spot for the axles. It's important that they're all seated at the same depth, otherwise your bottle won't sit evenly and you won't get an even cut.  This is where a router or a dremel with a router bit comes in handy. Set the depth so that the axle is just barely sticking out above the base and carefully rout the cavity. I strongly suggest you rout a little bit at a time...its very easy to slip with the router, so hold it steady.

Setting Up the Dowel Guide

glass bottle cutter 003.JPG
glass bottle cutter 002.JPG
glass bottle cutter 015.JPG
The conduit hanger is going to slide up or down on the dowel so make sure you set it up high enough from the base that it won't hit the base. Use a a forstner bit to drill out a space for the dowel. Use a bit the same size as the dowel to ensure a snug fit. Since the back stop will also ride on the dowel you may need to sand  the hole so that it will move along the dowel smoothly.

Routing the Backstop Guide

glass bottle cutter 010.JPG
glass bottle cutter 011.JPG
glass bottle cutter 013.JPG
Now that you know where the backstop is going to be moving, you want to add a channel along the center to keep it from shifting and so you can place a set screw (or bolt in this case) to lock it in place. Start by drawing a rectangle just barely wider than the 1/4" bolt directly behind the back set of rollers. Little by little rout out the channel until you've gone all the way through. Once you've got the channel cut out, make sure the bolt slides easily through it. The next step is mounting the bolt to the backstop.

Mount the Bolt Guide Onto the Backstop

glass bottle cutter 020.JPG
glass bottle cutter 021.JPG
glass bottle cutter 023.JPG
glass bottle cutter 024.JPG
Set up the backstop with the dowel in place so you know exactly where it will fall and hold it  over the end of the channel you just made. Mark a spot where you wan the bolt to go. It may be easiest to clamp it in place to keep it from moving around while you try to mark it. Once you have it marked, center the bolt head over it and trace it out on the wood. Then, using a 1/2'  forstner bit make a cavity just as deep as the bolt head which should be about 1/8". After you've made sure the bolt is flush with the wood go ahead and glue it in. You can use the 1/4" nut to set the location of the backstop.

Making the Cutting Head

glass 001.JPG
glass 002.JPG
glass 006.JPG
glass 007.JPG
glass 008.JPG
glass 009.JPG
glass 010.JPG
glass 011.JPG
glass 017.JPG
glass 016.JPG

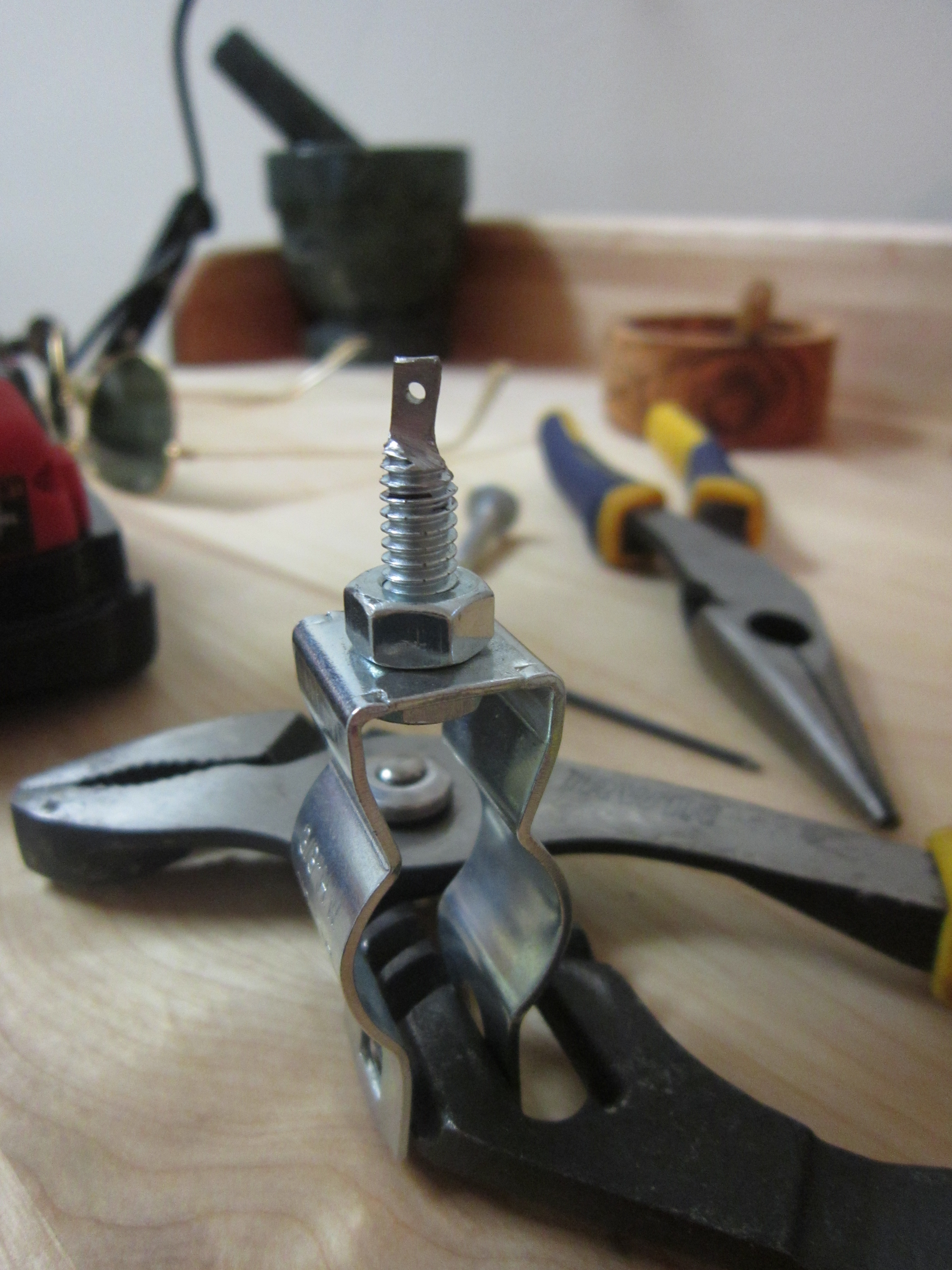

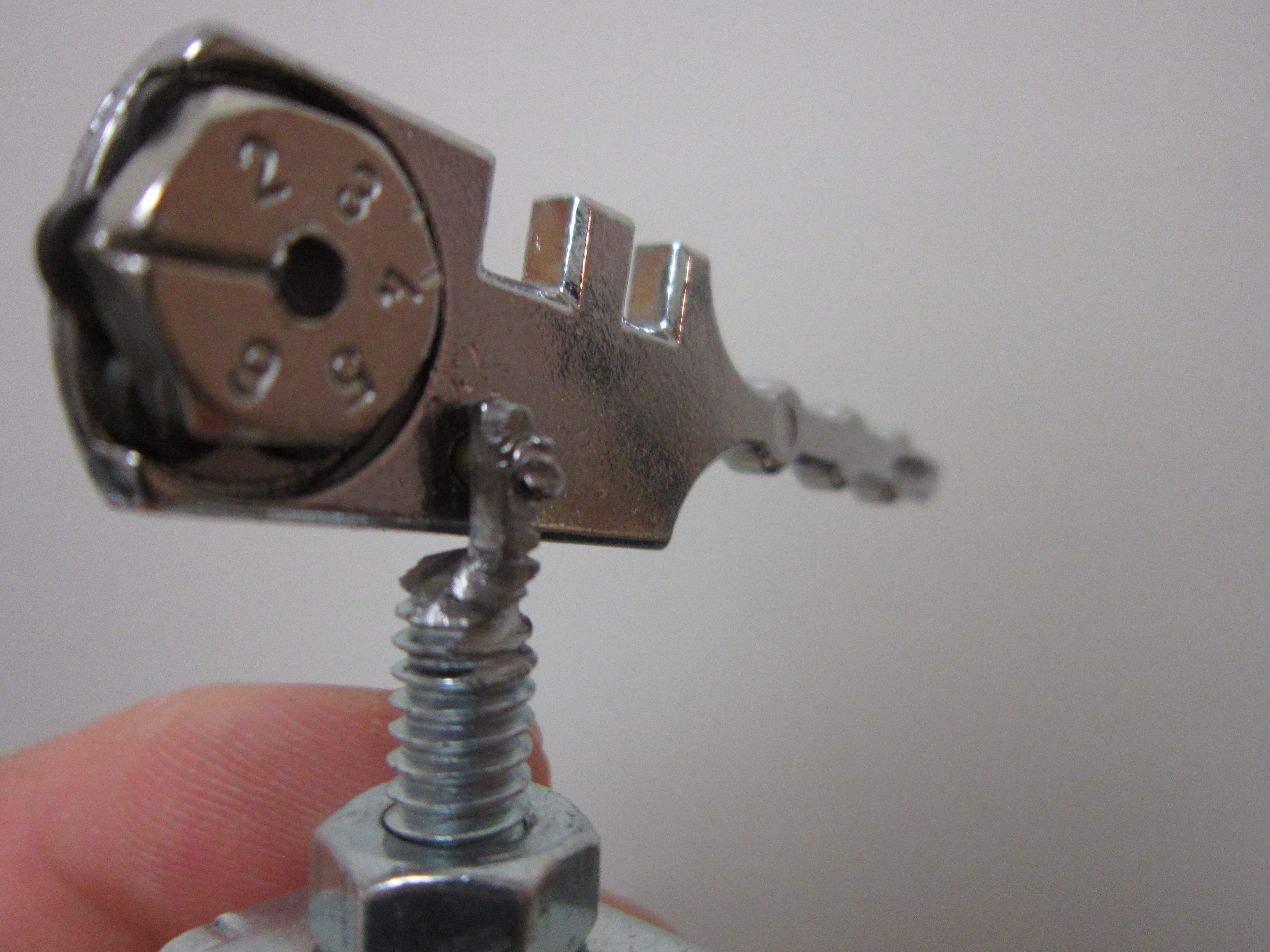

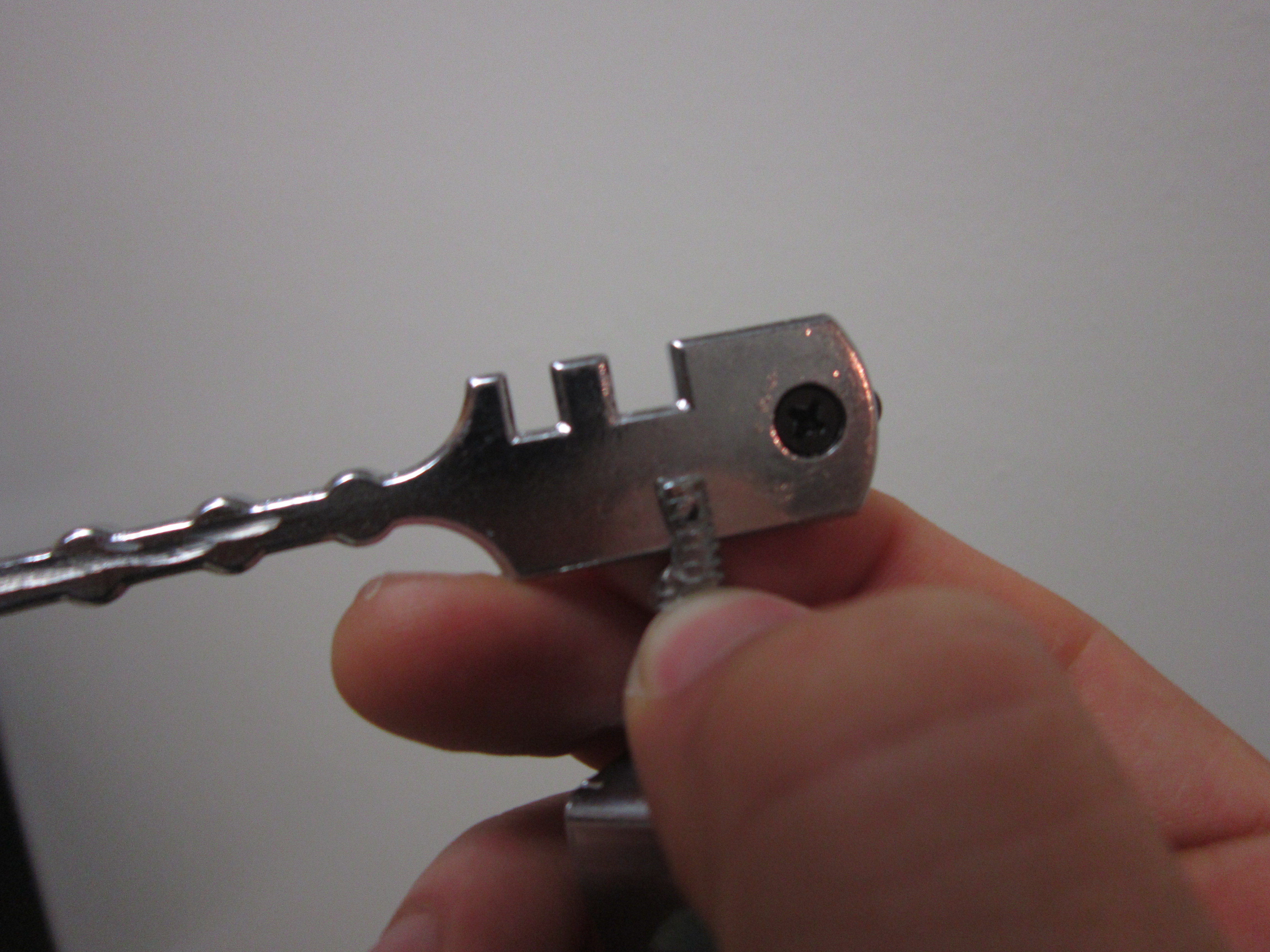

The last piece left to assemble is the actual part that will score the glass. Take the second 1/4" bolt and put it through the hole at the top of the conduit hanger. Secure it in place with the 1/4" bolt. Once this is in, you're going to grind the bolt to half its thickness. Now drill a 5/64"" hole into the middle of the flattened part of the bolt. Line up the kobalt cutter so the base of the wide part lines up with the hole you just made, mark the spot, and drill the hole. Now simply put the coat hanger wire through, cut the excess, and press the ends in  until they start to mushroom to make a sort of rivet.

Putting It All Together

glass 013.JPG
glass 014.JPG
glass 015.JPG

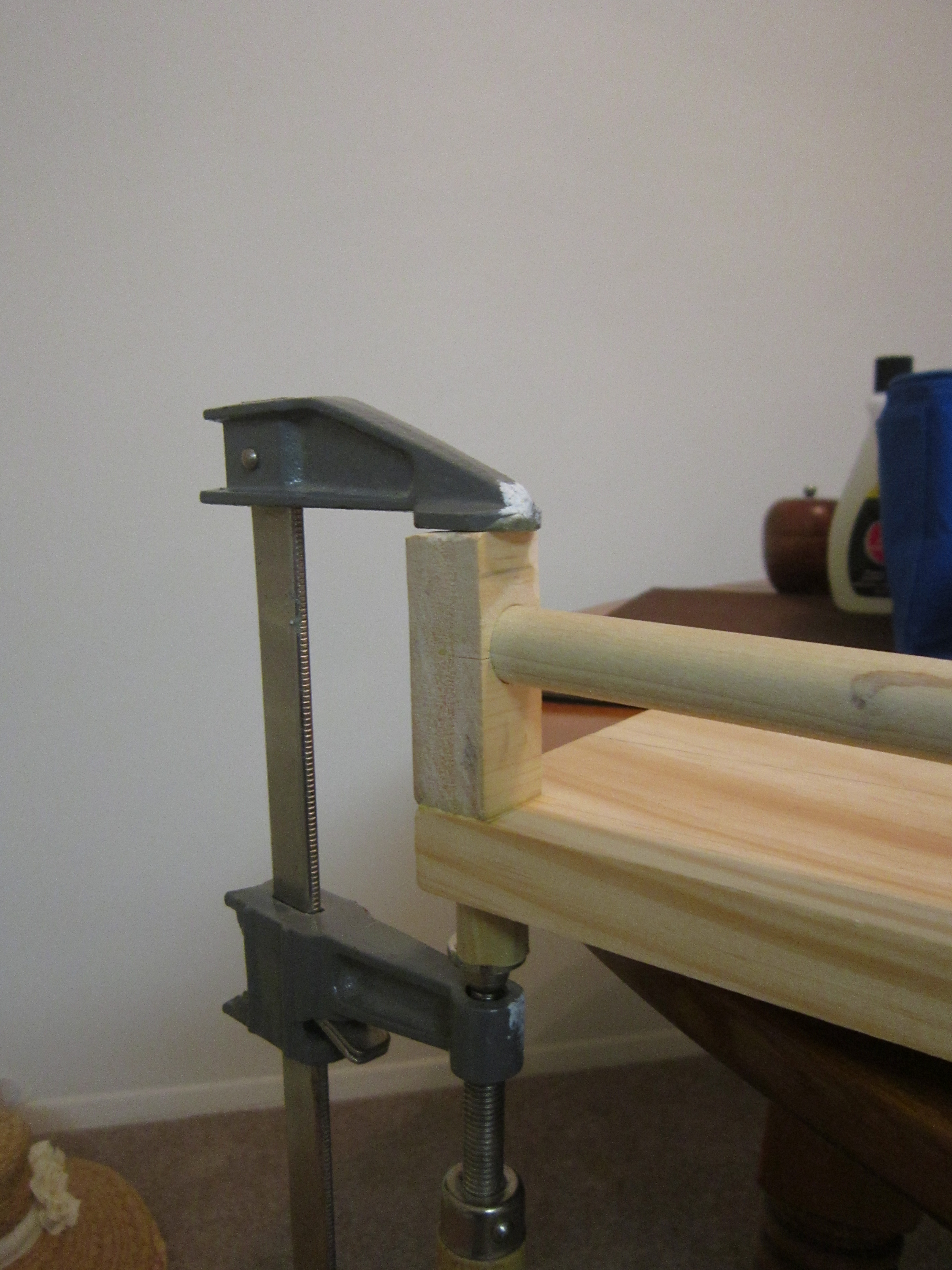

It's finally time to assemble the whole thing! You can start by gluing the feet onto the bottom of the base. Once they're on and level, you can put a little glue into the pockets for the axles and set them in place to dry. make sure you don't put too much glue...you don't want it to stick to the rollers. Next, glue the dowel into the corner holder and then glue the holder to the corner of the base.

The Finished Piece!

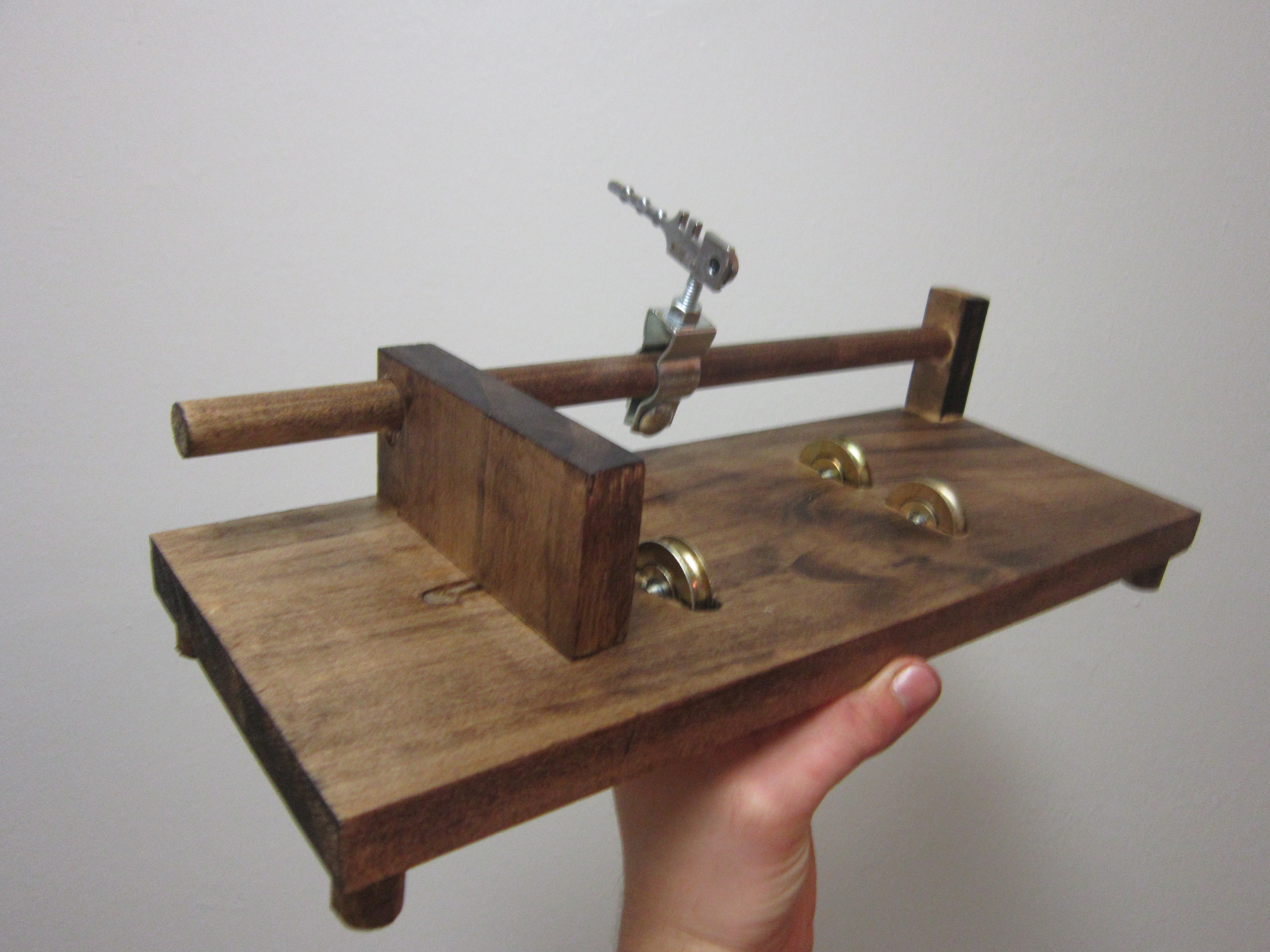

Now that you've assembled everything you can go ahead and finish it however you like. I chose to stain mine, but you can paint it or just leave it the same if you like.

So now comes the fun part...actually scoring and cutting the glass! First, set the backstop to a point where the center of the bottle is laying flat on all four rollers. Then, adjust the cutting head to determine where you want the bottle to snap and tighten the conduit hanger bolt to keep it from moving. Apply a moderate amount of pressure to keep it steady and carefully spin the bottle to get a nice even line (you'll know you're pressing hard enough when you see a solid white line appear and hear the scorer scratching against the glass) . One line should be enough...you don't want to create too many stress points on the glass.

Lastly, over a sink, SLOWLY pour boiling water over the line you made for about a minute (if you hear the glass start to crack a little, that's ok as long you don't see any large cracks forming perpendicular to the cut), and then run cold water over it.  You may have to repeat this process a few times, but the difference in temperature should be enough to simply pop the bottle off where you scored it giving you a nice clean cut. If the edges are too sharp still, lay some wet/dry sandpaper on a flat surface, put a few drops of water on it, and rub the bottle in small circles over it. And that's it!

Stay tuned for the next instructable to see how this wine bottle lamp is made! Thank again for reading, hope you enjoyed!!
