Giant Smart Watch

Hi,

I am vishal, i made a giant smart watch.

This is pretty big, i know 😅, but this is fun to wear.

By the way, subscribe to my YouTube channel for more projects like this. I also update my upcoming projects on Instagram.

buy me a coffee! ☕: Donate

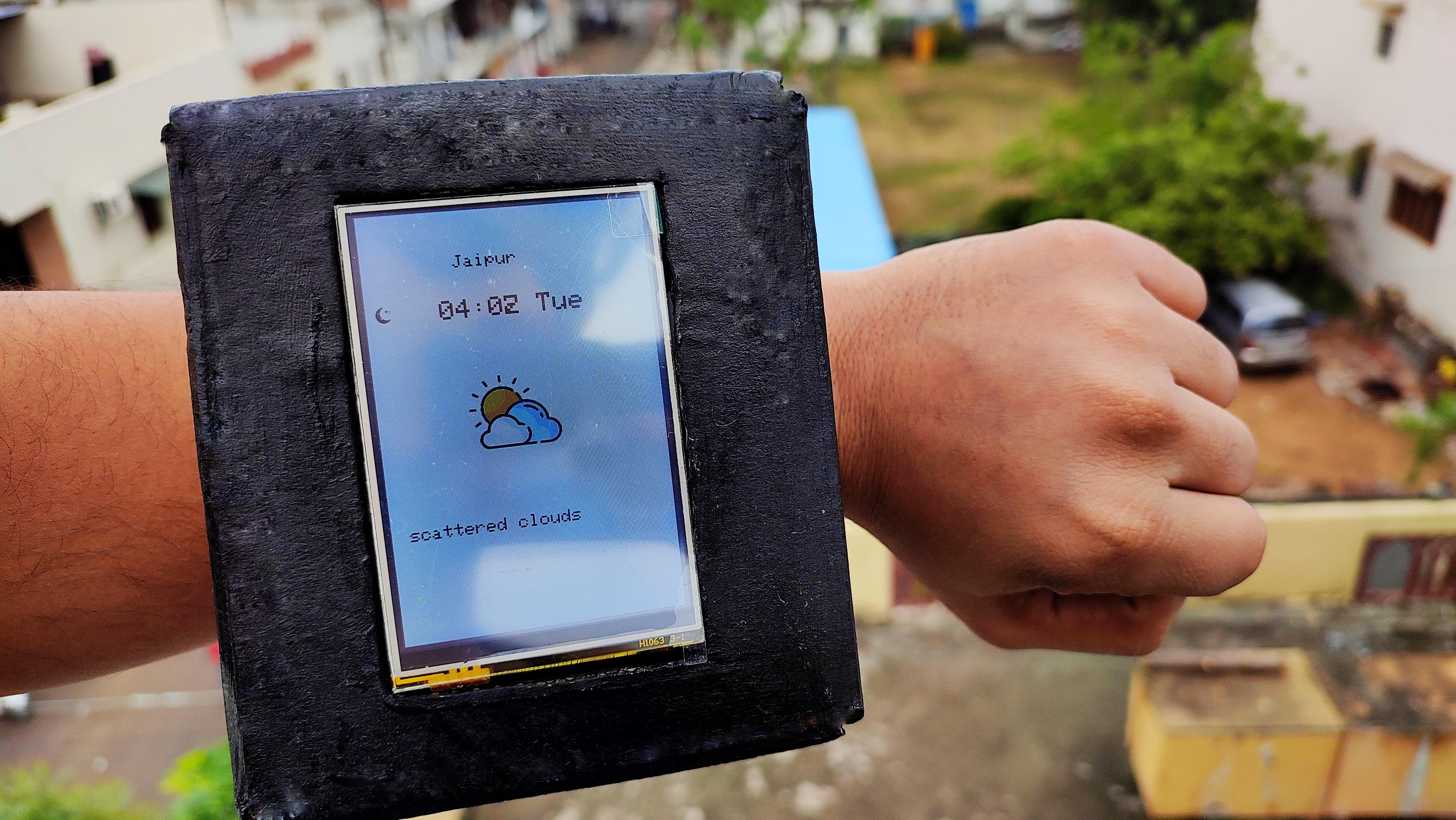

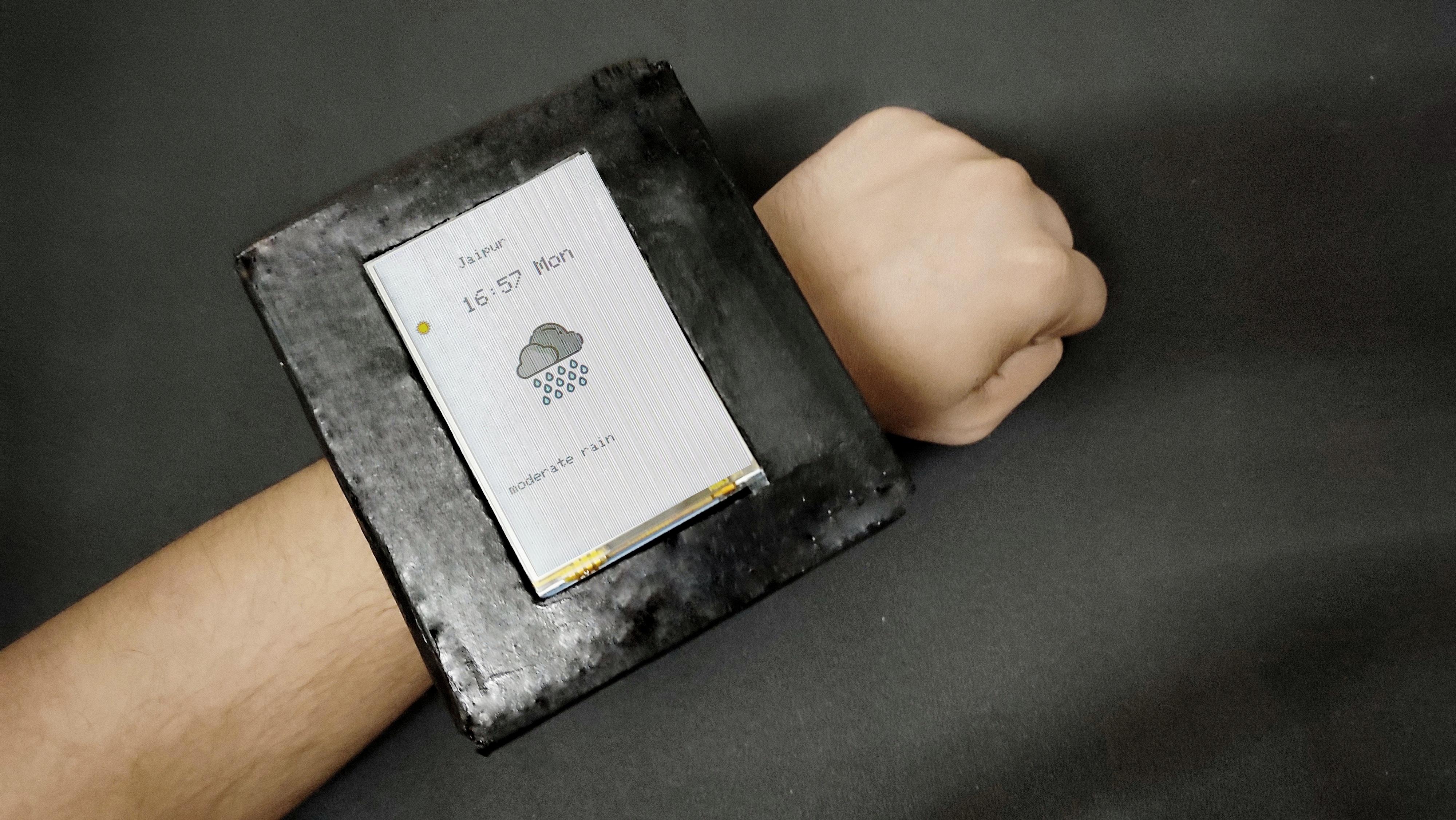

The watch connects to the internet with wifi, you can connect it with you mobile hotspot. After connecting to the hotspot it will show time, location and weather of your location.

Sounds fun right!

The features can be improved and look also can be improved, let me tell your suggestions in comments.

I made it with ESP32 AND ILI9488 Raspberry pi display.

Requirments

3.5 inch IPS display
ESP32 devlopment module
3.7v 1000mah battery
MT3608
Switch

Outer Cover

For now i want to use things which is in hand, so i decided to make the watch cover with cardboard.

Take a cardboard box
Cut a screen size part
Cut two strip hole at back

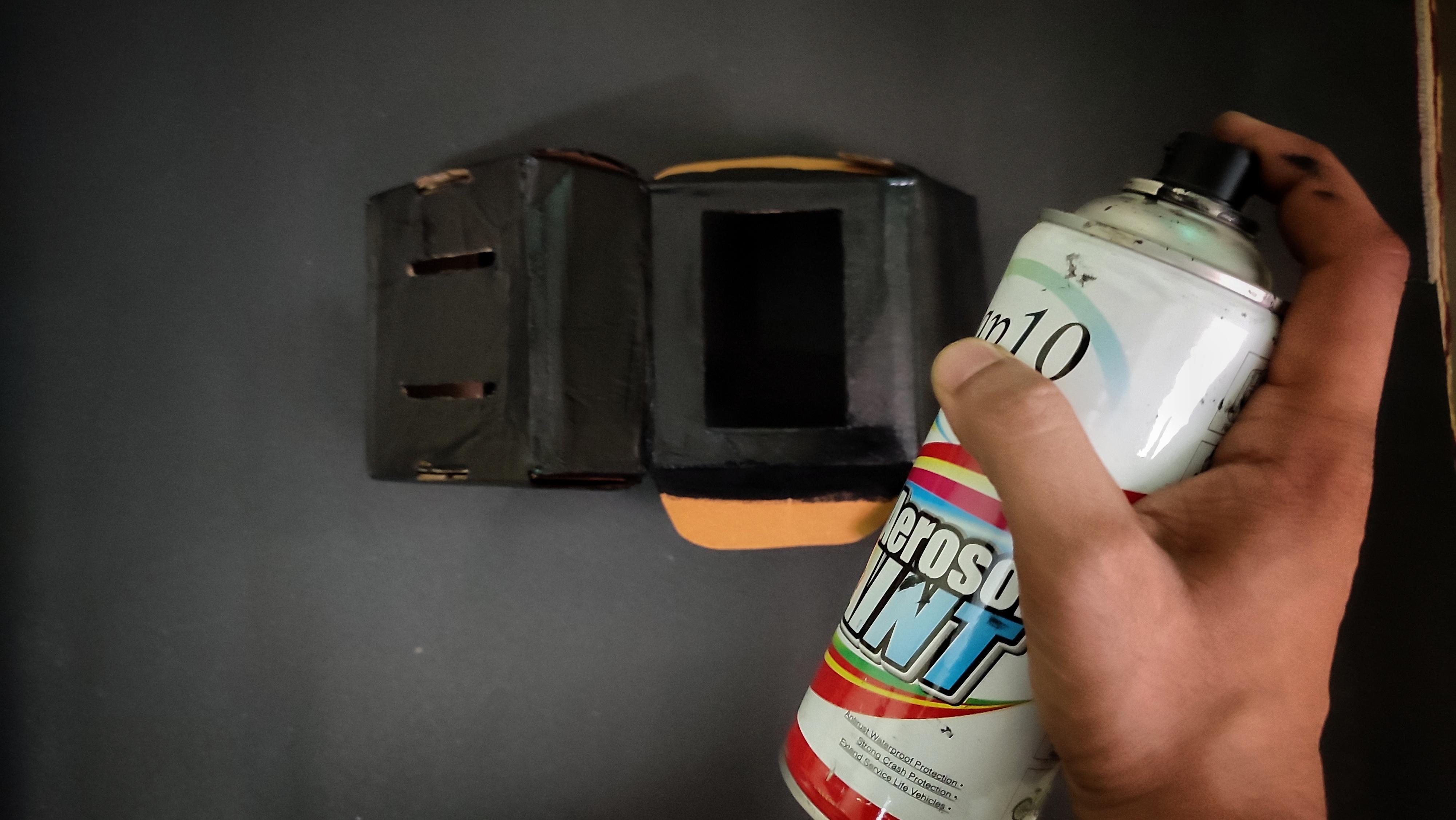

Paint it with black paint to make look better

ILI9488 Raspberry Pi Display With ESP32

Link :- https://github.com/vishalsoniindia/Giant-Smart-Wa...

Download the folder from my GitHub page and extract it.

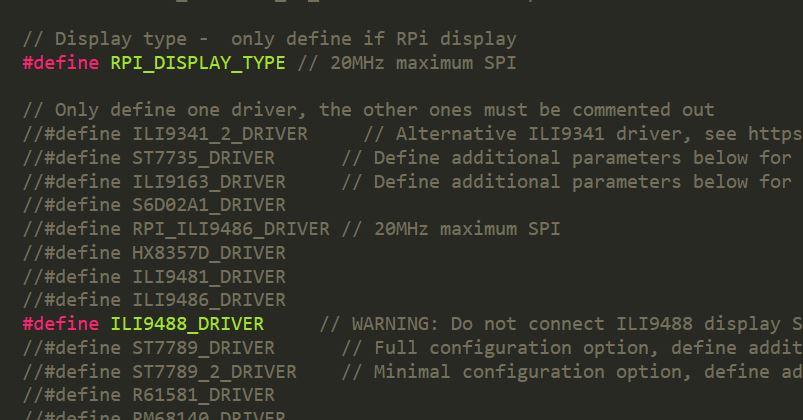

In th folder you will find a file name User_Setup.h
Copy the file and paste it in My PC >> documents >> Arduino >> libraries >> TFT_eSpi

There is already a file with same name replace it.

Code and Customisation

Link :- https://github.com/vishalsoniindia/Giant-Smart-Wat...

Find the code in same folder with you have downloaded from my GitHub.

Download some libraries from library manager but first select board as ESP32 then download libraries.

Download ArduinoJson.h of version 5, mor then version 5 will not work.

NTPClient.h
WiFi.h
WiFiUdp.h
WiFiClient.h
ArduinoJson.h
Adafruit_GFX.h
TFT_eSPI.h
SPI.h
SPIFFS.h

In the code you have to make some changes.

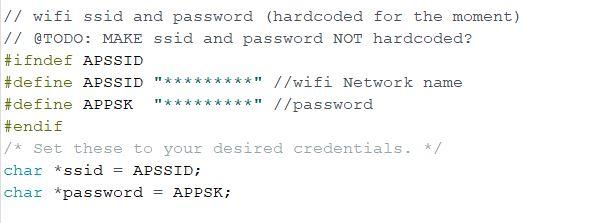

Enter your Wifi name and Password As shown in image.
Enter your weather api, log in or sign up in openweathermap and go to the link below to get your API.

https://docs.thingpulse.com/how-tos/openweathermap...
