Giant Light Up Marquee Letters
by FriendOfHumanity in Living > Decorating
3304 Views, 28 Favorites, 0 Comments
Giant Light Up Marquee Letters
![sing3.jpg](/proxy/?url=https://content.instructables.com/F5W/8PS8/J1WW76L4/F5W8PS8J1WW76L4.jpg&filename=sing3.jpg)
![16836665_1364258533617976_676307947549476974_o.jpg](/proxy/?url=https://content.instructables.com/F9F/42C1/J1QP76JC/F9F42C1J1QP76JC.jpg&filename=16836665_1364258533617976_676307947549476974_o.jpg)
Hello,
I was asked, at short notice, to make some glitter-covered 6 foot high letters ,with lights in them, for a Karaoke event.
They wanted the lettering in the style of the film " Sing" that recently came out.
The nearest font that I could find was Super Clarendon.
I have not made anything like this before but it seemed fairly straightforward.
They asked for it it be made from 10mm MDF but that would mean a lot of weight ; they agreed to go with the suggestion of 10cm Celotex foam insulation.
Each Celotex sheet cost £33.
Drawing Out the Letters
![singcomp.jpg](/proxy/?url=https://content.instructables.com/FW3/8PZW/J1GP820L/FW38PZWJ1GP820L.jpg&filename=singcomp.jpg)
![IMG_0734.jpg](/proxy/?url=https://content.instructables.com/FTP/PDYY/J1GP824X/FTPPDYYJ1GP824X.jpg&filename=IMG_0734.jpg)
![609064.jpg](/proxy/?url=https://content.instructables.com/F3J/O92L/J1GP820I/F3JO92LJ1GP820I.jpg&filename=609064.jpg)
![singred.jpg](/proxy/?url=https://content.instructables.com/F3R/254H/J1GP821C/F3R254HJ1GP821C.jpg&filename=singred.jpg)
I wanted to project the letters onto the foam but my ancient projector distorts quite bit so I had to print out various sizes of the required word and go with the best result.
I projected them onto the Celotex foil-backed foam and used a big marker.
It was a bit off so I had to freehand a lot of it but it gave the basic shape.

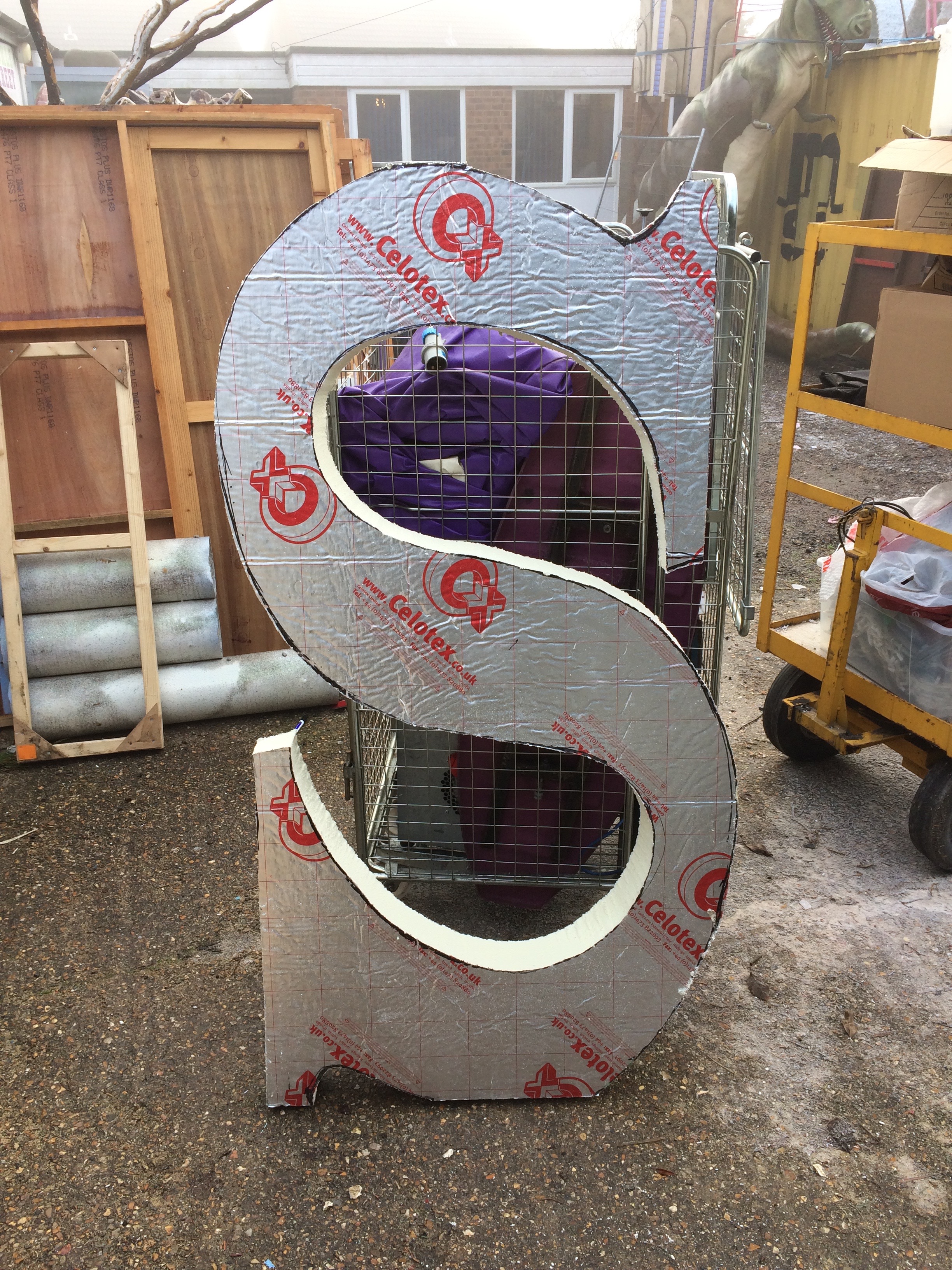

Cutting Out the Letters
![IMG_0735.jpg](/proxy/?url=https://content.instructables.com/FCL/JPD0/J1GP8276/FCLJPD0J1GP8276.jpg&filename=IMG_0735.jpg)
![IMG_0736.jpg](/proxy/?url=https://content.instructables.com/FH0/WSWB/J1GP9I3W/FH0WSWBJ1GP9I3W.jpg&filename=IMG_0736.jpg)
![IMG_0737.jpg](/proxy/?url=https://content.instructables.com/FBU/AW8L/J1GP9I41/FBUAW8LJ1GP9I41.jpg&filename=IMG_0737.jpg)

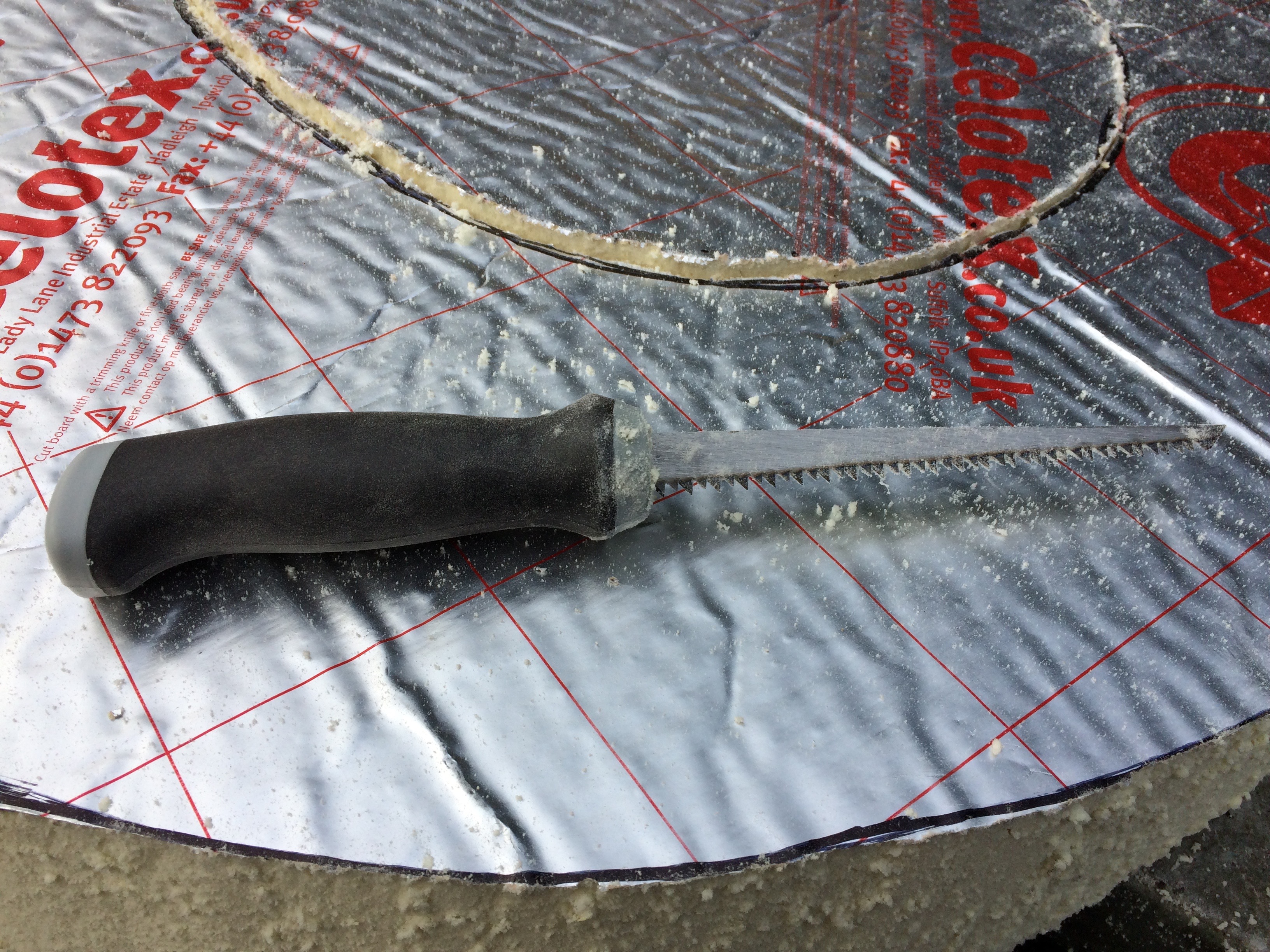

I cut the foam letters out using a serrated plasterboard knife.
The foam has to be supported well as it is quite fragile.
It cuts very easily.
Drilling Holes for the Light Sockets
![IMG_0739.jpg](/proxy/?url=https://content.instructables.com/FFL/WHBJ/J1GP82DW/FFLWHBJJ1GP82DW.jpg&filename=IMG_0739.jpg)
![IMG_0740.jpg](/proxy/?url=https://content.instructables.com/FA8/8LNU/J1GP82ET/FA88LNUJ1GP82ET.jpg&filename=IMG_0740.jpg)
![IMG_0745.jpg](/proxy/?url=https://content.instructables.com/FCN/PU2V/J1GP82HB/FCNPU2VJ1GP82HB.jpg&filename=IMG_0745.jpg)
![IMG_0747.jpg](/proxy/?url=https://content.instructables.com/FRH/RU83/J1GP82IW/FRHRU83J1GP82IW.jpg&filename=IMG_0747.jpg)
![IMG_0763.jpg](/proxy/?url=https://content.instructables.com/FO1/LWFM/J1GP82MZ/FO1LWFMJ1GP82MZ.jpg&filename=IMG_0763.jpg)
![images-3.jpeg](/proxy/?url=https://content.instructables.com/FZG/NU22/J1QP75FP/FZGNU22J1QP75FP.jpg&filename=images-3.jpeg)
Using a 22mm flat head drill bit, I drilled a hole about every 8" for the bulb holders.
The bulb holders were £1.59 each but could be much cheaper from Ebay if time was not an issue.
Cutting a Groove for the Wires
![IMG_0764.jpg](/proxy/?url=https://content.instructables.com/F8Z/13CC/J1GP9IVV/F8Z13CCJ1GP9IVV.jpg&filename=IMG_0764.jpg)

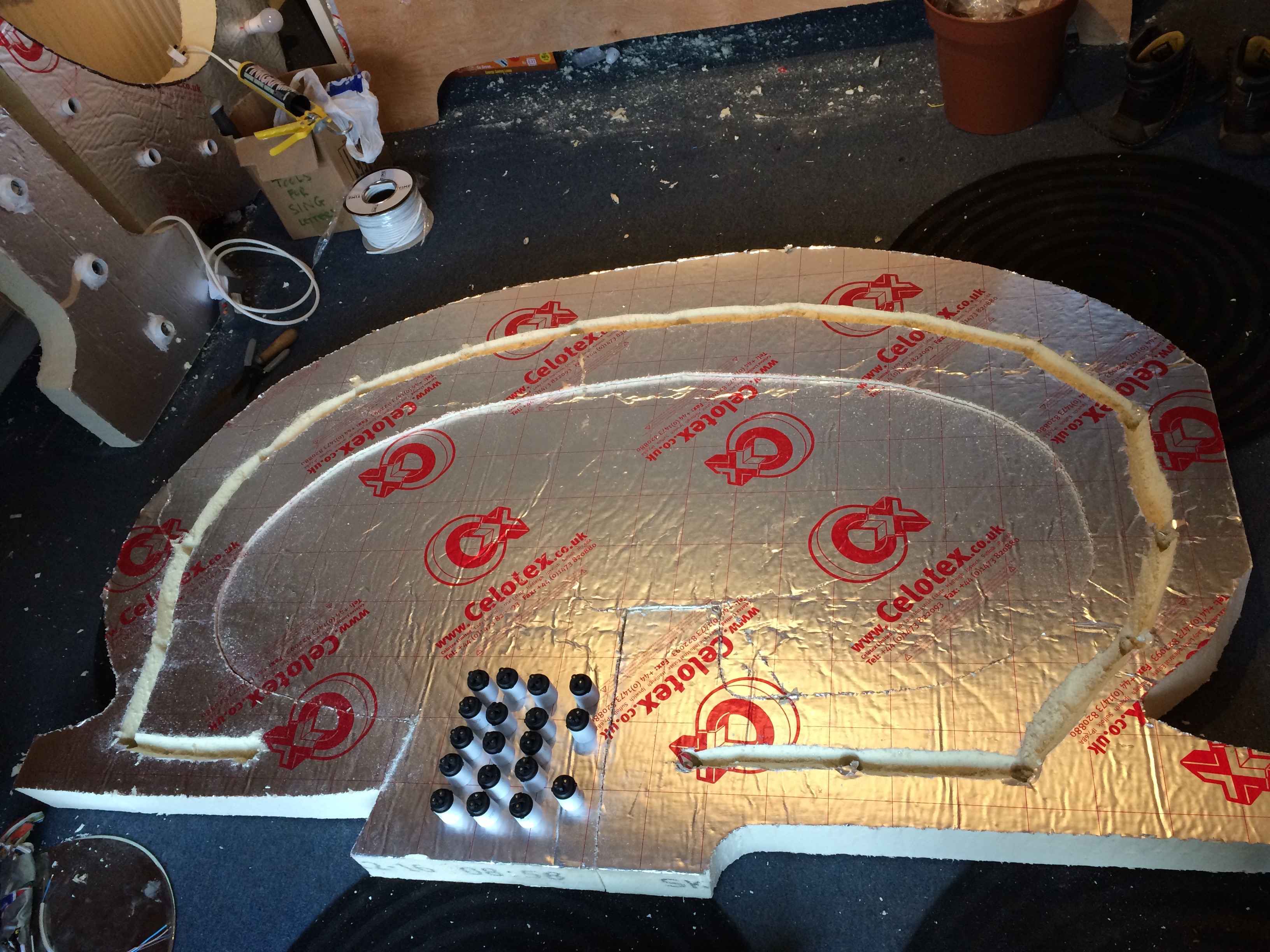

I cut a v-shaped groove running the length of the letters, passing though each hole; these are for the wiring.
Adding the Bulb Holders
![IMG_0740.jpg](/proxy/?url=https://content.instructables.com/FQ7/W0XJ/J1GP9KLU/FQ7W0XJJ1GP9KLU.jpg&filename=IMG_0740.jpg)
![IMG_0743.jpg](/proxy/?url=https://content.instructables.com/F2V/8ZHR/J1GP9KNG/F2V8ZHRJ1GP9KNG.jpg&filename=IMG_0743.jpg)
![IMG_0744.jpg](/proxy/?url=https://content.instructables.com/F5K/T548/J1GP9KOF/F5KT548J1GP9KOF.jpg&filename=IMG_0744.jpg)
![IMG_0745.jpg](/proxy/?url=https://content.instructables.com/FJ2/RT2F/J1GP9KP7/FJ2RT2FJ1GP9KP7.jpg&filename=IMG_0745.jpg)
![ae235.jpeg](/proxy/?url=https://content.instructables.com/FIY/J5F9/J1GPQ2T2/FIYJ5F9J1GPQ2T2.jpg&filename=ae235.jpeg)
![IMG_0775.jpg](/proxy/?url=https://content.instructables.com/FIW/5Z94/J1GPQ2ZV/FIW5Z94J1GPQ2ZV.jpg&filename=IMG_0775.jpg)
![parallel_lamps.gif](/proxy/?url=https://content.instructables.com/FQ0/5FDG/J1QP75VN/FQ05FDGJ1QP75VN.gif&filename=parallel_lamps.gif)

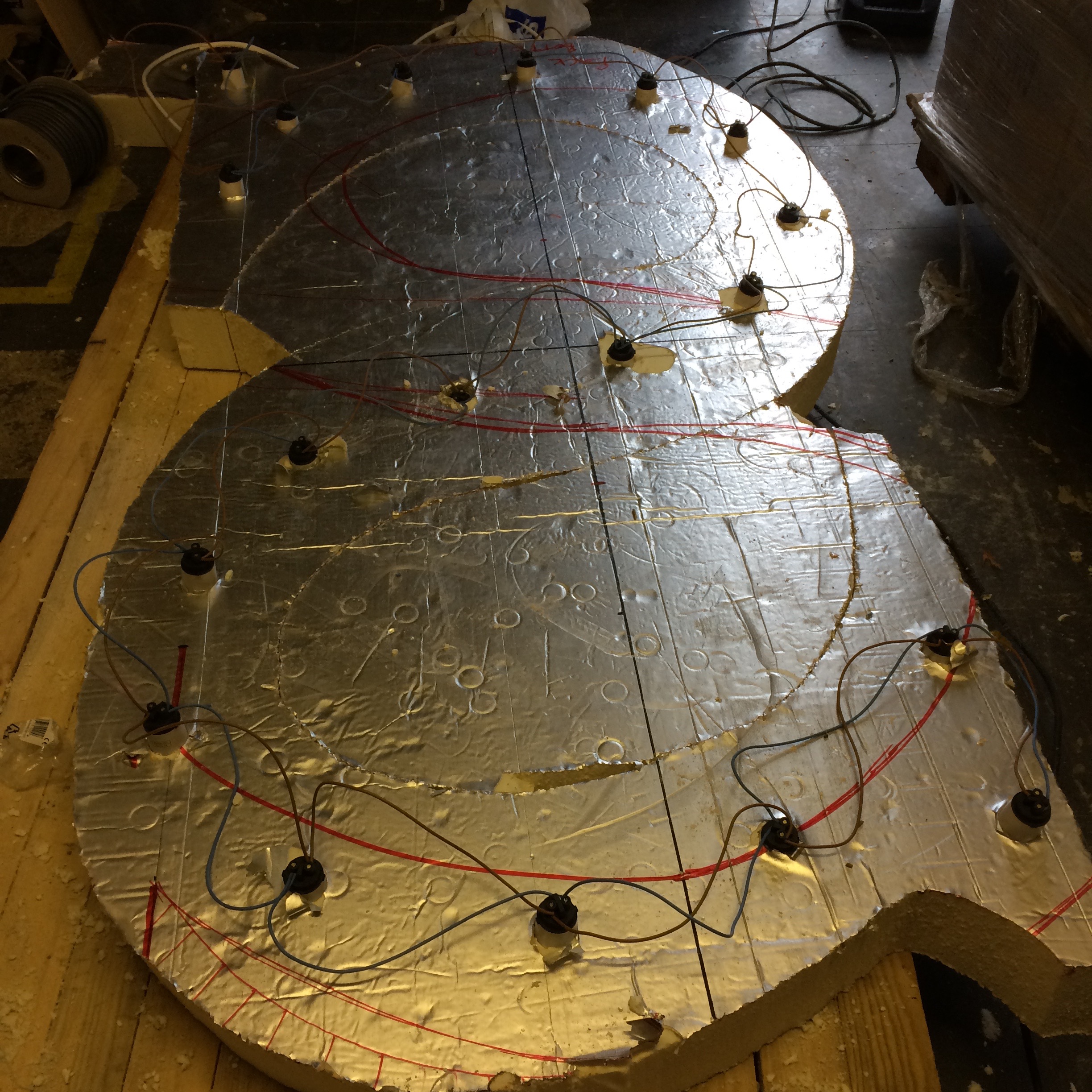

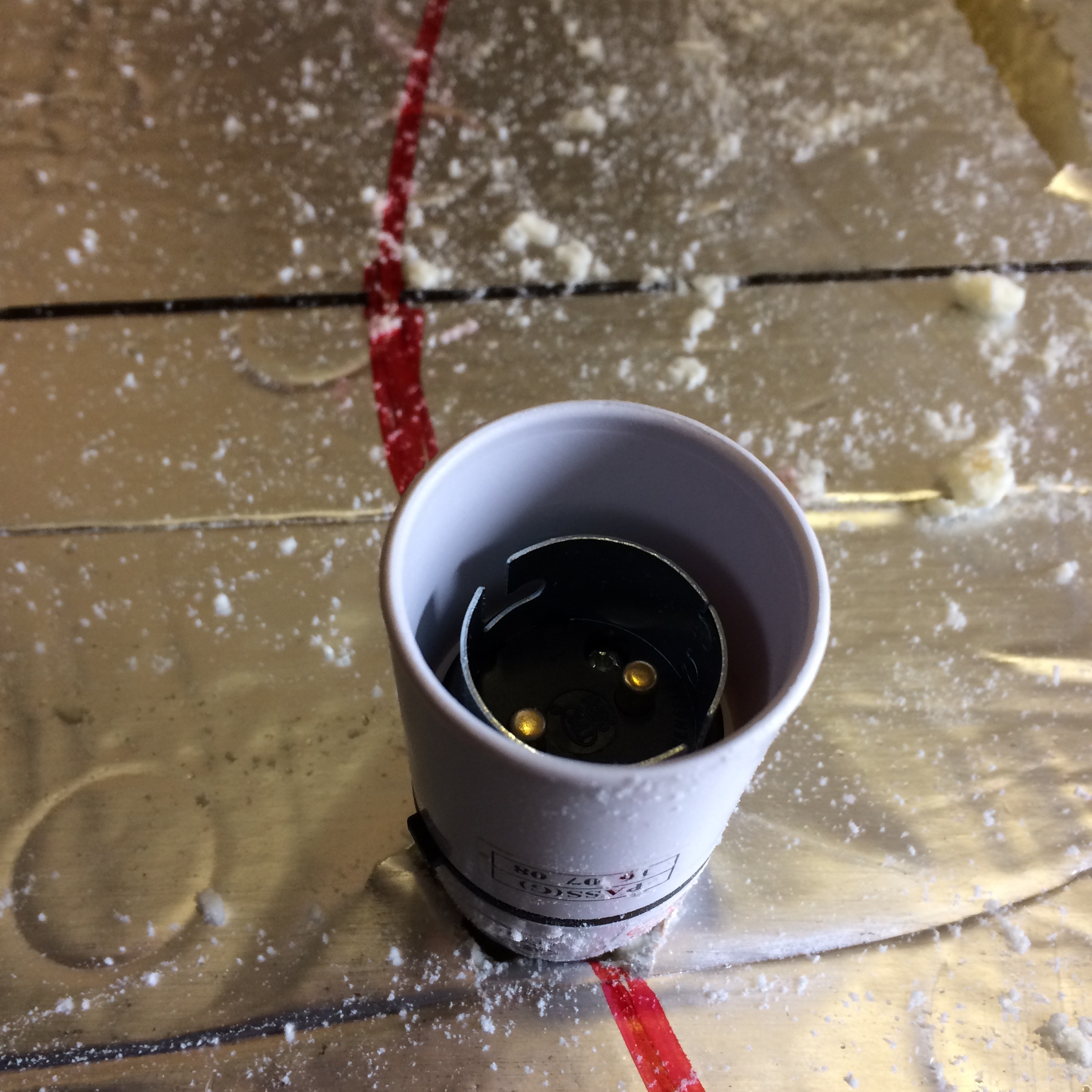

The bulb holders were just pushed through and held by compression; at the front I added a ring of fire resistant PinkGrip adhesive and smoothed it around with a wet finger.

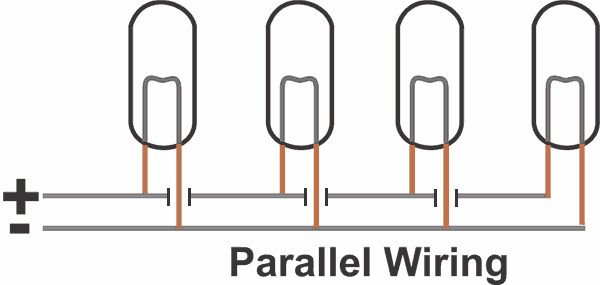

The wiring is very simple; just parallel.
I had to put two wires into each terminal to achieve this.
The last pairing, of course, led to a plug socket.

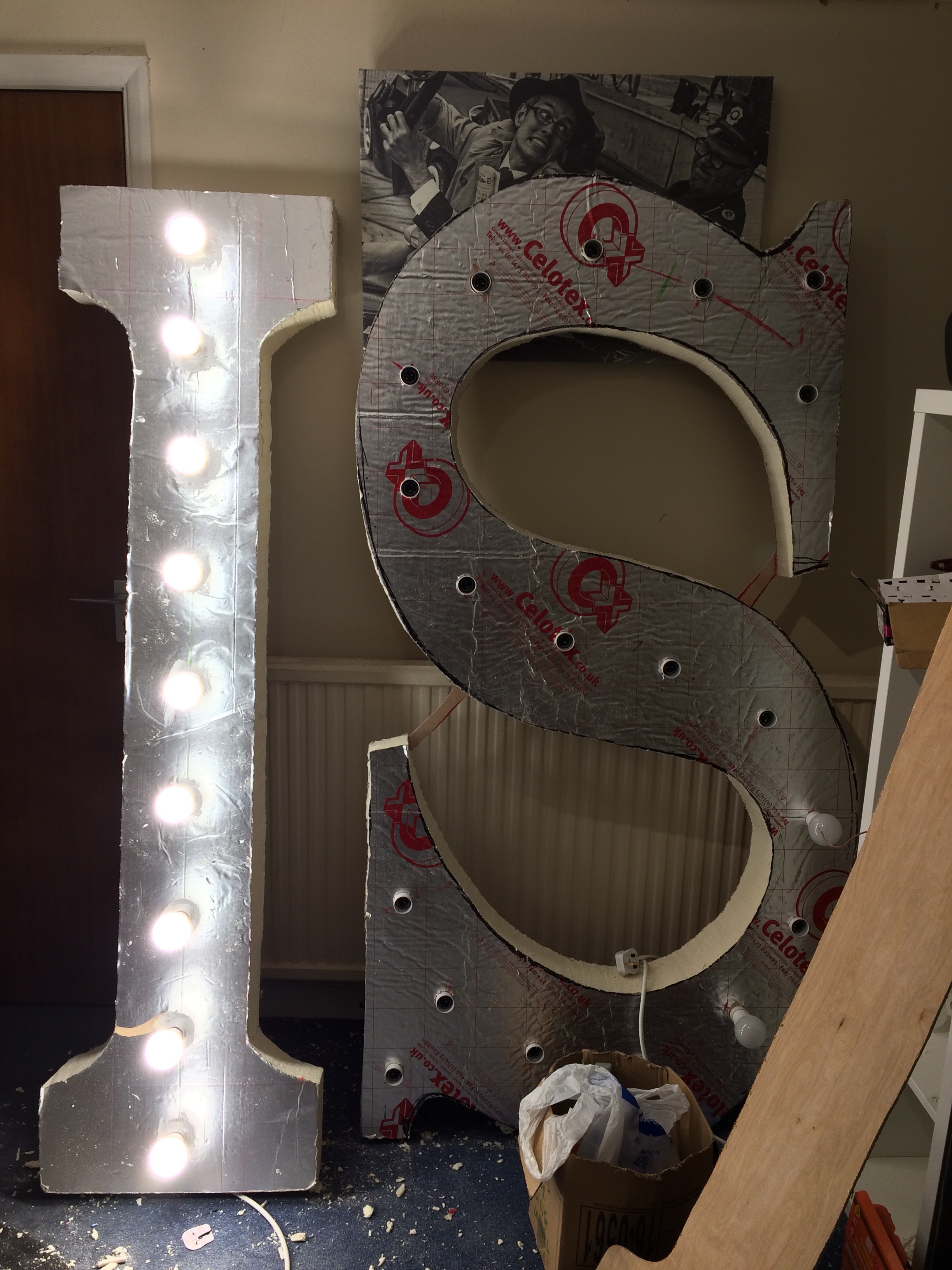

I used full sized LED bulbs for the low heat that they give off; they were still quite warm though.
The wiring was the most time intensive part of the build.
Tidying Up
![IMG_0748.jpg](/proxy/?url=https://content.instructables.com/FZ5/2PE2/J1GP82JQ/FZ52PE2J1GP82JQ.jpg&filename=IMG_0748.jpg)
![IMG_0776.jpg](/proxy/?url=https://content.instructables.com/FDJ/FBPY/J1GP82Q2/FDJFBPYJ1GP82Q2.jpg&filename=IMG_0776.jpg)
![IMG_0777.jpg](/proxy/?url=https://content.instructables.com/FNR/8HPB/J1GP82T0/FNR8HPBJ1GP82T0.jpg&filename=IMG_0777.jpg)
I cut 5mm plywood boards, slightly smaller than the letter, leaving two struts for supports.
These were stuck onto the back with PinkGrip adhesive.
The Finishing Touch
![71ukcK8PQoL._SL1292_.jpg](/proxy/?url=https://content.instructables.com/FUU/JMH8/J1GP9OVQ/FUUJMH8J1GP9OVQ.jpg&filename=71ukcK8PQoL._SL1292_.jpg)
![red-2.jpg](/proxy/?url=https://content.instructables.com/FRI/9L4H/J1GP9P7V/FRI9L4HJ1GP9P7V.jpg&filename=red-2.jpg)
![bulk-glitter-250g-in-tub-red.jpg](/proxy/?url=https://content.instructables.com/FQ8/7NYS/J1GP9PSO/FQ87NYSJ1GP9PSO.jpg&filename=bulk-glitter-250g-in-tub-red.jpg)

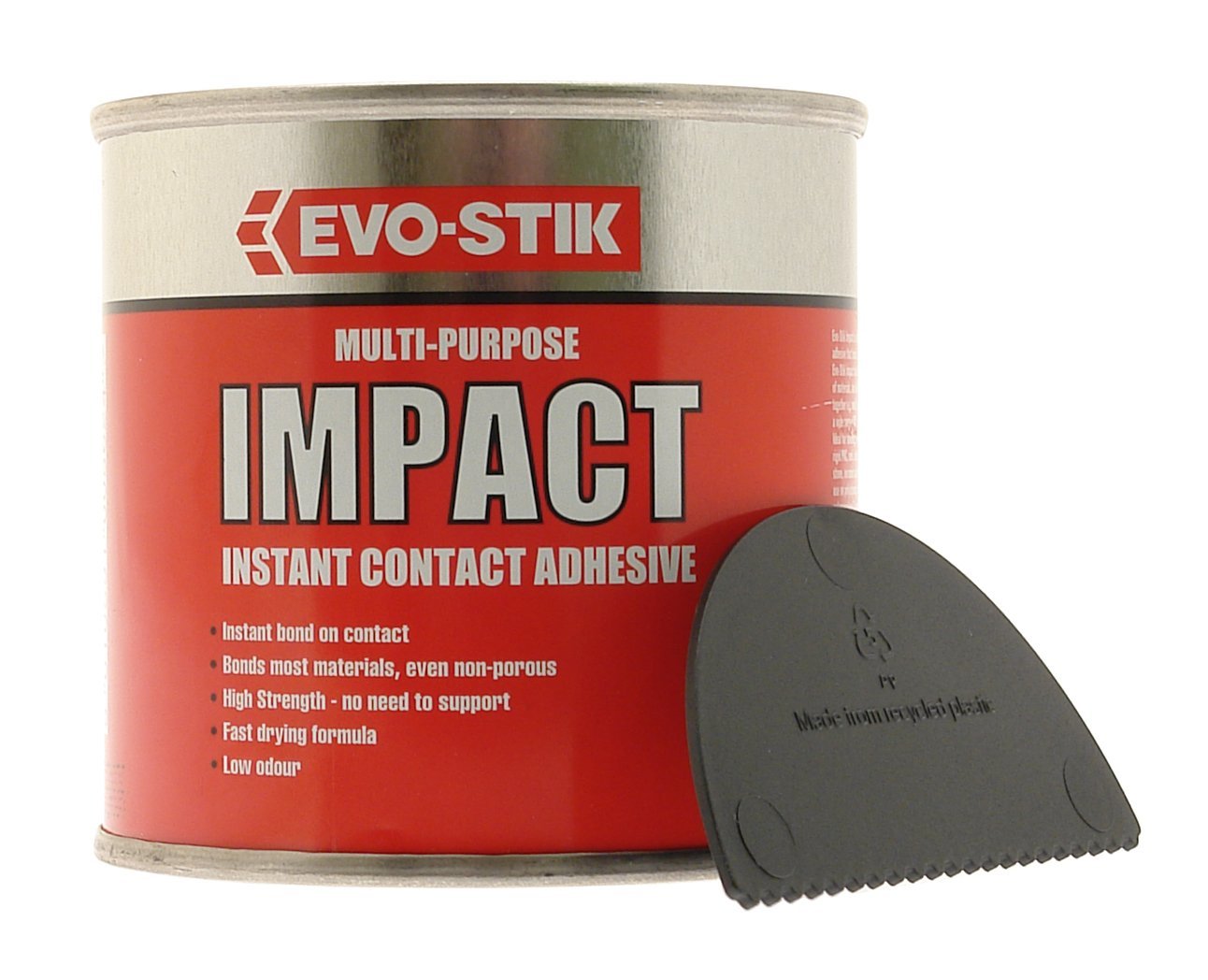

I covered it in contact adhesive and then sprinkled litter all over it.
This covered the imperfections in the foam.
I was finding glitter for weeks afterwards.
The End

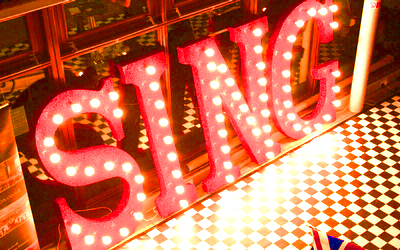

![singcarreoke.jpg](/proxy/?url=https://content.instructables.com/FKJ/PZQK/J1GPQ1FO/FKJPZQKJ1GPQ1FO.jpg&filename=singcarreoke.jpg)
These are now rented out for Karaoke events and go along way to complementing drunken people singing ABBA songs.
