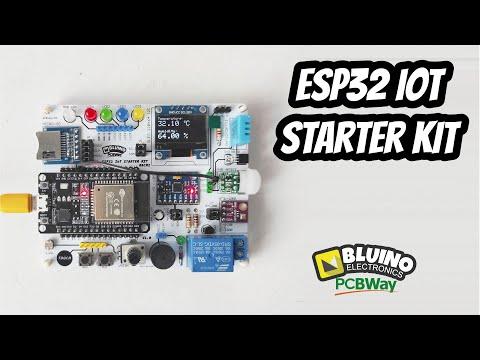

Getting Started ESP32 With 110+ IoT Projects | ESP32 IoT Starter Kit
This article is sponsored by PCBWAY.
PCBWAY make high quality prototyping PCBs for people all over the world. Try it for your self and get 10 PCBs for just $5 at PCBWAY with very great quality, Thanks PCBWAY. The ESP32 IoT Starter Kit that I developed in this project uses PCBWAY PCB services. In this instructable, I will show you how to build ESP32 IoT Starter Kit a shield that will help you learn and make projects ESP32 easier and faster. Let's get started!
Schematics
Parts List
Here are the components that you will need to make ESP32 IoT Starter Kit:
- 1 x PCB ESP32 IoT Starter Kit (PCBWay)
- 1 x ESP32 DEVKIT V1 board 30 pin
- 1 x Micro SD adapter module
- 1 x OLED I2C 128x64
- 1 x Humidity and Temperature sensor DHT11/DHT22
- 1 x Temperature sensor DS18B12
- 1 x Motion sensor PIR AM312
- 1 x Environmental sensor BME280/BMP280
- 1 x 3 axis Acc. and Gyro sensor MPU6050
- 1 x LDR (Photoresistor)
- 4 x LED 5mm
- 1 x RGB LED 5mm common cathode
- 1 x LED 3mm
- 1 x Active BUzzer
- 2 x Tact Switch 6x6mm
- 1 x Potentiometer 10K Ohm
- 1 x Relay 5V DC
- 1 x NPN Transistor BC547
- 1 x Diode 1N4148
- 8 x Resistor 330 Ohm
- 4 x Resistor 10K Ohm
- 1 x Resistor 1K Ohm
- 2 x Resistor 4,7K Ohm
- 1 x Capacitor 100uF/16V
- 1 x Terminal Screw 2 pin 5mm
- 2 x Female Header 15 pin
- 2 x Male Header 15 pin
- 1 x Male Header 7pin, 5pin, 4pin, 3pin & 2pin
- 1 x Double Male Header 4 pin & 2 pin
- 10 x Jumper cap

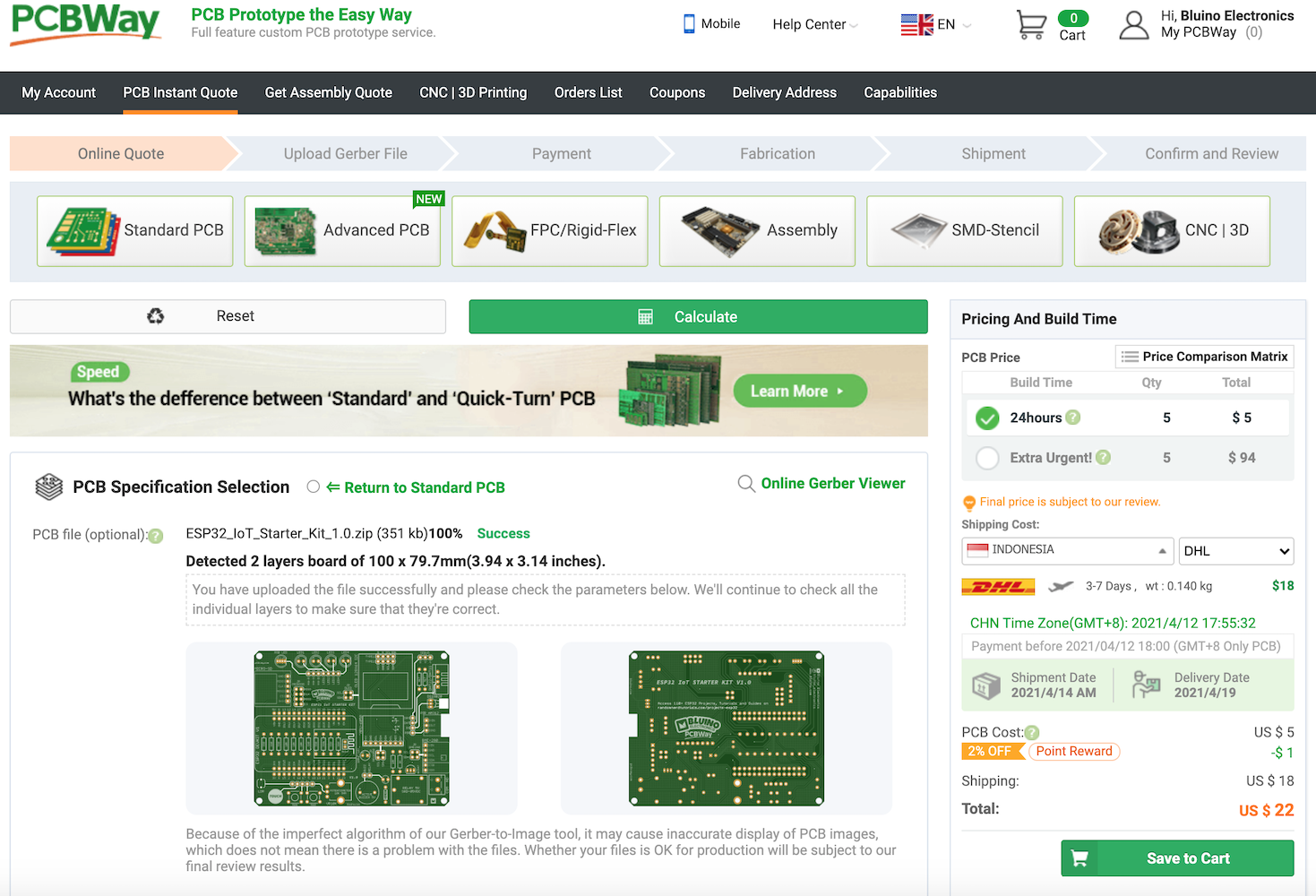

Order PCB on PCBWAY
To make this project you need to order a prototype PCB on PCBWAY. How to order is very easy and you will get 10 Pcs PCB for $5 with very great PCB quality.
Step to Order:
1. SignUp/Log in on pcbway.com
2. Open this PCB project link ESP32 IoT Starter Kit
3. Set PCB order options: color and select 10 pieces.
4. Click Add to cart.
5. Wait moment for PCB review, then Click Check Out.

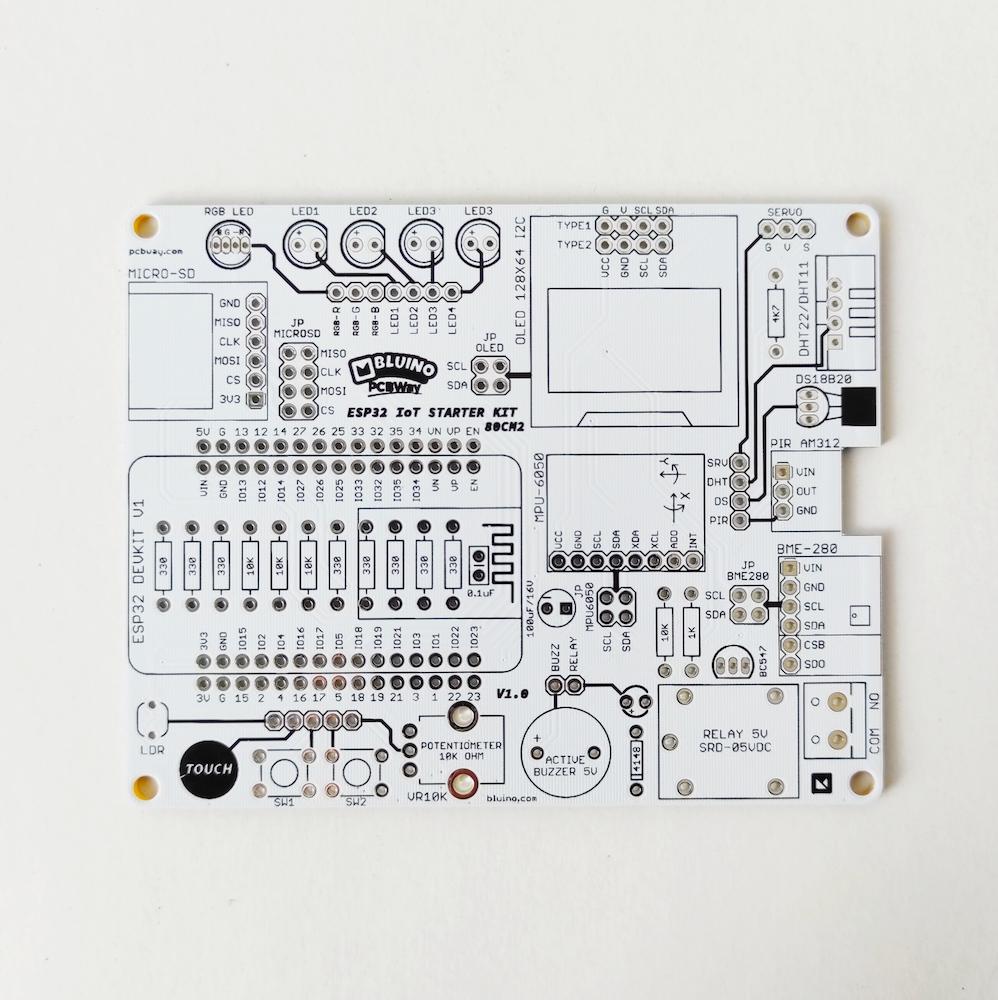

Place All of Components
Attach the trough hole components on the PCB following the pictures and symbols on the PCB, for details you can follow step by step in the video.

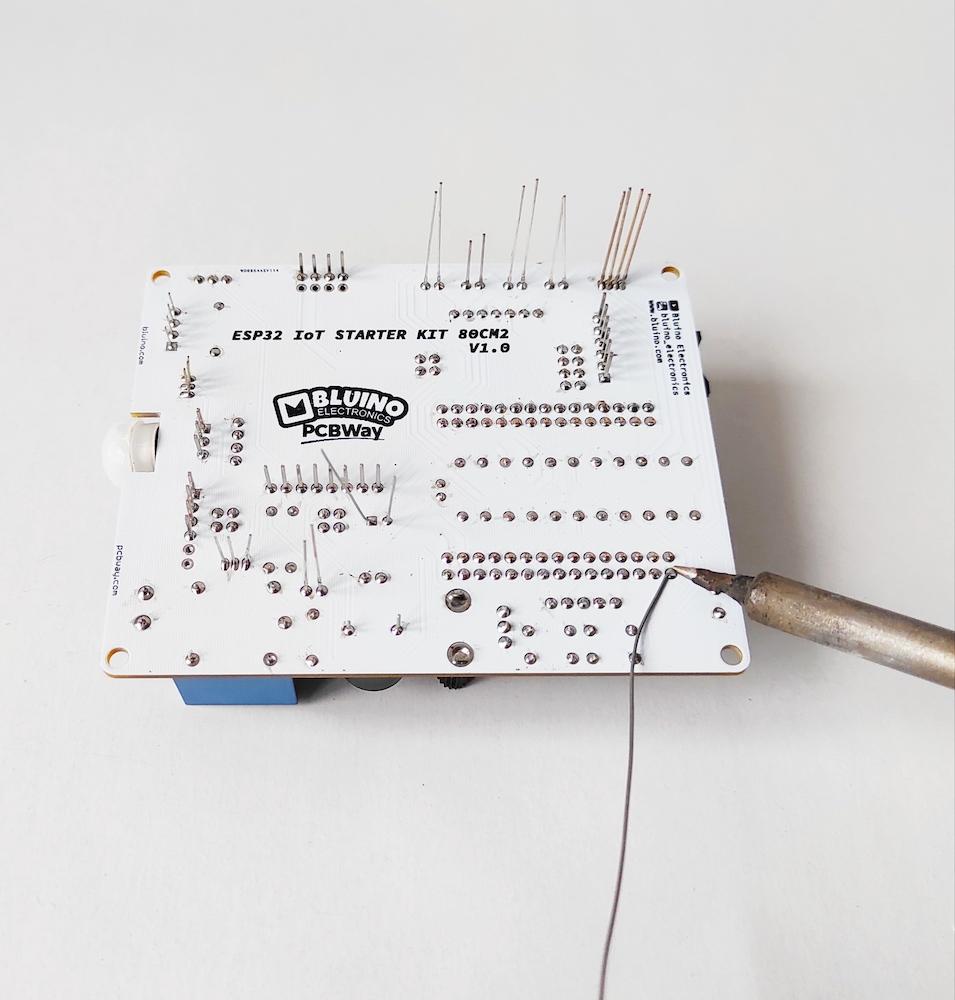

Soldering
Solder all the component legs on the back of the PCB, for details you can follow step by step in the video.

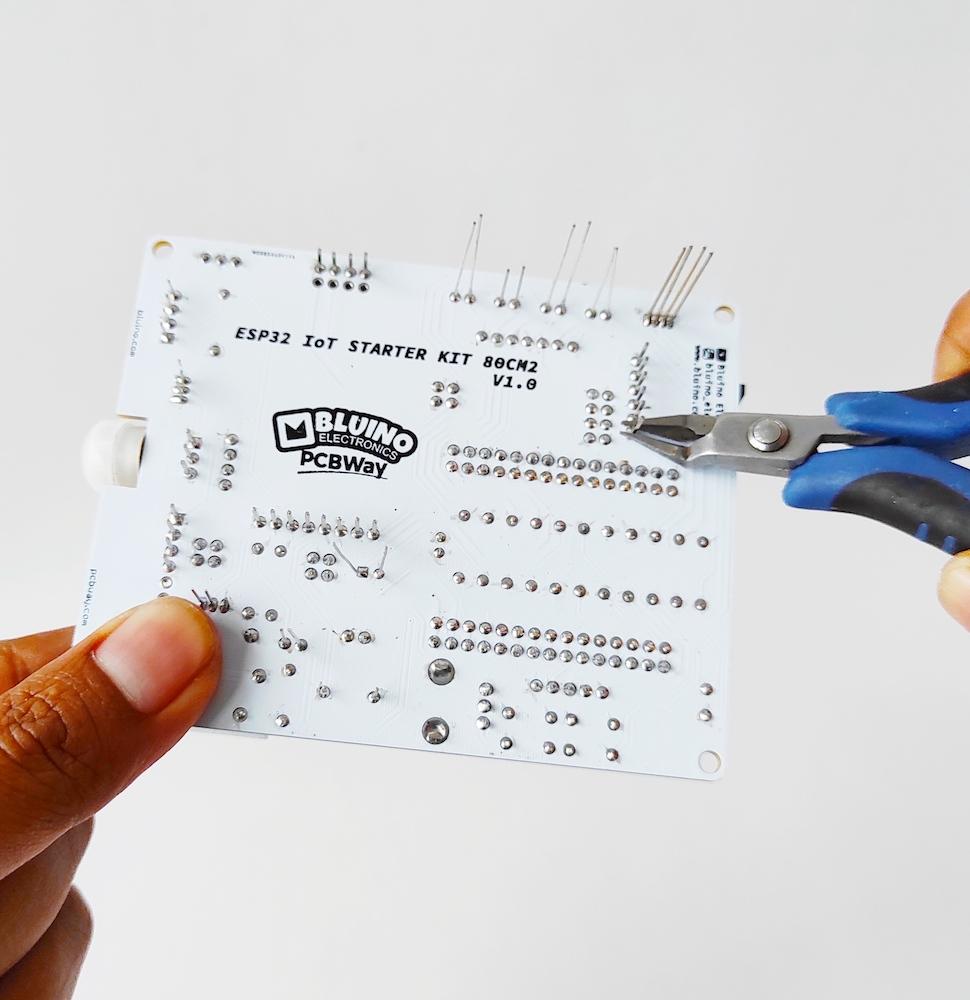

Cutting Wire
After finish solder, cut all the long legs of the component wire.
Attach ESP32 DEVKIT V1 Module 30 Pin
Attach the ESP32 module into the female header socket 2 x 15 pin.
Hardware Is Ready
Now, time to begin learn basic IoT use ESP32 IoT Starter Kit boards, is very easy just following the more than 110 tutorial on randomnerdtutorials.com/projects-esp32.
First Test Hardware

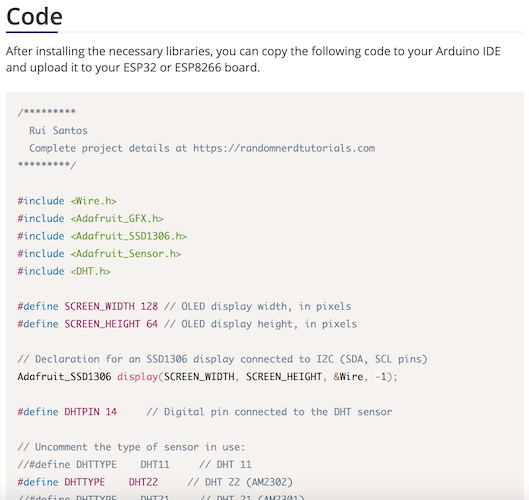

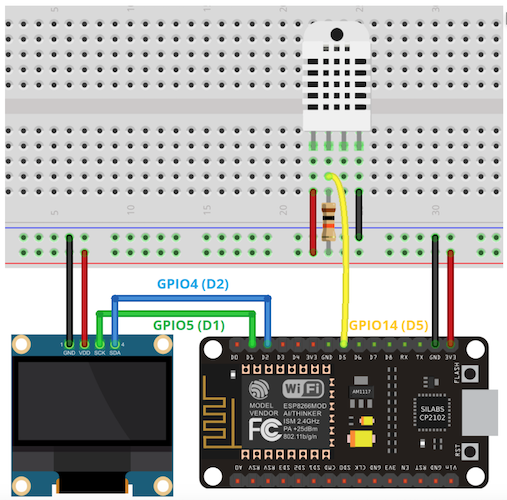

On randomtnerdtutorial projects-esp32 under Displays topic select the tutorial OLED Temperature. This tutorial will use DHT11 and OLED display on Starter Kit board, you will need one wire jumper female to female 20cm to connecting GPIO14 to DHT11 follow the schematics. Upload sample sketch to ESP32 board then see whats happen.
Enjoy Tutorial for ESP32
Next, you can try all the tutorials at randomnerdtutorial esp32 from introduction to interesting cloud projects.
You need some additional parts to complete all the exercises in the tutorial: the dupont jumper cable female to female 10cm, servo motor SG90 and and micro USB cables.
