Gesture Doorbell

This motion sensor doorbell works using the ultra sonic sensor from the arduino uno starter kit

it is a simple project to do and is great for a beginner.

1 arduino uno

2 ultra sonic sensor

3 buzzer or a speaker

4 mini bread board

5 jumper wires (male to male, male to female)

6 usb arduino cord

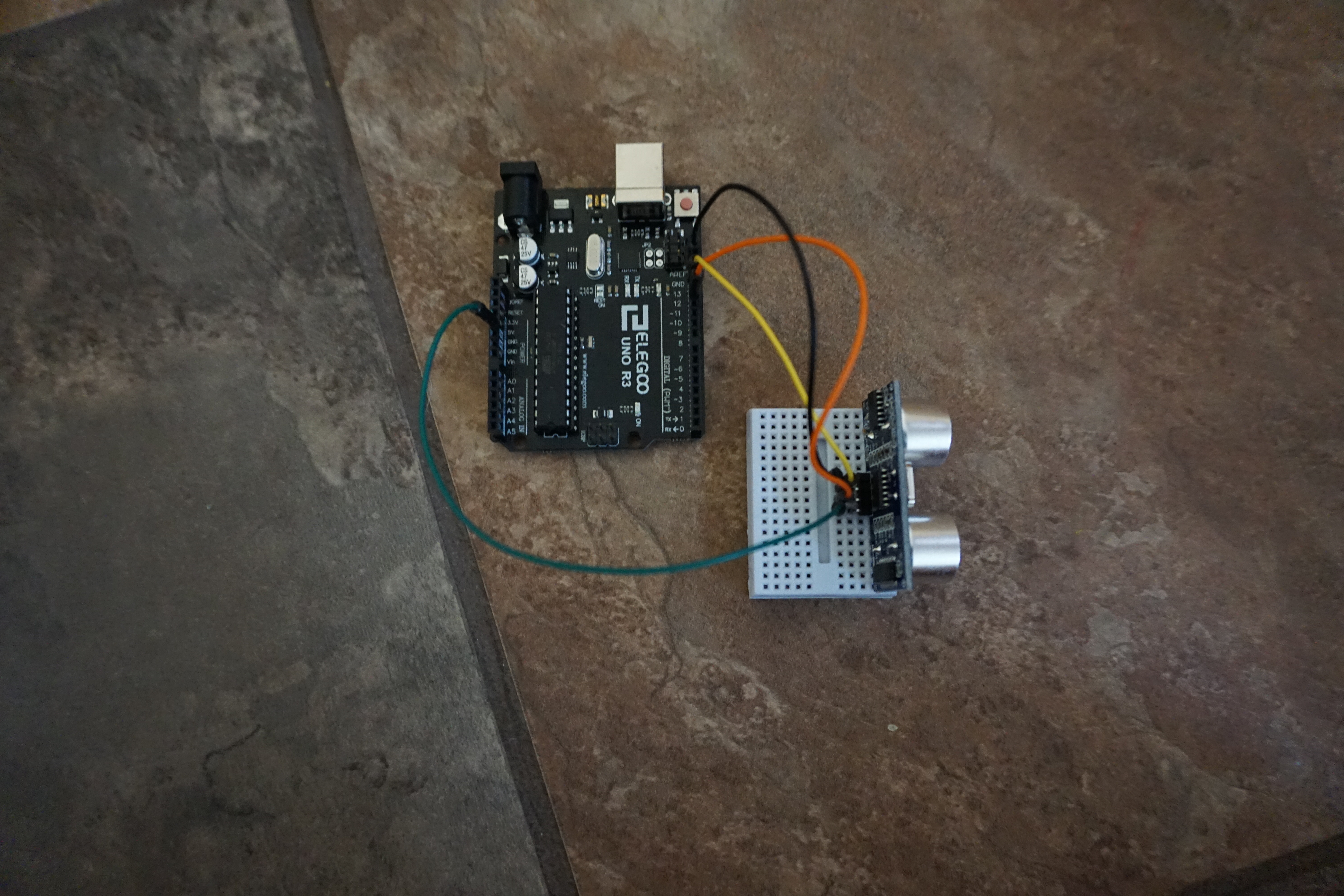

Attach the ultra sonic sensor to the breadboard then attach some male to male jumper wires to the holes behind the ultrasonic sensor.

Attach the vcc to the 5v on the Arduino

Attach the trig to the 12 pin

Attach the echo to the 13 pin

And finally attach gnd to gnd

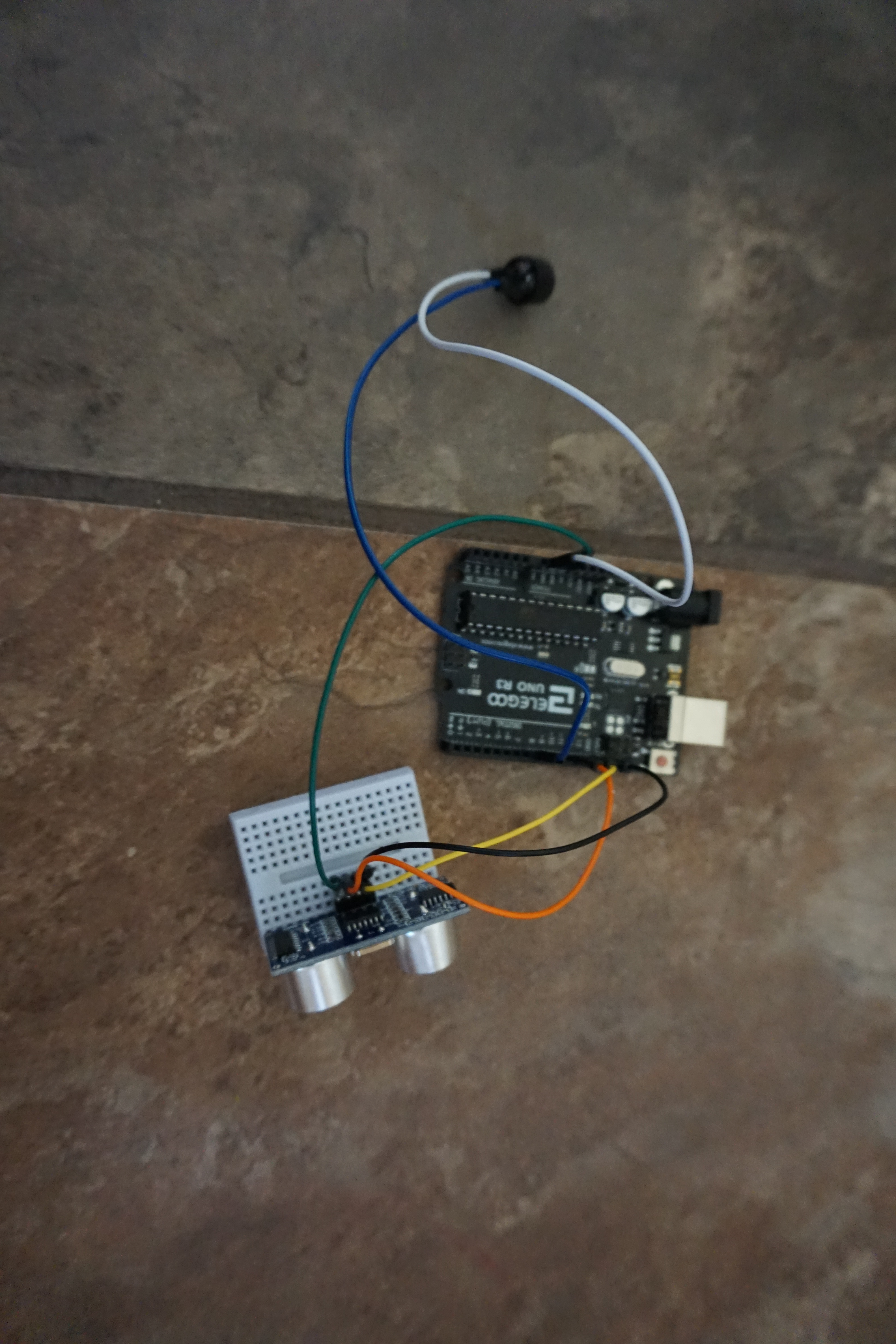

Attach the buzzer to 2 male to female wires

Attach the positive wire to the 8 pin

Attach the negative wire to the gnd

#define trigPin 12

#define echoPin 13 int Buzzer = 8;

void setup() { Serial.begin (9600); pinMode(trigPin, OUTPUT); pinMode(echoPin, INPUT); pinMode(Buzzer, OUTPUT); }

void loop() { int duration, distance; digitalWrite(trigPin, HIGH); delayMicroseconds(1000); digitalWrite(trigPin, LOW); duration = pulseIn(echoPin, HIGH); distance = (duration/2) / 29.1; if (distance >= 80 || distance <= 0){ Serial.println("no object detected"); digitalWrite(Buzzer, LOW);

} else { Serial.println("object detected"); tone(Buzzer, 400); // play 400 Hz tone for 500 ms delay(500); tone(Buzzer, 800); // play 800Hz tone for 500ms delay(500); tone(Buzzer, 400); // play 400 Hz tone for 500 ms delay(500); tone(Buzzer, 800); // play 800Hz tone for 500ms delay(500); tone(Buzzer, 400); // play 400 Hz tone for 500 ms delay(500); tone(Buzzer, 800); // play 800Hz tone for 500ms delay(500); noTone(Buzzer); } delay(300); }

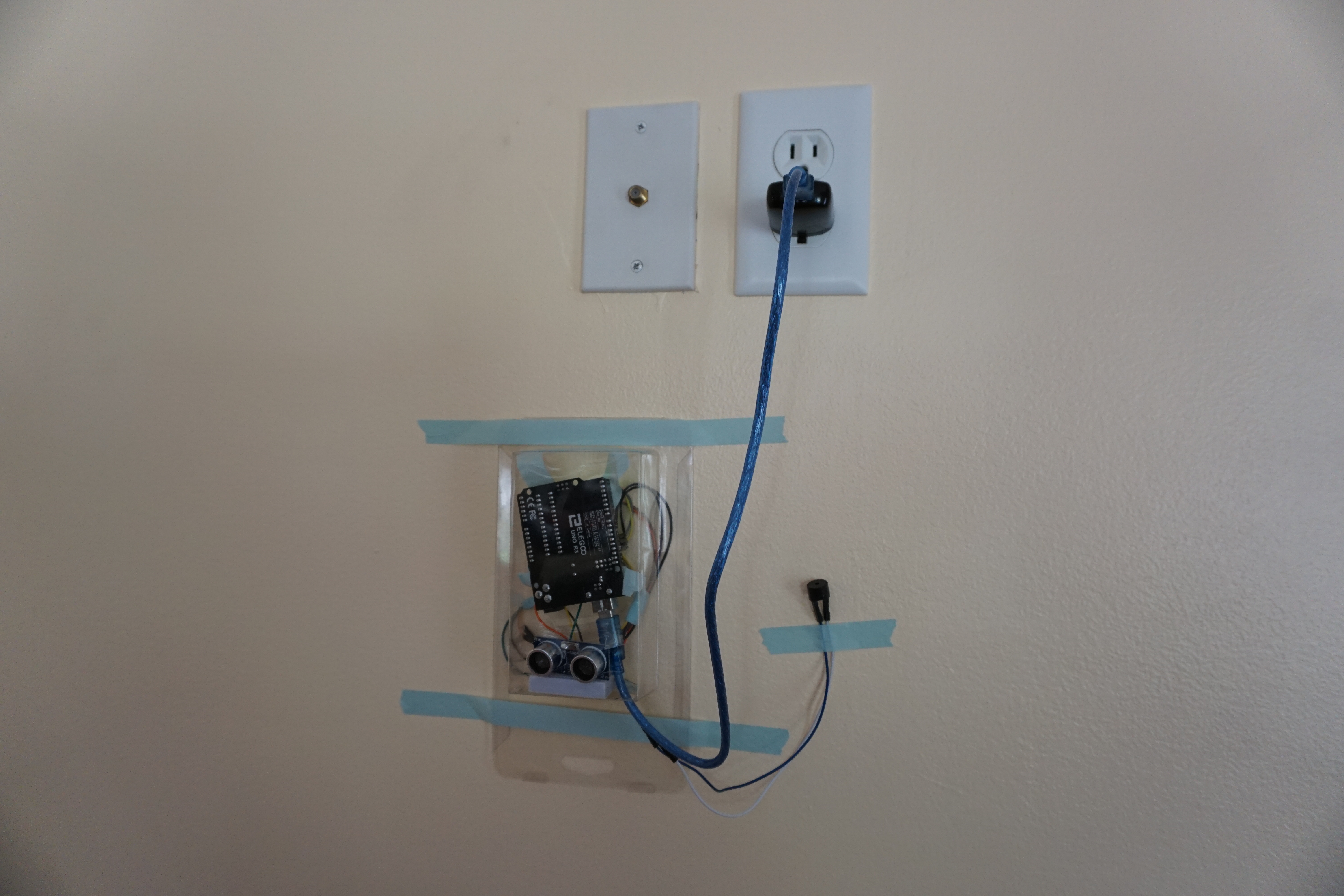

Up load the code then detach the usb cable and reattach it to a phone charger that plugs into a walla 9 volt battery is not a enough power for it so you will have to plug it into a wall

I hope you enjoyed this tutorial
