Geodesic Dome From Laser-Cut Cardboard

In this brief tutorial, we will show you how to build geodesic domes using cardboard or foamcore board panels. We manufactured our panels using a laser cutter with a 2'x3' area. If you are highly motivated, you could also create these panels by hand, using the same design template.

We assembled our domes using Makedo screws (https://www.make.do), an amazing and re-usable tool for cardboard prototyping. If you're impatient to get building, you could also assemble your dome using zip-ties or binder clips.

NOTE that this Instructable is a draft! Help us make it better by putting your suggestions in the comments!

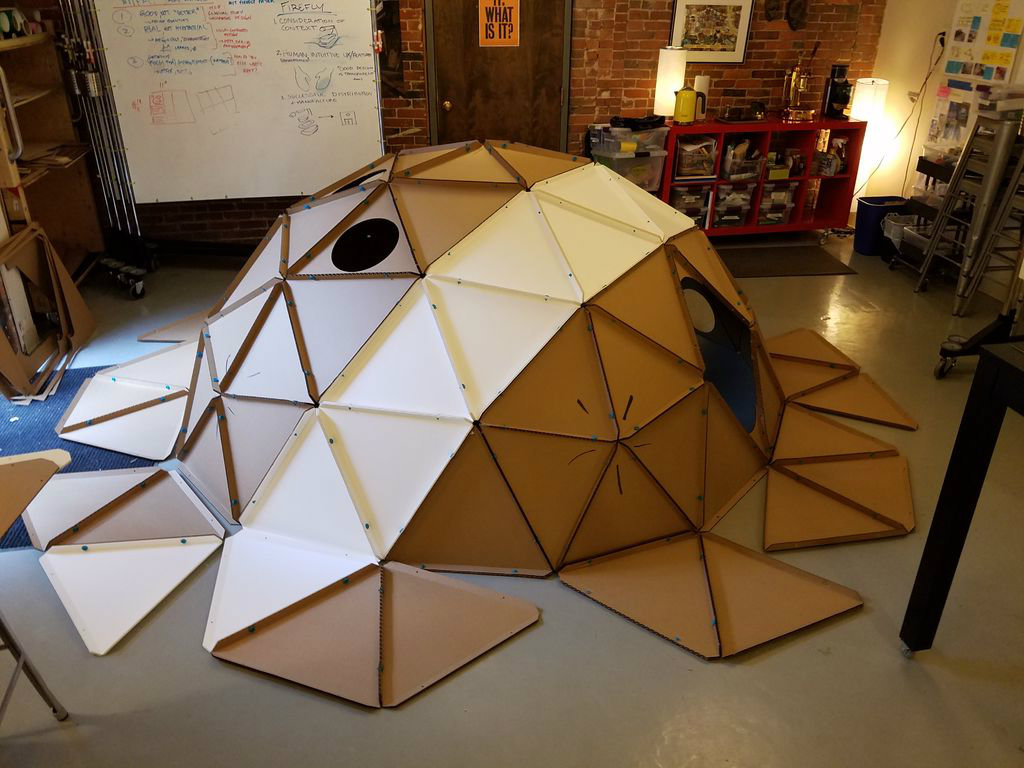

We have designed panels for what's called a 2v-dome with 40 panels, and a 3v-dome with 75 panels. Cut from 2'x3' cardboard stock, the 2v-dome is 36 inches tall, and the 3v-dome is 54 inches tall. You can create an even larger 3v-dome with an additional bottom strip of 30 panels that will be almost six feet tall, but it isn't as stable as the other two domes.

Attached are the dome panels as a CorelDraw file. This is the format that works best with the printer driver for our Epilog Legend 36EXT laser cutter. Please request other file formats in the comments!

Our goal was to make the biggest possible geodesic dome using panels cut from 24"x36" cardboard using our 60W Epilog laser cutter.

We first considered a 2V 3/8th dome design, which has just 40 panels. Note that most dome calculators provide parameters in terms of struts and hubs.

See the attached Excel spreadsheet for all of our calculations.

• Makedo "Geo" dome https://mymakedo.com/showcase/view/geo-dome/ https://mymakedo.com/blog/makedo-how-to-geodesic-...
• Tanaka Satoshi's Cardboard Cinema: https://mymakedo.com/blog/cardboard-cinema-dome1 See also his Flickr stream: https://mymakedo.com/blog/cardboard-cinema-dome1
• 3d model of a 3v dome https://3dwarehouse.sketchup.com/model.html?redir...
• Clever laser-cut dome skeleton https://www.uni-weimar.de/medien/wiki/GMU:I_am_a_...

1. Desert Domes reverse dome calcs

• given "long" strut length, calculates remaining dimensions goal is to make what Desert domes considers a "3/8 dome"; presumably a "5/8 dome" includes the sphere centerline and below that the surface begins curving inwards again.
• 2V: http://www.desertdomes.com/rev2calc.html
• 3v: http://www.desertdomes.com/rev2calc.html
• General ratios: http://www.desertdomes.com/rev2calc.html

2. Geo Dome UK

• gives total quantity of panels by type (bounding struts) and panel assembly diagram
• CONFUSING: in 2V diagram, what GeoDome calls the "A" strut, Desert Domes calls the "B" strut and vice versa.
• http://geo-dome.co.uk/2v_tool.asp
• in 3V diagram, Desert Domes and Geodomes use the same ABC notation http://geo-dome.co.uk/2v_tool.asp

HOWTO GENERATE PANEL DIMENSIONS:

• estimate maximum strut length using example triangles in CorelDraw. Goal is to fit two triangles on each 24"x36" cardboard sheet, including 1/2" wide assembly tabs on each triangle face. this looks like 22.5 inches.
• in 2V dome, using Desert Domes calculator, this max length is the input for the A strut in 3V dome, using Desert Domes calculator, this max length is the input for the C strut

HOWTO CALCULATE THE NUMBER MAKEDO FASTENERS

• assume three fasteners per intersection/strut
• subtract three fasteners for every "base" strut
