Garmin ETrex Super Cheap Screen Guard
In this instructable I show you how to make a super cheap screen guard for the eTrex. This not only protects the screen but the entire unit while still allowing you to operate it. Also since it is entirely transparent it doesn't spoil the look.
While the eTrex unit is quite rugged, my biggest fear has always been of the screen getting scratched. Also I noticed that if you use a handle bar mount (see my other instructable) like the one I made, vibrations may cause the mount to rub against the body of the eTrex and cause scratch marks. ( I like my gadgets new and shiny :-) )
While the eTrex unit is quite rugged, my biggest fear has always been of the screen getting scratched. Also I noticed that if you use a handle bar mount (see my other instructable) like the one I made, vibrations may cause the mount to rub against the body of the eTrex and cause scratch marks. ( I like my gadgets new and shiny :-) )
The Materials
1. A plastic bottle of your favourite drink
2. A scissor

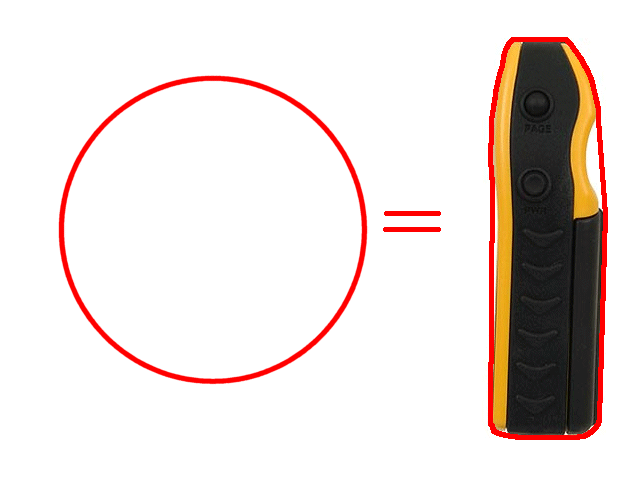

I used a 1.5Litre bottle of Coke as shown in the picture, the important thing to remember here is that the circumference of the bottle (measured around the lable) should be identical to the circumference of the eTrex measured along the length/vertically.
This will be more clear as we go along once you understand what it is I am trying to do....
Hope you have finished drinking that bottle by now because you need to empty it, wash it and dry it for the next step. Burp...
2. A scissor
I used a 1.5Litre bottle of Coke as shown in the picture, the important thing to remember here is that the circumference of the bottle (measured around the lable) should be identical to the circumference of the eTrex measured along the length/vertically.
This will be more clear as we go along once you understand what it is I am trying to do....
Hope you have finished drinking that bottle by now because you need to empty it, wash it and dry it for the next step. Burp...
Preparing the Bottle
Empty, wash and dry the bottle, then remove the lable from the bottle.
Now poke the scissor into the bottle carefully and start cutting it so that you are left with the transparent cylindrical portion of the bottle as shown in the picture.
Since I don't yet have a good camera and the bottle is transparent anyway, I will try and explain with the help of hand drawn diagrams.
Now poke the scissor into the bottle carefully and start cutting it so that you are left with the transparent cylindrical portion of the bottle as shown in the picture.
Since I don't yet have a good camera and the bottle is transparent anyway, I will try and explain with the help of hand drawn diagrams.
Putting It Together

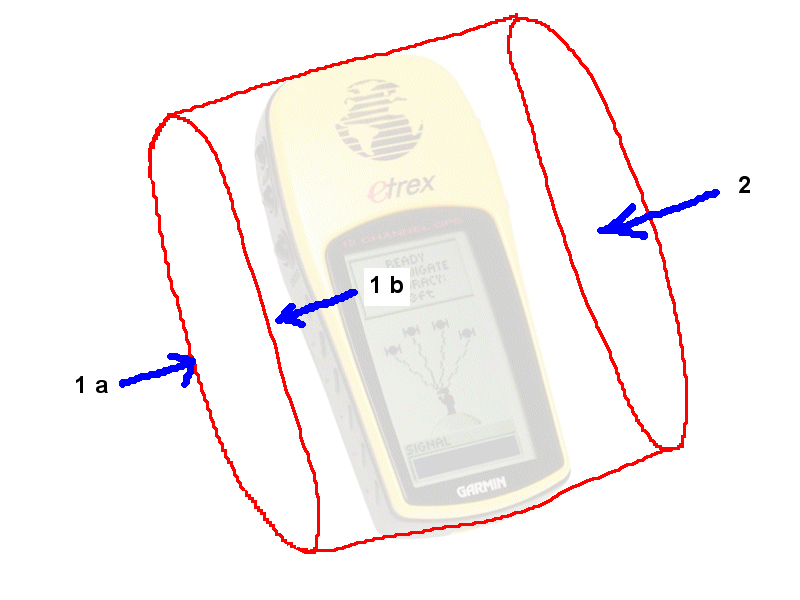

Now squeeze the cylinder as shown in the picture to flatten it. Don't flatten it too much to create a fold just yet, but just enough for the etrex to slide in. In my case I found that I had to push the etrex in with a bit of force since it was a proper fit.
Snip Snip

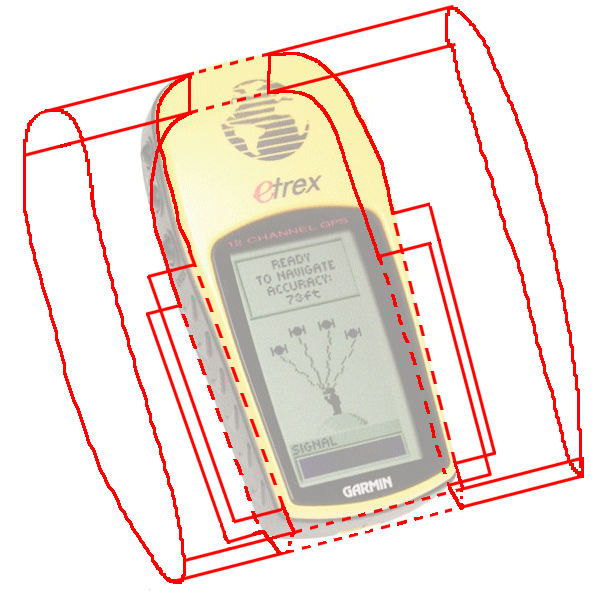

Now with a sketch pen mark out the outline of the eTrex and leave some space for the flaps as shown in the diagram. The idea is to cover the eTrex with plastic "gift wrap" style, with openings for the switches.
The plastic is best cut with a small but sturdy scissor, I used one that can be folded and attached to a key chain. Be carefull not to scratch the eTrex with the scissor.
The dotted lines show where to make the folds.
The plastic is best cut with a small but sturdy scissor, I used one that can be folded and attached to a key chain. Be carefull not to scratch the eTrex with the scissor.
The dotted lines show where to make the folds.
Ta Daa...
This is what remains of the cylinder after it has been cut.

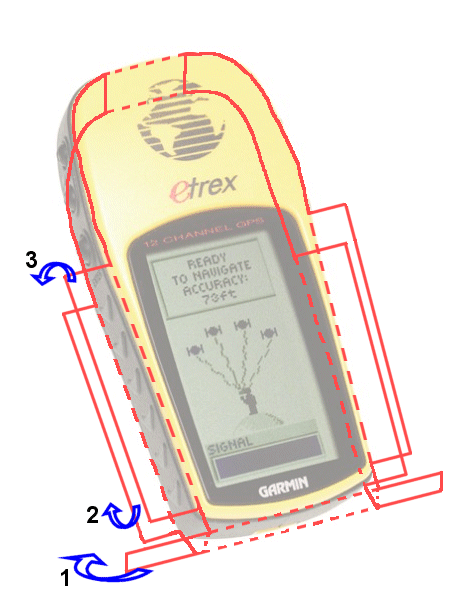

1. Fold the bottom flaps inwards
2 & 3 Fold the side flaps
To make the folds remove the eTrex from the cylinder and press the flaps to create a crease/fold.
The top 1/3rd does not have any flaps to leave an opening for the switches. Remember to cut out holes for the clip and the neck strap.
I left the flaps open (as in not stuck together) so that I could remove the eTrex easily to change the batteries.
The eTrex should still be usable with any handle bar mount you have (see my instructable on the eTrex handle bar mount).Hope you found this usefull, let me know if you need further explanations.
1. Fold the bottom flaps inwards
2 & 3 Fold the side flaps
To make the folds remove the eTrex from the cylinder and press the flaps to create a crease/fold.
The top 1/3rd does not have any flaps to leave an opening for the switches. Remember to cut out holes for the clip and the neck strap.
I left the flaps open (as in not stuck together) so that I could remove the eTrex easily to change the batteries.
The eTrex should still be usable with any handle bar mount you have (see my instructable on the eTrex handle bar mount).Hope you found this usefull, let me know if you need further explanations.
