Gargantuan Basement or Garage Shelving Unit for $36

I needed shelving for my basement, but I wanted to have a little fun with it, and see how much shelving storage I could build for the lowest possible price, while still being plenty strong. This shelving unit uses a single OSB 4 foot x 8 foot sheet, and 2x3 inch studs to make a strong shelving unit, while taking up very little space for a lot of storage. Each shelf gives a lot of room above it to stack lots of boxes and supplies.

Before I started, my basement was a mess, stuff everywhere, and I wanted to get it off the cement floor to prevent damage. The finished dimensions for this shelving unit are 8 feet long, 16 inches wide by 5.75 feet high, with three shelves.

I specifically designed the dimensions of the shelving unit to provide the most possible storage area for the lowest possible price. If you're on a budget for diy home improvement, or prepping with supplies, or just want to save money, this project might be fun. It's an easy build, takes about 3 hours tops, you might do it in less.

I specifically chose 2x3 studs because they're plenty strong for this kind of shelving unit, while being a little less expensive than regular 2x4 studs, and a little lighter and easier to build.

You can use plywood instead of OSB, but you'll spend more on the shelves. OSB is inexpensive, very strong, and for a shelving unit in a basement or garage, it's looks aren't a detriment.

You can screw the wood together, but I chose to nail it together because I don't need to worry as much about splitting the wood or a screw breaking. I did buy screws to attach the shelves to the studs.

You'll also need about 25 3-inch or 3.5-inch common nails or screws to attach the 8-foot studs to the sides, about 15 2.5-inch or 3 inch common nails to attach the 13-inch cross supports to the vertical studs, and you'll need a small box of 1-inch screws to attach the OSB board to the shelf studs.

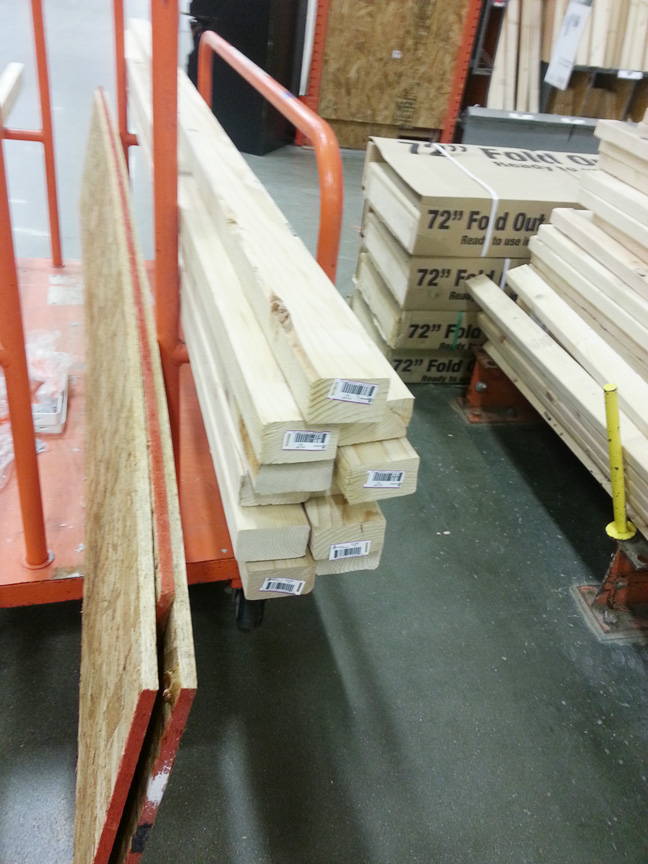

Between the single sheet of OSB board, 10 2x3 studs and the hardware, my total bill came to about $36. You might already have some of the screws or nails.

You can also do it yourself, but I've always liked the luxury of having the friendly folks at my local Home Depot store cut my panels. They do very precise job, it's easier to bring home, the cut panels are lighter and easier to move, and it makes assembly easier.

Save the small piece of scrap at the bottom, you might find it useful as shim material, more on that later.

As shown, 6 of the studs will be used full length, 8 feet long. The other four will be cut at 5 feet, 9 inches (69 inches) with the remaining part of those cut into two lengths of 13 inches each. (The remaining inch will be used up by as kerf in the sawing.) This will leave you with 4 vertical legs and 8 13-inch sides, of which you only use 6 of them, the other 2 6-inch sides are waste.

Nail or screw together the vertical sides as shown. The bottom side should be about 4 inches from the bottom in case of water, and to allow for cleaning underneath. The top side should be flush with the top, and the middle side should be somewhere in the middle, I put mine at about 36 inches.

I photographed these standing up, but I obviously built them flat on the floor, it's much easier to hammer the snot out of wood studs when they're laying flat on a floor.

I used 3.5-inch common nails, but drywall screws would have worked if you don't mind drilling a pilot hole to prevent splitting. I put one nail into the end of the 13-inch side and one into the vertical. Repeat this for all six lengths. It's much easier to lay the unit on its side when you do this, do three 8-foot lengths on one side, carefully flip it all over then do the other three on the other side.

The board might be a little tight, you can always bang them in with a hammer. Then attach with the one-inch screws.

Mine got a little screwed up, because I mistakenly remembered that the shelves were 18-inches wide, when they were actually 16-inches wide. But if you follow the cut pattern above it should work. My shelf was okay, I was glad I didn't have to redo it, it just isn't as sharp-looking as your shelving unit will be.

I no longer have small children in the house, but I have teenagers, and a young boy, so I didn't want the whole thing to fall down on anyone. I put it in a narrow space, so if it falls, it won't go all the way over. BUT, if you have small children, you definitely should secure the whole thing to the wall to prevent a tip-over. If you don't have small children, at minimum, shim the front legs so that the whole shelf leans slightly to the wall, which will significantly help prevent tip-overs when the shelves are loaded. I used the scrap from the OSB trim for that, as shown. Check with a level, again, it's very important to make sure your shelves don't fall over.

If you want to install these units in a location not against a wall, at least run a cable or heavy rope into a heavy-duty eye-hook screwed into a rafter, Having that stabilization at the top will help prevent a tip-over. You can also build two of these units and screw them to each other, back to back, but even then, try to stabilize it in some way, especially if you have children around.

I had two rooms full of boxes and various debris of misguided suburban life. Let's see how it all loaded up ...

Not bad! It held much more than I could have squeezed onto even one of the big $150 shelving units from the home store. Our budget shelving unit has a total shelf space of about 31 square feet. This might be a touch less than the very large ready made shelving units, but our shelving unit has high shelves and lots of room, which lets you really load it up in a way that would be hard for a conventional shelving unit.

And this price, as long as you don't mind doing a little labor, you could build about 4 of them for the same price as one of the ready-made units, that would probably give you more storage than you would ever need in your garage or basement, and still leave plenty of floor space.

Remember, put the heavy stuff on the bottom and the lighter, bulkier stuff on top to increase stability.

I estimate that I put about 600 lbs. total of suburban debris onto that shelving unit, it didn't complain about the weight.

The two rooms in my basement look great. I'm going to eventually wall off that room with the long shelves, maybe build another one, then finish off the basement in clutter-free bliss.
