Garage Door Open Indicator Light

This Instructable will explain how to make a simple flashing LED indicator to let you know when your garage door is open.

At the end of the day I was always checking the overhead garage door on my house to make sure it was closed.  I decided to install a flashing LED light that would let me know when it was open.  This has saved me many trips down the steps from upstairs to check the garage door before going to bed at night.

Materials

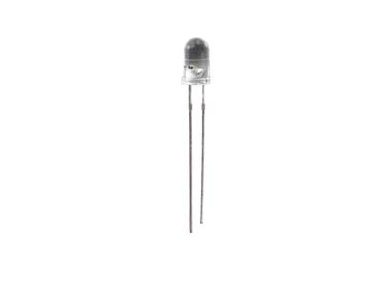

1. Blinking red LED from Radio Shack.
2. SPDT Switch with 3/4" Roller Lever from Radio Shack.
3. Miscellaneous DC Wall transformer.
4. A resistor for the LED.
5. A piece of scrap aluminum.
6. Miscellaneous wood screws and machine screws as needed.
7. Miscellaneous two conductor light gauge wire.

Tools

The tools I used on the project were as follows:

1. Cordless drill
2. Screwdrivers
3. Hacksaw to cut aluminum material for brackets

NOTE: If you plan on using any tool for a project please make sure you are familiar with the tool and all of the dangers associated with it. If you are not familiar with a tool then you should ask someone who is to show you the proper way to use it. A lot of communities have classes at local colleges on the proper use of tools and machinery. There are also local woodworking clubs that offer classes at very reasonable rates for beginners. I highly recommend using these resources for your safety and for the most efficient use of the tool.

SAFETY FIRST
Always wear eye and hearing protection.
Always work safe with the proper safety equipment and guards on your tools.

Like I mentioned earlier in the Instructable, I used mostly parts I already had for this project.  The switch I used was a roller contact lever switch.  I decided the best place to mount the switch was above the door .  That way it is out of the snow or rain if it was mounted lower along the side of the door.  Also, there is little chance of hitting it by accident.

The switch is wired to the Normally Closed contacts so that there is no through circuit when the switch is depressed while the garage door is in the open position and the LED doesn't receive power.  In order to do this I had to add a piece of aluminum on the top edge of the garage door.  When the garage door closes the aluminum moves into position against the roller on the switch.  When the garage door is open the lever is released and the switch goes into the closed position and power is supplied to the LED.

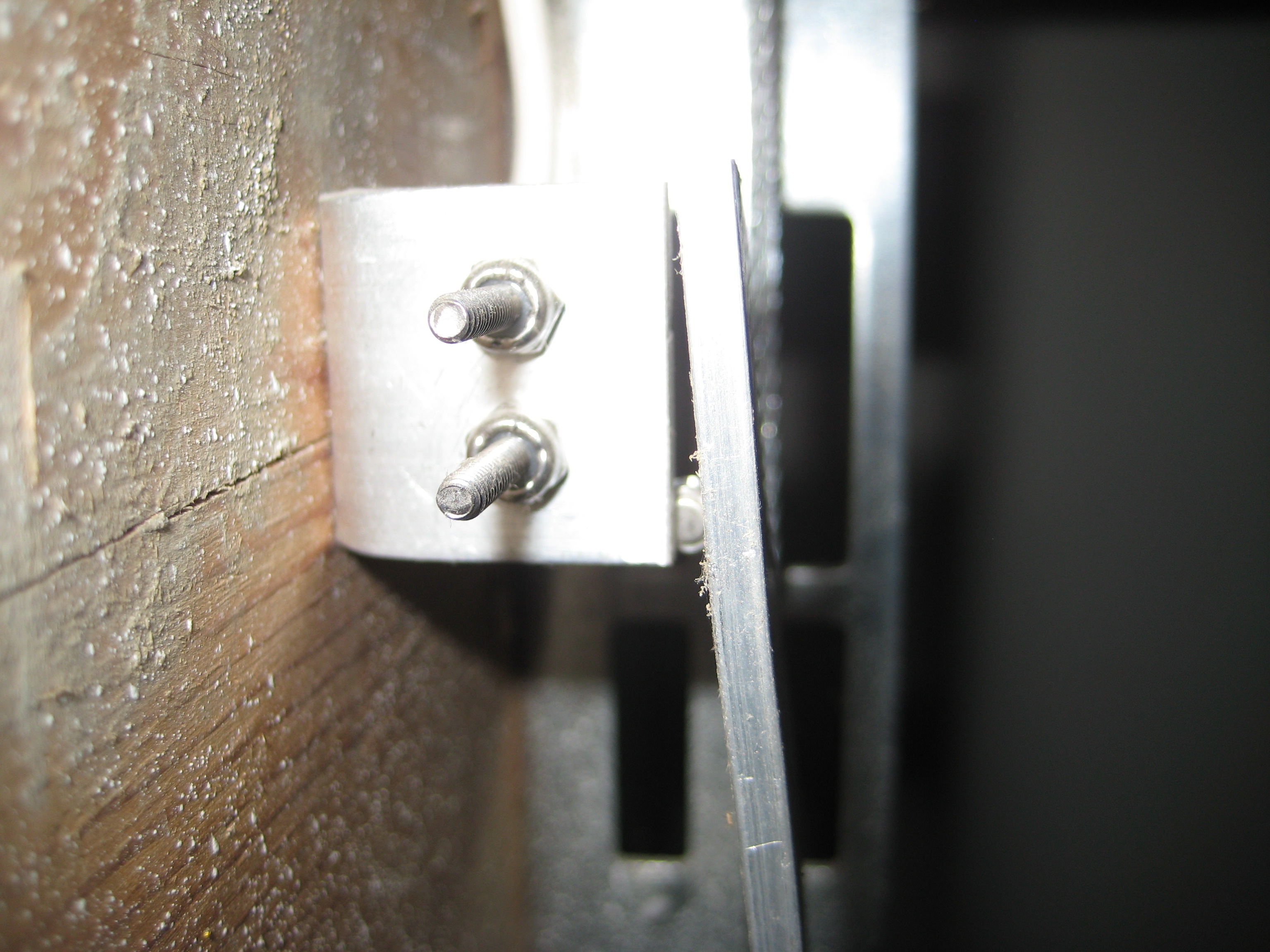

I made the mounting plate for the garage door out of some extra pieces of aluminum that I bent in a vide and then cut off with a hacksaw.  They aren't pretty, but they work great.

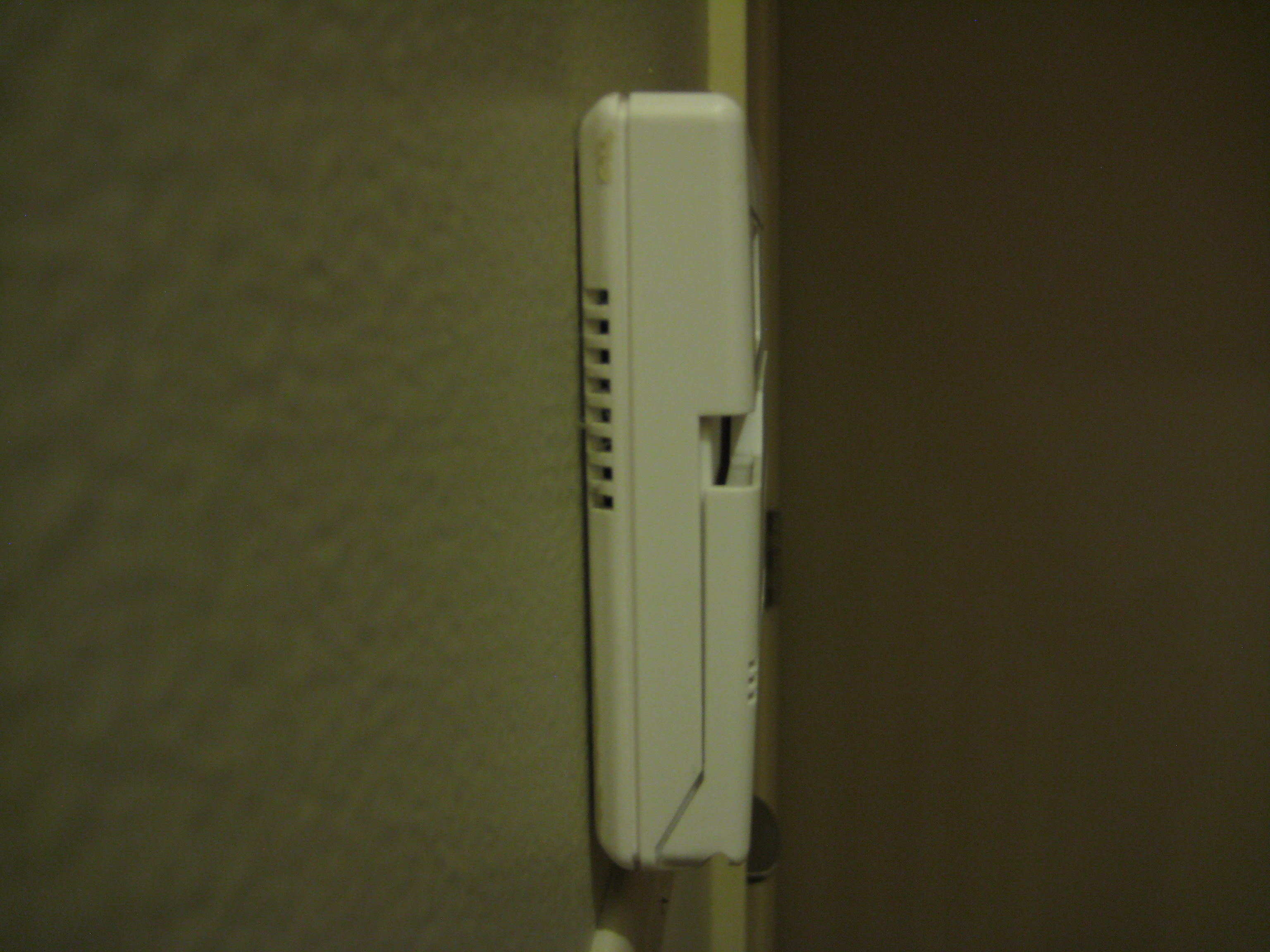

I wanted to put the indicator light in a place that wouldn't be noticeable, but would still be visible.  I decided to put mine in the inside of a security system box.  The location is at the base of my steps so I can see the flashing red light from upstairs.  I can also see it from my kitchen.

The box is also located on a common wall to the garage so I didn't have to run the wires very far.

The security box also has enough room in the back of it to fit the LED and the light can shine out through a few of the vent openings in the side of the box.  When the garage door is closed and the LED isn't flashing then there is no way to see the LED.

Find an outlet somewhere between the switch and the LED where you can plug in a wall transformer to power the LED.  You can also power the LED with a batteries, but if the batteries run out and the garage door is open then there will be no power to light the LED.

I used a cheap 3 volt wall tranformer from left over from another project.

The circuit in the picture below shows the approximate layout for the wiring.  Run the positive lead from the wall transformer to the switch on the garage door.  From the switch run a wire to the resistor for your LED and then the LED.  Then run a wire from the negative lead of the LED to the negative lead of the wall transformer.

Make sure you use a resistor with the LED.  You will need to determine the best resistor for the LED that you are using.  I am not going to go into the specifics on that here as there are tons of tutorials on Instructables and other places on the internet.  Here is a link to an online LED calculator.

If you did everything correct then you should have an LED that lights up when you open your garage door.
